◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#131691) — 106 parça

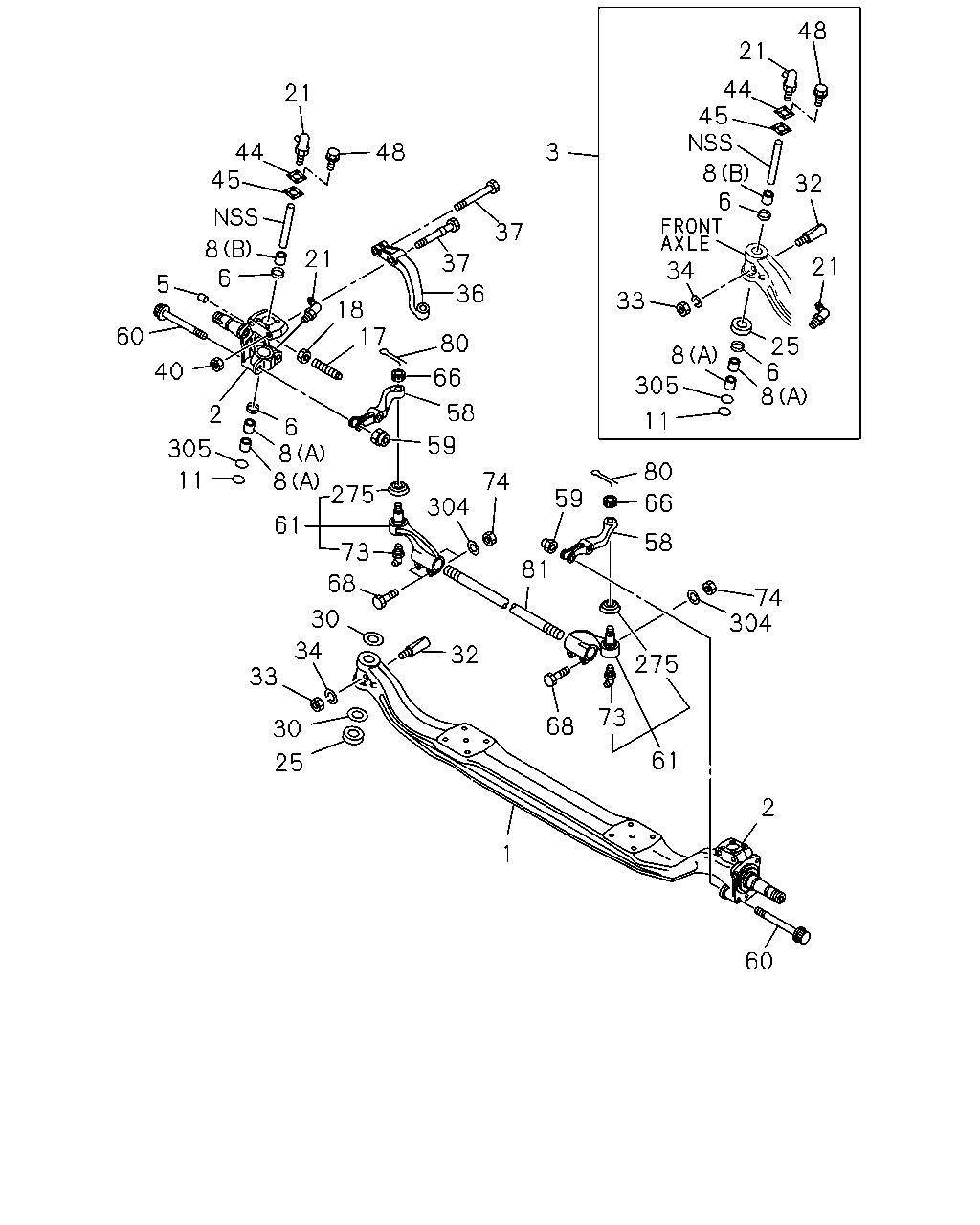

çizim 389214
48 21 44 32 45 8 34 21 33 8 25 6 8 305 11 21 48 3 37 37 36 80 66 58 59 304 74 59 80 66 58 74 304 44 45 8 21 18 17 5 6 60 40 2 305 11 6 8 8 61 275 73 81 32 275 61 2 73 68 1 68 30 34 33 30 25 60 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-113-6 01 1 1312-1403 ●
1 AXLE; FRT 1-43111-113-6 01 1 1404- ● ●
2 KNUCKLE; FRT AXLE 1-43131-079-1 01 1 1312-1403 ●
2 KNUCKLE; FRT AXLE 1-43131-079-1 01 1 1404- ● ●
2 KNUCKLE; FRT AXLE 1-43132-079-1 01 1 1312-1403 ●
2 KNUCKLE; FRT AXLE 1-43132-079-1 01 1 1404- ● ●
3 KING PIN SET 1-87831-302-3 02 1 1312-1403 ●
3 KING PIN SET 1-87831-302-3 02 1 1404- ● ●
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 02 1 1312-1403 ●
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 02 1 1404- ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 1312-1403 ●
6 SEAL; KING PIN 9-09926-024-0 04 1 1404- ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1312-1403 ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1404- ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1312-1403 ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1404- ● ●
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 1312-1403 ●
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 1404- ● ●
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-190-0 02 1 1312-1403 ●
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-190-0 02 1 1404- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M18 IDN 		0-91110-518-0 02 1 1312-1403 ●
18 NUT; STOPPER BOLT,KNUCKLE
M18 IDN 		0-91110-518-0 02 1 1404- ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1312-1403 ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1404- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1312-1403 ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1404- ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1312-1403 ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1404- ● ●
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1312-1403 ●
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1404- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1312-1403 ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1404- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1312-1403 ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1404- ● ●
36 ARM; KNUCKLE 1-43133-063-3 01 1 1312-1403 ●
36 ARM; KNUCKLE 1-43133-063-3 01 1 1404- ● ●
37 BOLT; KNUCKLE ARM
M22X179 		8-98052-380-1 01 1 1312-1403 ●
37 BOLT; KNUCKLE ARM
M22X179 		8-98052-380-1 01 1 1404- ● ●
37 BOLT; KNUCKLE ARM
M22X167 		8-98052-381-1 01 1 1312-1403 ●
37 BOLT; KNUCKLE ARM
M22X167 		8-98052-381-1 01 1 1404- ● ●
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1312-1403 ●
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1404- ● ●
44 COVER; KING PIN 1-43175-014-1 02 1 1312-1403 ●
44 COVER; KING PIN 1-43175-014-1 02 1 1404- ● ●
45 GASKET; KING PIN COVER 1-42319-044-0 02 1 1312-1403 ●
45 GASKET; KING PIN COVER 1-42319-044-0 02 1 1404- ● ●
48 BOLT; COVER
M12X16 FLANGE 		0-28051-216-0 08 1 1312-1403 ●
48 BOLT; COVER
M12X16 FLANGE 		0-28051-216-0 08 1 1404- ● ●
58 ARM; TIE ROD 1-43134-042-3 01 1 1312-1403 ●
58 ARM; TIE ROD 1-43134-042-3 01 1 1404- ● ●
58 ARM; TIE ROD 1-43135-042-3 01 1 1312-1403 ●
58 ARM; TIE ROD 1-43135-042-3 01 1 1404- ● ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1312-1403 ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1404- ● ●
60 BOLT; TIE ROD ARM
M22X193 		8-98052-379-1 04 1 1312-1403 ●
60 BOLT; TIE ROD ARM
M22X193 		8-98052-379-1 04 1 1404- ● ●
61 ROD END; TIE ROD 8-98236-800-0 01 1 1312-1403 ●
61 ROD END; TIE ROD 8-98236-800-0 01 1 1404- ● ●
61 ROD END; TIE ROD 8-98236-801-0 01 1 1312-1403 ●
61 ROD END; TIE ROD 8-98236-801-0 01 1 1404- ● ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1312-1403 ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1404- ● ●
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1312-1403 ●
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1404- ● ●
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1312-1403 ●
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1404- ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1312-1403 ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1404- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1312-1403 ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1404- ● ●
81 ROD; TIE 8-98193-965-0 01 1 1312-1403 ●
81 ROD; TIE 8-98193-965-0 01 1 1404- ● ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1312-1403 ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1404- ● ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 1312-1403 ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 1404- ● ●
305 COVER; KNUCKLE 8-98052-291-0 02 1 1312-1403 ●
305 COVER; KNUCKLE 8-98052-291-0 02 1 1404- ● ●
