4-01 — PROPELLER SHAFT (#131690) — 263 parça

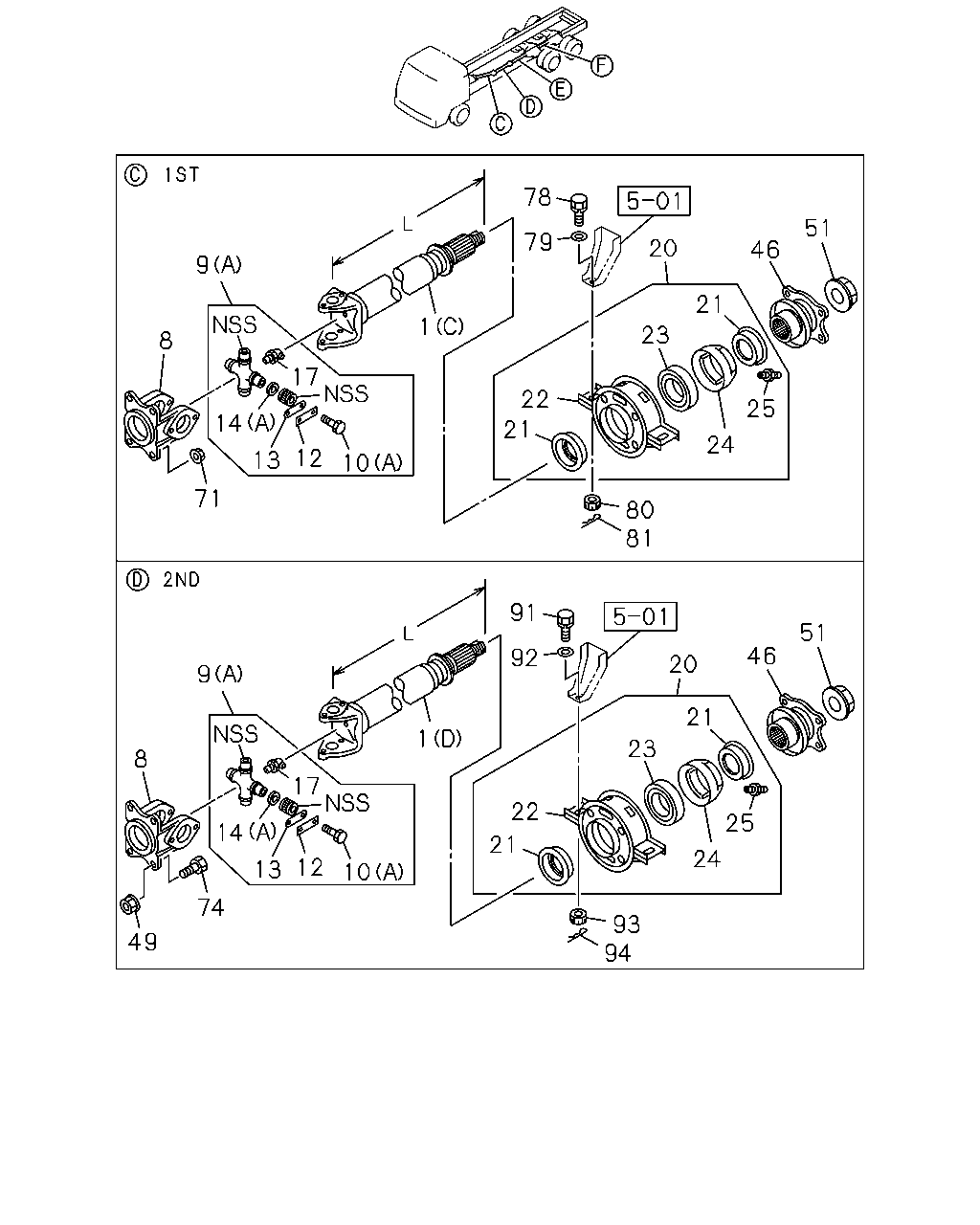

çizim 388764
51 46 25 24 21 23 20 78 79 22 21 80 81 91 92 20 46 51 21 23 25 24 93 94 21 22 1 9 8 49 74 14 17 13 12 10 1 17 8 9 71 14 13 12 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FVZ WIDE CAB(FG****) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		1-37124-496-0 01 1 1402- ●
1 SHAFT; PROP
GVZ WIDE CAB(GG****) (A) L=927 		1-37124-184-0 01 1 1404- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (A) L=1482 		1-37124-132-0 01 1 1312- ●
1 SHAFT; PROP
ZF9S1110 DD M/T(Y5P) (A) L=1407 		1-37124-233-0 01 1 1312- ●
1 SHAFT; PROP
(B) L=1172 		1-37124-182-0 01 1 1312- ●
1 SHAFT; PROP
(C) L=1002 		8-98239-156-0 01 1 1312- ●
1 SHAFT; PROP
(D) L=902 		8-98239-158-0 01 1 1312- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1312-1401 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1402- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 1312- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 1312- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1312-1401 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1312-1401 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1312-1401 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1402- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1402- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1402- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1312-1401 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1402- ● ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 1312-1401 ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 1402- ● ●
10 BOLT; UJT
(B) M12X45 		8-98036-382-0 04 1 1312-1401 ● ●
10 BOLT; UJT
(B) M12X45 		8-98036-382-0 04 1 1402- ● ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 1312- ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 24 1 1312- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1312-1401 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1402- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 08 1 1312- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1312-1401 ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1402- ● ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 08 1 1312- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1312-1401 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1402- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1312-1401 ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1402- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1312- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1312- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1401 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1401 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1312- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 1312- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 1312- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 1312- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 1312- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 1312- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 1312- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1312- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1312- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1312- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1312- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1312- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1312- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 1312- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 1312- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 1312- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1312- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1312- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1312- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 1312- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 1312- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 1312- ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1312- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1312- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1312- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1312- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1312- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1312-1401 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1312-1401 ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) M16X48 		1-09000-383-0 04 1 1312-1401 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1312-1401 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1402- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1402- ● ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) M16X48 		1-09000-383-0 04 1 1402- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1402- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1312- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1312- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1312- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1312- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1312- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1312- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1312- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1312- ●

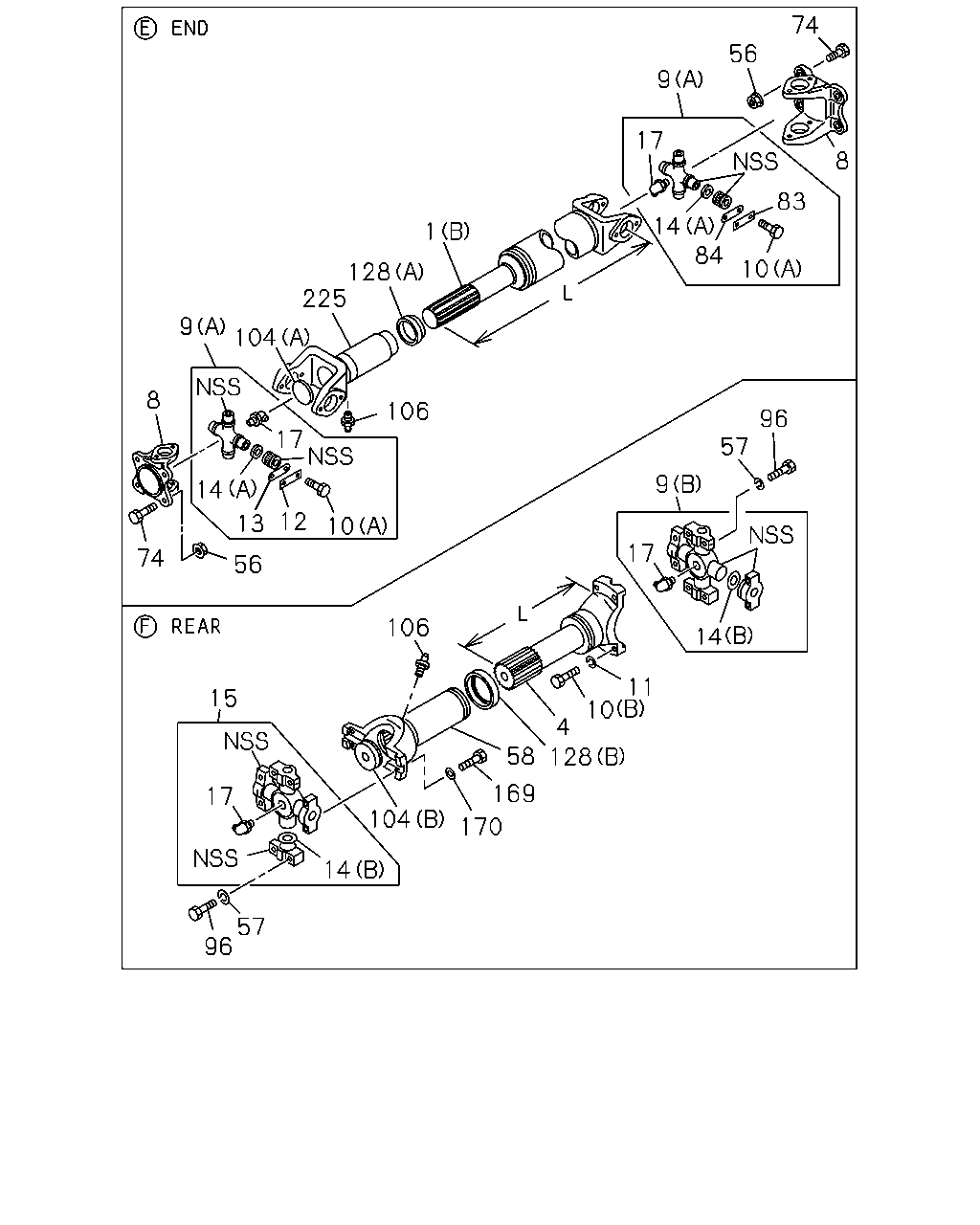

çizim 388872
74 56 9 17 14 84 10 83 8 1 128 225 9 104 8 74 14 17 13 12 10 56 15 17 14 57 96 106 104 170 169 58 128 4 10 11 17 9 57 96 14 106
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FVZ WIDE CAB(FG****) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		1-37124-496-0 01 1 1402- ●
1 SHAFT; PROP
GVZ WIDE CAB(GG****) (A) L=927 		1-37124-184-0 01 1 1404- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (A) L=1482 		1-37124-132-0 01 1 1312- ●
1 SHAFT; PROP
ZF9S1110 DD M/T(Y5P) (A) L=1407 		1-37124-233-0 01 1 1312- ●
1 SHAFT; PROP
(B) L=1172 		1-37124-182-0 01 1 1312- ●
1 SHAFT; PROP
(C) L=1002 		8-98239-156-0 01 1 1312- ●
1 SHAFT; PROP
(D) L=902 		8-98239-158-0 01 1 1312- ●
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1312-1401 ● ●
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1402- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1312-1401 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1402- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 1312- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 1312- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1312-1401 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1312-1401 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1312-1401 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1402- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1402- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1402- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1312-1401 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1402- ● ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 1312-1401 ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 1402- ● ●
10 BOLT; UJT
(B) M12X45 		8-98036-382-0 04 1 1312-1401 ● ●
10 BOLT; UJT
(B) M12X45 		8-98036-382-0 04 1 1402- ● ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 1312- ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 24 1 1312- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1312-1401 ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1402- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1312-1401 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1402- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 08 1 1312- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1312-1401 ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1402- ● ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 08 1 1312- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1312-1401 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1402- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1312-1401 ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1402- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1312- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1312- ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1312-1401 ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1402- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1401 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1401 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1312- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1312-1401 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1312-1401 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1402- ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1402- ● ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1312-1401 ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1402- ● ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1312-1401 ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1402- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1312-1401 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1312-1401 ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) M16X48 		1-09000-383-0 04 1 1312-1401 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1312-1401 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1402- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1402- ● ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) M16X48 		1-09000-383-0 04 1 1402- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1402- ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 1312-1401 ● ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 1402- ● ● ●
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 1312-1401 ● ●
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 1402- ● ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1312-1401 ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1402- ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1312-1401 ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1402- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1312-1401 ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1402- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1312-1401 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1312-1401 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1402- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1402- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1312-1401 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1402- ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1312-1401 ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1402- ● ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1312-1401 ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1402- ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1312-1401 ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1402- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1312-1401 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1402- ● ● ●

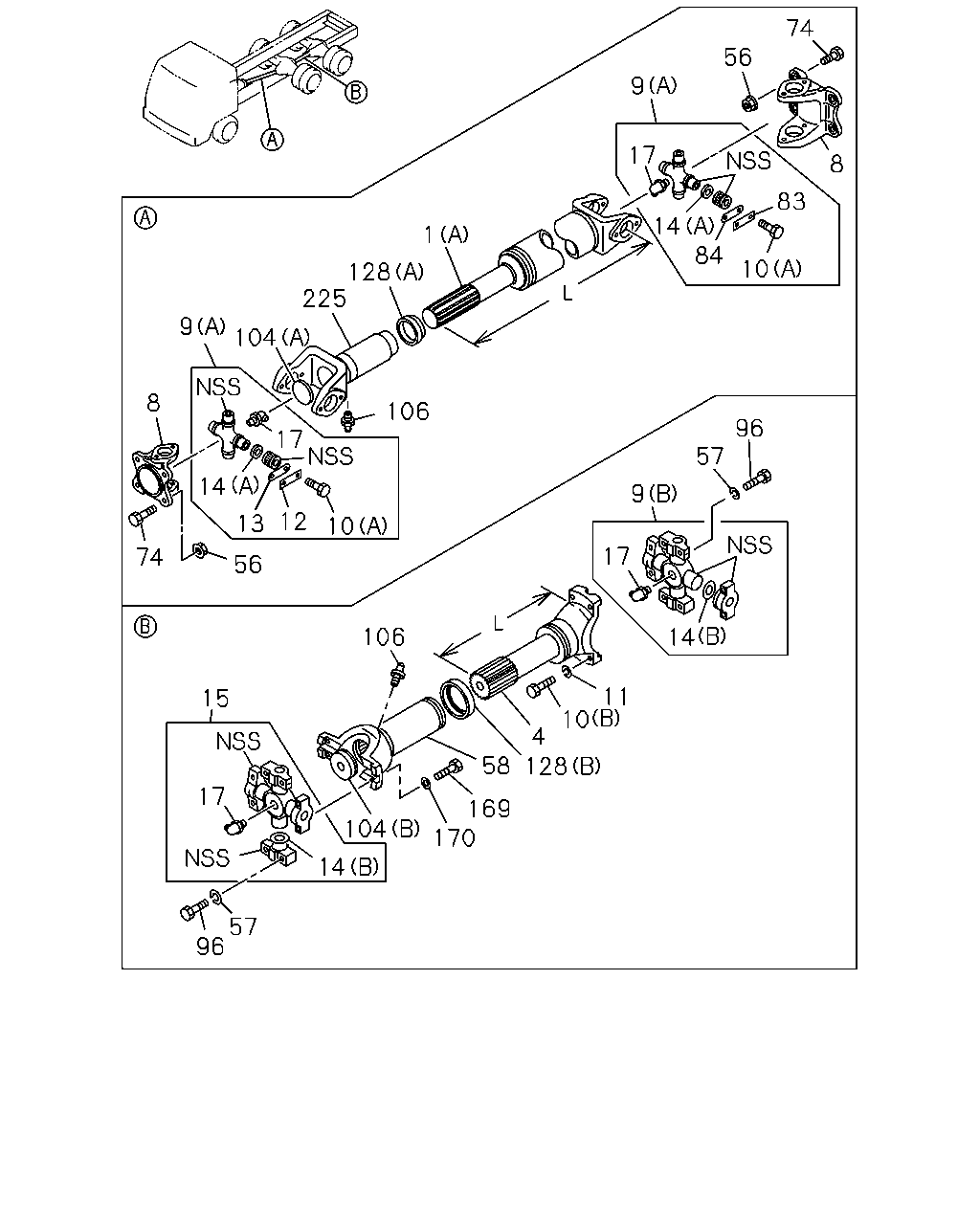

çizim 389113
74 56 8 83 10 84 14 17 9 1 128 225 106 104 9 8 17 14 13 12 10 56 74 96 57 9 17 14 11 10 4 128 58 169 170 104 106 15 17 14 57 96
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FVZ WIDE CAB(FG****) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		1-37124-496-0 01 1 1402- ●
1 SHAFT; PROP
GVZ WIDE CAB(GG****) (A) L=927 		1-37124-184-0 01 1 1404- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (A) L=1482 		1-37124-132-0 01 1 1312- ●
1 SHAFT; PROP
ZF9S1110 DD M/T(Y5P) (A) L=1407 		1-37124-233-0 01 1 1312- ●
1 SHAFT; PROP
(B) L=1172 		1-37124-182-0 01 1 1312- ●
1 SHAFT; PROP
(C) L=1002 		8-98239-156-0 01 1 1312- ●
1 SHAFT; PROP
(D) L=902 		8-98239-158-0 01 1 1312- ●
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1312-1401 ● ●
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1402- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1312-1401 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1402- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 1312- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 1312- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1312-1401 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1312-1401 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1312-1401 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1402- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1402- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1402- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1312-1401 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1402- ● ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 1312-1401 ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 1402- ● ●
10 BOLT; UJT
(B) M12X45 		8-98036-382-0 04 1 1312-1401 ● ●
10 BOLT; UJT
(B) M12X45 		8-98036-382-0 04 1 1402- ● ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 1312- ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 24 1 1312- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1312-1401 ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1402- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1312-1401 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1402- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 08 1 1312- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1312-1401 ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1402- ● ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 08 1 1312- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1312-1401 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1402- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1312-1401 ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1402- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1312- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1312- ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1312-1401 ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1402- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1401 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1401 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1312- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1312-1401 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1312-1401 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1402- ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1402- ● ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1312-1401 ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1402- ● ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1312-1401 ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1402- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1312-1401 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1312-1401 ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) M16X48 		1-09000-383-0 04 1 1312-1401 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1312-1401 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1402- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1402- ● ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) M16X48 		1-09000-383-0 04 1 1402- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1402- ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 1312-1401 ● ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 1402- ● ● ●
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 1312-1401 ● ●
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 1402- ● ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1312-1401 ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1402- ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1312-1401 ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1402- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1312-1401 ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1402- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1312-1401 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1312-1401 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1402- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1402- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1312-1401 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1402- ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1312-1401 ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1402- ● ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1312-1401 ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1402- ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1312-1401 ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1402- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1312-1401 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1402- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
