◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#131689) — 154 parça

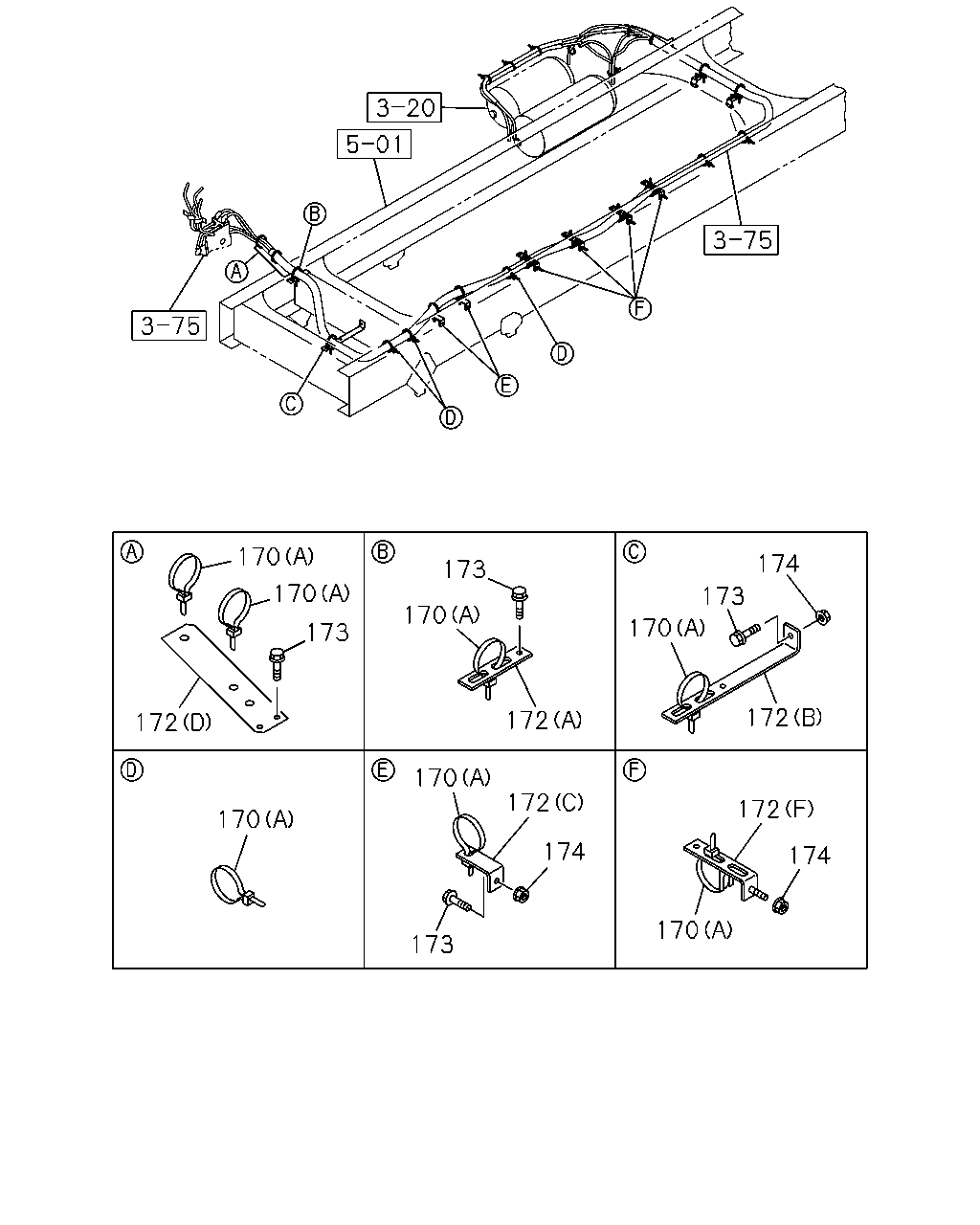

çizim 388495
173 170 172 174 172 170 174 172 174 170 173 170 172 173 170 170 173 170 172
BalonParca AdiParca NoAdetTipApplied Date A B
170 CLIP; NYLON TUBE
MIXER CHASSIS<6NR> (A) L=350 		1-09707-183-0 34 1 1402- ●
170 CLIP; NYLON TUBE
MIXER CHASSIS<6NR> (B) ID=12 & 12 		1-09709-280-1 01 1 1402- ●
170 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 29 1 1404- ●
170 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 27 1 1312-1401 ●
170 CLIP; NYLON TUBE
EXC. MIXER CHASSIS<6NR> (A) L=350 		1-09707-183-0 27 1 1402- ●
172 BRACKET; TUBE CLIP
(A) 		1-47477-514-3 01 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(A) 		1-47477-514-3 01 1 1404- ● ●
172 BRACKET; TUBE CLIP
(B) L=225 		1-47477-646-3 01 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(B) L=225 		1-47477-646-3 01 1 1404- ● ●
172 BRACKET; TUBE CLIP
(C) L=60 H=30 		1-47477-716-1 02 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(C) L=60 H=30 		1-47477-716-1 02 1 1404- ● ●
172 BRACKET; TUBE CLIP
(D) 		8-98031-420-2 01 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(D) 		8-98031-420-2 01 1 1404- ● ●
172 BRACKET; TUBE CLIP
(E) 		8-98047-730-0 02 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(E) 		8-98047-730-0 02 1 1404- ● ●
172 BRACKET; TUBE CLIP
(F) 		8-98177-873-0 04 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(F) 		8-98177-873-0 04 1 1404- ● ●
172 BRACKET; TUBE CLIP
(G) IDN 		8-98184-177-0 01 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(G) IDN 		8-98184-177-0 01 1 1404- ● ●
173 BOLT; CLIP BRKT
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-1403 ●
173 BOLT; CLIP BRKT
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1404- ● ●
173 BOLT; CLIP BRKT
M8X25 FLANGE IDN 		0-28650-825-0 02 1 1312-1403 ●
173 BOLT; CLIP BRKT
M8X25 FLANGE IDN 		0-28650-825-0 02 1 1404- ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 1312-1403 ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 1404- ● ●
174 NUT; CLIP BRKT
M8 FLANGE IDN 		0-91180-108-0 11 1 1312-1403 ●
174 NUT; CLIP BRKT
M8 FLANGE IDN 		0-91180-108-0 11 1 1404- ● ●

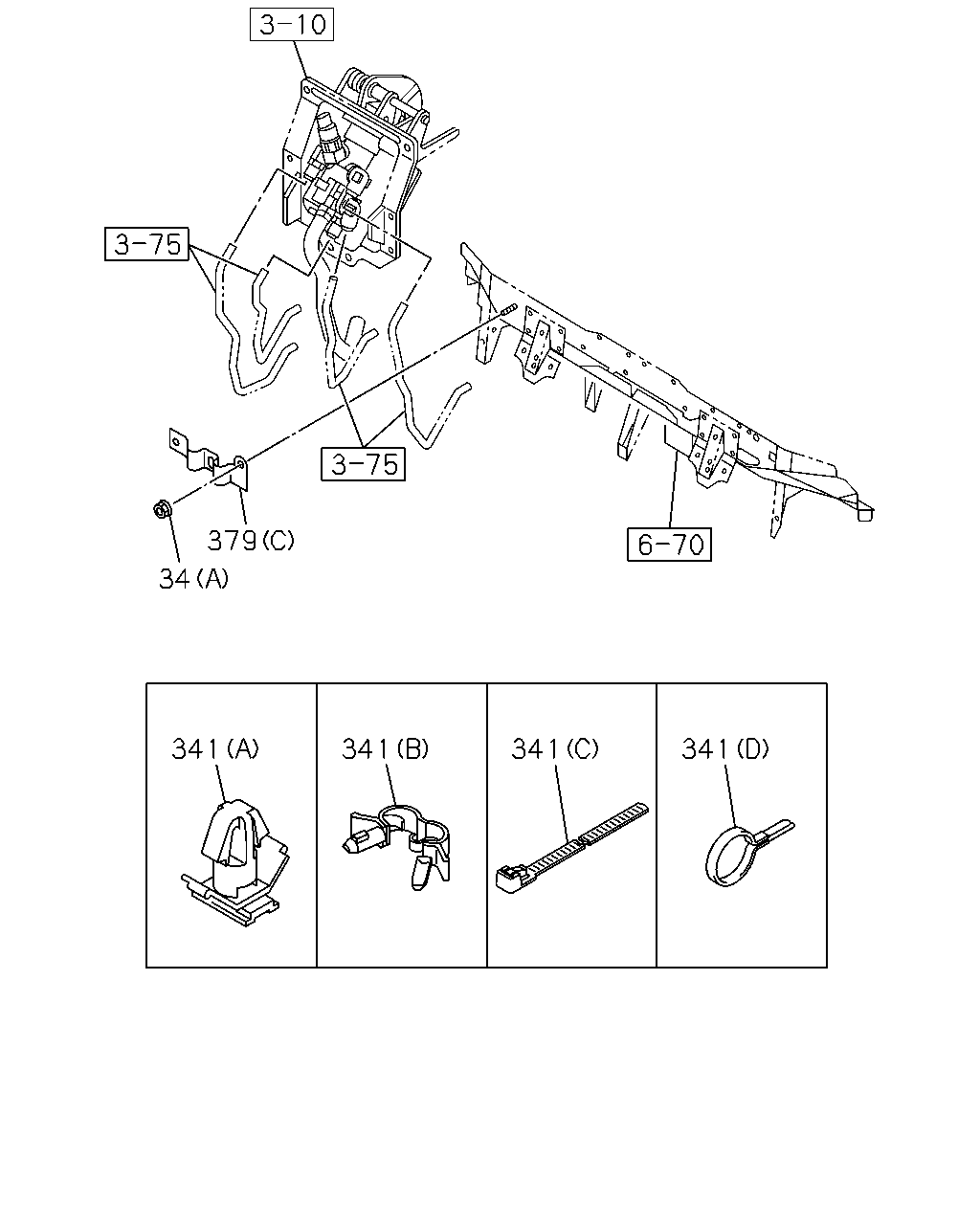

çizim 388734
341 341 341 341 379 34
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
(B) M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ●
34 NUT; BRKT
(A) M6 FLANGE IDN 		0-91180-106-0 02 1 1312-1403 ●
34 NUT; BRKT
(A) M6 FLANGE IDN 		0-91180-106-0 02 1 1404- ● ●
34 NUT; BRKT
(B) M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1403 ●
34 NUT; BRKT
(B) M8 FLANGE IDN 		0-91180-108-0 02 1 1404- ● ●
341 CLIP; HARNESS
MIXER CHASSIS<6NR> (C) L=250 IDN 		5-09707-030-1 01 1 1402- ●
341 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1312-1403 ●
341 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1404- ● ●
341 CLIP; HARNESS
(B) ID=5-12 L=26 		1-09709-289-0 03 1 1312-1401 ●
341 CLIP; HARNESS
EXC. MIXER CHASSIS<6NR> (B) ID=5-12 L=26 		1-09709-289-0 03 1 1402- ●
341 CLIP; HARNESS
(C) L=250 IDN 		5-09707-030-1 04 1 1312-1403 ●
341 CLIP; HARNESS
(C) L=250 IDN 		5-09707-030-1 04 1 1404- ● ●
341 CLIP; HARNESS
(D) ID=14 L=44 		9-09917-427-0 04 1 1312-1401 ●
341 CLIP; HARNESS
EXC. MIXER CHASSIS<6NR> (D) ID=14 L=44 		9-09917-427-0 04 1 1402- ●
379 BRACKET; NYLON TUBE
WHEEL BASE 4700MM(47W) (A) L=150 H=30 IDN 		1-47477-629-2 01 1 1402- ●
379 BRACKET; NYLON TUBE
(B) L=60 H=30 		1-47477-716-1 03 1 1404- ●
379 BRACKET; NYLON TUBE
(B) L=60 H=30 		1-47477-716-1 02 1 1312- ●
379 BRACKET; NYLON TUBE
(C) 		8-98044-013-0 01 1 1312-1403 ●
379 BRACKET; NYLON TUBE
(C) 		8-98044-013-0 01 1 1404- ● ●
379 BRACKET; NYLON TUBE
WHEEL BASE 5300MM(53W) (A) L=100 H=30 		1-47477-645-2 01 1 1312-1401 ●
379 BRACKET; NYLON TUBE
WHEEL BASE 4700MM(47W),WHEEL BASE 5300MM(53W) (A) L=100 H=30 		1-47477-645-2 01 1 1402-1403 ●
379 BRACKET; NYLON TUBE
WHEEL BASE 4700MM(47W),WHEEL BASE 5300MM(53W) (A) L=100 H=30 		1-47477-645-2 01 1 1404- ●
379 BRACKET; NYLON TUBE
(A) L=100 H=30 		1-47477-645-2 01 1 1404- ●
379 BRACKET; NYLON TUBE
WHEEL BASE 5300MM(53W) (E) 		8-98119-184-1 01 1 1312- ●
379 BRACKET; NYLON TUBE
WHEEL BASE 7100MM(71W) (D) L=90 		1-47477-755-1 01 1 1312- ●

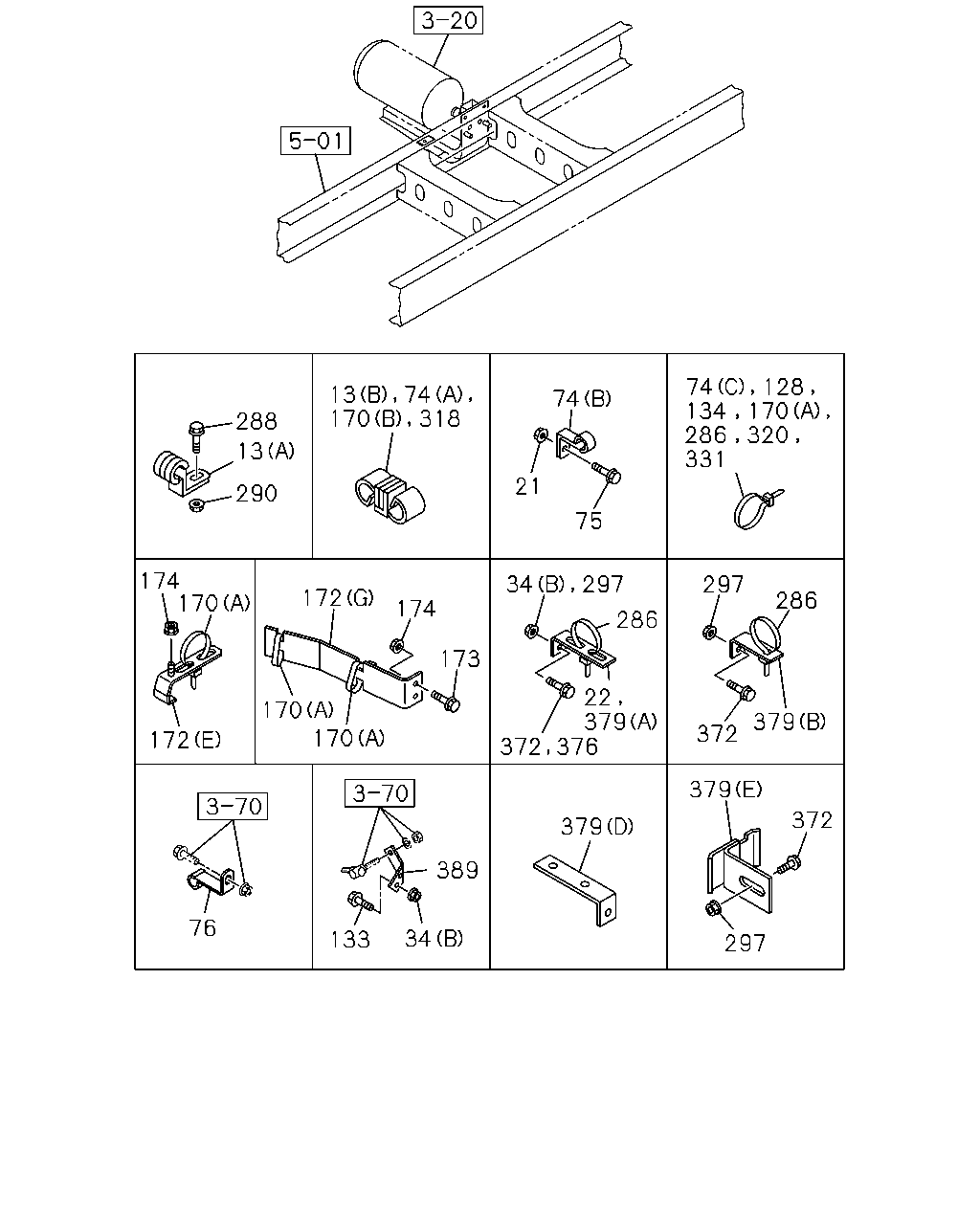

çizim 389100
288 13 290 13 170 74 318 74 21 75 74 128 134 170 286 320 331 174 170 172 172 174 173 170 170 34 297 286 22 379 372 376 297 286 379 372 379 372 297 379 389 34 133 76
BalonParca AdiParca NoAdetTipApplied Date A B
13 CLIP; AIR PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 01 1 1404- ●
13 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1312-1403 ●
13 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1404- ● ●
13 CLIP; AIR PIPE
(B) ID=6.35 & 15 		1-09709-276-1 01 1 1312-1403 ●
13 CLIP; AIR PIPE
(B) ID=6.35 & 15 		1-09709-276-1 01 1 1404- ● ●
21 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1403 ●
21 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ● ●
22 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 01 1 1404- ●
34 NUT; BRKT
(B) M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ●
34 NUT; BRKT
(A) M6 FLANGE IDN 		0-91180-106-0 02 1 1312-1403 ●
34 NUT; BRKT
(A) M6 FLANGE IDN 		0-91180-106-0 02 1 1404- ● ●
34 NUT; BRKT
(B) M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1403 ●
34 NUT; BRKT
(B) M8 FLANGE IDN 		0-91180-108-0 02 1 1404- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 4700MM(47W) (C) L=350 		1-09707-183-0 02 1 1402-1403 ●
74 CLIP; NYLON TUBE
WHEEL BASE 4700MM(47W) (C) L=350 		1-09707-183-0 02 1 1404- ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 02 1 1404- ●
74 CLIP; NYLON TUBE
(B) ID=13 H=50 L=25 		1-09700-529-0 01 1 1312-1403 ●
74 CLIP; NYLON TUBE
(B) ID=13 H=50 L=25 		1-09700-529-0 01 1 1404- ● ●
74 CLIP; NYLON TUBE
(A) ID=12 & 15 		1-09709-281-1 01 1 1312-1403 ●
74 CLIP; NYLON TUBE
(A) ID=12 & 15 		1-09709-281-1 01 1 1404- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 5300MM(53W) (C) L=350 		1-09707-183-0 05 1 1312- ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (C) L=350 		1-09707-183-0 09 1 1312- ●
75 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-1403 ●
75 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ● ●
76 CLIP; NYLON TUBE
ID=13 H=50 L=25 		1-09700-529-0 01 1 1312-1403 ●
76 CLIP; NYLON TUBE
ID=13 H=50 L=25 		1-09700-529-0 01 1 1404- ● ●
128 CLIP; NYLON TUBE
MIXER CHASSIS<6NR> L=350 		1-09707-183-0 02 1 1402- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1312-1401 ●
128 CLIP; NYLON TUBE
EXC. MIXER CHASSIS<6NR> L=350 		1-09707-183-0 01 1 1402-1403 ●
128 CLIP; NYLON TUBE
EXC. MIXER CHASSIS<6NR> L=350 		1-09707-183-0 01 1 1404- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1404- ●
133 BOLT; BRKT
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-1403 ●
133 BOLT; BRKT
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1404- ● ●
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1312-1403 ●
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1404- ● ●
170 CLIP; NYLON TUBE
MIXER CHASSIS<6NR> (A) L=350 		1-09707-183-0 34 1 1402- ●
170 CLIP; NYLON TUBE
MIXER CHASSIS<6NR> (B) ID=12 & 12 		1-09709-280-1 01 1 1402- ●
170 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 29 1 1404- ●
170 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 27 1 1312-1401 ●
170 CLIP; NYLON TUBE
EXC. MIXER CHASSIS<6NR> (A) L=350 		1-09707-183-0 27 1 1402- ●
172 BRACKET; TUBE CLIP
(A) 		1-47477-514-3 01 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(A) 		1-47477-514-3 01 1 1404- ● ●
172 BRACKET; TUBE CLIP
(B) L=225 		1-47477-646-3 01 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(B) L=225 		1-47477-646-3 01 1 1404- ● ●
172 BRACKET; TUBE CLIP
(C) L=60 H=30 		1-47477-716-1 02 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(C) L=60 H=30 		1-47477-716-1 02 1 1404- ● ●
172 BRACKET; TUBE CLIP
(D) 		8-98031-420-2 01 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(D) 		8-98031-420-2 01 1 1404- ● ●
172 BRACKET; TUBE CLIP
(E) 		8-98047-730-0 02 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(E) 		8-98047-730-0 02 1 1404- ● ●
172 BRACKET; TUBE CLIP
(F) 		8-98177-873-0 04 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(F) 		8-98177-873-0 04 1 1404- ● ●
172 BRACKET; TUBE CLIP
(G) IDN 		8-98184-177-0 01 1 1312-1403 ●
172 BRACKET; TUBE CLIP
(G) IDN 		8-98184-177-0 01 1 1404- ● ●
173 BOLT; CLIP BRKT
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-1403 ●
173 BOLT; CLIP BRKT
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1404- ● ●
173 BOLT; CLIP BRKT
M8X25 FLANGE IDN 		0-28650-825-0 02 1 1312-1403 ●
173 BOLT; CLIP BRKT
M8X25 FLANGE IDN 		0-28650-825-0 02 1 1404- ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 1312-1403 ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 1404- ● ●
174 NUT; CLIP BRKT
M8 FLANGE IDN 		0-91180-108-0 11 1 1312-1403 ●
174 NUT; CLIP BRKT
M8 FLANGE IDN 		0-91180-108-0 11 1 1404- ● ●
286 CLIP; NYLON TUBE
MIXER CHASSIS<6NR> L=350 		1-09707-183-0 05 1 1402- ●
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 06 1 1404- ●
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 04 1 1312-1401 ●
286 CLIP; NYLON TUBE
EXC. MIXER CHASSIS<6NR> L=350 		1-09707-183-0 04 1 1402- ●
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-1403 ●
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ● ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1403 ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ● ●
297 NUT; BRKT
WHEEL BASE 5300MM(53W) M8 FLANGE IDN 		0-91180-108-0 04 1 1312-1401 ●
297 NUT; BRKT
WHEEL BASE 4700MM(47W),WHEEL BASE 5300MM(53W) M8 FLANGE IDN 		0-91180-108-0 04 1 1402-1403 ●
297 NUT; BRKT
WHEEL BASE 4700MM(47W),WHEEL BASE 5300MM(53W) M8 FLANGE IDN 		0-91180-108-0 04 1 1404- ●
297 NUT; BRKT
M8 FLANGE IDN 		0-91180-108-0 04 1 1404- ●
297 NUT; BRKT
WHEEL BASE 7100MM(71W) M8 FLANGE IDN 		0-91180-108-0 03 1 1312- ●
318 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 05 1 1312-1403 ●
318 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 05 1 1404- ● ●
320 CLIP; BAND,FLEX FIX
L=250 IDN 		5-09707-030-1 01 1 1312-1403 ●
320 CLIP; BAND,FLEX FIX
L=250 IDN 		5-09707-030-1 01 1 1404- ● ●
331 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1312-1403 ●
331 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1404- ● ●
372 BOLT; CLIP BRKT
WHEEL BASE 4700MM(47W) M8X30 FLANGE 		0-28650-830-0 04 1 1402- ●
372 BOLT; CLIP BRKT
WHEEL BASE 5300MM(53W),WHEEL BASE 7100MM(71W) M8X30 FLANGE 		0-28650-830-0 03 1 1312-1403 ●
372 BOLT; CLIP BRKT
WHEEL BASE 5300MM(53W),WHEEL BASE 7100MM(71W) M8X30 FLANGE 		0-28650-830-0 03 1 1404- ●
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1404- ●
372 BOLT; CLIP BRKT
WHEEL BASE 5300MM(53W) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1312-1403 ●
372 BOLT; CLIP BRKT
WHEEL BASE 5300MM(53W) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1404- ●
372 BOLT; CLIP BRKT
M8X25 FLANGE IDN 		0-28650-825-0 01 1 1404- ●
376 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1404- ●
379 BRACKET; NYLON TUBE
WHEEL BASE 4700MM(47W) (A) L=150 H=30 IDN 		1-47477-629-2 01 1 1402- ●
379 BRACKET; NYLON TUBE
(B) L=60 H=30 		1-47477-716-1 03 1 1404- ●
379 BRACKET; NYLON TUBE
(B) L=60 H=30 		1-47477-716-1 02 1 1312- ●
379 BRACKET; NYLON TUBE
(C) 		8-98044-013-0 01 1 1312-1403 ●
379 BRACKET; NYLON TUBE
(C) 		8-98044-013-0 01 1 1404- ● ●
379 BRACKET; NYLON TUBE
WHEEL BASE 5300MM(53W) (A) L=100 H=30 		1-47477-645-2 01 1 1312-1401 ●
379 BRACKET; NYLON TUBE
WHEEL BASE 4700MM(47W),WHEEL BASE 5300MM(53W) (A) L=100 H=30 		1-47477-645-2 01 1 1402-1403 ●
379 BRACKET; NYLON TUBE
WHEEL BASE 4700MM(47W),WHEEL BASE 5300MM(53W) (A) L=100 H=30 		1-47477-645-2 01 1 1404- ●
379 BRACKET; NYLON TUBE
(A) L=100 H=30 		1-47477-645-2 01 1 1404- ●
379 BRACKET; NYLON TUBE
WHEEL BASE 5300MM(53W) (E) 		8-98119-184-1 01 1 1312- ●
379 BRACKET; NYLON TUBE
WHEEL BASE 7100MM(71W) (D) L=90 		1-47477-755-1 01 1 1312- ●
389 BRACKET; UNION 1-47471-363-0 01 1 1312-1403 ●
389 BRACKET; UNION 1-47471-363-0 01 1 1404- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
