3-70 — BRAKE PIPING; AIR,AIR MASTER (#131686) — 78 parça

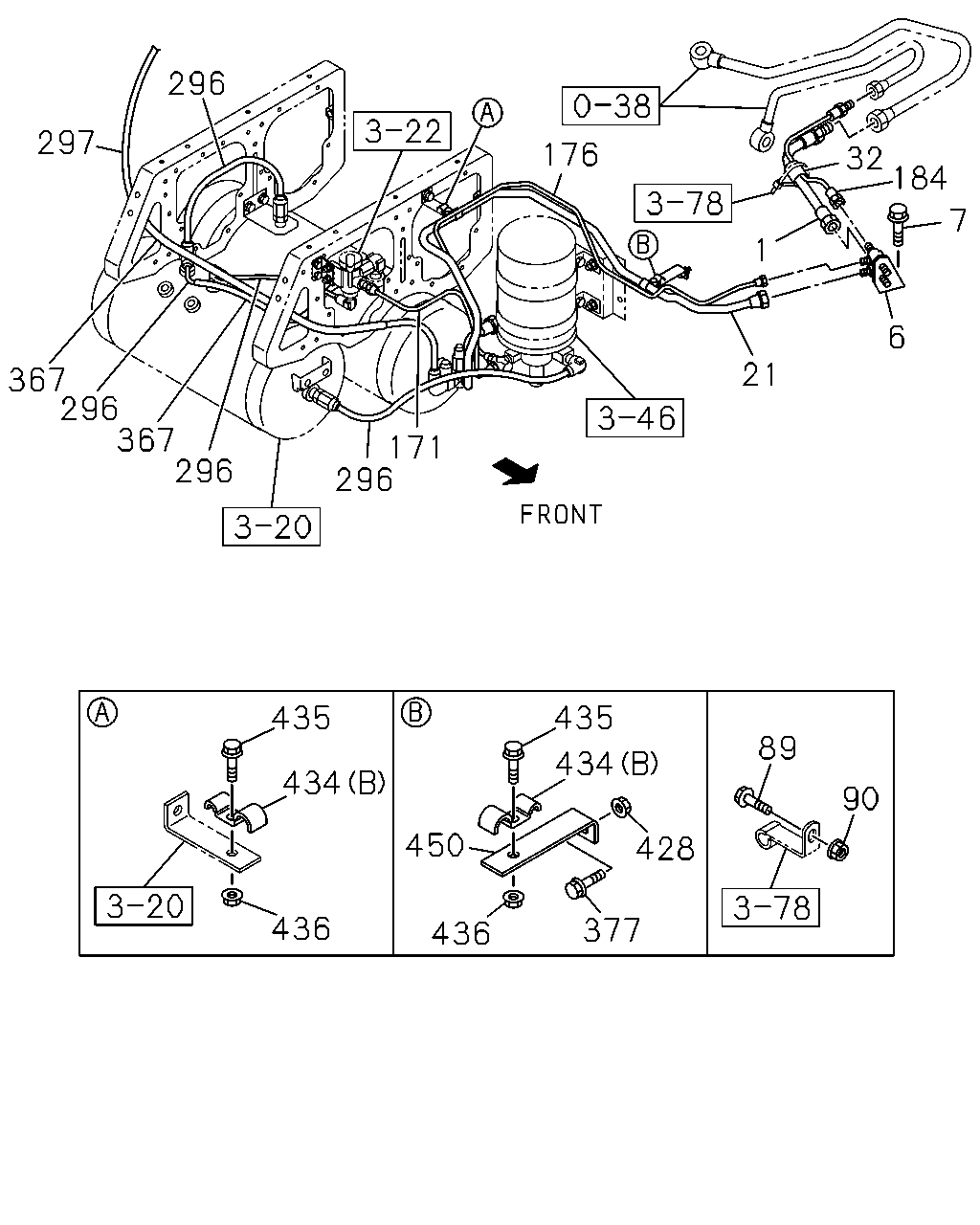

çizim 388481
1 32 184 7 6 21 176 171 296 296 297 367 296 367 296 435 434 436 450 436 435 434 428 377 89 90
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) L=320 		8-98067-411-0 01 1 1402- ●
1 HOSE; FLEX,AIR TANK
L=310 		8-97607-730-0 01 1 1312-1401 ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=310 		8-97607-730-0 01 1 1402-1403 ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=310 		8-97607-730-0 01 1 1404- ●
1 HOSE; FLEX,AIR TANK
L=310 		8-97607-730-0 01 1 1404- ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98117-117-0 01 1 1312-1403 ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98117-117-0 01 1 1404- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1312-1403 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1404- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1713 IDN 		8-98189-194-0 01 1 1312-1403 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1713 IDN 		8-98189-194-0 01 1 1404- ● ●
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1312-1403 ●
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1404- ● ●
89 BOLT; TUBE CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-1403 ●
89 BOLT; TUBE CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ● ●
90 NUT; TUBE CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1403 ●
90 NUT; TUBE CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
L=515 SERVICED BY L=550 		1-47428-808-0 01 1 1312-1403 ●
171 PIPE; AIR,GOV TO AIR DRYER
L=515 SERVICED BY L=550 		1-47428-808-0 01 1 1404- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1427 SERVICED BY L=1500 		1-47428-819-0 01 1 1312-1403 ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1427 SERVICED BY L=1500 		1-47428-819-0 01 1 1404- ● ●
184 HOSE; FLEX,AIR GOV
POWER TAKE OFF-FLYWHEEL(6SZ) L=320 		1-09363-656-0 01 1 1402- ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-624-0 01 1 1312-1401 ●
184 HOSE; FLEX,AIR GOV
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=350 		1-09363-624-0 01 1 1402-1403 ●
184 HOSE; FLEX,AIR GOV
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=350 		1-09363-624-0 01 1 1404- ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-624-0 01 1 1404- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1312- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1312- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1312- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1312- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1312- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1312- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1312- ● ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1312-1403 ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1404- ● ●
428 NUT; BRKT
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1403 ●
428 NUT; BRKT
M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ● ●
434 CLIP
(B) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1312-1403 ●
434 CLIP
(B) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1404- ● ●
434 CLIP
ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> (A) L=350 		1-09707-183-0 03 1 1312- ●
435 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-1403 ●
435 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1404- ● ●
436 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1403 ●
436 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 02 1 1404- ● ●
450 BRACKET; CLIP
L=115 B=25 		1-47476-758-0 01 1 1312-1403 ●
450 BRACKET; CLIP
L=115 B=25 		1-47476-758-0 01 1 1404- ● ●

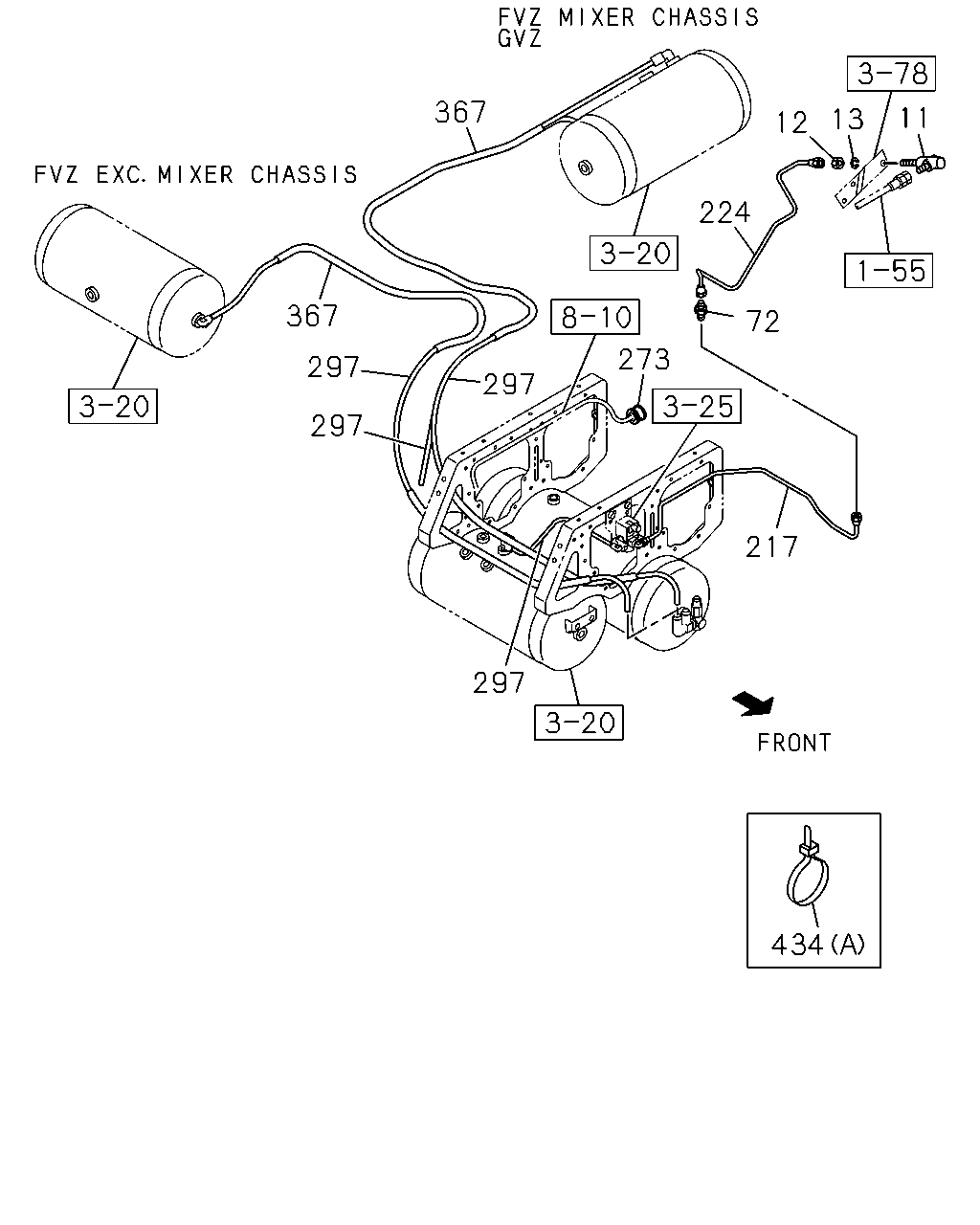

çizim 388566
11 13 12 224 72 217 273 367 297 297 297 297 367 434
BalonParca AdiParca NoAdetTipApplied Date A B
11 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1312-1403 ●
11 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1404- ● ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 1312-1403 ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 1404- ● ●
13 WASHER; LK,UNION
ID=12.2 		0-91510-812-0 01 1 1312-1403 ●
13 WASHER; LK,UNION
ID=12.2 		0-91510-812-0 01 1 1404- ● ●
72 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1312-1403 ●
72 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1404- ● ●
217 PIPE; VAC,UNION TO MAG VLV
L=954 SERVICED BY L=1000 		1-47428-814-0 01 1 1312-1403 ●
217 PIPE; VAC,UNION TO MAG VLV
L=954 SERVICED BY L=1000 		1-47428-814-0 01 1 1404- ● ●
224 PIPE; AIR,UNION TO FLEX HOSE
L=720 SERVICED BY L=800 		1-47428-812-0 01 1 1312-1403 ●
224 PIPE; AIR,UNION TO FLEX HOSE
L=720 SERVICED BY L=800 		1-47428-812-0 01 1 1404- ● ●
273 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1312-1403 ●
273 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1404- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1312- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1312- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1312- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1312- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1312- ● ●
434 CLIP
(B) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1312-1403 ●
434 CLIP
(B) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1404- ● ●
434 CLIP
ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> (A) L=350 		1-09707-183-0 03 1 1312- ●
çizim 413660
367 296 229 229 297 258
BalonParca AdiParca NoAdetTipApplied Date A B
229 ADAPTER; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1404- ●
229 ADAPTER; NYLON TUBE
FULLER ES11109 DD M/T(Y5N) (A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1312- ●
258 CONNECTOR; NYLON TUBE
FULLER ES11109 DD M/T(Y5N) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1312- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1312- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1312- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1312- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1312- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1312- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1312- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1312- ● ●
