Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11567 - FVZ/GVZ(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#131685) — 30 parça
Tümü
A - GGZ5MV
B - FGZ5MV
◀

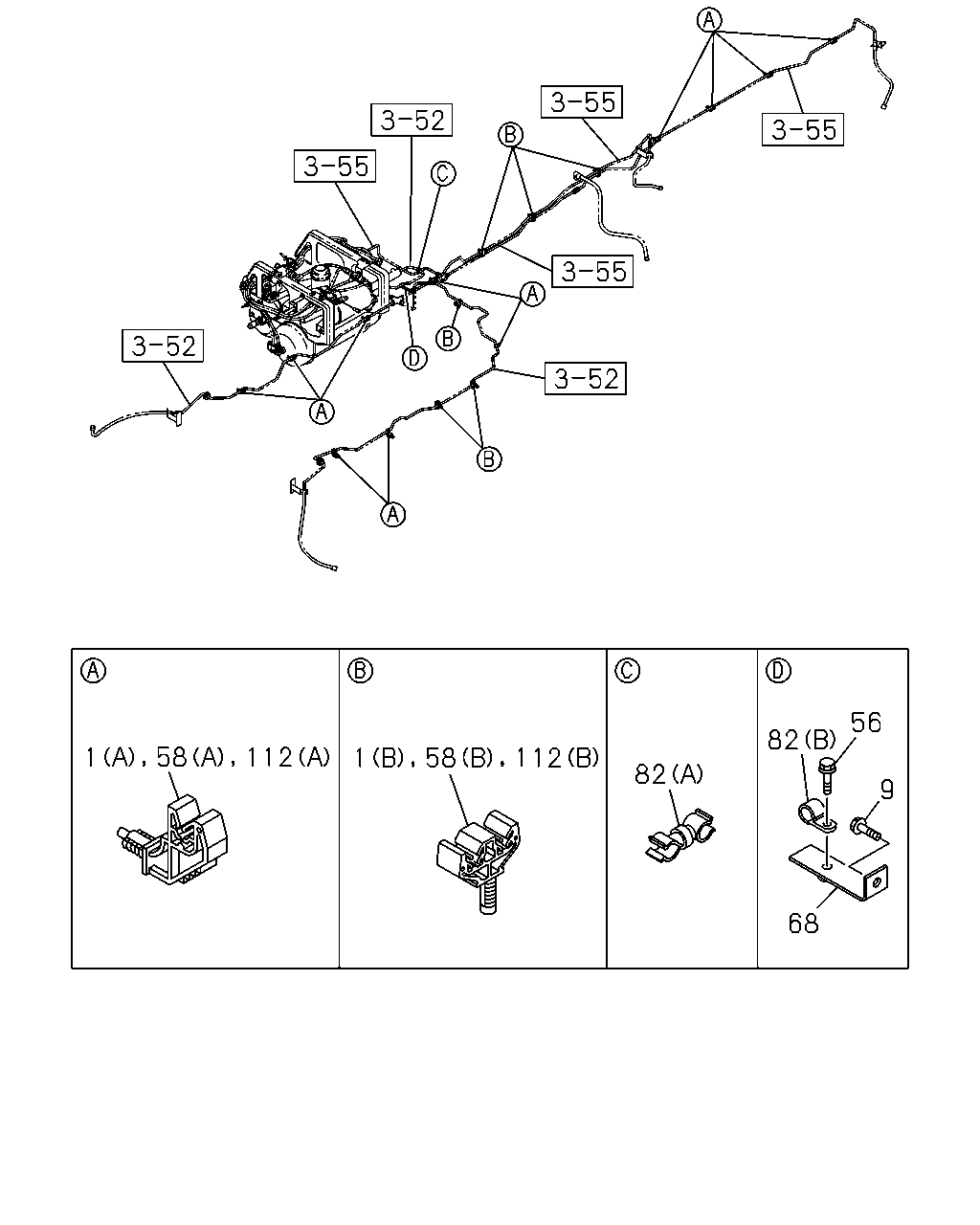

[358A] NO.1 (20 parça)
[358A] NO.2 (10 parça)
▶
1
58
112
1
58
112
82
82
56
9
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLIP; OIL PIPE TO BODY
(A) ID=6.35
1-09701-247-1
06
1
1404-
●
1
CLIP; OIL PIPE TO BODY
(B)
8-98012-254-1
03
1
1404-
●
1
CLIP; OIL PIPE TO BODY
(A) ID=6.35
1-09701-247-1
10
1
1312-
●
1
CLIP; OIL PIPE TO BODY
(B)
8-98012-254-1
01
1
1312-
●
9
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
1404-
●
56
BOLT; CLIP
M8X20 FLANGE IDN
0-28650-820-0
01
1
1404-
●
58
CLIP; OIL PIPE
(A) ID=6.35
1-09701-247-1
04
1
1312-1403
●
58
CLIP; OIL PIPE
(A) ID=6.35
1-09701-247-1
04
1
1404-
●
●
58
CLIP; OIL PIPE
(B)
8-98012-254-1
01
1
1312-1403
●
58
CLIP; OIL PIPE
(B)
8-98012-254-1
01
1
1404-
●
●
68
BRACKET; CLIP
1-47475-519-0
01
1
1404-
●
82
CLIP; OIL PIPE
(B) ID=9 L=16
0-95234-825-0
01
1
1404-
●
82
CLIP; OIL PIPE
(A) ID=6 & 8.3
8-94167-742-0
01
1
1312-1403
●
82
CLIP; OIL PIPE
(A) ID=6 & 8.3
8-94167-742-0
01
1
1404-
●
●
112
CLIP; OIL PIPE
WHEEL BASE 4700MM(47W) (B)
8-98012-254-1
02
1
1402-1403
●
112
CLIP; OIL PIPE
WHEEL BASE 4700MM(47W) (B)
8-98012-254-1
02
1
1404-
●
112
CLIP; OIL PIPE
(B)
8-98012-254-1
02
1
1404-
●
112
CLIP; OIL PIPE
(A) ID=6.35
1-09701-247-1
01
1
1404-
●
112
CLIP; OIL PIPE
WHEEL BASE 5300MM(53W) (B)
8-98012-254-1
03
1
1312-
●
112
CLIP; OIL PIPE
WHEEL BASE 7100MM(71W) (B)
8-98012-254-1
08
1
1312-
●
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
03
1
1312-1403
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
03
1
1404-
●
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
04
1
1312-1312
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
04
1
1402-1403
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
04
1
1404-
●
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
03
1
1312-1403
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
03
1
1404-
●
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
04
1
1312-1312
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
04
1
1402-1403
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
04
1
1404-
●
●
