3-55 — BRAKE PIPING; OIL,REAR (#131684) — 94 parça

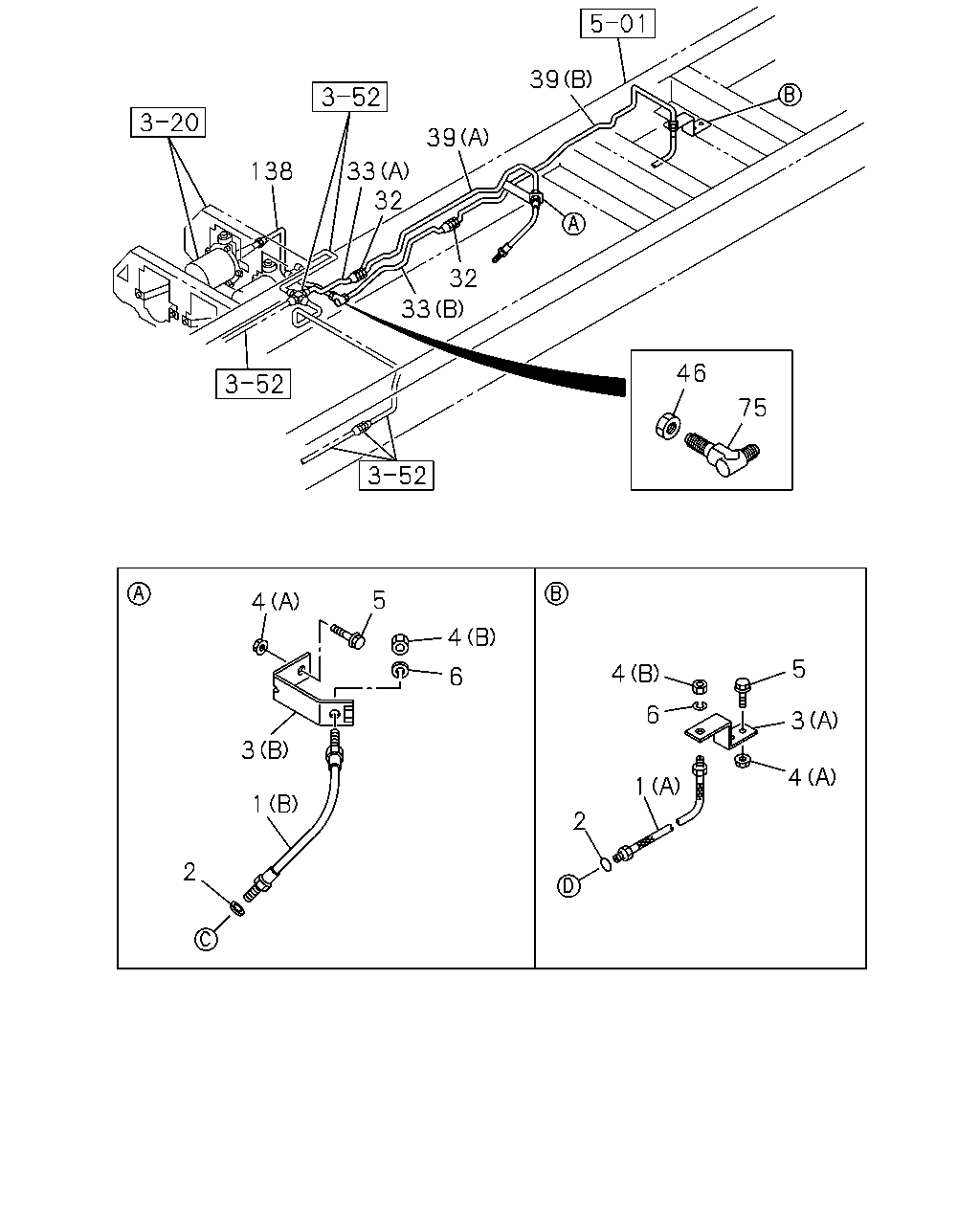

138 33 39 39 32 32 33 46 75 5 3 4 4 6 1 2 5 4 4 6 3 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK (B) L=450	1-09364-188-0	01	1	1312-1403	●
1	HOSE; FLEX,RR BRK (B) L=450	1-09364-188-0	01	1	1404-	●	●
1	HOSE; FLEX,RR BRK (A) L=600	1-09364-197-0	01	1	1312-1403	●
1	HOSE; FLEX,RR BRK (A) L=600	1-09364-197-0	01	1	1404-	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	02	1	1312-1403	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	02	1	1404-	●	●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47465-608-0	01	1	1312-1403	●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47465-608-0	01	1	1404-	●	●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47475-357-2	01	1	1312-1403	●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47475-357-2	01	1	1404-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE IDN	0-91180-108-0	04	1	1312-1403	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE IDN	0-91180-108-0	04	1	1404-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	02	1	1312-1403	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	02	1	1404-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	04	1	1312-1403	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	04	1	1404-	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	1312-1403	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	1404-	●	●
32	UNION; OIL PIPE MIXER CHASSIS<6NR> M12 L=40	0-92113-006-0	01	1	1402-1403	●
32	UNION; OIL PIPE MIXER CHASSIS<6NR> M12 L=40	0-92113-006-0	01	1	1404-	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	1404-		●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	1312-1401	●
32	UNION; OIL PIPE EXC. MIXER CHASSIS<6NR> M12 L=40	0-92113-006-0	02	1	1402-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4700MM(47W) (C) L=1716 SERVICED BY L=1820	1-47428-738-0	01	1	1402-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4700MM(47W) (D) L=966 SERVICED BY L=1000	1-47428-730-0	01	1	1402-1403	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4700MM(47W) (D) L=966 SERVICED BY L=1000	1-47428-730-0	01	1	1404-	●
33	PIPE; OIL,UNION TO UNION (D) L=966 SERVICED BY L=1000	1-47428-730-0	01	1	1404-		●
33	PIPE; OIL,UNION TO UNION (C) L=2092 SERVICED BY L=2200	1-47428-740-0	01	1	1404-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) L=1393 SERVICED BY L=1500	1-47428-735-0	01	1	1312-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (B) L=1556 SERVICED BY L=1620	1-47428-736-0	01	1	1312-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 7100MM(71W) (A) L=3196 SERVICED BY L=3200	1-47428-745-0	01	1	1312-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 7100MM(71W) (B) L=3363 SERVICED BY L=3400	1-47428-746-0	01	1	1312-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 7100MM(71W) (A) L=856 SERVICED BY L=900	1-47428-729-0	01	1	1312-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2409 SERVICED BY L=2500	1-47428-742-0	01	1	1312-1403	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2409 SERVICED BY L=2500	1-47428-742-0	01	1	1404-	●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1312-1403	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1404-	●	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1312-1403	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1404-	●	●
138	PIPE; HYDRAULIC UNIT L=646 SERVICED BY L=650	1-47428-726-0	01	1	1312-1403	●
138	PIPE; HYDRAULIC UNIT L=646 SERVICED BY L=650	1-47428-726-0	01	1	1404-	●	●

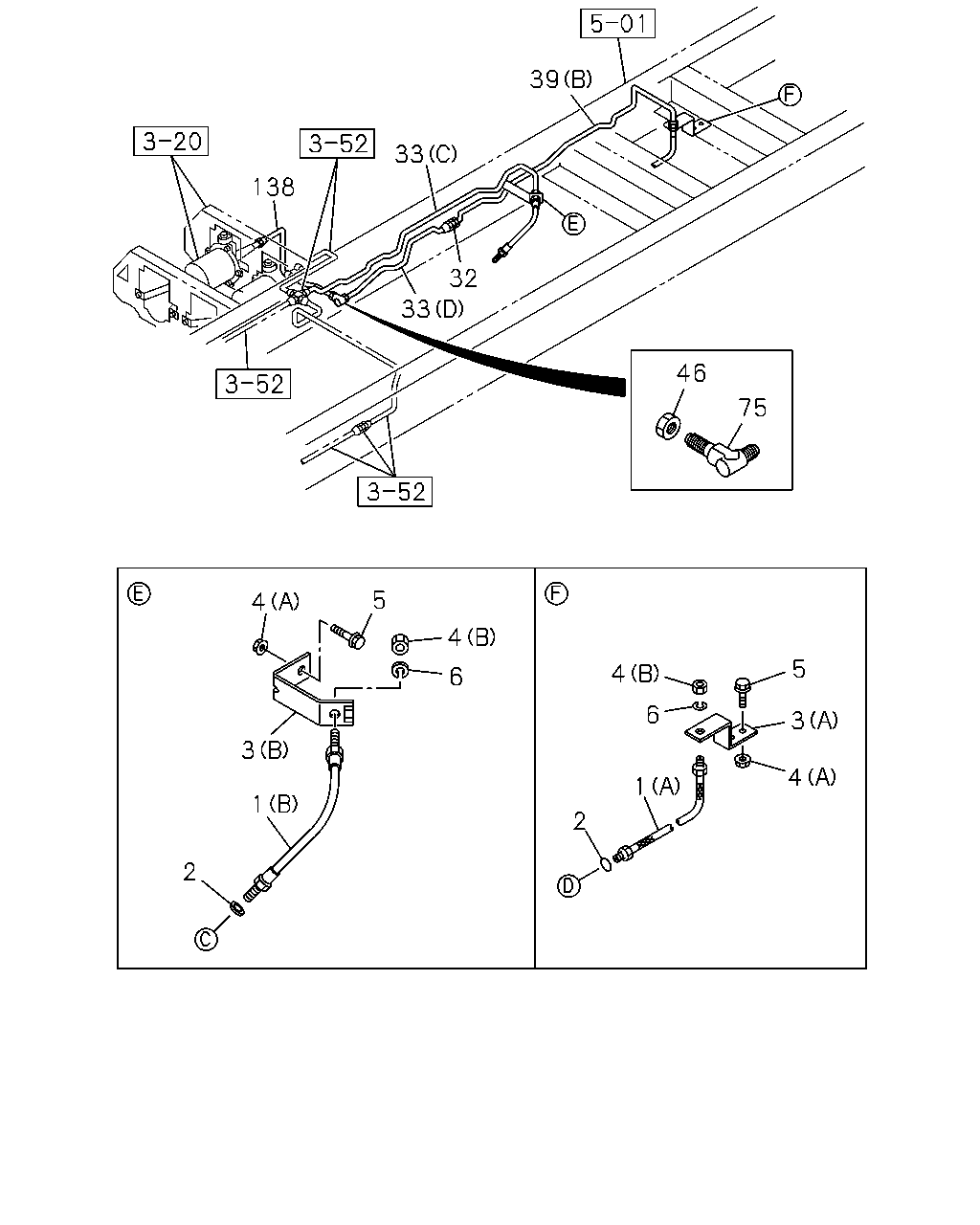

39 33 138 32 33 46 75 5 4 4 6 3 1 2 4 6 5 3 4 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK (B) L=450	1-09364-188-0	01	1	1312-1403	●
1	HOSE; FLEX,RR BRK (B) L=450	1-09364-188-0	01	1	1404-	●	●
1	HOSE; FLEX,RR BRK (A) L=600	1-09364-197-0	01	1	1312-1403	●
1	HOSE; FLEX,RR BRK (A) L=600	1-09364-197-0	01	1	1404-	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	02	1	1312-1403	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	02	1	1404-	●	●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47465-608-0	01	1	1312-1403	●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47465-608-0	01	1	1404-	●	●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47475-357-2	01	1	1312-1403	●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47475-357-2	01	1	1404-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE IDN	0-91180-108-0	04	1	1312-1403	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE IDN	0-91180-108-0	04	1	1404-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	02	1	1312-1403	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	02	1	1404-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	04	1	1312-1403	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	04	1	1404-	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	1312-1403	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	1404-	●	●
32	UNION; OIL PIPE MIXER CHASSIS<6NR> M12 L=40	0-92113-006-0	01	1	1402-1403	●
32	UNION; OIL PIPE MIXER CHASSIS<6NR> M12 L=40	0-92113-006-0	01	1	1404-	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	1404-		●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	1312-1401	●
32	UNION; OIL PIPE EXC. MIXER CHASSIS<6NR> M12 L=40	0-92113-006-0	02	1	1402-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4700MM(47W) (C) L=1716 SERVICED BY L=1820	1-47428-738-0	01	1	1402-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4700MM(47W) (D) L=966 SERVICED BY L=1000	1-47428-730-0	01	1	1402-1403	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4700MM(47W) (D) L=966 SERVICED BY L=1000	1-47428-730-0	01	1	1404-	●
33	PIPE; OIL,UNION TO UNION (D) L=966 SERVICED BY L=1000	1-47428-730-0	01	1	1404-		●
33	PIPE; OIL,UNION TO UNION (C) L=2092 SERVICED BY L=2200	1-47428-740-0	01	1	1404-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) L=1393 SERVICED BY L=1500	1-47428-735-0	01	1	1312-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (B) L=1556 SERVICED BY L=1620	1-47428-736-0	01	1	1312-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 7100MM(71W) (A) L=3196 SERVICED BY L=3200	1-47428-745-0	01	1	1312-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 7100MM(71W) (B) L=3363 SERVICED BY L=3400	1-47428-746-0	01	1	1312-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 7100MM(71W) (A) L=856 SERVICED BY L=900	1-47428-729-0	01	1	1312-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2409 SERVICED BY L=2500	1-47428-742-0	01	1	1312-1403	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2409 SERVICED BY L=2500	1-47428-742-0	01	1	1404-	●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1312-1403	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1404-	●	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1312-1403	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1404-	●	●
138	PIPE; HYDRAULIC UNIT L=646 SERVICED BY L=650	1-47428-726-0	01	1	1312-1403	●
138	PIPE; HYDRAULIC UNIT L=646 SERVICED BY L=650	1-47428-726-0	01	1	1404-	●	●

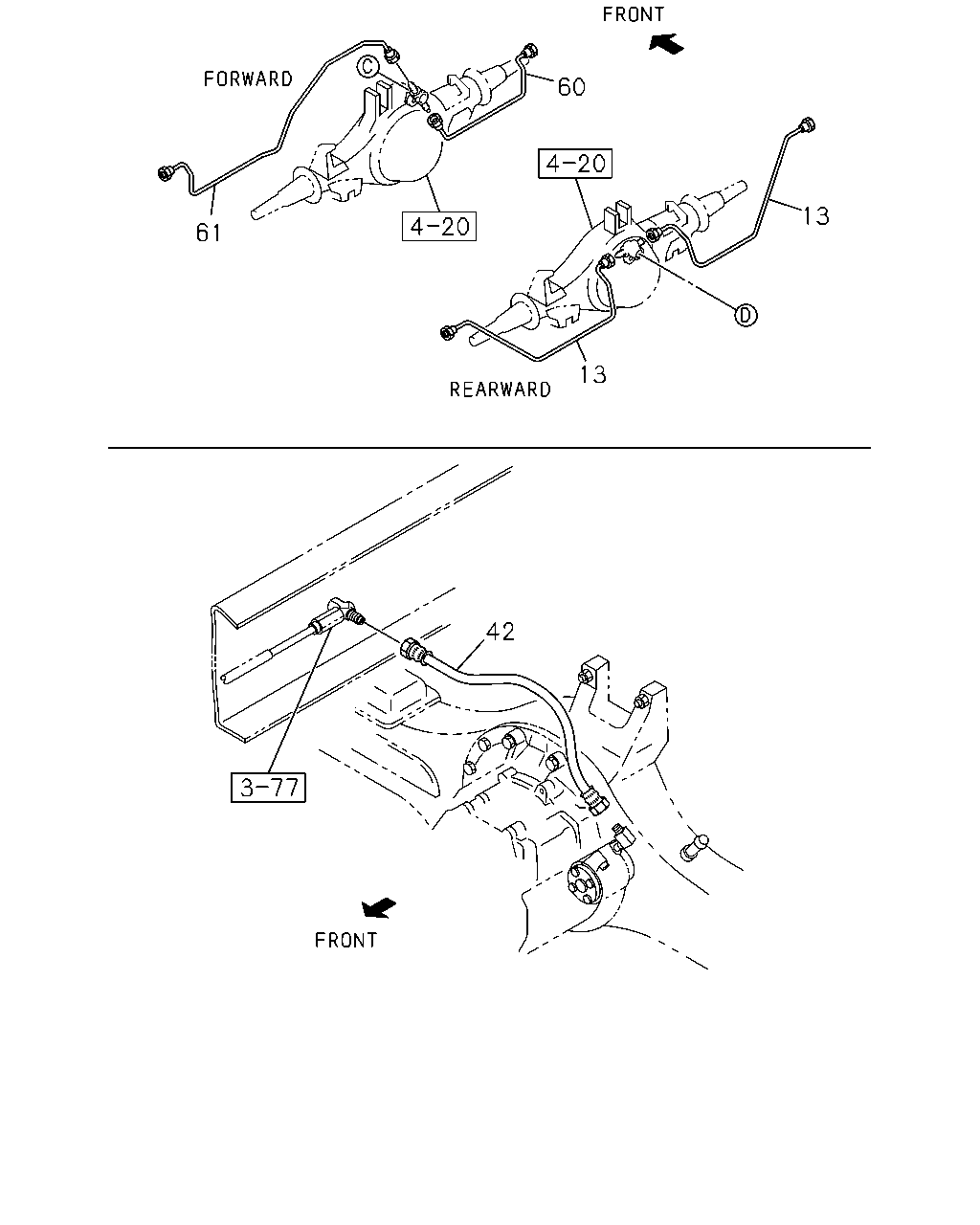

60 61 13 13 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; BRK,RR AXLE L=988	1-47426-901-0	01	1	1312-1312	●
13	PIPE; BRK,RR AXLE L=988	1-47426-901-0	01	1	1402-1403	●
13	PIPE; BRK,RR AXLE L=988	1-47426-901-0	01	1	1404-	●	●
13	PIPE; BRK,RR AXLE L=857	1-47426-902-0	01	1	1312-1312	●
13	PIPE; BRK,RR AXLE L=857	1-47426-902-0	01	1	1402-1403	●
13	PIPE; BRK,RR AXLE L=857	1-47426-902-0	01	1	1404-	●	●
42	HOSE; FLEX,DIFF LOCK	1-09363-680-0	01	1	1312-1403	●
42	HOSE; FLEX,DIFF LOCK	1-09363-680-0	01	1	1404-	●	●
60	PIPE ASM; BRK L=779	1-47427-915-0	01	1	1312-1403	●
60	PIPE ASM; BRK L=779	1-47427-915-0	01	1	1404-	●	●
61	PIPE ASM; BRK L=1193	1-47426-899-0	01	1	1312-1403	●
61	PIPE ASM; BRK L=1193	1-47426-899-0	01	1	1404-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
