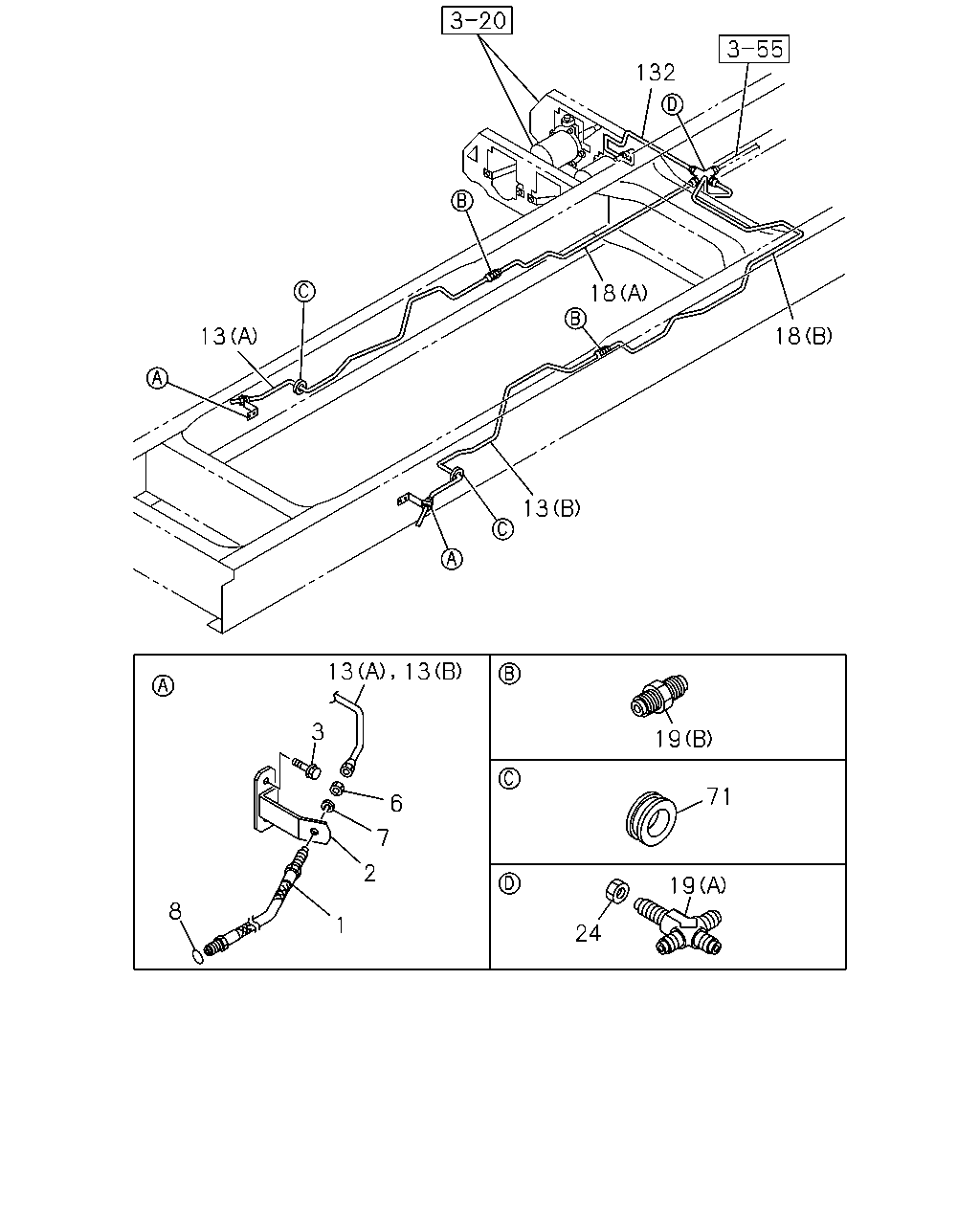

3-52 — BRAKE PIPING; OIL,FRONT (#131683) — 52 parça

132 18 18 13 13 13 13 3 6 7 2 1 8 19 71 19 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=610	0-05212-610-0	02	1	1312-1403	●
1	HOSE; FLEX,FRT BRK L=610	0-05212-610-0	02	1	1404-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98177-524-0	02	1	1312-1403	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98177-524-0	02	1	1404-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE IDN	0-28650-825-0	04	1	1312-1403	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE IDN	0-28650-825-0	04	1	1404-	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1312-1403	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1404-	●	●
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	1312-1403	●
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	1404-	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1312-1403	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1404-	●	●
13	PIPE; OIL,UNION TO UNION (C) L=1699 SERVICED BY L=1700	1-47428-737-0	01	1	1404-		●
13	PIPE; OIL,UNION TO UNION (D) L=2916 SERVICED BY L=3200	1-47428-745-0	01	1	1404-		●
13	PIPE; OIL,UNION TO UNION (B) L=1320 SERVICED BY L=1370	1-47428-734-0	01	1	1312-	●
13	PIPE; OIL,UNION TO UNION (A) L=1331 SERVICED BY L=1370	1-47428-734-0	01	1	1312-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=689 SERVICED BY L=700	1-47428-727-0	01	1	1312-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1924 SERVICED BY L=2000	1-47428-739-0	01	1	1312-	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	1312-	●
19	UNION; OIL PIPE (A)	1-09656-019-1	01	1	1312-1403	●
19	UNION; OIL PIPE (A)	1-09656-019-1	01	1	1404-	●	●
24	NUT; UNION,OIL PIPE M14	0-91110-514-0	01	1	1312-1403	●
24	NUT; UNION,OIL PIPE M14	0-91110-514-0	01	1	1404-	●	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1312-1403	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1404-	●	●
132	PIPE; OIL,BRK,HYD UNIT L=667	8-98247-352-0	01	1	1404-		●
132	PIPE; OIL,BRK,HYD UNIT L=381 IDN	8-98184-180-0	01	1	1312-	●

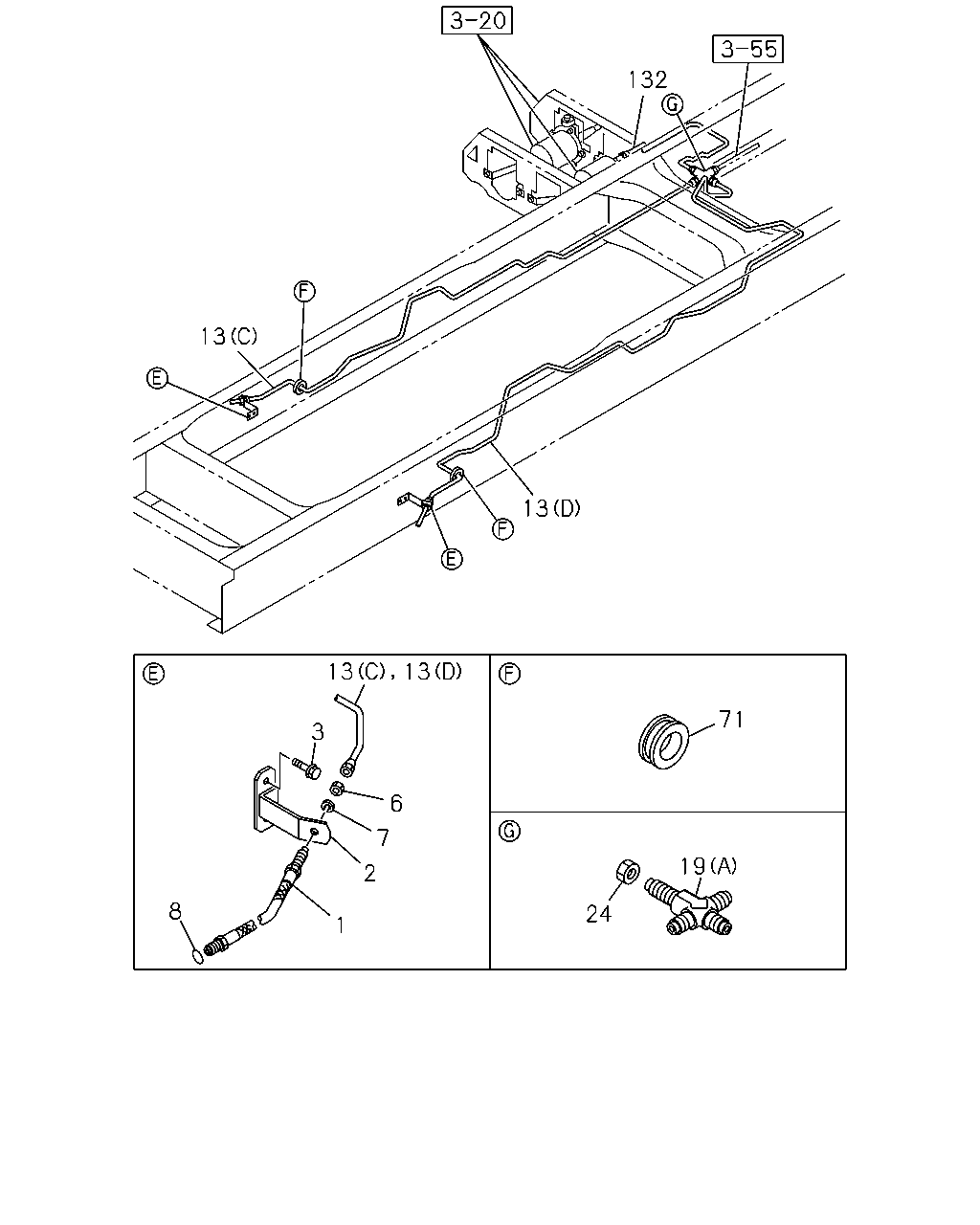

132 13 13 13 13 3 6 7 2 1 8 71 19 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=610	0-05212-610-0	02	1	1312-1403	●
1	HOSE; FLEX,FRT BRK L=610	0-05212-610-0	02	1	1404-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98177-524-0	02	1	1312-1403	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98177-524-0	02	1	1404-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE IDN	0-28650-825-0	04	1	1312-1403	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE IDN	0-28650-825-0	04	1	1404-	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1312-1403	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1404-	●	●
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	1312-1403	●
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	1404-	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1312-1403	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1404-	●	●
13	PIPE; OIL,UNION TO UNION (C) L=1699 SERVICED BY L=1700	1-47428-737-0	01	1	1404-		●
13	PIPE; OIL,UNION TO UNION (D) L=2916 SERVICED BY L=3200	1-47428-745-0	01	1	1404-		●
13	PIPE; OIL,UNION TO UNION (B) L=1320 SERVICED BY L=1370	1-47428-734-0	01	1	1312-	●
13	PIPE; OIL,UNION TO UNION (A) L=1331 SERVICED BY L=1370	1-47428-734-0	01	1	1312-	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	1312-	●
19	UNION; OIL PIPE (A)	1-09656-019-1	01	1	1312-1403	●
19	UNION; OIL PIPE (A)	1-09656-019-1	01	1	1404-	●	●
24	NUT; UNION,OIL PIPE M14	0-91110-514-0	01	1	1312-1403	●
24	NUT; UNION,OIL PIPE M14	0-91110-514-0	01	1	1404-	●	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1312-1403	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1404-	●	●
132	PIPE; OIL,BRK,HYD UNIT L=667	8-98247-352-0	01	1	1404-		●
132	PIPE; OIL,BRK,HYD UNIT L=381 IDN	8-98184-180-0	01	1	1312-	●
