◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#131682) — 64 parça

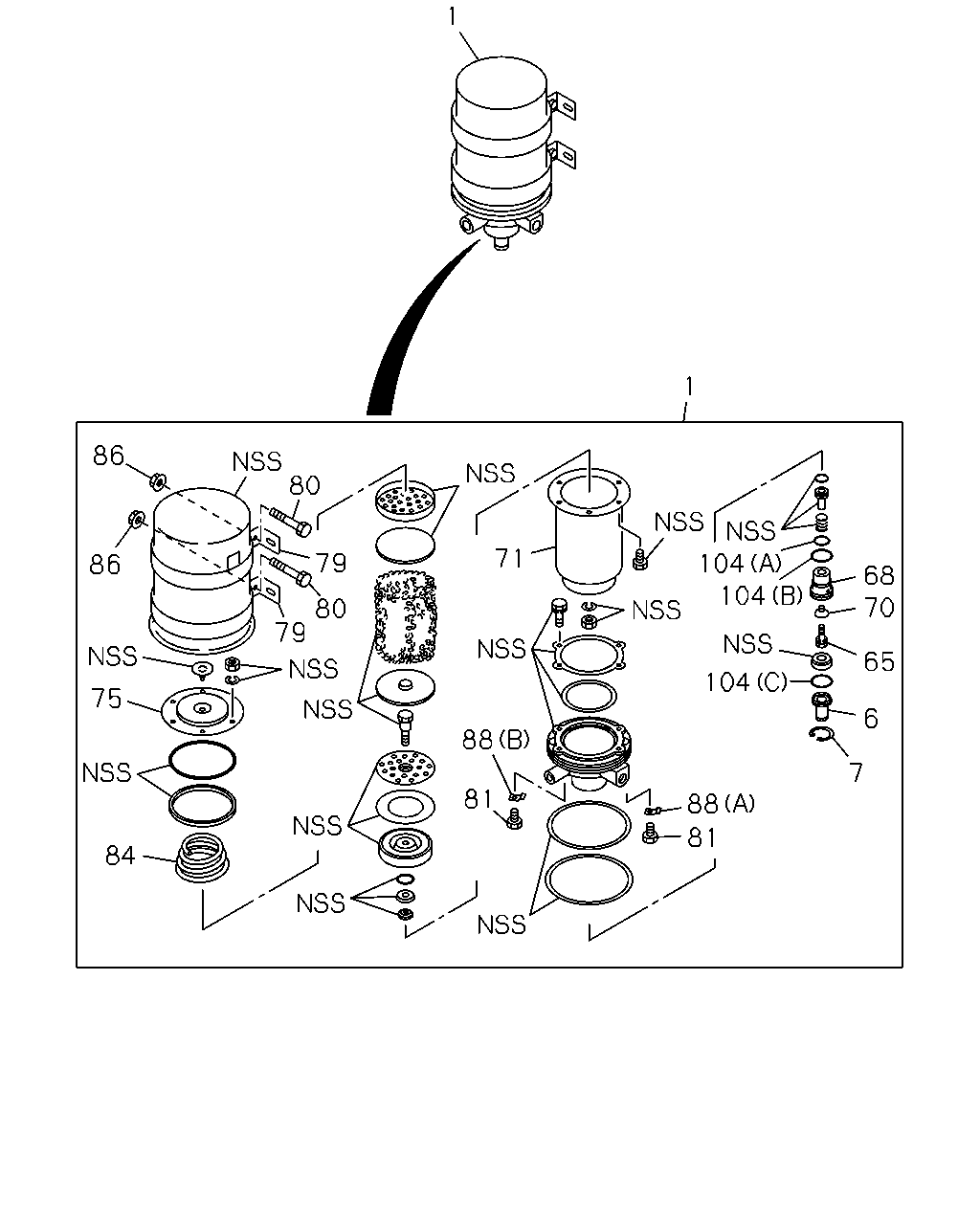

çizim 388536
1 1 86 86 75 84 80 79 79 80 71 88 81 81 104 104 104 68 65 70 6 7 88
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 8-98182-324-0 01 1 1312-1403 ●
1 DRYER; AIR 8-98182-324-0 01 1 1404- ● ●
6 COVER; EXH,AIR DRYER 1-48199-101-0 01 1 1312-1403 ●
6 COVER; EXH,AIR DRYER 1-48199-101-0 01 1 1404- ● ●
7 RING; SNAP,AIR DRYER 1-48199-154-0 01 1 1312-1403 ●
7 RING; SNAP,AIR DRYER 1-48199-154-0 01 1 1404- ● ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1312-1403 ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1404- ● ●
68 BODY; VALVE 1-48199-216-0 01 1 1312-1403 ●
68 BODY; VALVE 1-48199-216-0 01 1 1404- ● ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1312-1403 ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1404- ● ●
71 CASE; INNER,AIR DRYER 1-48199-156-1 01 1 1312-1403 ●
71 CASE; INNER,AIR DRYER 1-48199-156-1 01 1 1404- ● ●
75 COVER; CASE,AIR DRYER 1-48199-167-0 01 1 1312-1403 ●
75 COVER; CASE,AIR DRYER 1-48199-167-0 01 1 1404- ● ●
79 BRACKET; AIR DRYER 1-48199-189-0 02 1 1312-1403 ●
79 BRACKET; AIR DRYER 1-48199-189-0 02 1 1404- ● ●
80 BOLT; BRKT 1-48199-190-0 02 1 1312-1403 ●
80 BOLT; BRKT 1-48199-190-0 02 1 1404- ● ●
81 BOLT; CASE,AIR DRYER 1-48199-177-0 02 1 1312-1403 ●
81 BOLT; CASE,AIR DRYER 1-48199-177-0 02 1 1404- ● ●
84 SPRING; AIR DRYER 1-48199-166-0 01 1 1312-1403 ●
84 SPRING; AIR DRYER 1-48199-166-0 01 1 1404- ● ●
86 NUT; BRKT 1-48199-320-0 02 1 1312-1403 ●
86 NUT; BRKT 1-48199-320-0 02 1 1404- ● ●
88 PLATE; STOPPER
(A) 		1-48199-178-0 01 1 1312-1403 ●
88 PLATE; STOPPER
(A) 		1-48199-178-0 01 1 1404- ● ●
88 PLATE; STOPPER
(B) 		1-48199-179-0 01 1 1312-1403 ●
88 PLATE; STOPPER
(B) 		1-48199-179-0 01 1 1404- ● ●
104 GASKET
(A) 		1-48199-108-0 01 1 1312-1403 ●
104 GASKET
(A) 		1-48199-108-0 01 1 1404- ● ●
104 GASKET
(B) 		1-48199-109-0 01 1 1312-1403 ●
104 GASKET
(B) 		1-48199-109-0 01 1 1404- ● ●
104 GASKET
(C) 		1-48199-153-0 01 1 1312-1403 ●
104 GASKET
(C) 		1-48199-153-0 01 1 1404- ● ●

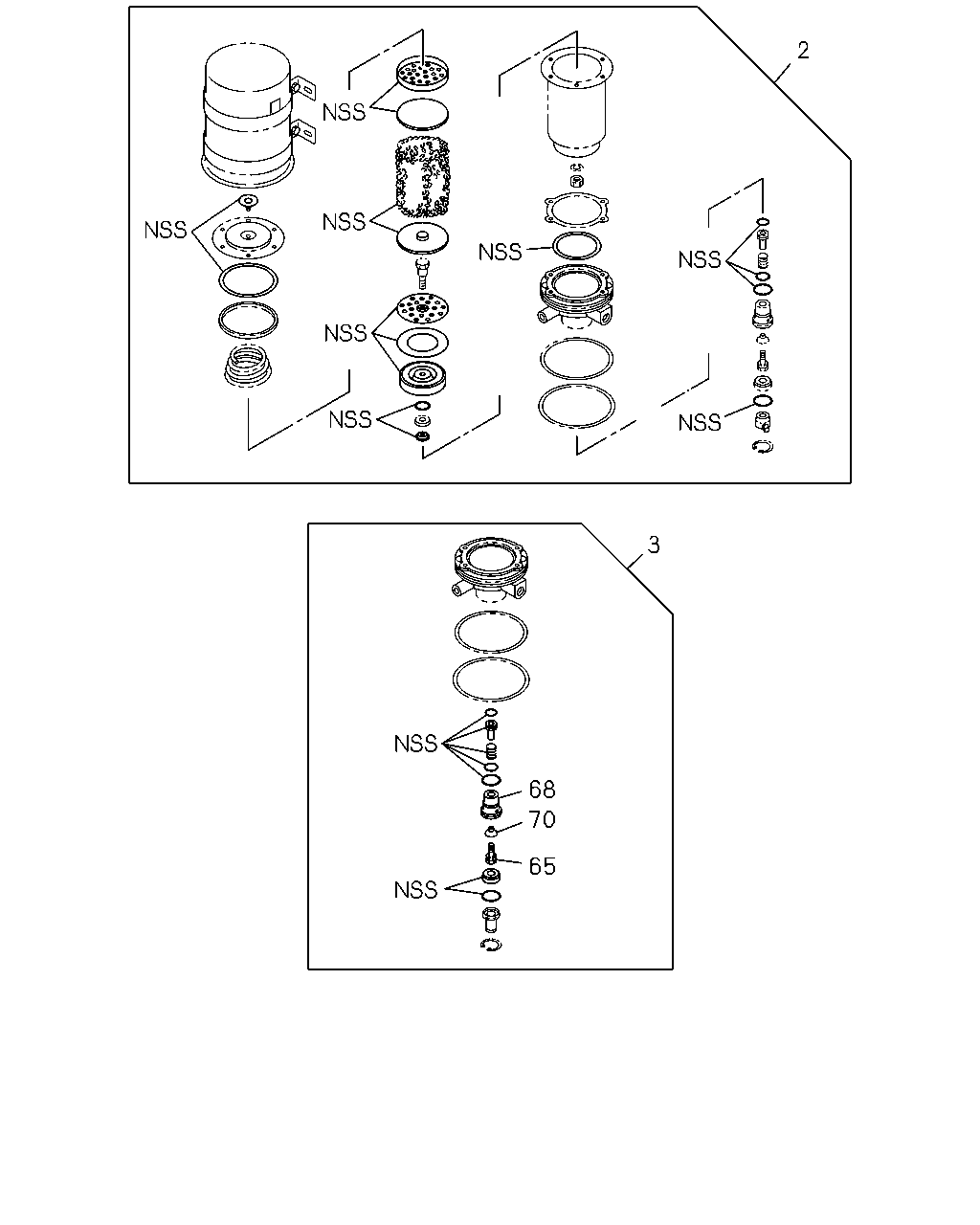

çizim 388550
2 3 68 70 65
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER 1-85576-463-0 01 1 1312-1403 ●
2 REPAIR KIT; AIR DRYER 1-85576-463-0 01 1 1404- ● ●
3 PISTON KIT; AIR DRYER 1-85576-057-1 01 1 1312-1403 ●
3 PISTON KIT; AIR DRYER 1-85576-057-1 01 1 1404- ● ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1312-1403 ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1404- ● ●
68 BODY; VALVE 1-48199-216-0 01 1 1312-1403 ●
68 BODY; VALVE 1-48199-216-0 01 1 1404- ● ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1312-1403 ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1404- ● ●
çizim 388580
13 10 11 1 9 9 16 8 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 8-98182-324-0 01 1 1312-1403 ●
1 DRYER; AIR 8-98182-324-0 01 1 1404- ● ●
8 CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1312-1403 ●
8 CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1404- ● ●
9 CONNECTOR; PIPE,AIR DRYER
(A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1312-1403 ●
9 CONNECTOR; PIPE,AIR DRYER
(A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1404- ● ●
9 CONNECTOR; PIPE,AIR DRYER
(B) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1312-1403 ●
9 CONNECTOR; PIPE,AIR DRYER
(B) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1404- ● ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1312-1403 ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1404- ● ●
10 BOLT; AIR DRYER
(B) M10X35 FLANGE IDN 		0-28651-035-0 04 1 1312-1403 ●
10 BOLT; AIR DRYER
(B) M10X35 FLANGE IDN 		0-28651-035-0 04 1 1404- ● ●
11 BRACKET; AIR DRYER 1-48317-876-0 01 1 1312-1403 ●
11 BRACKET; AIR DRYER 1-48317-876-0 01 1 1404- ● ●
13 NUT; AIR DRYER
M10 FLANGE 		0-91180-210-0 04 1 1312-1403 ●
13 NUT; AIR DRYER
M10 FLANGE 		0-91180-210-0 04 1 1404- ● ●
16 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1312-1403 ●
16 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1404- ● ●
