◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-25 - BRAKE LOCK CONTROL ▶
3-25 — BRAKE LOCK CONTROL (#131679) — 35 parça

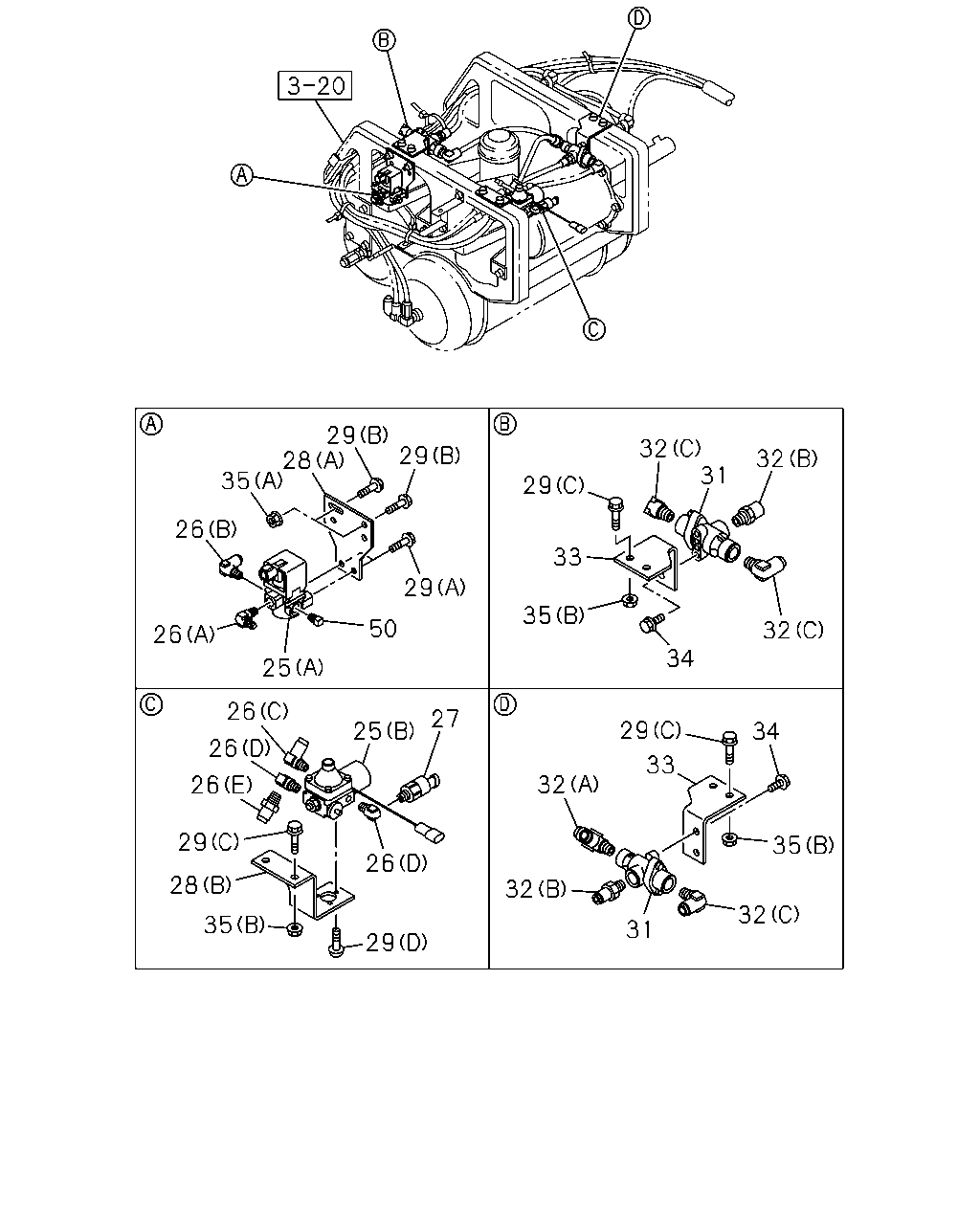

çizim 388454
29 29 32 32 32 34 35 33 29 50 25 26 26 35 28 29 31 26 25 26 27 26 26 29 28 35 29 32 32 33 29 34 35 32 31
BalonParca AdiParca NoAdetTipApplied Date A B
25 VALVE; CONT,BRK LOCK
MIXER CHASSIS<6NR> (B) 		1-46362-112-0 01 1 1402- ●
25 VALVE; CONT,BRK LOCK
MIXER CHASSIS<6NR> (A) 		1-82563-871-2 01 1 1402-1403 ●
25 VALVE; CONT,BRK LOCK
MIXER CHASSIS<6NR> (A) 		1-82563-871-2 01 1 1404- ●
25 VALVE; CONT,BRK LOCK
(A) 		1-82563-871-2 01 1 1404- ●
25 VALVE; CONT,BRK LOCK
(A) IDN 		8-97948-152-0 01 1 1312-1401 ●
25 VALVE; CONT,BRK LOCK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) IDN 		8-97948-152-0 01 1 1402- ●
26 UNION; CONT VLV
MIXER CHASSIS<6NR> (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 02 1 1402- ●
26 UNION; CONT VLV
MIXER CHASSIS<6NR> (C) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1402- ●
26 UNION; CONT VLV
MIXER CHASSIS<6NR> (E) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 1402- ●
26 UNION; CONT VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1312-1403 ●
26 UNION; CONT VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1404- ● ●
26 UNION; CONT VLV
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1312-1403 ●
26 UNION; CONT VLV
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1404- ● ●
27 SWITCH; PRESS
MIXER CHASSIS<6NR> 		8-97609-251-0 01 1 1402- ●
28 BRACKET; CONT VLV
MIXER CHASSIS<6NR> (B) 		8-98250-617-0 01 1 1402- ●
28 BRACKET; CONT VLV
(A) 		8-98179-100-0 01 1 1312-1403 ●
28 BRACKET; CONT VLV
(A) 		8-98179-100-0 01 1 1404-1405 ● ●
28 BRACKET; CONT VLV
(A) 		8-98273-570-0 01 1 1406- ● ●
29 BOLT; BRKT,CONT VLV
MIXER CHASSIS<6NR> (C) M10X30 FLANGE 		0-28651-030-0 06 1 1402- ●
29 BOLT; BRKT,CONT VLV
MIXER CHASSIS<6NR> (D) M5X14 W/LK WASHER 		0-36220-514-0 03 1 1402- ●
29 BOLT; BRKT,CONT VLV
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-1403 ●
29 BOLT; BRKT,CONT VLV
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1404- ● ●
29 BOLT; BRKT,CONT VLV
(B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1312-1403 ●
29 BOLT; BRKT,CONT VLV
(B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1404- ● ●
31 VALVE; DOUBLE CHECK
MIXER CHASSIS<6NR> 		1-48410-531-1 02 1 1402- ●
32 UNION; DOUBLE CHECK VLV
MIXER CHASSIS<6NR> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1402- ●
32 UNION; DOUBLE CHECK VLV
MIXER CHASSIS<6NR> (B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1402- ●
32 UNION; DOUBLE CHECK VLV
MIXER CHASSIS<6NR> (A) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1402- ●
33 BRACKET; DBL CHECK VLV
MIXER CHASSIS<6NR> 		8-98250-622-0 02 1 1402- ●
34 BOLT; BRKT
MIXER CHASSIS<6NR> M8X12 FLANGE 		0-28050-812-0 04 1 1402- ●
35 NUT; BRKT
MIXER CHASSIS<6NR> (B) M10 FLANGE 		0-91180-210-0 06 1 1402- ●
35 NUT; BRKT
(A) M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1403 ●
35 NUT; BRKT
(A) M8 FLANGE IDN 		0-91180-108-0 02 1 1404- ● ●
50 PLUG
PT1/4 		9-99204-513-0 01 1 1312-1403 ●
50 PLUG
PT1/4 		9-99204-513-0 01 1 1404- ● ●
