Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11567 - FVZ/GVZ(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶

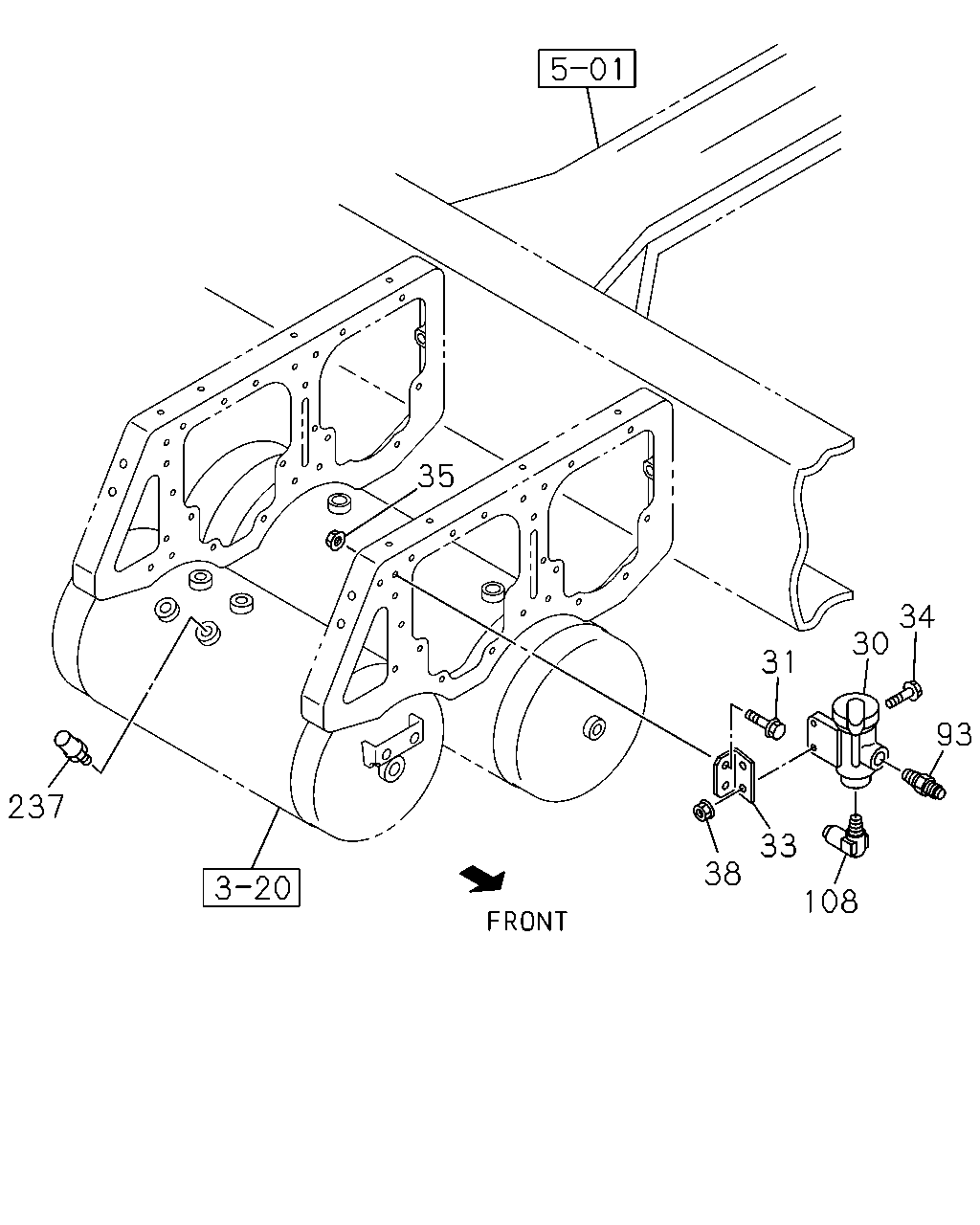

3-22 — AIR CONTROL PARTS
(#131678) — 20 parça
Tümü
A - FGZ5MV
B - GGZ5MV
◀
[322A] FIXING (18 parça)
[322A] REPAIR KIT;GOVERNOR (2 parça)
▶
34
93
30
31
35
38
108
33
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
GOVERNOR; AIR CONT
1-48350-093-2
01
1
1312-1403
●
30
GOVERNOR; AIR CONT
1-48350-093-2
01
1
1404-
●
●
31
BOLT; GOV TO FRAME
M8X25 FLANGE IDN
0-28650-825-0
02
1
1312-1403
●
31
BOLT; GOV TO FRAME
M8X25 FLANGE IDN
0-28650-825-0
02
1
1404-
●
●
33
BRACKET; GOV,AIR CONT
8-98120-459-1
01
1
1312-1403
●
33
BRACKET; GOV,AIR CONT
8-98120-459-1
01
1
1404-
●
●
34
BOLT; BRKT,GOV
M8X30 FLANGE
0-28650-830-0
02
1
1312-1403
●
34
BOLT; BRKT,GOV
M8X30 FLANGE
0-28650-830-0
02
1
1404-
●
●
35
NUT; GOV TO FRAME
M8 FLANGE IDN
0-91180-108-0
02
1
1312-1403
●
35
NUT; GOV TO FRAME
M8 FLANGE IDN
0-91180-108-0
02
1
1404-
●
●
38
NUT; BRKT,GOV
M8 FLANGE IDN
0-91180-108-0
02
1
1312-1403
●
38
NUT; BRKT,GOV
M8 FLANGE IDN
0-91180-108-0
02
1
1404-
●
●
93
CONNECTOR; GOV
M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1312-1403
●
93
CONNECTOR; GOV
M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1404-
●
●
108
CONNECTOR; ELBOW
DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1312-1403
●
108
CONNECTOR; ELBOW
DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1404-
●
●
237
VALVE; SAFETY
IDN
1-48320-012-2
01
1
1312-1403
●
237
VALVE; SAFETY
IDN
1-48320-012-2
01
1
1404-
●
●
240
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
240
REPAIR KIT; AIR CONT GOV
1-85576-467-0
01
1
1312-1403
●
240
REPAIR KIT; AIR CONT GOV
1-85576-467-0
01
1
1404-
●
●
