Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#131677) — 400 parça

37 30 80 80 46 46 46 46 30 6 7 39 366 26 2 26 30 39

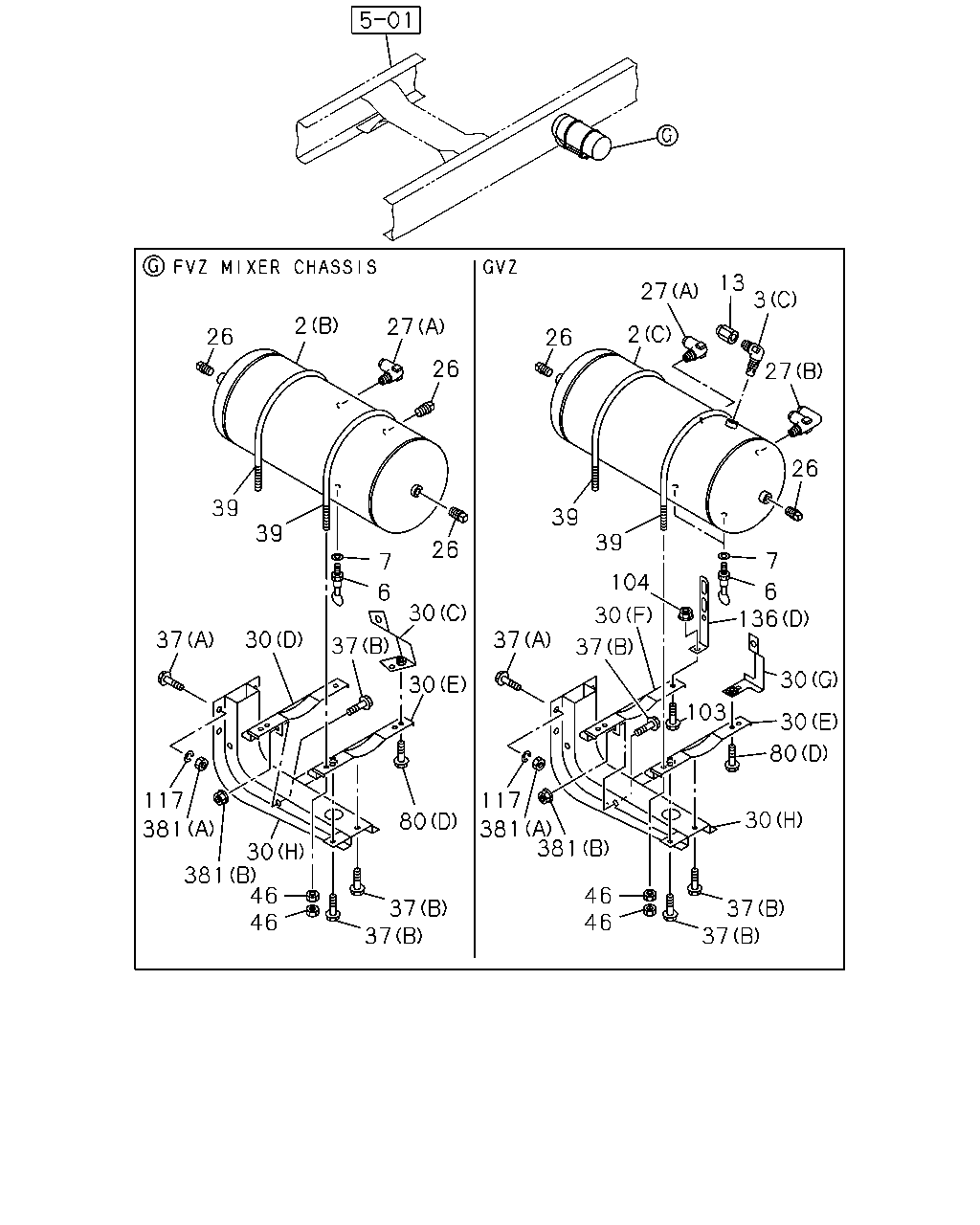

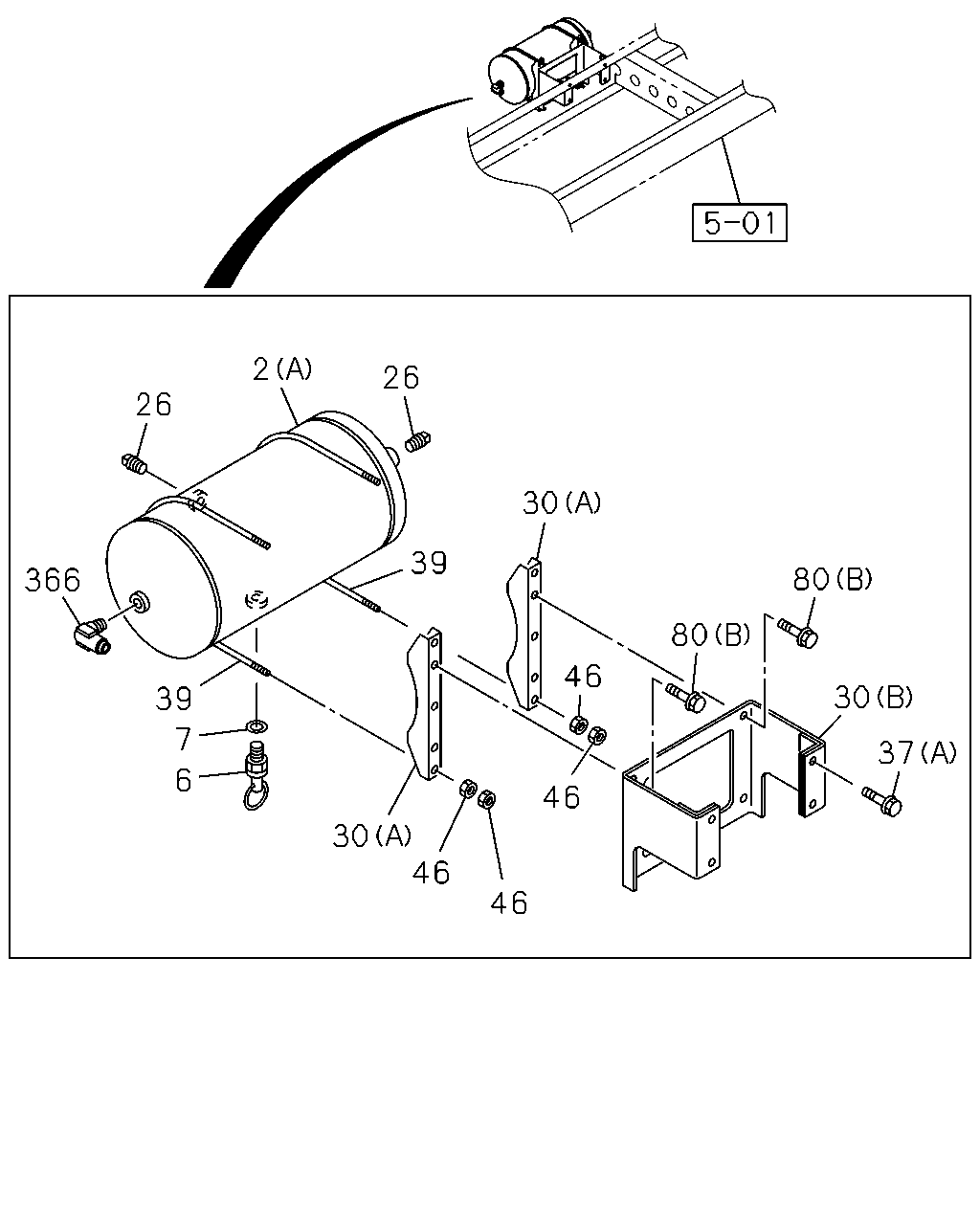

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR MIXER CHASSIS<6NR> (B) IDN	8-98179-213-0	01	1	1402-	●
2	TANK; AIR (C) IDN	8-98257-340-0	01	1	1404-		●
2	TANK; AIR (A) IDN	8-98195-655-0	01	1	1312-1401	●
2	TANK; AIR EXC. MIXER CHASSIS<6NR> (A) IDN	8-98195-655-0	01	1	1402-	●
6	COCK; DRAIN,AIR TANK MIXER CHASSIS<6NR>	1-48312-015-0	05	1	1402-1501	●
6	COCK; DRAIN,AIR TANK MIXER CHASSIS<6NR>	1-48312-015-0	04	1	1502-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	06	1	1404-1501		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1502-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1312-1401	●
6	COCK; DRAIN,AIR TANK EXC. MIXER CHASSIS<6NR>	1-48312-015-0	01	1	1402-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1312-1401	●
6	COCK; DRAIN,AIR TANK EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-48312-015-0	04	1	1402-1501	●
6	COCK; DRAIN,AIR TANK EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-48312-015-0	03	1	1502-	●
7	GASKET; DRAIN COCK MIXER CHASSIS<6NR> ID=14	1-09630-145-0	05	1	1402-1501	●
7	GASKET; DRAIN COCK MIXER CHASSIS<6NR> ID=14	1-09630-145-0	04	1	1502-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	06	1	1404-1501		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1502-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1312-1401	●
7	GASKET; DRAIN COCK EXC. MIXER CHASSIS<6NR> ID=14	1-09630-145-0	01	1	1402-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1312-1401	●
7	GASKET; DRAIN COCK EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=14	1-09630-145-0	04	1	1402-1501	●
7	GASKET; DRAIN COCK EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=14	1-09630-145-0	03	1	1502-	●
26	PLUG; SUB AIR TANK MIXER CHASSIS<6NR> PT3/8	9-09204-517-0	03	1	1402-	●
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	1312-1401	●
26	PLUG; SUB AIR TANK EXC. MIXER CHASSIS<6NR> PT3/8	9-09204-517-0	02	1	1402-1403	●
26	PLUG; SUB AIR TANK EXC. MIXER CHASSIS<6NR> PT3/8	9-09204-517-0	02	1	1404-	●
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	1404-		●
30	BRACKET; AIR TANK,SUB MIXER CHASSIS<6NR> (D) IDN	8-98182-085-0	01	1	1402-	●
30	BRACKET; AIR TANK,SUB MIXER CHASSIS<6NR> (C) IDN	8-98182-821-0	01	1	1402-	●
30	BRACKET; AIR TANK,SUB MIXER CHASSIS<6NR> (H)	1-48316-024-3	01	1	1402-1403	●
30	BRACKET; AIR TANK,SUB MIXER CHASSIS<6NR> (H)	1-48316-024-3	01	1	1404-	●
30	BRACKET; AIR TANK,SUB (H)	1-48316-024-3	01	1	1404-		●
30	BRACKET; AIR TANK,SUB MIXER CHASSIS<6NR> (E)	1-48317-994-2	01	1	1402-1403	●
30	BRACKET; AIR TANK,SUB MIXER CHASSIS<6NR> (E)	1-48317-994-2	01	1	1404-	●
30	BRACKET; AIR TANK,SUB (E)	1-48317-994-2	01	1	1404-		●
30	BRACKET; AIR TANK,SUB (F)	1-48316-026-0	01	1	1404-		●
30	BRACKET; AIR TANK,SUB (G)	8-98136-697-0	01	1	1404-		●
30	BRACKET; AIR TANK,SUB (A) IDN	8-97948-143-0	02	1	1312-1401	●
30	BRACKET; AIR TANK,SUB EXC. MIXER CHASSIS<6NR> (A) IDN	8-97948-143-0	02	1	1402-	●
30	BRACKET; AIR TANK,SUB (B) IDN	8-98245-717-0	01	1	1312-1401	●
30	BRACKET; AIR TANK,SUB EXC. MIXER CHASSIS<6NR> (B) IDN	8-98245-717-0	01	1	1402-	●
37	BOLT; AIR TANK MIXER CHASSIS<6NR> (A) M14X50	0-20851-450-0	04	1	1402-1403	●
37	BOLT; AIR TANK MIXER CHASSIS<6NR> (A) M14X50	0-20851-450-0	04	1	1404-	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	04	1	1404-		●
37	BOLT; AIR TANK MIXER CHASSIS<6NR> (B) M12X30 FLANGE	0-28651-230-0	04	1	1402-1403	●
37	BOLT; AIR TANK MIXER CHASSIS<6NR> (B) M12X30 FLANGE	0-28651-230-0	04	1	1404-	●
37	BOLT; AIR TANK (B) M12X30 FLANGE	0-28651-230-0	04	1	1404-		●
37	BOLT; AIR TANK (A) M10X40 FLANGE	0-28651-040-0	04	1	1312-1401	●
37	BOLT; AIR TANK EXC. MIXER CHASSIS<6NR> (A) M10X40 FLANGE	0-28651-040-0	04	1	1402-	●
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	1312-1403	●
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	1404-	●	●
39	U-BOLT; AIR TANK MIXER CHASSIS<6NR> L=253 IDN	1-48317-248-1	02	1	1402-	●
39	U-BOLT; AIR TANK L=303	1-48317-087-2	02	1	1404-		●
39	U-BOLT; AIR TANK	1-48317-289-0	02	1	1312-1401	●
39	U-BOLT; AIR TANK EXC. MIXER CHASSIS<6NR>	1-48317-289-0	02	1	1402-	●
46	NUT; U-BOLT M8 IDN	0-91110-508-0	08	1	1312-1403	●
46	NUT; U-BOLT M8 IDN	0-91110-508-0	08	1	1404-	●	●
80	BOLT; BRKT MIXER CHASSIS<6NR> (A) M8X20 FLANGE IDN	0-28650-820-0	04	1	1402-	●
80	BOLT; BRKT MIXER CHASSIS<6NR> (D) M8X25 FLANGE IDN	0-28650-825-0	01	1	1402-1403	●
80	BOLT; BRKT MIXER CHASSIS<6NR> (D) M8X25 FLANGE IDN	0-28650-825-0	01	1	1404-	●
80	BOLT; BRKT (D) M8X25 FLANGE IDN	0-28650-825-0	01	1	1404-		●
80	BOLT; BRKT (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1312-1401	●
80	BOLT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1402-1403	●
80	BOLT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1404-	●
80	BOLT; BRKT (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1404-		●
80	BOLT; BRKT (B) M10X25 FLANGE IDN	0-28651-025-0	04	1	1312-1401	●
80	BOLT; BRKT EXC. MIXER CHASSIS<6NR> (B) M10X25 FLANGE IDN	0-28651-025-0	04	1	1402-	●
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	04	1	1312-1403	●
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	04	1	1404-	●	●
366	CONNECTOR; NYLON TUBE DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1312-1401	●
366	CONNECTOR; NYLON TUBE EXC. MIXER CHASSIS<6NR> DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1402-	●

64 43 58 42 172 54 136 28 43 104 80 128 129 136 80 3 28 126 1 5 5 5 58 213 213 172 64 1 126 126 119 67 136 80 126 126 126 126 126 126 58 42 5 80 104 3 104 5 58 130 7 6 58 213 6 3 7 5 43 136 10 9 58 9

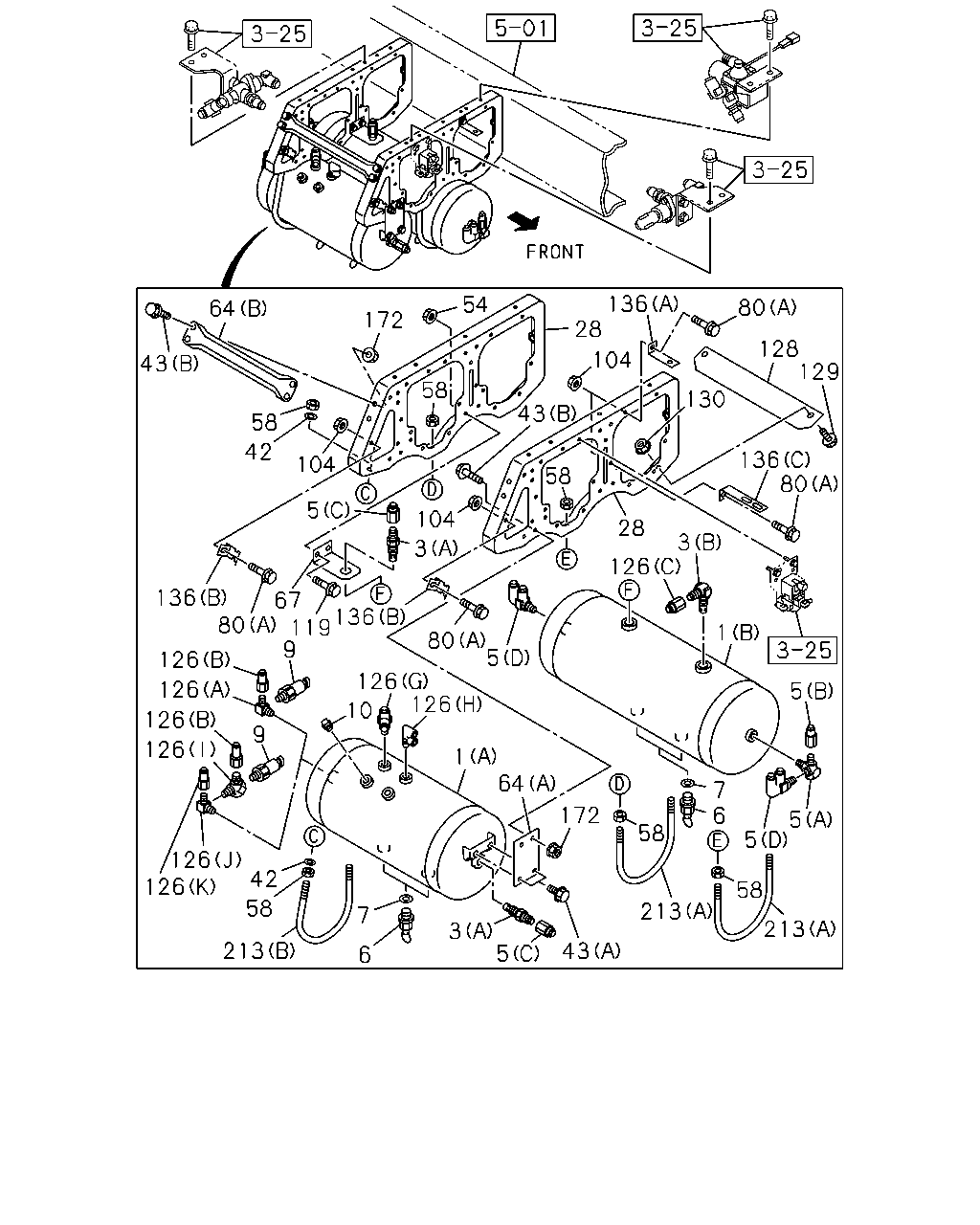

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	1-48370-493-0	01	1	1312-1403	●
1	TANK ASM; AIR (A)	1-48370-493-0	01	1	1404-1501	●	●
1	TANK ASM; AIR (A)	8-98269-244-0	01	1	1502-	●	●
1	TANK ASM; AIR (B)	8-98179-212-0	01	1	1312-1403	●
1	TANK ASM; AIR (B)	8-98179-212-0	01	1	1404-	●	●
3	VALVE; CHECK,AIR TANK (C) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1404-		●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 STRAIGHT	1-48410-182-3	02	1	1312-1403	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 STRAIGHT	1-48410-182-3	02	1	1404-	●	●
3	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1312-1403	●
3	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1404-	●	●
5	UNION; AIR TANK (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1312-1403	●
5	UNION; AIR TANK (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1404-	●	●
5	UNION; AIR TANK (C) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1312-1403	●
5	UNION; AIR TANK (C) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1404-	●	●
5	UNION; AIR TANK (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1312-1403	●
5	UNION; AIR TANK (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1404-	●	●
5	UNION; AIR TANK (A) M16 & R3/8	8-98204-239-0	01	1	1312-1403	●
5	UNION; AIR TANK (A) M16 & R3/8	8-98204-239-0	01	1	1404-	●	●
6	COCK; DRAIN,AIR TANK MIXER CHASSIS<6NR>	1-48312-015-0	05	1	1402-1501	●
6	COCK; DRAIN,AIR TANK MIXER CHASSIS<6NR>	1-48312-015-0	04	1	1502-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	06	1	1404-1501		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1502-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1312-1401	●
6	COCK; DRAIN,AIR TANK EXC. MIXER CHASSIS<6NR>	1-48312-015-0	01	1	1402-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1312-1401	●
6	COCK; DRAIN,AIR TANK EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-48312-015-0	04	1	1402-1501	●
6	COCK; DRAIN,AIR TANK EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-48312-015-0	03	1	1502-	●
7	GASKET; DRAIN COCK MIXER CHASSIS<6NR> ID=14	1-09630-145-0	05	1	1402-1501	●
7	GASKET; DRAIN COCK MIXER CHASSIS<6NR> ID=14	1-09630-145-0	04	1	1502-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	06	1	1404-1501		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1502-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1312-1401	●
7	GASKET; DRAIN COCK EXC. MIXER CHASSIS<6NR> ID=14	1-09630-145-0	01	1	1402-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1312-1401	●
7	GASKET; DRAIN COCK EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=14	1-09630-145-0	04	1	1402-1501	●
7	GASKET; DRAIN COCK EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=14	1-09630-145-0	03	1	1502-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	01	1	1312-1403	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	01	1	1404-	●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	01	1	1312-1403	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	01	1	1404-	●	●
28	BRACKET; AIR TANK MIXER CHASSIS<6NR>	8-98250-640-1	02	1	1402-	●
28	BRACKET; AIR TANK	8-98174-720-0	02	1	1312-1401	●
28	BRACKET; AIR TANK EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98174-720-0	02	1	1402-1403	●
28	BRACKET; AIR TANK EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98174-720-0	02	1	1404-	●
28	BRACKET; AIR TANK	8-98174-720-0	02	1	1404-		●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	1312-1403	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	1404-	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE IDN	0-28651-025-0	02	1	1312-1403	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE IDN	0-28651-025-0	02	1	1404-	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X30 FLANGE	0-28651-030-0	06	1	1312-1403	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X30 FLANGE	0-28651-030-0	06	1	1404-	●	●
54	NUT; STAY M10 FLANGE	0-91180-210-0	02	1	1312-1403	●
54	NUT; STAY M10 FLANGE	0-91180-210-0	02	1	1404-	●	●
58	NUT; BAND,AIR TANK M8 IDN	0-91110-508-0	12	1	1312-1403	●
58	NUT; BAND,AIR TANK M8 IDN	0-91110-508-0	12	1	1404-	●	●
64	STAY; AIR TANK,MAIN (A)	1-48317-760-0	01	1	1312-1403	●
64	STAY; AIR TANK,MAIN (A)	1-48317-760-0	01	1	1404-	●	●
64	STAY; AIR TANK,MAIN (B)	1-53318-293-1	01	1	1312-1403	●
64	STAY; AIR TANK,MAIN (B)	1-53318-293-1	01	1	1404-	●	●
67	STAY; SUB TANK	1-48317-321-2	01	1	1312-1403	●
67	STAY; SUB TANK	1-48317-321-2	01	1	1404-	●	●
80	BOLT; BRKT MIXER CHASSIS<6NR> (A) M8X20 FLANGE IDN	0-28650-820-0	04	1	1402-	●
80	BOLT; BRKT MIXER CHASSIS<6NR> (D) M8X25 FLANGE IDN	0-28650-825-0	01	1	1402-1403	●
80	BOLT; BRKT MIXER CHASSIS<6NR> (D) M8X25 FLANGE IDN	0-28650-825-0	01	1	1404-	●
80	BOLT; BRKT (D) M8X25 FLANGE IDN	0-28650-825-0	01	1	1404-		●
80	BOLT; BRKT (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1312-1401	●
80	BOLT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1402-1403	●
80	BOLT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1404-	●
80	BOLT; BRKT (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1404-		●
80	BOLT; BRKT (B) M10X25 FLANGE IDN	0-28651-025-0	04	1	1312-1401	●
80	BOLT; BRKT EXC. MIXER CHASSIS<6NR> (B) M10X25 FLANGE IDN	0-28651-025-0	04	1	1402-	●
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	04	1	1312-1403	●
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	04	1	1404-	●	●
104	NUT; BRKT MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	04	1	1402-1403	●
104	NUT; BRKT MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	04	1	1404-	●
104	NUT; BRKT M8 FLANGE IDN	0-91180-108-0	04	1	1404-		●
104	NUT; BRKT M8 FLANGE IDN	0-91180-108-0	03	1	1312-1401	●
104	NUT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE IDN	0-91180-108-0	03	1	1402-	●
119	BOLT; STAY M10X25 FLANGE IDN	0-28651-025-0	02	1	1312-1403	●
119	BOLT; STAY M10X25 FLANGE IDN	0-28651-025-0	02	1	1404-	●	●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (L) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1402-	●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (I) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1402-1403	●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (I) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1404-	●
126	CONNECTOR; ELBOW (I) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1404-		●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (J) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1402-1403	●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (J) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1404-	●
126	CONNECTOR; ELBOW (J) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1404-		●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (K) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1402-1403	●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (K) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1404-	●
126	CONNECTOR; ELBOW (K) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1404-		●
126	CONNECTOR; ELBOW (A) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1312-1401	●
126	CONNECTOR; ELBOW EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1402-	●
126	CONNECTOR; ELBOW (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1312-1403	●
126	CONNECTOR; ELBOW (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1404-	●	●
126	CONNECTOR; ELBOW (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1312-1403	●
126	CONNECTOR; ELBOW (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1404-	●	●
126	CONNECTOR; ELBOW (D) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1312-1403	●
126	CONNECTOR; ELBOW (D) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1404-	●	●
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1312-1401	●
126	CONNECTOR; ELBOW EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1402-1403	●
126	CONNECTOR; ELBOW EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1404-	●
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1404-		●
126	CONNECTOR; ELBOW (F) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1312-1403	●
126	CONNECTOR; ELBOW (F) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1404-	●	●
126	CONNECTOR; ELBOW (G) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1312-1403	●
126	CONNECTOR; ELBOW (G) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1404-	●	●
126	CONNECTOR; ELBOW (H) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1312-1403	●
126	CONNECTOR; ELBOW (H) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1404-	●	●
128	PROTECTOR	1-53319-018-0	01	1	1312-1403	●
128	PROTECTOR	1-53319-018-0	01	1	1404-	●	●
129	BOLT; PROTECTOR FIX M8X30 FLANGE	0-28650-830-0	02	1	1312-1403	●
129	BOLT; PROTECTOR FIX M8X30 FLANGE	0-28650-830-0	02	1	1404-	●	●
130	NUT; PROTECTOR FIX M8 FLANGE IDN	0-91180-108-0	02	1	1312-1403	●
130	NUT; PROTECTOR FIX M8 FLANGE IDN	0-91180-108-0	02	1	1404-	●	●
136	BRACKET; CLIP MIXER CHASSIS<6NR> (C) L=150 H=30 IDN	1-47477-629-2	01	1	1402-	●
136	BRACKET; CLIP MIXER CHASSIS<6NR> (B)	8-98260-760-0	02	1	1402-	●
136	BRACKET; CLIP (D) L=225	1-47477-646-3	01	1	1404-		●
136	BRACKET; CLIP (A) L=90 B=25	1-47475-530-0	01	1	1312-1403	●
136	BRACKET; CLIP (A) L=90 B=25	1-47475-530-0	01	1	1404-	●	●
136	BRACKET; CLIP (B)	8-98119-184-1	02	1	1312-1401	●
136	BRACKET; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98119-184-1	02	1	1402-1403	●
136	BRACKET; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98119-184-1	02	1	1404-	●
136	BRACKET; CLIP (B)	8-98119-184-1	02	1	1404-		●
172	NUT; STAY,AIR TANK,MAIN M10 FLANGE	0-91180-210-0	06	1	1312-1403	●
172	NUT; STAY,AIR TANK,MAIN M10 FLANGE	0-91180-210-0	06	1	1404-	●	●
213	BOLT; U AIR TANK (A) IDN	1-48317-301-0	02	1	1312-1403	●
213	BOLT; U AIR TANK (A) IDN	1-48317-301-0	02	1	1404-	●	●
213	BOLT; U AIR TANK (B) IDN	1-48317-302-0	01	1	1312-1403	●
213	BOLT; U AIR TANK (B) IDN	1-48317-302-0	01	1	1404-	●	●

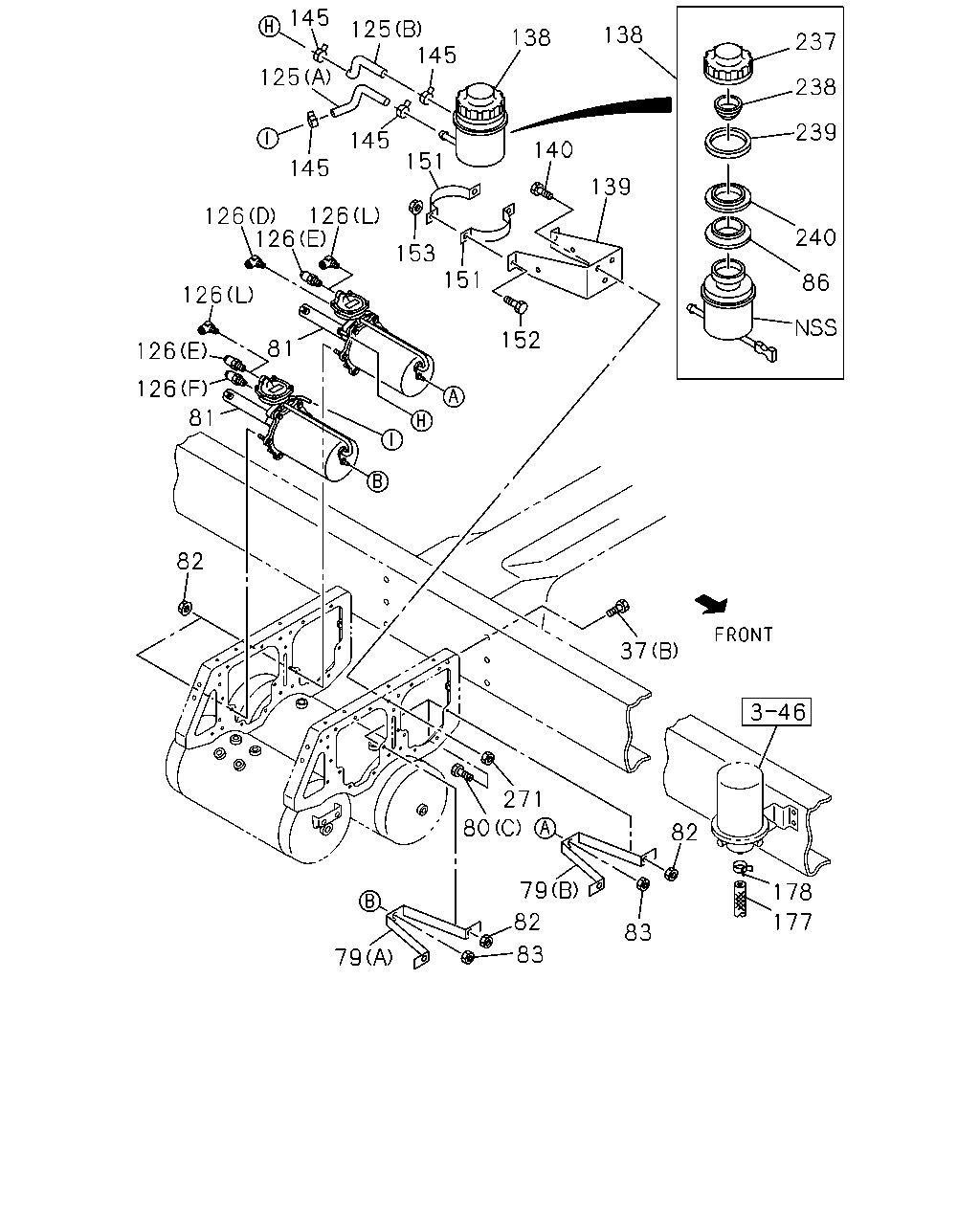

81 126 126 126 126 145 145 126 151 153 152 139 140 138 138 145 125 145 125 126 81 82 37 271 80 79 82 178 177 83 83 82 79 86 240 239 238 237 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BOLT; AIR TANK MIXER CHASSIS<6NR> (A) M14X50	0-20851-450-0	04	1	1402-1403	●
37	BOLT; AIR TANK MIXER CHASSIS<6NR> (A) M14X50	0-20851-450-0	04	1	1404-	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	04	1	1404-		●
37	BOLT; AIR TANK MIXER CHASSIS<6NR> (B) M12X30 FLANGE	0-28651-230-0	04	1	1402-1403	●
37	BOLT; AIR TANK MIXER CHASSIS<6NR> (B) M12X30 FLANGE	0-28651-230-0	04	1	1404-	●
37	BOLT; AIR TANK (B) M12X30 FLANGE	0-28651-230-0	04	1	1404-		●
37	BOLT; AIR TANK (A) M10X40 FLANGE	0-28651-040-0	04	1	1312-1401	●
37	BOLT; AIR TANK EXC. MIXER CHASSIS<6NR> (A) M10X40 FLANGE	0-28651-040-0	04	1	1402-	●
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	1312-1403	●
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	1404-	●	●
79	STAY; AIR MASTER TO BRKT (A)	1-53318-348-0	01	1	1312-1403	●
79	STAY; AIR MASTER TO BRKT (A)	1-53318-348-0	01	1	1404-	●	●
79	STAY; AIR MASTER TO BRKT (B)	8-98120-254-0	01	1	1312-1403	●
79	STAY; AIR MASTER TO BRKT (B)	8-98120-254-0	01	1	1404-	●	●
80	BOLT; BRKT MIXER CHASSIS<6NR> (A) M8X20 FLANGE IDN	0-28650-820-0	04	1	1402-	●
80	BOLT; BRKT MIXER CHASSIS<6NR> (D) M8X25 FLANGE IDN	0-28650-825-0	01	1	1402-1403	●
80	BOLT; BRKT MIXER CHASSIS<6NR> (D) M8X25 FLANGE IDN	0-28650-825-0	01	1	1404-	●
80	BOLT; BRKT (D) M8X25 FLANGE IDN	0-28650-825-0	01	1	1404-		●
80	BOLT; BRKT (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1312-1401	●
80	BOLT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1402-1403	●
80	BOLT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1404-	●
80	BOLT; BRKT (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1404-		●
80	BOLT; BRKT (B) M10X25 FLANGE IDN	0-28651-025-0	04	1	1312-1401	●
80	BOLT; BRKT EXC. MIXER CHASSIS<6NR> (B) M10X25 FLANGE IDN	0-28651-025-0	04	1	1402-	●
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	04	1	1312-1403	●
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	04	1	1404-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-794-0	01	1	1312-1403	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-794-0	01	1	1404-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-795-0	01	1	1312-1403	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-795-0	01	1	1404-	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	1312-1403	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	1404-	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	1312-1403	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	1404-	●	●
86	SEAL; DUST	1-47529-019-0	01	1	1312-1403	●
86	SEAL; DUST	1-47529-019-0	01	1	1404-	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) IDN	1-47469-118-0	01	1	1312-1403	●
125	HOSE; OIL TANK TO AIR MASTER (A) IDN	1-47469-118-0	01	1	1404-	●	●
125	HOSE; OIL TANK TO AIR MASTER (B) IDN	1-47469-119-0	01	1	1312-1403	●
125	HOSE; OIL TANK TO AIR MASTER (B) IDN	1-47469-119-0	01	1	1404-	●	●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (L) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1402-	●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (I) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1402-1403	●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (I) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1404-	●
126	CONNECTOR; ELBOW (I) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1404-		●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (J) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1402-1403	●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (J) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1404-	●
126	CONNECTOR; ELBOW (J) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1404-		●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (K) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1402-1403	●
126	CONNECTOR; ELBOW MIXER CHASSIS<6NR> (K) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1404-	●
126	CONNECTOR; ELBOW (K) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1404-		●
126	CONNECTOR; ELBOW (A) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1312-1401	●
126	CONNECTOR; ELBOW EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1402-	●
126	CONNECTOR; ELBOW (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1312-1403	●
126	CONNECTOR; ELBOW (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1404-	●	●
126	CONNECTOR; ELBOW (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1312-1403	●
126	CONNECTOR; ELBOW (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1404-	●	●
126	CONNECTOR; ELBOW (D) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1312-1403	●
126	CONNECTOR; ELBOW (D) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1404-	●	●
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1312-1401	●
126	CONNECTOR; ELBOW EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1402-1403	●
126	CONNECTOR; ELBOW EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1404-	●
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1404-		●
126	CONNECTOR; ELBOW (F) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1312-1403	●
126	CONNECTOR; ELBOW (F) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1404-	●	●
126	CONNECTOR; ELBOW (G) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1312-1403	●
126	CONNECTOR; ELBOW (G) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1404-	●	●
126	CONNECTOR; ELBOW (H) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1312-1403	●
126	CONNECTOR; ELBOW (H) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1404-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1312-1403	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1404-	●	●
139	BRACKET; OIL TANK IDN	8-98174-721-0	01	1	1312-1403	●
139	BRACKET; OIL TANK IDN	8-98174-721-0	01	1	1404-	●	●
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE IDN	0-28651-025-0	03	1	1312-1403	●
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE IDN	0-28651-025-0	03	1	1404-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14 IDN	1-09704-102-0	04	1	1312-1403	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14 IDN	1-09704-102-0	04	1	1404-	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1312-1403	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1404-	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1403	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE IDN	0-28650-820-0	02	1	1404-	●	●
153	NUT; OIL TANK TO BAND M8 IDN	0-91110-508-0	02	1	1312-1403	●
153	NUT; OIL TANK TO BAND M8 IDN	0-91110-508-0	02	1	1404-	●	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1312-1403	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1404-	●	●
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	1312-1403	●
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	1404-	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	1312-1403	●
237	CAP; OIL TANK	1-47525-030-0	01	1	1404-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	1312-1403	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	1404-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	1312-1403	●
239	FILTER; DUST	1-47529-017-0	01	1	1404-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	1312-1403	●
240	HOLDER; FILTER	1-47529-018-0	01	1	1404-	●	●
271	NUT; BRKT,HOSE M10 FLANGE	0-91180-210-0	03	1	1312-1403	●
271	NUT; BRKT,HOSE M10 FLANGE	0-91180-210-0	03	1	1404-	●	●

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	BOLT; SET,CONT VLV M10X20 FLANGE IDN	0-28051-020-0	02	1	1404-		●

26 2 39 39 37 30 117 381 381 46 46 37 37 80 30 7 6 37 30 30 37 37 117 381 381 46 46 37 37 30 80 30 30 136 6 7 39 39 30 104 26 27 2 13 3 27 26 27 26 26 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR MIXER CHASSIS<6NR> (B) IDN	8-98179-213-0	01	1	1402-	●
2	TANK; AIR (C) IDN	8-98257-340-0	01	1	1404-		●
2	TANK; AIR (A) IDN	8-98195-655-0	01	1	1312-1401	●
2	TANK; AIR EXC. MIXER CHASSIS<6NR> (A) IDN	8-98195-655-0	01	1	1402-	●
3	VALVE; CHECK,AIR TANK (C) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1404-		●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 STRAIGHT	1-48410-182-3	02	1	1312-1403	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 STRAIGHT	1-48410-182-3	02	1	1404-	●	●
3	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1312-1403	●
3	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1404-	●	●
6	COCK; DRAIN,AIR TANK MIXER CHASSIS<6NR>	1-48312-015-0	05	1	1402-1501	●
6	COCK; DRAIN,AIR TANK MIXER CHASSIS<6NR>	1-48312-015-0	04	1	1502-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	06	1	1404-1501		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1502-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1312-1401	●
6	COCK; DRAIN,AIR TANK EXC. MIXER CHASSIS<6NR>	1-48312-015-0	01	1	1402-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1312-1401	●
6	COCK; DRAIN,AIR TANK EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-48312-015-0	04	1	1402-1501	●
6	COCK; DRAIN,AIR TANK EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-48312-015-0	03	1	1502-	●
7	GASKET; DRAIN COCK MIXER CHASSIS<6NR> ID=14	1-09630-145-0	05	1	1402-1501	●
7	GASKET; DRAIN COCK MIXER CHASSIS<6NR> ID=14	1-09630-145-0	04	1	1502-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	06	1	1404-1501		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1502-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1312-1401	●
7	GASKET; DRAIN COCK EXC. MIXER CHASSIS<6NR> ID=14	1-09630-145-0	01	1	1402-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1312-1401	●
7	GASKET; DRAIN COCK EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=14	1-09630-145-0	04	1	1402-1501	●
7	GASKET; DRAIN COCK EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=14	1-09630-145-0	03	1	1502-	●
13	ADAPTER; NYLON TUBE DIN12 & M12 STRAIGHT IDN	1-09660-878-0	01	1	1404-		●
26	PLUG; SUB AIR TANK MIXER CHASSIS<6NR> PT3/8	9-09204-517-0	03	1	1402-	●
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	1312-1401	●
26	PLUG; SUB AIR TANK EXC. MIXER CHASSIS<6NR> PT3/8	9-09204-517-0	02	1	1402-1403	●
26	PLUG; SUB AIR TANK EXC. MIXER CHASSIS<6NR> PT3/8	9-09204-517-0	02	1	1404-	●
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	1404-		●
27	UNION; ELBOW,AIR TANK MIXER CHASSIS<6NR> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1402-1403	●
27	UNION; ELBOW,AIR TANK MIXER CHASSIS<6NR> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1404-	●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1404-		●
27	UNION; ELBOW,AIR TANK (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1404-		●
30	BRACKET; AIR TANK,SUB MIXER CHASSIS<6NR> (D) IDN	8-98182-085-0	01	1	1402-	●
30	BRACKET; AIR TANK,SUB MIXER CHASSIS<6NR> (C) IDN	8-98182-821-0	01	1	1402-	●
30	BRACKET; AIR TANK,SUB MIXER CHASSIS<6NR> (H)	1-48316-024-3	01	1	1402-1403	●
30	BRACKET; AIR TANK,SUB MIXER CHASSIS<6NR> (H)	1-48316-024-3	01	1	1404-	●
30	BRACKET; AIR TANK,SUB (H)	1-48316-024-3	01	1	1404-		●
30	BRACKET; AIR TANK,SUB MIXER CHASSIS<6NR> (E)	1-48317-994-2	01	1	1402-1403	●
30	BRACKET; AIR TANK,SUB MIXER CHASSIS<6NR> (E)	1-48317-994-2	01	1	1404-	●
30	BRACKET; AIR TANK,SUB (E)	1-48317-994-2	01	1	1404-		●
30	BRACKET; AIR TANK,SUB (F)	1-48316-026-0	01	1	1404-		●
30	BRACKET; AIR TANK,SUB (G)	8-98136-697-0	01	1	1404-		●
30	BRACKET; AIR TANK,SUB (A) IDN	8-97948-143-0	02	1	1312-1401	●
30	BRACKET; AIR TANK,SUB EXC. MIXER CHASSIS<6NR> (A) IDN	8-97948-143-0	02	1	1402-	●
30	BRACKET; AIR TANK,SUB (B) IDN	8-98245-717-0	01	1	1312-1401	●
30	BRACKET; AIR TANK,SUB EXC. MIXER CHASSIS<6NR> (B) IDN	8-98245-717-0	01	1	1402-	●
37	BOLT; AIR TANK MIXER CHASSIS<6NR> (A) M14X50	0-20851-450-0	04	1	1402-1403	●
37	BOLT; AIR TANK MIXER CHASSIS<6NR> (A) M14X50	0-20851-450-0	04	1	1404-	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	04	1	1404-		●
37	BOLT; AIR TANK MIXER CHASSIS<6NR> (B) M12X30 FLANGE	0-28651-230-0	04	1	1402-1403	●
37	BOLT; AIR TANK MIXER CHASSIS<6NR> (B) M12X30 FLANGE	0-28651-230-0	04	1	1404-	●
37	BOLT; AIR TANK (B) M12X30 FLANGE	0-28651-230-0	04	1	1404-		●
37	BOLT; AIR TANK (A) M10X40 FLANGE	0-28651-040-0	04	1	1312-1401	●
37	BOLT; AIR TANK EXC. MIXER CHASSIS<6NR> (A) M10X40 FLANGE	0-28651-040-0	04	1	1402-	●
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	1312-1403	●
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	1404-	●	●
39	U-BOLT; AIR TANK MIXER CHASSIS<6NR> L=253 IDN	1-48317-248-1	02	1	1402-	●
39	U-BOLT; AIR TANK L=303	1-48317-087-2	02	1	1404-		●
39	U-BOLT; AIR TANK	1-48317-289-0	02	1	1312-1401	●
39	U-BOLT; AIR TANK EXC. MIXER CHASSIS<6NR>	1-48317-289-0	02	1	1402-	●
46	NUT; U-BOLT M8 IDN	0-91110-508-0	08	1	1312-1403	●
46	NUT; U-BOLT M8 IDN	0-91110-508-0	08	1	1404-	●	●
80	BOLT; BRKT MIXER CHASSIS<6NR> (A) M8X20 FLANGE IDN	0-28650-820-0	04	1	1402-	●
80	BOLT; BRKT MIXER CHASSIS<6NR> (D) M8X25 FLANGE IDN	0-28650-825-0	01	1	1402-1403	●
80	BOLT; BRKT MIXER CHASSIS<6NR> (D) M8X25 FLANGE IDN	0-28650-825-0	01	1	1404-	●
80	BOLT; BRKT (D) M8X25 FLANGE IDN	0-28650-825-0	01	1	1404-		●
80	BOLT; BRKT (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1312-1401	●
80	BOLT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1402-1403	●
80	BOLT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1404-	●
80	BOLT; BRKT (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1404-		●
80	BOLT; BRKT (B) M10X25 FLANGE IDN	0-28651-025-0	04	1	1312-1401	●
80	BOLT; BRKT EXC. MIXER CHASSIS<6NR> (B) M10X25 FLANGE IDN	0-28651-025-0	04	1	1402-	●
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	04	1	1312-1403	●
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	04	1	1404-	●	●
103	BOLT; BRKT M8X20 FLANGE IDN	0-28650-820-0	01	1	1404-		●
104	NUT; BRKT MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	04	1	1402-1403	●
104	NUT; BRKT MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	04	1	1404-	●
104	NUT; BRKT M8 FLANGE IDN	0-91180-108-0	04	1	1404-		●
104	NUT; BRKT M8 FLANGE IDN	0-91180-108-0	03	1	1312-1401	●
104	NUT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE IDN	0-91180-108-0	03	1	1402-	●
117	WASHER; LK,BRKT MIXER CHASSIS<6NR> ID=14.2	0-91510-514-0	04	1	1402-1403	●
117	WASHER; LK,BRKT MIXER CHASSIS<6NR> ID=14.2	0-91510-514-0	04	1	1404-	●
117	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1404-		●
136	BRACKET; CLIP MIXER CHASSIS<6NR> (C) L=150 H=30 IDN	1-47477-629-2	01	1	1402-	●
136	BRACKET; CLIP MIXER CHASSIS<6NR> (B)	8-98260-760-0	02	1	1402-	●
136	BRACKET; CLIP (D) L=225	1-47477-646-3	01	1	1404-		●
136	BRACKET; CLIP (A) L=90 B=25	1-47475-530-0	01	1	1312-1403	●
136	BRACKET; CLIP (A) L=90 B=25	1-47475-530-0	01	1	1404-	●	●
136	BRACKET; CLIP (B)	8-98119-184-1	02	1	1312-1401	●
136	BRACKET; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98119-184-1	02	1	1402-1403	●
136	BRACKET; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98119-184-1	02	1	1404-	●
136	BRACKET; CLIP (B)	8-98119-184-1	02	1	1404-		●
381	NUT; SUB TANK MIXER CHASSIS<6NR> (A) M14	0-91110-514-0	04	1	1402-1403	●
381	NUT; SUB TANK MIXER CHASSIS<6NR> (A) M14	0-91110-514-0	04	1	1404-	●
381	NUT; SUB TANK (A) M14	0-91110-514-0	04	1	1404-		●
381	NUT; SUB TANK MIXER CHASSIS<6NR> (B) M12 FLANGE	0-91180-212-0	01	1	1402-1403	●
381	NUT; SUB TANK MIXER CHASSIS<6NR> (B) M12 FLANGE	0-91180-212-0	01	1	1404-	●
381	NUT; SUB TANK (B) M12 FLANGE	0-91180-212-0	01	1	1404-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
