◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#131676) — 88 parça

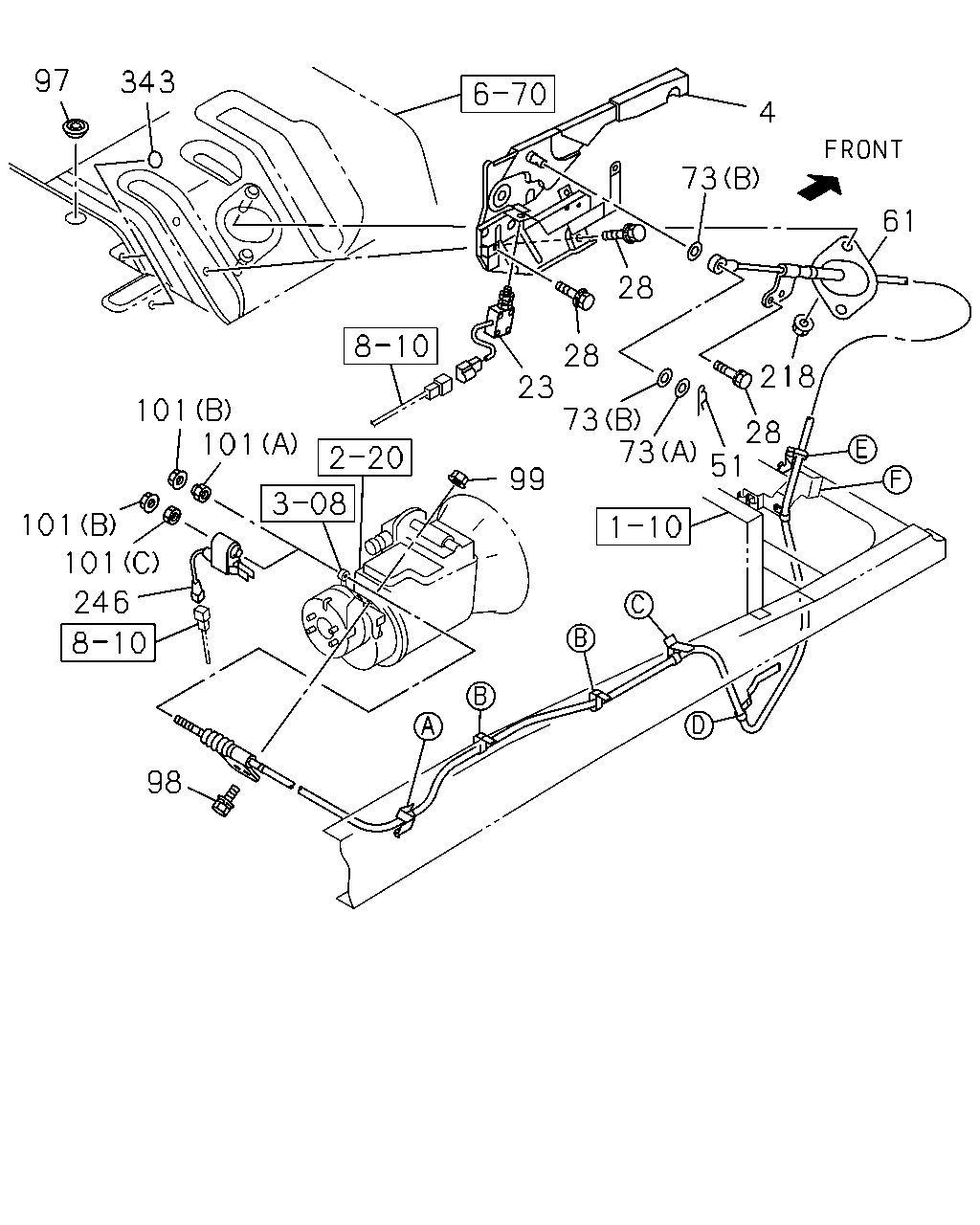

çizim 388396
97 343 101 101 101 246 101 98 99 23 28 28 73 73 51 28 218 61 73 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 STEM; PARKING BRK 8-98173-353-0 01 1 1312-1403 ●
4 STEM; PARKING BRK 8-98173-353-0 01 1 1404- ● ●
23 SWITCH; PARKING BRK 1-82440-100-0 01 1 1312-1403 ●
23 SWITCH; PARKING BRK 1-82440-100-0 01 1 1404- ● ●
28 BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1312-1403 ●
28 BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1404- ● ●
51 PIN; JOINT,RELAY LEVER 1-09987-243-1 01 1 1312-1403 ●
51 PIN; JOINT,RELAY LEVER 1-09987-243-1 01 1 1404- ● ●
61 CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) PARKING BRAKE - BRAKE LOCK(6LL) L=5189 		8-98257-641-0 01 1 1402- ●
61 CABLE; PARKING BRK
FULLER ES11109 DD M/T(Y5N) L=4946 		8-98182-151-0 01 1 1312-1401 ●
61 CABLE; PARKING BRK
FULLER ES11109 DD M/T(Y5N) L=4946 		8-98257-638-0 01 1 1402-1403 ●
61 CABLE; PARKING BRK
FULLER ES11109 DD M/T(Y5N) L=4946 		8-98257-638-0 01 1 1404- ●
61 CABLE; PARKING BRK
L=4946 		8-98257-638-0 01 1 1404- ●
61 CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) L=5046 		8-98184-206-0 01 1 1312-1401 ●
61 CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) EXC. PARKING BRAKE - BRAKE LOCK(6LL) L=5046 		8-98257-639-0 01 1 1402- ●
73 WASHER; PL,CABLE
(A) ID=17 OD=30 		0-91610-516-0 01 1 1312-1403 ●
73 WASHER; PL,CABLE
(A) ID=17 OD=30 		0-91610-516-0 01 1 1404- ● ●
73 WASHER; PL,CABLE
(B) ID=19 		8-94206-429-1 02 1 1312-1403 ●
73 WASHER; PL,CABLE
(B) ID=19 		8-94206-429-1 02 1 1404- ● ●
97 GROMMET; PARKING BRK CABLE
OD=35 IDN 		8-94122-971-0 01 1 1312- ●
98 BOLT; RR COVER
M10X30 FLANGE 		0-28651-030-0 02 1 1312-1403 ●
98 BOLT; RR COVER
M10X30 FLANGE 		0-28651-030-0 02 1 1404- ● ●
99 NUT; CONT CABLE
M10 FLANGE 		0-91180-210-0 02 1 1312-1403 ●
99 NUT; CONT CABLE
M10 FLANGE 		0-91180-210-0 02 1 1404- ● ●
101 NUT; CABLE TO LEVER
ZF9S1110 DD M/T(Y5P) PARKING BRAKE - BRAKE LOCK(6LL) (C) M8 IDN 		0-91110-508-0 01 1 1402- ●
101 NUT; CABLE TO LEVER
(B) M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1403 ●
101 NUT; CABLE TO LEVER
(B) M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ● ●
101 NUT; CABLE TO LEVER
(A) M8 		1-46259-007-0 01 1 1312-1401 ●
101 NUT; CABLE TO LEVER
EXC. PARKING BRAKE - BRAKE LOCK(6LL),POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8 		1-46259-007-0 01 1 1402-1403 ●
101 NUT; CABLE TO LEVER
EXC. PARKING BRAKE - BRAKE LOCK(6LL),POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8 		1-46259-007-0 01 1 1404- ●
101 NUT; CABLE TO LEVER
FULLER ES11109 DD M/T(Y5N) (A) M8 		1-46259-007-0 01 1 1404- ●
218 NUT; BRKT,PARKING BRK CABLE
M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1403 ●
218 NUT; BRKT,PARKING BRK CABLE
M8 FLANGE IDN 		0-91180-108-0 02 1 1404- ● ●
246 SENSOR; BRK LOCK
PARKING BRAKE - BRAKE LOCK(6LL) 		8-98261-285-0 01 1 1402- ●
343 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 1404- ●
343 SEAL
OD=25 BLACK 		1-76798-019-0 04 1 1312- ●
çizim 388465
227 87 235 236 237 237 227 236 235 235 237 227 228 227 228 227 236 235 87 307 351 324 61 336 228 227 228 351 46
BalonParca AdiParca NoAdetTipApplied Date A B
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		0-95235-535-0 01 1 1312-1401 ●
46 CLIP; FRT CABLE TO FLOOR
ID=13 L=20 		0-95235-235-0 01 1 1402-1403 ●
46 CLIP; FRT CABLE TO FLOOR
ID=13 L=20 		0-95235-235-0 01 1 1404- ● ●
61 CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) PARKING BRAKE - BRAKE LOCK(6LL) L=5189 		8-98257-641-0 01 1 1402- ●
61 CABLE; PARKING BRK
FULLER ES11109 DD M/T(Y5N) L=4946 		8-98182-151-0 01 1 1312-1401 ●
61 CABLE; PARKING BRK
FULLER ES11109 DD M/T(Y5N) L=4946 		8-98257-638-0 01 1 1402-1403 ●
61 CABLE; PARKING BRK
FULLER ES11109 DD M/T(Y5N) L=4946 		8-98257-638-0 01 1 1404- ●
61 CABLE; PARKING BRK
L=4946 		8-98257-638-0 01 1 1404- ●
61 CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) L=5046 		8-98184-206-0 01 1 1312-1401 ●
61 CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) EXC. PARKING BRAKE - BRAKE LOCK(6LL) L=5046 		8-98257-639-0 01 1 1402- ●
87 NUT
M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1403 ●
87 NUT
M8 FLANGE IDN 		0-91180-108-0 02 1 1404- ● ●
227 CLIP; RAD
(A) ID=13 L=20 		0-95235-235-0 02 1 1312-1403 ●
227 CLIP; RAD
(A) ID=13 L=20 		0-95235-235-0 02 1 1404- ● ●
227 CLIP; RAD
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1312-1403 ●
227 CLIP; RAD
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1404- ● ●
227 CLIP; RAD
(C) ID=14.5 L=40 		1-09701-014-0 01 1 1312-1403 ●
227 CLIP; RAD
(C) ID=14.5 L=40 		1-09701-014-0 01 1 1404- ● ●
227 CLIP; RAD
(D) ID=9.5 		5-09709-020-0 02 1 1312-1403 ●
227 CLIP; RAD
(D) ID=9.5 		5-09709-020-0 02 1 1404- ● ●
228 BOLT; CLIP RAD MTG
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1403 ●
228 BOLT; CLIP RAD MTG
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ● ●
228 BOLT; CLIP RAD MTG
(B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1312-1403 ●
228 BOLT; CLIP RAD MTG
(B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1404- ● ●
228 BOLT; CLIP RAD MTG
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 1312-1403 ●
228 BOLT; CLIP RAD MTG
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 1404- ● ●
235 BRACKET; CONT CABLE TO FRAME
(D) 		8-98100-152-0 01 1 1312-1403 ●
235 BRACKET; CONT CABLE TO FRAME
(D) 		8-98100-152-0 01 1 1404- ● ●
235 BRACKET; CONT CABLE TO FRAME
(B) 		8-98111-492-0 01 1 1312-1403 ●
235 BRACKET; CONT CABLE TO FRAME
(B) 		8-98111-492-0 01 1 1404- ● ●
235 BRACKET; CONT CABLE TO FRAME
(C) 		8-98126-426-0 01 1 1312-1403 ●
235 BRACKET; CONT CABLE TO FRAME
(C) 		8-98126-426-0 01 1 1404- ● ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98126-934-0 01 1 1312-1403 ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98126-934-0 01 1 1404- ● ●
236 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1312-1403 ●
236 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1404- ● ●
236 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1312-1403 ●
236 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1404- ● ●
236 BOLT; BRKT TO FRAME
(C) M10X35 FLANGE IDN 		0-28651-035-0 01 1 1312-1403 ●
236 BOLT; BRKT TO FRAME
(C) M10X35 FLANGE IDN 		0-28651-035-0 01 1 1404- ● ●
237 NUT; BRKT TO FRAME
(A) M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1403 ●
237 NUT; BRKT TO FRAME
(A) M8 FLANGE IDN 		0-91180-108-0 02 1 1404- ● ●
237 NUT; BRKT TO FRAME
(B) M10 FLANGE 		0-91180-210-0 02 1 1312-1403 ●
237 NUT; BRKT TO FRAME
(B) M10 FLANGE 		0-91180-210-0 02 1 1404- ● ●
307 BOLT; BRKT,PARKING BRK CABLE
M8X25 W/WASHER 		0-51640-825-0 01 1 1312-1403 ●
307 BOLT; BRKT,PARKING BRK CABLE
M8X25 W/WASHER 		0-51640-825-0 01 1 1404- ● ●
324 BRACKET 8-98067-482-1 01 1 1312-1403 ●
324 BRACKET 8-98067-482-1 01 1 1404- ● ●
336 BRACKET; RADIATOR
IDN 		8-98182-153-1 01 1 1312-1403 ●
336 BRACKET; RADIATOR
IDN 		8-98182-153-1 01 1 1404- ● ●
351 BOLT; CLIP
M8X25 W/WASHER 		0-51640-825-0 03 1 1312-1403 ●
351 BOLT; CLIP
M8X25 W/WASHER 		0-51640-825-0 03 1 1404- ● ●
