3-10 — BRAKE PEDAL AND CONTROL (#131675) — 58 parça
çizim 388385
332 183 4 27 10 2 4 6 332 1 159 76 273 80 207 93
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 8-98071-972-1 01 1 1312-1403 ●
1 BRACKET ASM; PEDAL 8-98071-972-1 01 1 1404- ● ●
2 PEDAL; BRK 8-98057-226-0 01 1 1312-1403 ●
2 PEDAL; BRK 8-98057-226-0 01 1 1404- ● ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 1312-1403 ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 1404- ● ●
6 COVER; BRK PEDAL 8-98056-865-0 01 1 1312-1403 ●
6 COVER; BRK PEDAL 8-98056-865-0 01 1 1404- ● ●
10 SPRING; RETURN,BRK PEDAL 8-98057-232-1 01 1 1312-1403 ●
10 SPRING; RETURN,BRK PEDAL 8-98057-232-1 01 1 1404- ● ●
27 SHAFT; BRK PEDAL 8-98057-231-0 01 1 1312-1403 ●
27 SHAFT; BRK PEDAL 8-98057-231-0 01 1 1404- ● ●
76 NUT; PUSH ROD
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1403 ●
76 NUT; PUSH ROD
M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ● ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 1312-1403 ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 1404- ● ●
93 SEAL; BRK PEDAL 1-48199-534-0 01 1 1312-1403 ●
93 SEAL; BRK PEDAL 1-48199-534-0 01 1 1404- ● ●
159 ROD ASM; PUSH,BRK 8-98057-234-0 01 1 1312-1403 ●
159 ROD ASM; PUSH,BRK 8-98057-234-0 01 1 1404- ● ●
183 BOLT; BRK VLV
M8X30 FLANGE 		0-28660-830-0 04 1 1312-1403 ●
183 BOLT; BRK VLV
M8X30 FLANGE 		0-28660-830-0 04 1 1404- ● ●
207 PIN; JOINT,BRK PEDAL LINK 8-98147-657-0 01 1 1312-1403 ●
207 PIN; JOINT,BRK PEDAL LINK 8-98147-657-0 01 1 1404- ● ●
273 ROD; PULL 8-98057-233-0 01 1 1312-1403 ●
273 ROD; PULL 8-98057-233-0 01 1 1404- ● ●
332 RING; SNAP
ID=12 		0-91805-512-0 02 1 1312-1403 ●
332 RING; SNAP
ID=12 		0-91805-512-0 02 1 1404- ● ●

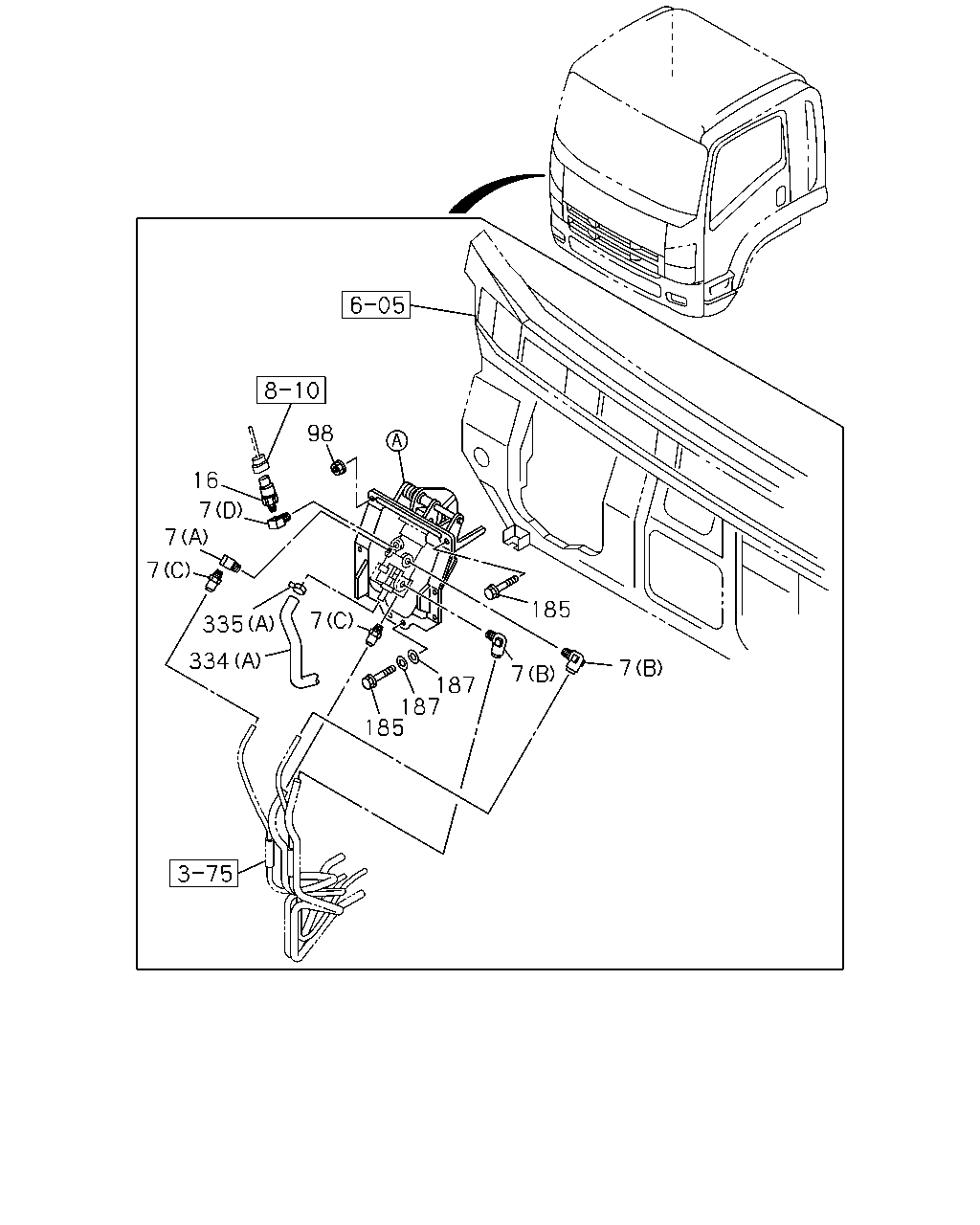

çizim 388423
16 98 7 7 7 335 334 7 185 187 187 185 7 7
BalonParca AdiParca NoAdetTipApplied Date A B
7 CONNECTOR; BRK VALVE
(D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1312-1403 ●
7 CONNECTOR; BRK VALVE
(D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1404- ● ●
7 CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1312-1403 ●
7 CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1404- ● ●
7 CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1312-1403 ●
7 CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1404- ● ●
7 CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1312-1403 ●
7 CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1404- ● ●
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 01 1 1312-1403 ●
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 01 1 1404- ● ●
98 NUT; BRKT
M8 FLANGE IDN 		0-91180-208-0 01 1 1312-1403 ●
98 NUT; BRKT
M8 FLANGE IDN 		0-91180-208-0 01 1 1404- ● ●
185 BOLT; BRKT
M8X25 FLANGE 		8-98057-109-0 07 1 1312-1403 ●
185 BOLT; BRKT
M8X25 FLANGE 		8-98057-109-0 07 1 1404-1506 ● ●
185 BOLT; BRKT
M8X25 HEXALOBULAR 		8-98316-699-0 07 1 1507- ● ●
187 WASHER; PL,BRKT
ID=8.4 OD=26 IDN 		0-91614-808-0 04 1 1312-1403 ●
187 WASHER; PL,BRKT
ID=8.4 OD=26 IDN 		0-91614-808-0 04 1 1404-1506 ● ●
187 WASHER; PL,BRKT
ID=8.4 OD=26 		8-98316-762-0 04 1 1507- ● ●
334 HOSE; AIR,BRK
(B) 		8-98251-374-0 01 1 1404- ●
334 HOSE; AIR,BRK
(A) IDN 		8-97611-145-3 01 1 1312-1403 ●
334 HOSE; AIR,BRK
(A) IDN 		8-97611-145-3 01 1 1404- ● ●
335 CLAMP; HOSE
(B) ID=14 		8-94238-572-0 01 1 1404- ●
335 CLAMP; HOSE
(A) ID=24 		8-98025-921-0 01 1 1312-1403 ●
335 CLAMP; HOSE
(A) ID=24 		8-98025-921-0 01 1 1404- ● ●
çizim 414030
335 334
BalonParca AdiParca NoAdetTipApplied Date A B
334 HOSE; AIR,BRK
(B) 		8-98251-374-0 01 1 1404- ●
334 HOSE; AIR,BRK
(A) IDN 		8-97611-145-3 01 1 1312-1403 ●
334 HOSE; AIR,BRK
(A) IDN 		8-97611-145-3 01 1 1404- ● ●
335 CLAMP; HOSE
(B) ID=14 		8-94238-572-0 01 1 1404- ●
335 CLAMP; HOSE
(A) ID=24 		8-98025-921-0 01 1 1312-1403 ●
335 CLAMP; HOSE
(A) ID=24 		8-98025-921-0 01 1 1404- ● ●
