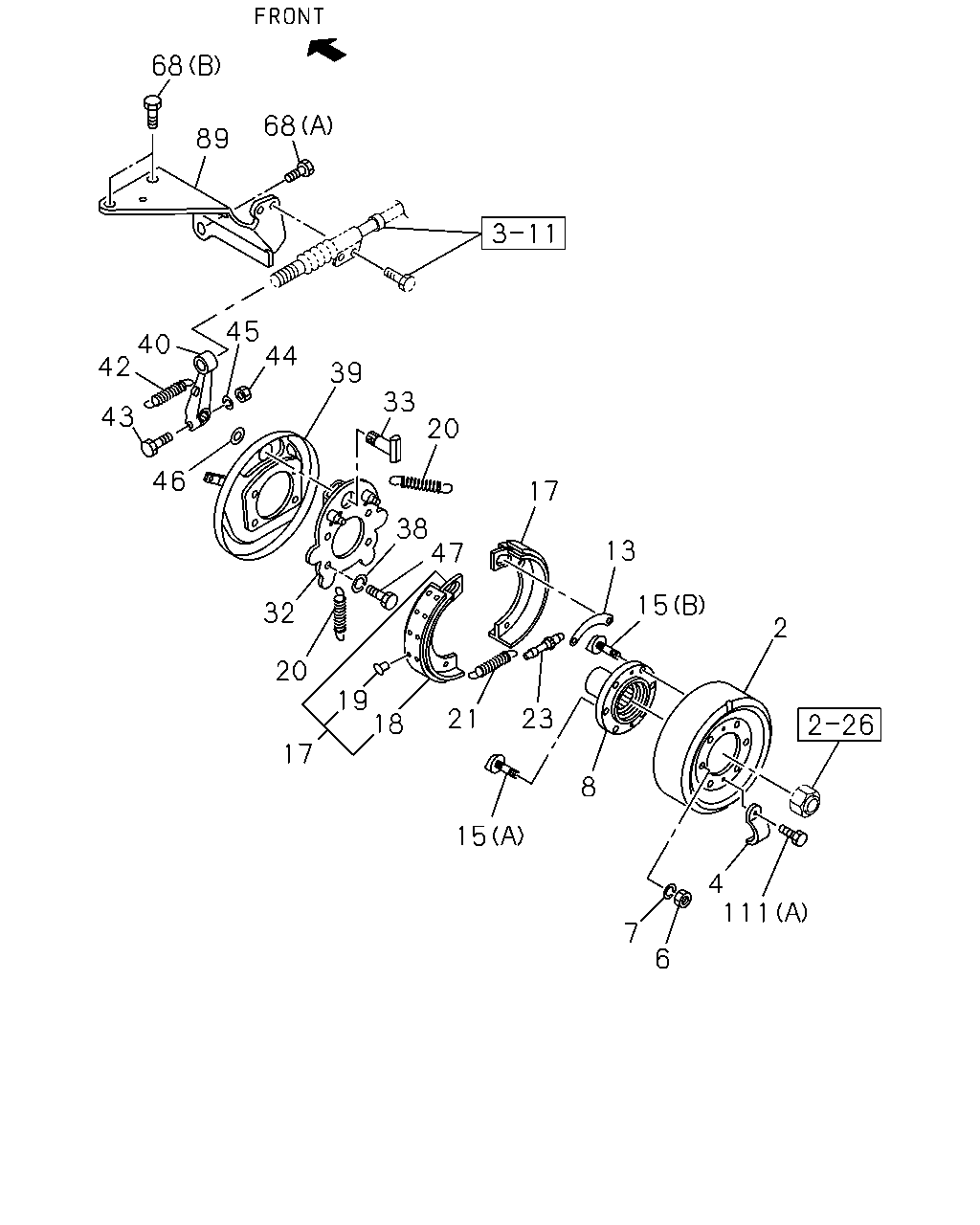

3-08B — PARKING BRAKE
(#131674) — 29 parça
68
89
68
45
40
42
43
46
44
39
33
20
17
13
15
2
111
4
7
6
15
8
23
21
18
19
17
20
32
47
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-026-1
01
1
1312-
4
COVER; ADJ HOLE
8-98031-861-0
02
1
1312-
6
NUT; FLANGE
M16 IDN
0-91110-516-0
02
1
1312-
7
WASHER; LK,FLANGE
ID=16.2
0-91510-516-0
02
1
1312-
8
FLANGE; PARKING BRK
1-37243-311-0
01
1
1312-
13
BRACE; PARKING BRK
9-46239-002-0
01
1
1312-
15
BOLT; FLANGE
(A) M16X55
8-98023-172-0
04
1
1312-
15
BOLT; FLANGE
(B) M16X38
1-46219-010-0
02
1
1312-
17
SHOE; PARKING BRK
1-46220-022-1
02
1
1312-
18
LINING; BRK,PARKING
1-46225-023-0
02
1
1312-
19
RIVET; LINING,PARKING BRK
1-09732-058-0
32
1
1312-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-434-0
02
1
1312-
21
SPRING; RETURN,PARKING BRK SHOE
9-09942-516-0
01
1
1312-
23
SCREW; ADJ,PARKING BRK SHOE
1-46240-003-0
01
1
1312-
32
PLATE; SUPPORT,PARKING BRK
1-46213-096-0
01
1
1312-
33
SHAFT; CAM,PARKING BRK
1-46251-010-0
01
1
1312-
38
WASHER; LK,SUPPORT PLATE
ID=16.2
0-91510-516-0
04
1
1312-
39
COVER; DUST,PARKING BRK
1-46213-093-0
01
1
1312-
40
LEVER; CM/SHF,PARKING BRK
1-46252-046-0
01
1
1312-
42
SPRING; RETURN,LEVER
1-09583-104-0
01
1
1312-
43
BOLT; LEVER TO CM/SHF
8-98061-595-0
01
1
1312-
44
NUT; LEVER TO CM/SHF
M10
0-91111-510-0
01
1
1312-
45
WASHER; LK,LEVER TO CM/SHF
ID=10.2
0-91510-510-0
01
1
1312-
46
WASHER; LEVER
9-09855-362-0
01
1
1312-
47
BOLT; SUPPORT PLATE
0-23851-640-0
04
1
1312-
68
BOLT; BRKT,PARKING BRK CONT
(A) M12X25 FLANGE
0-28751-225-0
01
1
1312-
68
BOLT; BRKT,PARKING BRK CONT
(B) M14X25 FLANGE
0-28951-425-0
02
1
1312-
89
BRACKET; PARKING BRK CONT
1-46147-273-2
01
1
1312-
111
BOLT; COVER,CHECK HOLE
(A) M8X20 W/LK WASHER
0-50740-820-0
02
1
1312-
