3-01 — FRONT WHEEL BRAKE (#131671) — 76 parça

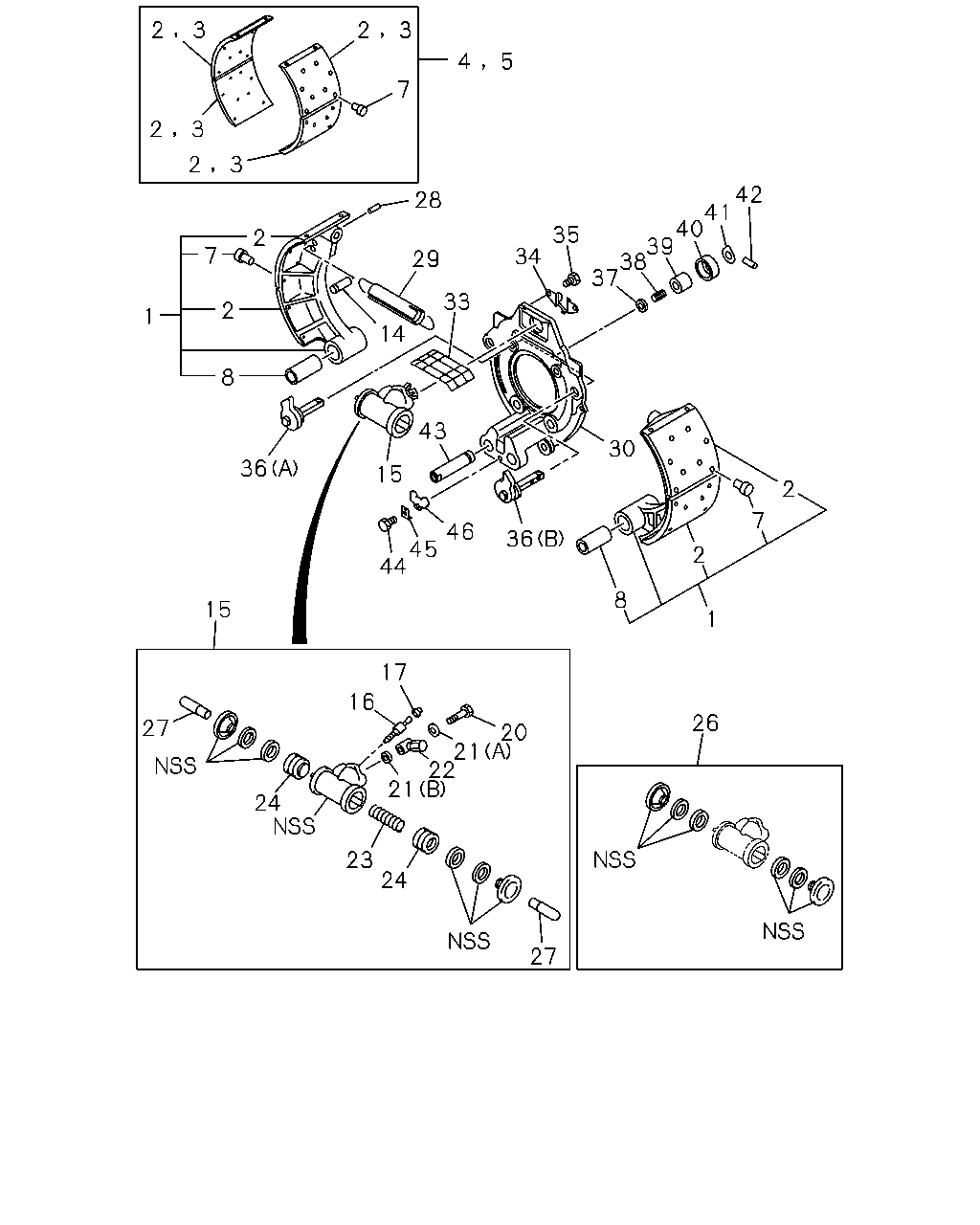

çizim 388711
1 2 2 3 3 2 3 2 3 7 4 5 2 7 2 8 36 14 29 28 33 34 35 37 38 39 40 41 42 43 15 15 44 45 46 36 30 2 7 2 8 1 26 27 20 21 22 21 24 23 24 27 16 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT 1-47120-706-0 04 1 1312-1403 ●
1 SHOE; BRK,FRT 1-47120-706-0 04 1 1404- ● ●
2 LINING; FRT BRK SHOE,STANDARD 1-47125-811-0 08 1 1312-1403 ●
2 LINING; FRT BRK SHOE,STANDARD 1-47125-811-0 08 1 1404- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47125-812-0 08 1 1312-1403 ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47125-812-0 08 1 1404- ● ●
4 LINING SET; FRT BRK,STANDARD 1-88310-495-1 02 1 1312-1403 ●
4 LINING SET; FRT BRK,STANDARD 1-88310-495-1 02 1 1404- ● ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-496-1 02 1 1312-1403 ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-496-1 02 1 1404- ● ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 80 1 1312-1403 ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 80 1 1404- ● ●
8 BUSHING; BRK SHOE 1-47112-011-0 04 1 1312-1403 ●
8 BUSHING; BRK SHOE 1-47112-011-0 04 1 1404- ● ●
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 04 1 1312-1403 ●
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 04 1 1404- ● ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-674-0 01 1 1312-1403 ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-674-0 01 1 1404- ● ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-675-0 01 1 1312-1403 ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-675-0 01 1 1404- ● ●
16 SCREW; BLEEDER,FRT BRK
L=66.5 		1-47615-005-0 02 1 1312-1403 ●
16 SCREW; BLEEDER,FRT BRK
L=66.5 		1-47615-005-0 02 1 1404- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 1312-1403 ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 1404- ● ●
20 BOLT; JOINT
M12X40.5 EYE BOLT 		1-47634-006-0 02 1 1312-1403 ●
20 BOLT; JOINT
M12X40.5 EYE BOLT 		1-47634-006-0 02 1 1404- ● ●
21 GASKET; UNION BOLT
(A) ID=15.2 		1-09630-019-0 02 1 1312-1403 ●
21 GASKET; UNION BOLT
(A) ID=15.2 		1-09630-019-0 02 1 1404- ● ●
21 GASKET; UNION BOLT
(B) ID=12.2 		1-09630-020-0 02 1 1312-1403 ●
21 GASKET; UNION BOLT
(B) ID=12.2 		1-09630-020-0 02 1 1404- ● ●
22 JOINT; PIPE 1-47631-057-1 02 1 1312-1403 ●
22 JOINT; PIPE 1-47631-057-1 02 1 1404- ● ●
23 SPRING; COIL 9-09940-435-0 02 1 1312-1403 ●
23 SPRING; COIL 9-09940-435-0 02 1 1404- ● ●
24 PISTON; FRT WHEEL CYL 9-47624-210-0 04 1 1312-1403 ●
24 PISTON; FRT WHEEL CYL 9-47624-210-0 04 1 1404- ● ●
26 CUP SET; FRT WHEEL CYL
ID=47.5 		1-87830-521-0 02 1 1312-1403 ●
26 CUP SET; FRT WHEEL CYL
ID=47.5 		1-87830-521-0 02 1 1404- ● ●
27 ROD; PUSH 1-47621-009-0 04 1 1312-1403 ●
27 ROD; PUSH 1-47621-009-0 04 1 1404- ● ●
28 PIN; SHOE ADJ CAM GUIDE 1-47116-002-0 04 1 1312-1403 ●
28 PIN; SHOE ADJ CAM GUIDE 1-47116-002-0 04 1 1404- ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-269-1 02 1 1312-1403 ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-269-1 02 1 1404- ● ●
30 BRACKET; ANCHOR,FRT 1-47137-435-0 02 1 1312-1403 ●
30 BRACKET; ANCHOR,FRT 1-47137-435-0 02 1 1404- ● ●
33 COVER; WHEEL CYL 1-47159-080-0 02 1 1312-1403 ●
33 COVER; WHEEL CYL 1-47159-080-0 02 1 1404- ● ●
34 PLATE; DIRECTION,FRT 1-47159-094-0 02 1 1312-1403 ●
34 PLATE; DIRECTION,FRT 1-47159-094-0 02 1 1404- ● ●
35 BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER 		0-50551-235-0 04 1 1312-1403 ●
35 BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER 		0-50551-235-0 04 1 1404- ● ●
36 CAM ASM; ADJ
(A) 		1-47165-058-1 02 1 1312-1403 ●
36 CAM ASM; ADJ
(A) 		1-47165-058-1 02 1 1404- ● ●
36 CAM ASM; ADJ
(B) 		1-47165-059-1 02 1 1312-1403 ●
36 CAM ASM; ADJ
(B) 		1-47165-059-1 02 1 1404- ● ●
37 WASHER; ADJ CAM 1-47169-033-0 04 1 1312-1403 ●
37 WASHER; ADJ CAM 1-47169-033-0 04 1 1404- ● ●
38 SPRING; ADJ CAM 1-47169-046-0 04 1 1312-1403 ●
38 SPRING; ADJ CAM 1-47169-046-0 04 1 1404- ● ●
39 BOOT; ADJ CAM 1-47169-034-0 04 1 1312-1403 ●
39 BOOT; ADJ CAM 1-47169-034-0 04 1 1404- ● ●
40 COVER; BOOT,ADJ CAM 1-47169-031-0 04 1 1312-1403 ●
40 COVER; BOOT,ADJ CAM 1-47169-031-0 04 1 1404- ● ●
41 INDICATOR 1-47169-032-1 04 1 1312-1403 ●
41 INDICATOR 1-47169-032-1 04 1 1404- ● ●
42 PIN; SPINDLE 1-47169-030-0 04 1 1312-1403 ●
42 PIN; SPINDLE 1-47169-030-0 04 1 1404- ● ●
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 04 1 1312-1403 ●
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 04 1 1404- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 1312-1403 ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 1404- ● ●
45 WASHER; LK 1-47133-011-0 02 1 1312-1403 ●
45 WASHER; LK 1-47133-011-0 02 1 1404- ● ●
46 PLATE; LOCK 1-47133-005-0 02 1 1312-1403 ●
46 PLATE; LOCK 1-47133-005-0 02 1 1404- ● ●
