Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11567 - FVZ/GVZ(INDONESIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶
2-85 — POWER TAKE OFF CONTROL
(#131670) — 10 parça
◀
[285A] PTO PIPING (5 parça)

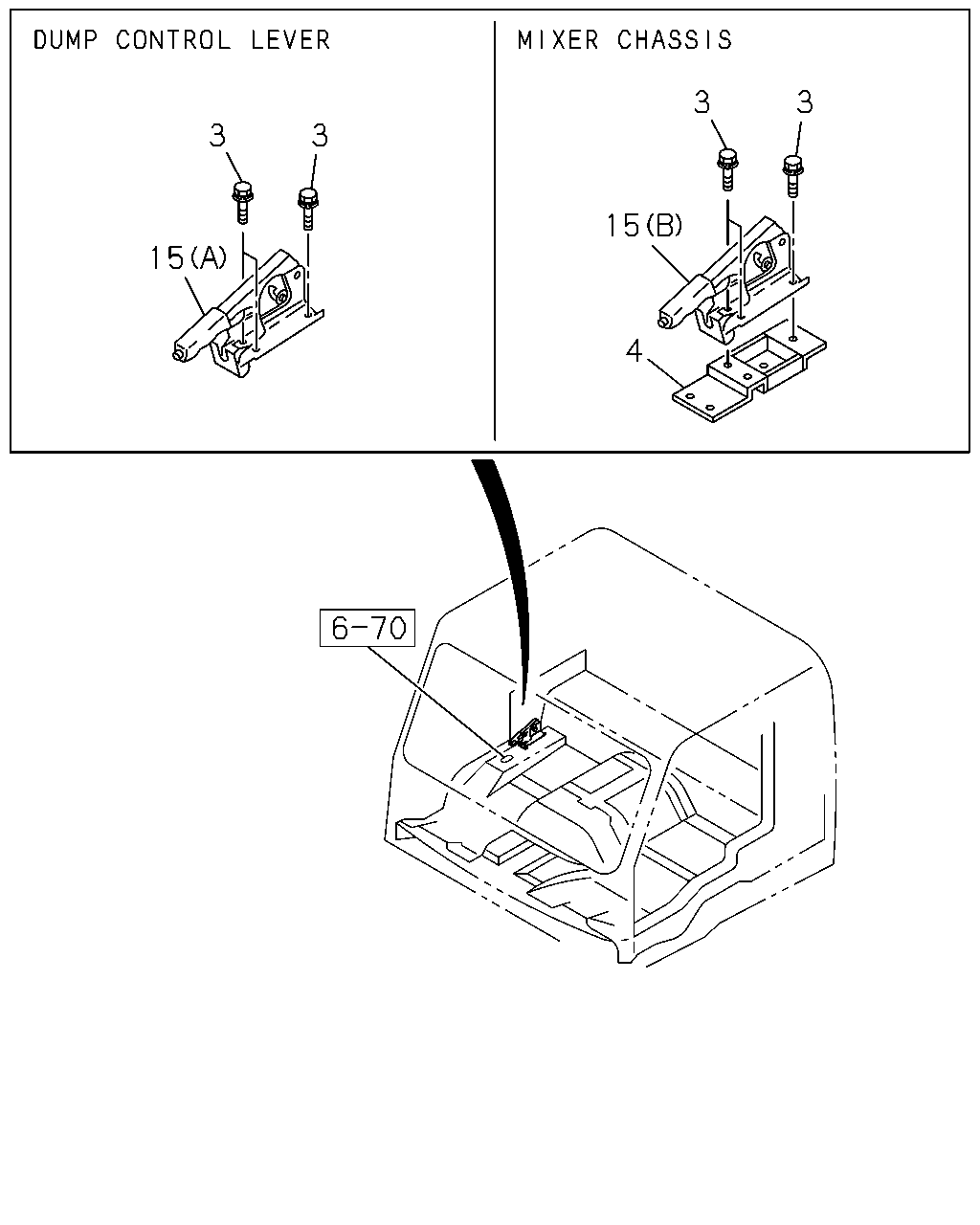

[285A] CONTROL LEVER (5 parça)
▶
48
240
313
182
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> L=320
1-09363-625-0
01
1
1312-
182
CONNECTOR; FLARE
ZF9S1110 DD M/T(Y5P) PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1312-
240
GASKET; CONNECTOR,PTO
ZF9S1110 DD M/T(Y5P) PTO ZF TRANS RR(BDM) ID=12.2
1-09630-084-0
01
1
1312-1312
240
GASKET; CONNECTOR,PTO
ZF9S1110 DD M/T(Y5P) PTO ZF TRANS RR(BDM) ID=12.2
8-98251-344-0
01
1
1401-
313
ADAPTER
ZF9S1110 DD M/T(Y5P) PTO ZF TRANS RR(BDM) PT1/4
1-09654-396-0
01
1
1312-
4
3
3
15
3
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BOLT; BRKT,DUMP CONT LEVER
MIXER CHASSIS<6NR> M8X20.5 W/LK&PL WASHER
8-94279-207-0
06
1
1402-
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1312-
4
BRACKET; PTO CONT
MIXER CHASSIS<6NR>
8-98060-621-0
01
1
1402-
15
LEVER ASM; PTO CONT
MIXER CHASSIS<6NR> (B)
1-79907-048-1
01
1
1402-
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> (A)
1-79996-092-0
01
1
1312-
