2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#131667) — 49 parça

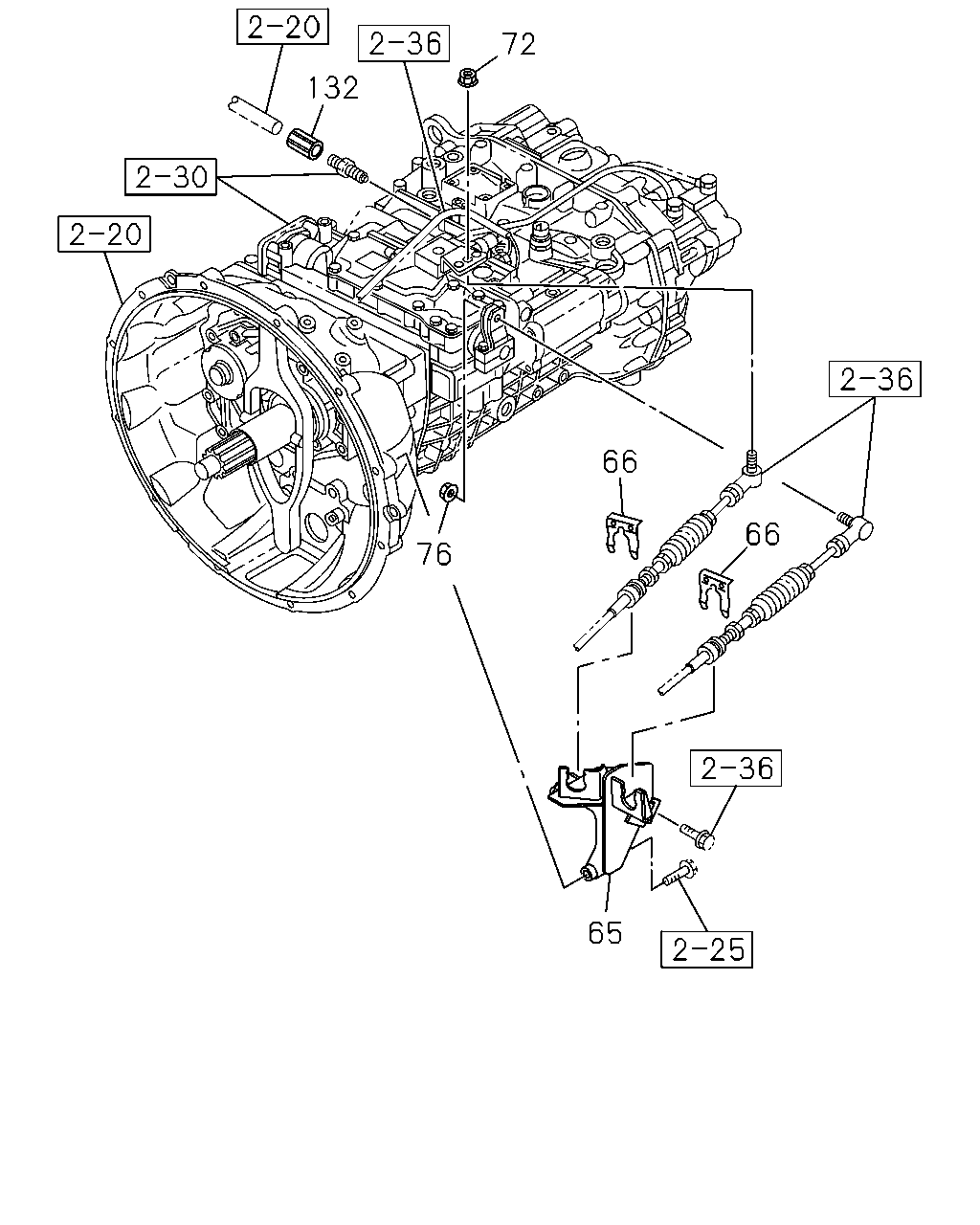

72 132 66 66 76 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ)	8-98250-856-0	01	1	1402-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N)	8-98131-609-0	01	1	1312-1401	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98131-609-0	01	1	1402-1403	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98131-609-0	01	1	1404-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	8-98131-609-0	01	1	1404-		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 DD M/T(Y5P)	8-98060-386-0	01	1	1312-1401	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98060-386-0	01	1	1402-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1312-1401	●
66	CLIP; SELECT BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.2	1-09701-209-1	02	1	1402-1403	●
66	CLIP; SELECT BRKT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.2	1-09701-209-1	02	1	1402-1403	●
66	CLIP; SELECT BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.2	1-09701-209-1	02	1	1404-	●
66	CLIP; SELECT BRKT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.2	1-09701-209-1	02	1	1404-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1404-		●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1312-1401	●
72	NUT; TRANS CONT,SELECT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	01	1	1402-1403	●
72	NUT; TRANS CONT,SELECT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	01	1	1402-1403	●
72	NUT; TRANS CONT,SELECT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	01	1	1404-	●
72	NUT; TRANS CONT,SELECT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	01	1	1404-	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1404-		●
76	NUT; BALL JOINT,SELECT WIRE FULLER ES11109 DD M/T(Y5N) M8 FLANGE	1-09440-049-0	01	1	1312-1401	●
76	NUT; BALL JOINT,SELECT WIRE FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	01	1	1402-1403	●
76	NUT; BALL JOINT,SELECT WIRE FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	01	1	1404-	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	1404-		●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 DD M/T(Y5P) M10 FLANGE	1-09440-056-0	01	1	1312-	●
132	CONNECTOR; FLEX HOSE ZF9S1110 DD M/T(Y5P) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1312-	●

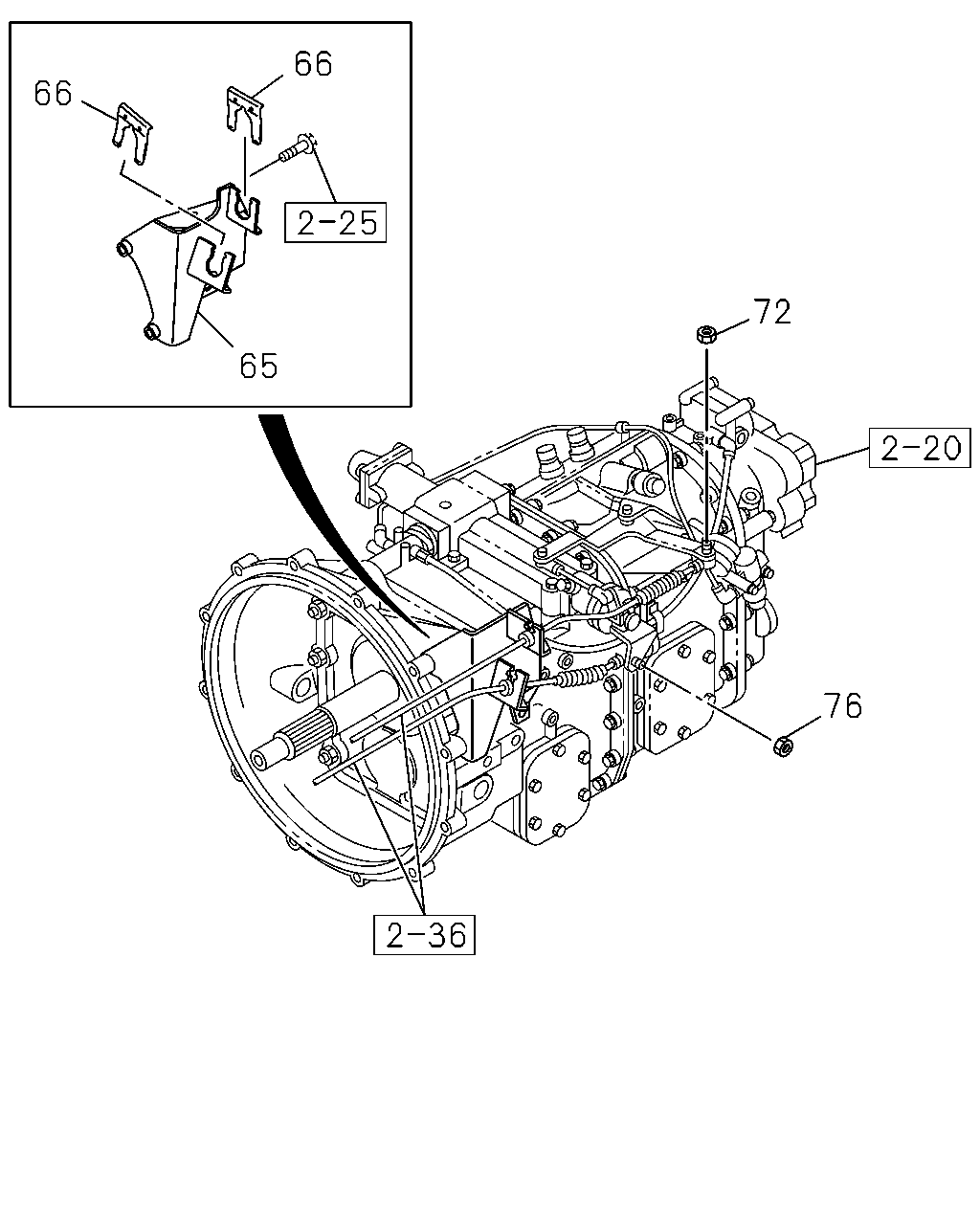

66 66 65 72 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ)	8-98250-856-0	01	1	1402-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N)	8-98131-609-0	01	1	1312-1401	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98131-609-0	01	1	1402-1403	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98131-609-0	01	1	1404-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	8-98131-609-0	01	1	1404-		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 DD M/T(Y5P)	8-98060-386-0	01	1	1312-1401	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98060-386-0	01	1	1402-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1312-1401	●
66	CLIP; SELECT BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.2	1-09701-209-1	02	1	1402-1403	●
66	CLIP; SELECT BRKT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.2	1-09701-209-1	02	1	1402-1403	●
66	CLIP; SELECT BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.2	1-09701-209-1	02	1	1404-	●
66	CLIP; SELECT BRKT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.2	1-09701-209-1	02	1	1404-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1404-		●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1312-1401	●
72	NUT; TRANS CONT,SELECT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	01	1	1402-1403	●
72	NUT; TRANS CONT,SELECT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	01	1	1402-1403	●
72	NUT; TRANS CONT,SELECT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	01	1	1404-	●
72	NUT; TRANS CONT,SELECT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	01	1	1404-	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1404-		●
76	NUT; BALL JOINT,SELECT WIRE FULLER ES11109 DD M/T(Y5N) M8 FLANGE	1-09440-049-0	01	1	1312-1401	●
76	NUT; BALL JOINT,SELECT WIRE FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	01	1	1402-1403	●
76	NUT; BALL JOINT,SELECT WIRE FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	01	1	1404-	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	1404-		●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 DD M/T(Y5P) M10 FLANGE	1-09440-056-0	01	1	1312-	●
