◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#131666) — 440 parça

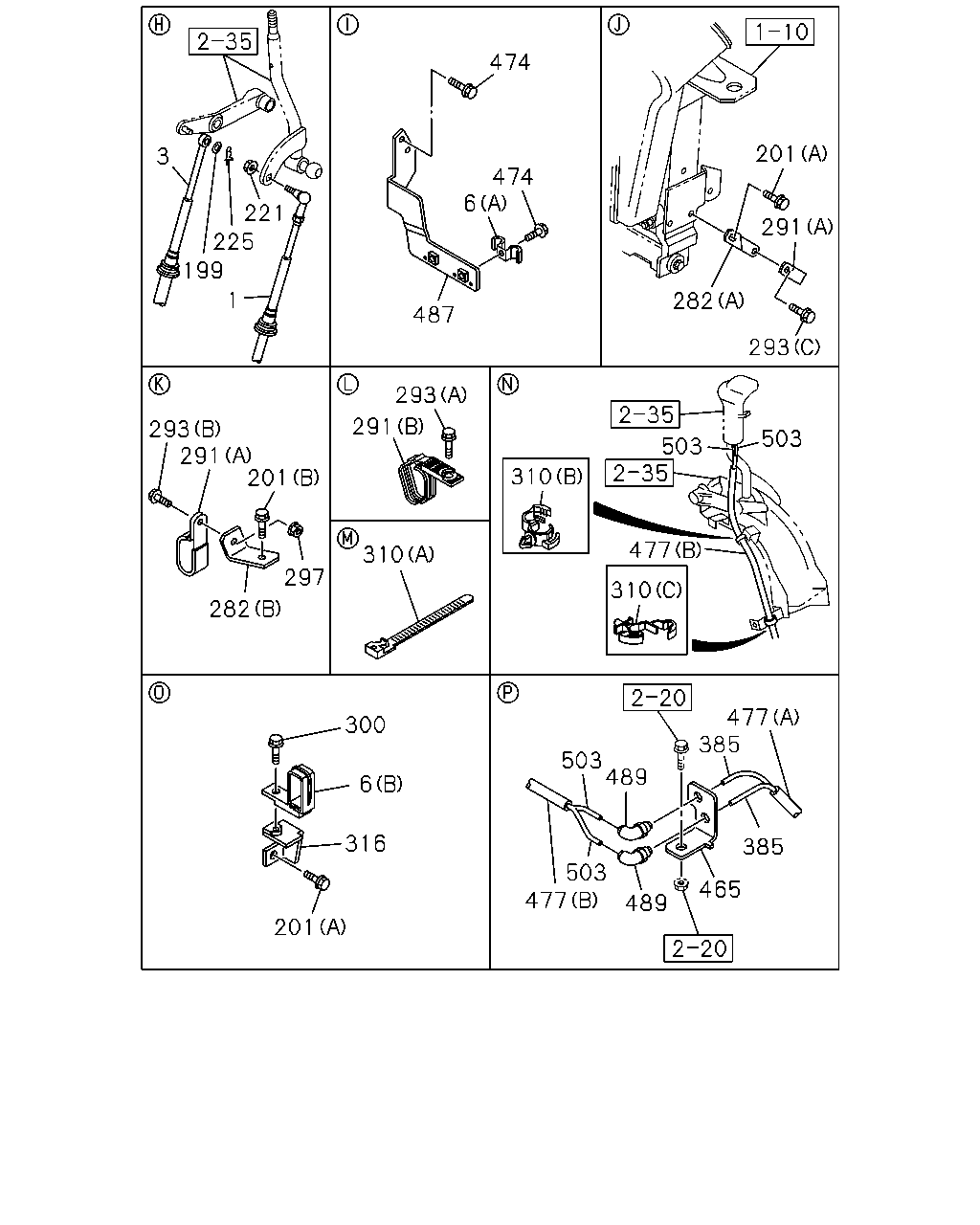

çizim 388056
474 474 6 487 293 291 201 291 293 282 310 297 300 6 316 201 477 489 503 489 503 385 385 477 465 477 310 503 503 310 293 282 291 201 221 225 199 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=3695 		8-98250-854-0 01 1 1402- ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3625 		8-98182-402-2 01 1 1312-1401 ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3625 		8-98182-402-2 01 1 1402-1403 ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3625 		8-98182-402-2 01 1 1404- ●
1 CABLE; SHIFT,TRANS CONT
L=3625 		8-98182-402-2 01 1 1404- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1312-1401 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3630 		8-98184-317-2 01 1 1402- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=3615 		8-98250-855-0 01 1 1402- ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3790 		8-98182-403-1 01 1 1312-1401 ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3790 		8-98182-403-1 01 1 1402-1403 ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3790 		8-98182-403-1 01 1 1404- ●
3 CABLE; SELECT,TRANS CONT
L=3790 		8-98182-403-1 01 1 1404- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1312-1401 ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3560 		8-98017-495-3 01 1 1402- ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1312-1401 ●
6 CLIP; CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1402-1403 ●
6 CLIP; CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1402-1403 ●
6 CLIP; CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1404- ●
6 CLIP; CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1404- ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1404- ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1312-1401 ●
6 CLIP; CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1402-1403 ●
6 CLIP; CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1402-1403 ●
6 CLIP; CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1404- ●
6 CLIP; CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1404- ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1404- ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1312-1401 ●
199 WASHER; PL,SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=8.4 OD=16 		0-91614-508-0 01 1 1402-1403 ●
199 WASHER; PL,SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) ID=8.4 OD=16 		0-91614-508-0 01 1 1402-1403 ●
199 WASHER; PL,SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=8.4 OD=16 		0-91614-508-0 01 1 1404- ●
199 WASHER; PL,SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) ID=8.4 OD=16 		0-91614-508-0 01 1 1404- ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1404- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1401 ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1401 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1312-1401 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1402-1403 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1402-1403 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1312-1401 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1402-1403 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1402-1403 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1404- ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1404- ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1404- ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1312-1401 ●
221 NUT; SHIFT WIRE TO LEVER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE 		1-09440-062-1 01 1 1402-1403 ●
221 NUT; SHIFT WIRE TO LEVER
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE 		1-09440-062-1 01 1 1402-1403 ●
221 NUT; SHIFT WIRE TO LEVER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE 		1-09440-062-1 01 1 1404- ●
221 NUT; SHIFT WIRE TO LEVER
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE 		1-09440-062-1 01 1 1404- ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1404- ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1312-1401 ●
225 PIN; SELECT CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=27.7 		8-94111-137-0 01 1 1402-1403 ●
225 PIN; SELECT CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=27.7 		8-94111-137-0 01 1 1402-1403 ●
225 PIN; SELECT CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=27.7 		8-94111-137-0 01 1 1404- ●
225 PIN; SELECT CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=27.7 		8-94111-137-0 01 1 1404- ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1404- ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 1312-1401 ●
282 BRACKET; TRANS SIDE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		1-82699-199-0 01 1 1402-1403 ●
282 BRACKET; TRANS SIDE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		1-82699-199-0 01 1 1402-1403 ●
282 BRACKET; TRANS SIDE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		1-82699-199-0 01 1 1404- ●
282 BRACKET; TRANS SIDE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		1-82699-199-0 01 1 1404- ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 1404- ●
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1312-1401 ●
282 BRACKET; TRANS SIDE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98098-265-2 01 1 1402-1403 ●
282 BRACKET; TRANS SIDE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98098-265-2 01 1 1402-1403 ●
282 BRACKET; TRANS SIDE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98098-265-2 01 1 1404- ●
282 BRACKET; TRANS SIDE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98098-265-2 01 1 1404- ●
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1404- ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1312-1401 ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1402-1403 ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1402-1403 ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1404- ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1404- ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1404- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1312-1401 ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1402-1403 ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1402-1403 ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1404- ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1404- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1401 ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1312-1401 ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1402-1403 ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1402-1403 ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-1401 ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1402-1403 ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1402-1403 ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ●
297 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1401 ●
297 NUT; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE IDN 		0-91180-108-0 01 1 1402-1403 ●
297 NUT; CLIP
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE IDN 		0-91180-108-0 01 1 1402-1403 ●
297 NUT; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ●
297 NUT; CLIP
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ●
297 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ●
300 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-1401 ●
300 BOLT; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1402-1403 ●
300 BOLT; CLIP
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1402-1403 ●
300 BOLT; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ●
300 BOLT; CLIP
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ●
300 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ●
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) (A) L=100 		5-09707-036-1 01 1 1312-1401 ●
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=100 		5-09707-036-1 01 1 1402-1403 ●
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=100 		5-09707-036-1 01 1 1404- ●
310 CLIP; TUBE
(A) L=100 		5-09707-036-1 01 1 1404- ●
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) (C) ID=12 		8-94218-436-0 01 1 1312-1401 ●
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) ID=12 		8-94218-436-0 01 1 1402-1403 ●
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) ID=12 		8-94218-436-0 01 1 1404- ●
310 CLIP; TUBE
(C) ID=12 		8-94218-436-0 01 1 1404- ●
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) (B) ID=6 & 10-13 		8-97069-515-0 01 1 1312-1401 ●
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=6 & 10-13 		8-97069-515-0 01 1 1402-1403 ●
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=6 & 10-13 		8-97069-515-0 01 1 1404- ●
310 CLIP; TUBE
(B) ID=6 & 10-13 		8-97069-515-0 01 1 1404- ●
316 BRACKET; CLIP 8-98086-439-0 01 1 1312-1401 ●
316 BRACKET; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98086-439-0 01 1 1402-1403 ●
316 BRACKET; CLIP
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98086-439-0 01 1 1402-1403 ●
316 BRACKET; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98086-439-0 01 1 1404- ●
316 BRACKET; CLIP
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98086-439-0 01 1 1404- ●
316 BRACKET; CLIP 8-98086-439-0 01 1 1404- ●
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1312-1401 ●
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1402-1403 ●
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1404- ●
385 TUBE; NYLON
SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1404- ●
465 BRACKET; CONNECTOR
FULLER ES11109 DD M/T(Y5N) 		8-98141-474-0 01 1 1312-1401 ●
465 BRACKET; CONNECTOR
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98141-474-0 01 1 1402-1403 ●
465 BRACKET; CONNECTOR
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98141-474-0 01 1 1404- ●
465 BRACKET; CONNECTOR 8-98141-474-0 01 1 1404- ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1312-1401 ●
474 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WASHER 		0-51640-825-0 03 1 1402-1403 ●
474 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WASHER 		0-51640-825-0 03 1 1402-1403 ●
474 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WASHER 		0-51640-825-0 03 1 1404- ●
474 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WASHER 		0-51640-825-0 03 1 1404- ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1404- ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1312-1401 ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1402-1403 ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1404- ●
477 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1404- ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1312-1401 ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1402-1403 ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1404- ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1404- ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1312-1401 ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1402-1403 ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1404- ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1404- ●
487 BRACKET; CONT CABLE
IDN 		8-98184-319-0 01 1 1312-1401 ●
487 BRACKET; CONT CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) IDN 		8-98184-319-0 01 1 1402-1403 ●
487 BRACKET; CONT CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) IDN 		8-98184-319-0 01 1 1402-1403 ●
487 BRACKET; CONT CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) IDN 		8-98184-319-0 01 1 1404- ●
487 BRACKET; CONT CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) IDN 		8-98184-319-0 01 1 1404- ●
487 BRACKET; CONT CABLE
IDN 		8-98184-319-0 01 1 1404- ●
489 CONNECTOR
FULLER ES11109 DD M/T(Y5N) 		8-98085-747-0 02 1 1312-1401 ●
489 CONNECTOR
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98085-747-0 02 1 1402-1403 ●
489 CONNECTOR
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98085-747-0 02 1 1404- ●
489 CONNECTOR 8-98085-747-0 02 1 1404- ●
503 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1312-1401 ●
503 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1402-1403 ●
503 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1404- ●
503 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1404- ●

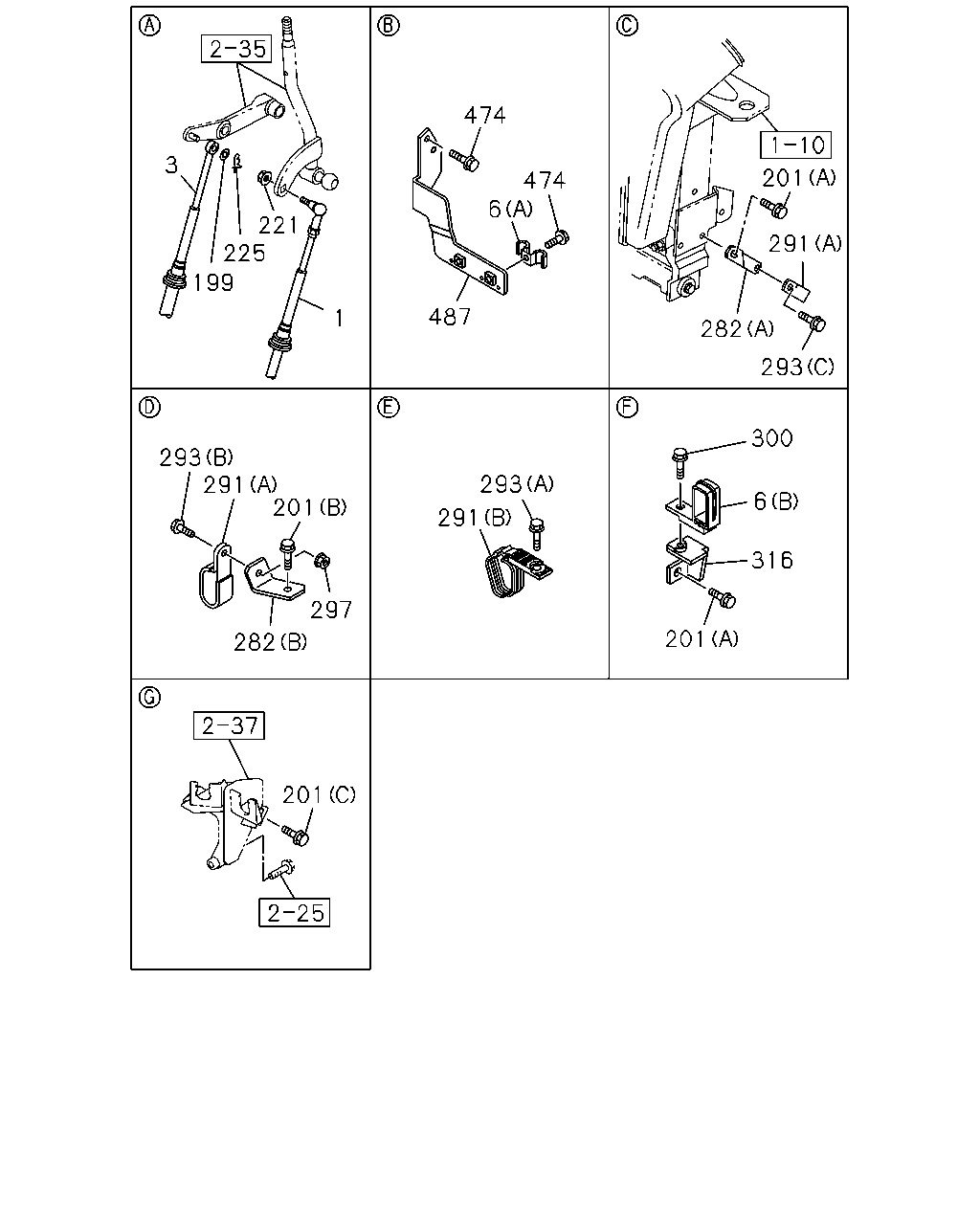

çizim 388394
221 225 199 1 487 6 474 474 3 201 291 282 300 293 293 291 201 316 6 293 201 291 282 297 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=3695 		8-98250-854-0 01 1 1402- ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3625 		8-98182-402-2 01 1 1312-1401 ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3625 		8-98182-402-2 01 1 1402-1403 ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3625 		8-98182-402-2 01 1 1404- ●
1 CABLE; SHIFT,TRANS CONT
L=3625 		8-98182-402-2 01 1 1404- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1312-1401 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3630 		8-98184-317-2 01 1 1402- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=3615 		8-98250-855-0 01 1 1402- ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3790 		8-98182-403-1 01 1 1312-1401 ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3790 		8-98182-403-1 01 1 1402-1403 ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3790 		8-98182-403-1 01 1 1404- ●
3 CABLE; SELECT,TRANS CONT
L=3790 		8-98182-403-1 01 1 1404- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1312-1401 ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3560 		8-98017-495-3 01 1 1402- ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1312-1401 ●
6 CLIP; CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1402-1403 ●
6 CLIP; CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1402-1403 ●
6 CLIP; CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1404- ●
6 CLIP; CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1404- ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1404- ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1312-1401 ●
6 CLIP; CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1402-1403 ●
6 CLIP; CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1402-1403 ●
6 CLIP; CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1404- ●
6 CLIP; CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1404- ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1404- ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1312-1401 ●
199 WASHER; PL,SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=8.4 OD=16 		0-91614-508-0 01 1 1402-1403 ●
199 WASHER; PL,SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) ID=8.4 OD=16 		0-91614-508-0 01 1 1402-1403 ●
199 WASHER; PL,SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=8.4 OD=16 		0-91614-508-0 01 1 1404- ●
199 WASHER; PL,SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) ID=8.4 OD=16 		0-91614-508-0 01 1 1404- ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1404- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1401 ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1401 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1312-1401 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1402-1403 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1402-1403 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1312-1401 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1402-1403 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1402-1403 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1404- ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1404- ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1404- ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1312-1401 ●
221 NUT; SHIFT WIRE TO LEVER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE 		1-09440-062-1 01 1 1402-1403 ●
221 NUT; SHIFT WIRE TO LEVER
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE 		1-09440-062-1 01 1 1402-1403 ●
221 NUT; SHIFT WIRE TO LEVER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE 		1-09440-062-1 01 1 1404- ●
221 NUT; SHIFT WIRE TO LEVER
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE 		1-09440-062-1 01 1 1404- ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1404- ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1312-1401 ●
225 PIN; SELECT CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=27.7 		8-94111-137-0 01 1 1402-1403 ●
225 PIN; SELECT CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=27.7 		8-94111-137-0 01 1 1402-1403 ●
225 PIN; SELECT CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=27.7 		8-94111-137-0 01 1 1404- ●
225 PIN; SELECT CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=27.7 		8-94111-137-0 01 1 1404- ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1404- ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 1312-1401 ●
282 BRACKET; TRANS SIDE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		1-82699-199-0 01 1 1402-1403 ●
282 BRACKET; TRANS SIDE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		1-82699-199-0 01 1 1402-1403 ●
282 BRACKET; TRANS SIDE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		1-82699-199-0 01 1 1404- ●
282 BRACKET; TRANS SIDE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		1-82699-199-0 01 1 1404- ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 1404- ●
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1312-1401 ●
282 BRACKET; TRANS SIDE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98098-265-2 01 1 1402-1403 ●
282 BRACKET; TRANS SIDE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98098-265-2 01 1 1402-1403 ●
282 BRACKET; TRANS SIDE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98098-265-2 01 1 1404- ●
282 BRACKET; TRANS SIDE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98098-265-2 01 1 1404- ●
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1404- ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1312-1401 ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1402-1403 ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1402-1403 ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1404- ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1404- ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1404- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1312-1401 ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1402-1403 ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1402-1403 ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1404- ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1404- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1401 ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1312-1401 ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1402-1403 ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1402-1403 ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-1401 ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1402-1403 ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1402-1403 ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ●
297 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1401 ●
297 NUT; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE IDN 		0-91180-108-0 01 1 1402-1403 ●
297 NUT; CLIP
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE IDN 		0-91180-108-0 01 1 1402-1403 ●
297 NUT; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ●
297 NUT; CLIP
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ●
297 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1404- ●
300 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-1401 ●
300 BOLT; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1402-1403 ●
300 BOLT; CLIP
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1402-1403 ●
300 BOLT; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ●
300 BOLT; CLIP
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ●
300 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1404- ●
316 BRACKET; CLIP 8-98086-439-0 01 1 1312-1401 ●
316 BRACKET; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98086-439-0 01 1 1402-1403 ●
316 BRACKET; CLIP
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98086-439-0 01 1 1402-1403 ●
316 BRACKET; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98086-439-0 01 1 1404- ●
316 BRACKET; CLIP
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98086-439-0 01 1 1404- ●
316 BRACKET; CLIP 8-98086-439-0 01 1 1404- ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1312-1401 ●
474 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WASHER 		0-51640-825-0 03 1 1402-1403 ●
474 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WASHER 		0-51640-825-0 03 1 1402-1403 ●
474 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WASHER 		0-51640-825-0 03 1 1404- ●
474 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WASHER 		0-51640-825-0 03 1 1404- ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1404- ●
487 BRACKET; CONT CABLE
IDN 		8-98184-319-0 01 1 1312-1401 ●
487 BRACKET; CONT CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) IDN 		8-98184-319-0 01 1 1402-1403 ●
487 BRACKET; CONT CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) IDN 		8-98184-319-0 01 1 1402-1403 ●
487 BRACKET; CONT CABLE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) IDN 		8-98184-319-0 01 1 1404- ●
487 BRACKET; CONT CABLE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) IDN 		8-98184-319-0 01 1 1404- ●
487 BRACKET; CONT CABLE
IDN 		8-98184-319-0 01 1 1404- ●

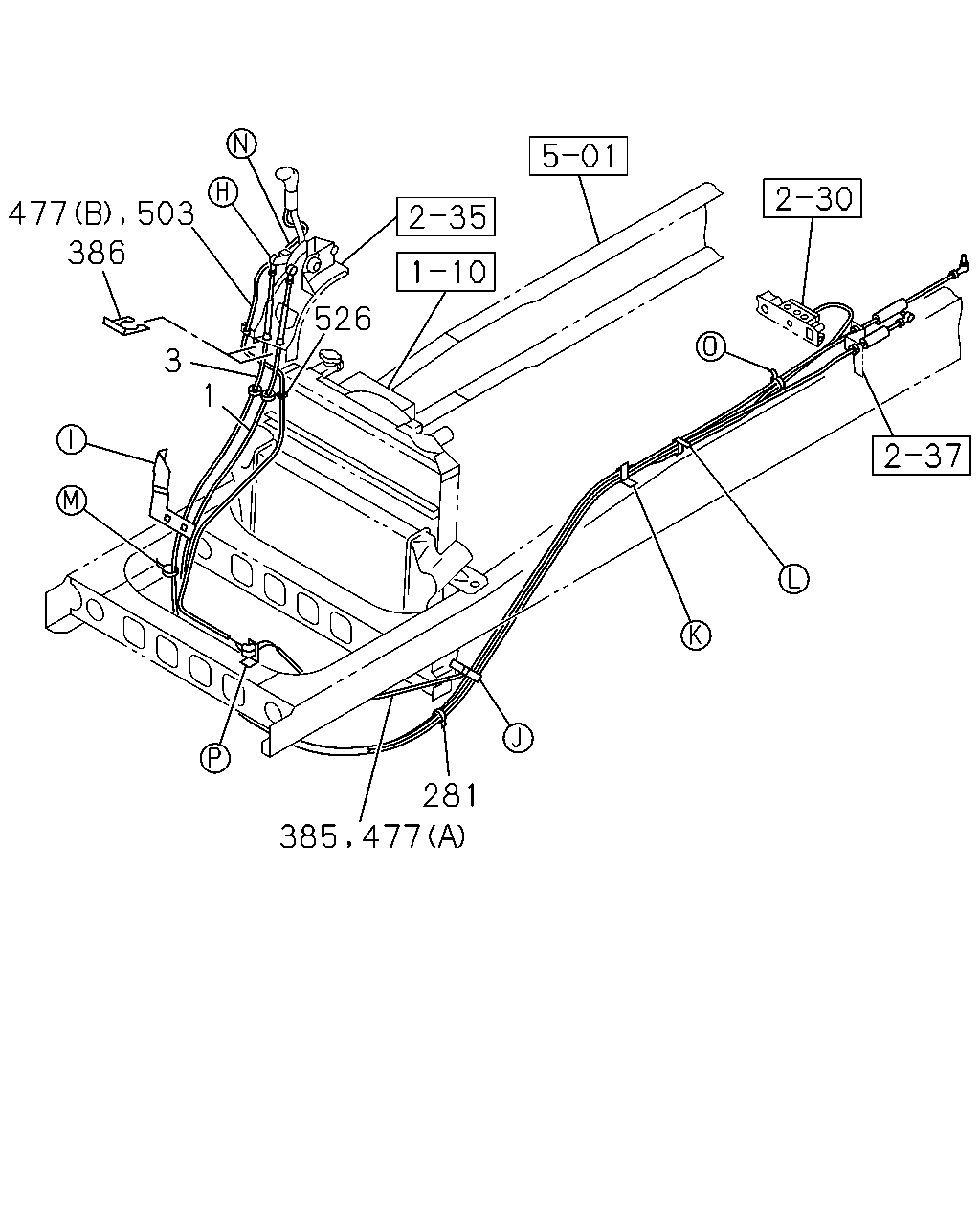

çizim 388399
503 386 477 3 281 526 1 385 477
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=3695 		8-98250-854-0 01 1 1402- ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3625 		8-98182-402-2 01 1 1312-1401 ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3625 		8-98182-402-2 01 1 1402-1403 ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3625 		8-98182-402-2 01 1 1404- ●
1 CABLE; SHIFT,TRANS CONT
L=3625 		8-98182-402-2 01 1 1404- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1312-1401 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3630 		8-98184-317-2 01 1 1402- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=3615 		8-98250-855-0 01 1 1402- ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3790 		8-98182-403-1 01 1 1312-1401 ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3790 		8-98182-403-1 01 1 1402-1403 ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3790 		8-98182-403-1 01 1 1404- ●
3 CABLE; SELECT,TRANS CONT
L=3790 		8-98182-403-1 01 1 1404- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1312-1401 ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3560 		8-98017-495-3 01 1 1402- ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1312-1401 ●
281 CLIP; BAND
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=300 		1-09707-001-1 01 1 1402-1403 ●
281 CLIP; BAND
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=300 		1-09707-001-1 01 1 1402-1403 ●
281 CLIP; BAND
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=300 		1-09707-001-1 01 1 1404- ●
281 CLIP; BAND
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=300 		1-09707-001-1 01 1 1404- ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1404- ●
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1312-1401 ●
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1402-1403 ●
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1404- ●
385 TUBE; NYLON
SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1404- ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1312-1401 ●
386 CLIP; CONT CABLE & TUBE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09700-966-1 02 1 1402-1403 ●
386 CLIP; CONT CABLE & TUBE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09700-966-1 02 1 1402-1403 ●
386 CLIP; CONT CABLE & TUBE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09700-966-1 02 1 1404- ●
386 CLIP; CONT CABLE & TUBE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09700-966-1 02 1 1404- ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1404- ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1312-1401 ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1402-1403 ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1404- ●
477 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1404- ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1312-1401 ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1402-1403 ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1404- ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1404- ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1312-1401 ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1402-1403 ●
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1404- ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1404- ●
503 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1312-1401 ●
503 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1402-1403 ●
503 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1404- ●
503 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1404- ●
526 GROMMET
FULLER ES11109 DD M/T(Y5N) 		5-09333-062-0 01 1 1312-1401 ●
526 GROMMET
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		5-09333-062-0 01 1 1402-1403 ●
526 GROMMET
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		5-09333-062-0 01 1 1404- ●
526 GROMMET 5-09333-062-0 01 1 1404- ●
çizim 388401
358 358 47 147 47 1 3 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=3695 		8-98250-854-0 01 1 1402- ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3625 		8-98182-402-2 01 1 1312-1401 ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3625 		8-98182-402-2 01 1 1402-1403 ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3625 		8-98182-402-2 01 1 1404- ●
1 CABLE; SHIFT,TRANS CONT
L=3625 		8-98182-402-2 01 1 1404- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1312-1401 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3630 		8-98184-317-2 01 1 1402- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=3615 		8-98250-855-0 01 1 1402- ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3790 		8-98182-403-1 01 1 1312-1401 ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3790 		8-98182-403-1 01 1 1402-1403 ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3790 		8-98182-403-1 01 1 1404- ●
3 CABLE; SELECT,TRANS CONT
L=3790 		8-98182-403-1 01 1 1404- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1312-1401 ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3560 		8-98017-495-3 01 1 1402- ●
47 NUT; LK,LINK ROD
FULLER ES11109 DD M/T(Y5N) M8 		0-91111-508-0 02 1 1312-1403 ●
47 NUT; LK,LINK ROD
FULLER ES11109 DD M/T(Y5N) M8 		0-91111-508-0 02 1 1404- ● ●
147 ROD; LINK
FULLER ES11109 DD M/T(Y5N) 		0-84000-808-0 01 1 1312-1403 ●
147 ROD; LINK
FULLER ES11109 DD M/T(Y5N) 		0-84000-808-0 01 1 1404- ● ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1401 ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1401 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1402-1403 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1312-1401 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1402-1403 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1402-1403 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1404- ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1312-1401 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1402-1403 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1402-1403 ●
201 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1404- ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1404- ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1404- ●
358 ROD END; SCREW
FULLER ES11109 DD M/T(Y5N) L=45.5 		1-09760-118-1 02 1 1312-1403 ●
358 ROD END; SCREW
FULLER ES11109 DD M/T(Y5N) L=45.5 		1-09760-118-1 02 1 1404- ● ●

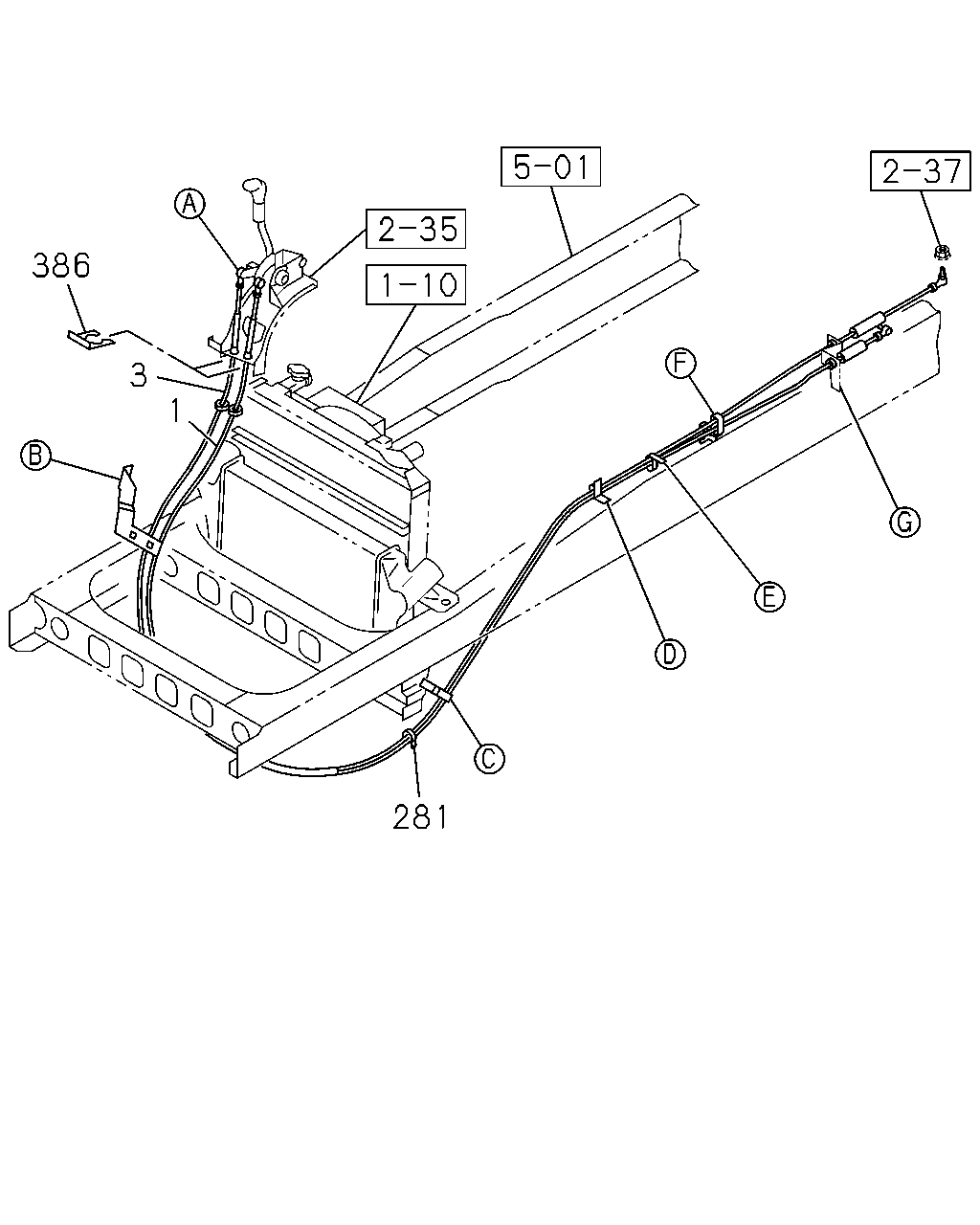

çizim 388433
3 281 386 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=3695 		8-98250-854-0 01 1 1402- ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3625 		8-98182-402-2 01 1 1312-1401 ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3625 		8-98182-402-2 01 1 1402-1403 ●
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3625 		8-98182-402-2 01 1 1404- ●
1 CABLE; SHIFT,TRANS CONT
L=3625 		8-98182-402-2 01 1 1404- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1312-1401 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3630 		8-98184-317-2 01 1 1402- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=3615 		8-98250-855-0 01 1 1402- ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3790 		8-98182-403-1 01 1 1312-1401 ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3790 		8-98182-403-1 01 1 1402-1403 ●
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3790 		8-98182-403-1 01 1 1404- ●
3 CABLE; SELECT,TRANS CONT
L=3790 		8-98182-403-1 01 1 1404- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1312-1401 ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3560 		8-98017-495-3 01 1 1402- ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1312-1401 ●
281 CLIP; BAND
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=300 		1-09707-001-1 01 1 1402-1403 ●
281 CLIP; BAND
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=300 		1-09707-001-1 01 1 1402-1403 ●
281 CLIP; BAND
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=300 		1-09707-001-1 01 1 1404- ●
281 CLIP; BAND
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) L=300 		1-09707-001-1 01 1 1404- ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1404- ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1312-1401 ●
386 CLIP; CONT CABLE & TUBE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09700-966-1 02 1 1402-1403 ●
386 CLIP; CONT CABLE & TUBE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09700-966-1 02 1 1402-1403 ●
386 CLIP; CONT CABLE & TUBE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09700-966-1 02 1 1404- ●
386 CLIP; CONT CABLE & TUBE
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09700-966-1 02 1 1404- ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1404- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
