2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#131665) — 206 parça

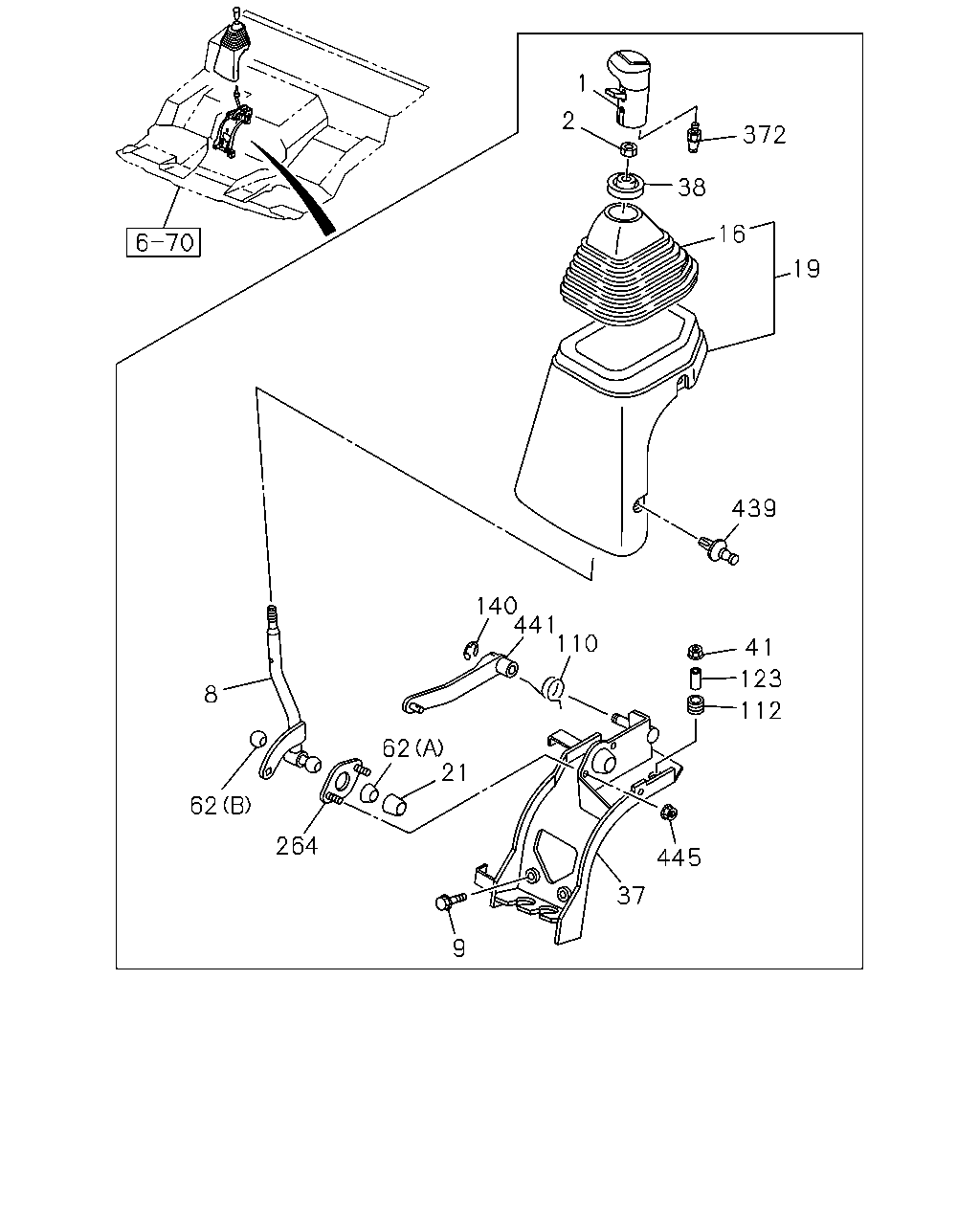

çizim 388405
1 2 372 38 19 16 439 140 441 110 41 123 112 445 37 9 21 62 264 62 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		1-33611-106-0 01 1 1312-1401 ●
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98224-288-0 01 1 1402-1403 ●
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98224-288-0 01 1 1404- ●
1 KNOB; CHANGE LEVER 8-98224-288-0 01 1 1404- ●
1 KNOB; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33611-099-1 01 1 1312- ●
2 NUT; KNOB
FULLER ES11109 DD M/T(Y5N) 1/2-13UNC 		1-33619-033-0 01 1 1312-1401 ●
2 NUT; KNOB
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 1/2-13UNC 		1-33619-033-0 01 1 1402-1403 ●
2 NUT; KNOB
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 1/2-13UNC 		1-33619-033-0 01 1 1404- ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 1404- ●
8 LEVER; CHANGE
FULLER ES11109 DD M/T(Y5N) 		8-98093-458-0 01 1 1312-1401 ●
8 LEVER; CHANGE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98093-458-0 01 1 1402-1403 ●
8 LEVER; CHANGE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98093-458-0 01 1 1404- ●
8 LEVER; CHANGE 8-98093-458-0 01 1 1404- ●
8 LEVER; CHANGE
ZF9S1110 DD M/T(Y5P) 		8-98093-455-0 01 1 1312- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1312-1401 ●
9 BOLT; CHANGE LEVER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1402-1403 ●
9 BOLT; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1402-1403 ●
9 BOLT; CHANGE LEVER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1404- ●
9 BOLT; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1404- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1404- ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1312-1403 ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1404- ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 1312-1403 ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 1404- ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1312-1401 ●
21 SEAT; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-429-0 01 1 1402-1403 ●
21 SEAT; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33619-429-0 01 1 1402-1403 ●
21 SEAT; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-429-0 01 1 1404- ●
21 SEAT; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33619-429-0 01 1 1404- ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1404- ●
37 BRACKET; CHANGE LEVER SUPPORT
FULLER ES11109 DD M/T(Y5N) 		8-98093-450-0 01 1 1312-1401 ●
37 BRACKET; CHANGE LEVER SUPPORT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98093-450-0 01 1 1402-1403 ●
37 BRACKET; CHANGE LEVER SUPPORT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98093-450-0 01 1 1404- ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98093-450-0 01 1 1404- ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 DD M/T(Y5P) 		8-98093-444-0 01 1 1312- ●
38 HOLDER; BOOT CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		1-79996-383-0 01 1 1312-1401 ●
38 HOLDER; BOOT CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-79996-383-0 01 1 1402-1403 ●
38 HOLDER; BOOT CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-79996-383-0 01 1 1404- ●
38 HOLDER; BOOT CHANGE LEVER 1-79996-383-0 01 1 1404- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1312-1401 ●
41 NUT; CHANGE LEVER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1402-1403 ●
41 NUT; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1402-1403 ●
41 NUT; CHANGE LEVER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1404- ●
41 NUT; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1404- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1404- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1312-1401 ●
62 SEAT; BALL,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		1-33619-427-0 01 1 1402-1403 ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) (A) 		1-33619-427-0 01 1 1402-1403 ●
62 SEAT; BALL,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		1-33619-427-0 01 1 1404- ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) (A) 		1-33619-427-0 01 1 1404- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1404- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1312-1401 ●
62 SEAT; BALL,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97049-147-0 01 1 1402-1403 ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) (B) 		8-97049-147-0 01 1 1402-1403 ●
62 SEAT; BALL,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97049-147-0 01 1 1404- ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) (B) 		8-97049-147-0 01 1 1404- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1404- ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 1312-1401 ●
110 SPRING; RETURN,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-435-0 01 1 1402-1403 ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33619-435-0 01 1 1402-1403 ●
110 SPRING; RETURN,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-435-0 01 1 1404- ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33619-435-0 01 1 1404- ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 1404- ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 1312-1401 ●
112 RUBBER; CUSHION
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-442-0 04 1 1402-1403 ●
112 RUBBER; CUSHION
ZF9S1110 DD M/T(Y5P) 		1-33619-442-0 04 1 1402-1403 ●
112 RUBBER; CUSHION
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-442-0 04 1 1404- ●
112 RUBBER; CUSHION
ZF9S1110 DD M/T(Y5P) 		1-33619-442-0 04 1 1404- ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 1404- ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1312-1401 ●
123 COLLAR; DIST,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-443-0 04 1 1402-1403 ●
123 COLLAR; DIST,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33619-443-0 04 1 1402-1403 ●
123 COLLAR; DIST,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-443-0 04 1 1404- ●
123 COLLAR; DIST,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33619-443-0 04 1 1404- ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1404- ●
140 RING; SNAP
ID=10 IDN 		0-91805-510-0 01 1 1312-1401 ●
140 RING; SNAP
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=10 IDN 		0-91805-510-0 01 1 1402-1403 ●
140 RING; SNAP
ZF9S1110 DD M/T(Y5P) ID=10 IDN 		0-91805-510-0 01 1 1402-1403 ●
140 RING; SNAP
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=10 IDN 		0-91805-510-0 01 1 1404- ●
140 RING; SNAP
ZF9S1110 DD M/T(Y5P) ID=10 IDN 		0-91805-510-0 01 1 1404- ●
140 RING; SNAP
ID=10 IDN 		0-91805-510-0 01 1 1404- ●
264 PLATE; COVER 1-33619-430-0 01 1 1312-1401 ●
264 PLATE; COVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-430-0 01 1 1402-1403 ●
264 PLATE; COVER
ZF9S1110 DD M/T(Y5P) 		1-33619-430-0 01 1 1402-1403 ●
264 PLATE; COVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-430-0 01 1 1404- ●
264 PLATE; COVER
ZF9S1110 DD M/T(Y5P) 		1-33619-430-0 01 1 1404- ●
264 PLATE; COVER 1-33619-430-0 01 1 1404- ●
372 CONNECTOR; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		8-98114-396-0 02 1 1312-1401 ●
372 CONNECTOR; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98114-396-0 02 1 1402-1403 ●
372 CONNECTOR; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98114-396-0 02 1 1404- ●
372 CONNECTOR; CHANGE LEVER 8-98114-396-0 02 1 1404- ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1312-1403 ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1404- ● ●
441 LEVER; SELECT 8-98093-449-0 01 1 1312-1401 ●
441 LEVER; SELECT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98093-449-0 01 1 1402-1403 ●
441 LEVER; SELECT
ZF9S1110 DD M/T(Y5P) 		8-98093-449-0 01 1 1402-1403 ●
441 LEVER; SELECT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98093-449-0 01 1 1404- ●
441 LEVER; SELECT
ZF9S1110 DD M/T(Y5P) 		8-98093-449-0 01 1 1404- ●
441 LEVER; SELECT 8-98093-449-0 01 1 1404- ●
445 NUT; PLATE
M6 FLANGE IDN 		0-91180-106-0 02 1 1312-1401 ●
445 NUT; PLATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6 FLANGE IDN 		0-91180-106-0 02 1 1402-1403 ●
445 NUT; PLATE
ZF9S1110 DD M/T(Y5P) M6 FLANGE IDN 		0-91180-106-0 02 1 1402-1403 ●
445 NUT; PLATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6 FLANGE IDN 		0-91180-106-0 02 1 1404- ●
445 NUT; PLATE
ZF9S1110 DD M/T(Y5P) M6 FLANGE IDN 		0-91180-106-0 02 1 1404- ●
445 NUT; PLATE
M6 FLANGE IDN 		0-91180-106-0 02 1 1404- ●

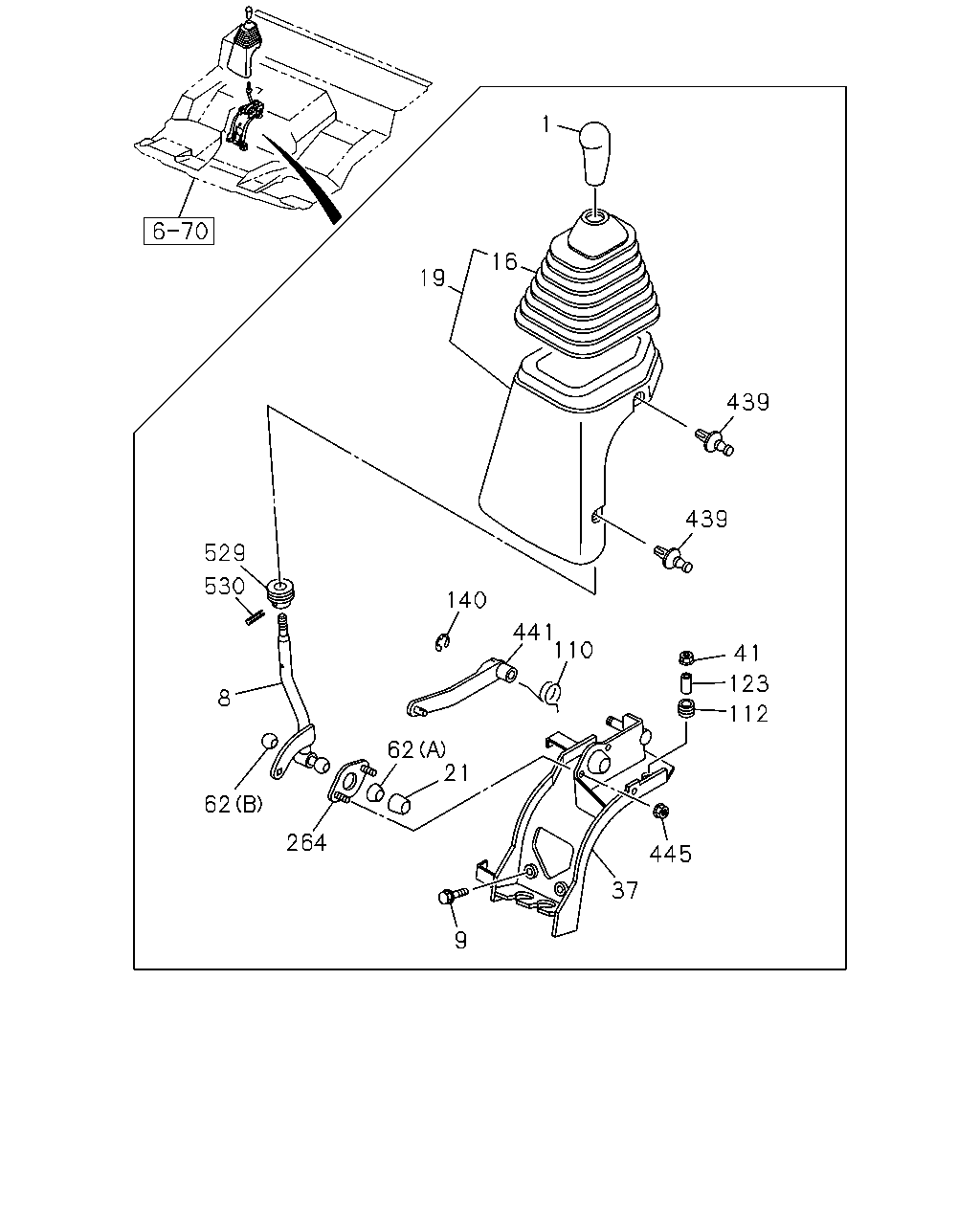

çizim 388432
1 16 19 439 439 41 123 112 445 37 9 21 62 110 441 140 529 530 8 62 264
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) 		1-33611-106-0 01 1 1312-1401 ●
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98224-288-0 01 1 1402-1403 ●
1 KNOB; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98224-288-0 01 1 1404- ●
1 KNOB; CHANGE LEVER 8-98224-288-0 01 1 1404- ●
1 KNOB; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33611-099-1 01 1 1312- ●
8 LEVER; CHANGE
FULLER ES11109 DD M/T(Y5N) 		8-98093-458-0 01 1 1312-1401 ●
8 LEVER; CHANGE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98093-458-0 01 1 1402-1403 ●
8 LEVER; CHANGE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98093-458-0 01 1 1404- ●
8 LEVER; CHANGE 8-98093-458-0 01 1 1404- ●
8 LEVER; CHANGE
ZF9S1110 DD M/T(Y5P) 		8-98093-455-0 01 1 1312- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1312-1401 ●
9 BOLT; CHANGE LEVER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1402-1403 ●
9 BOLT; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1402-1403 ●
9 BOLT; CHANGE LEVER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1404- ●
9 BOLT; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1404- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1404- ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1312-1403 ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1404- ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 1312-1403 ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 1404- ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1312-1401 ●
21 SEAT; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-429-0 01 1 1402-1403 ●
21 SEAT; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33619-429-0 01 1 1402-1403 ●
21 SEAT; CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-429-0 01 1 1404- ●
21 SEAT; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33619-429-0 01 1 1404- ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1404- ●
37 BRACKET; CHANGE LEVER SUPPORT
FULLER ES11109 DD M/T(Y5N) 		8-98093-450-0 01 1 1312-1401 ●
37 BRACKET; CHANGE LEVER SUPPORT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98093-450-0 01 1 1402-1403 ●
37 BRACKET; CHANGE LEVER SUPPORT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98093-450-0 01 1 1404- ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98093-450-0 01 1 1404- ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 DD M/T(Y5P) 		8-98093-444-0 01 1 1312- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1312-1401 ●
41 NUT; CHANGE LEVER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1402-1403 ●
41 NUT; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1402-1403 ●
41 NUT; CHANGE LEVER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1404- ●
41 NUT; CHANGE LEVER
ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1404- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1404- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1312-1401 ●
62 SEAT; BALL,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		1-33619-427-0 01 1 1402-1403 ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) (A) 		1-33619-427-0 01 1 1402-1403 ●
62 SEAT; BALL,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		1-33619-427-0 01 1 1404- ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) (A) 		1-33619-427-0 01 1 1404- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1404- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1312-1401 ●
62 SEAT; BALL,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97049-147-0 01 1 1402-1403 ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) (B) 		8-97049-147-0 01 1 1402-1403 ●
62 SEAT; BALL,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97049-147-0 01 1 1404- ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) (B) 		8-97049-147-0 01 1 1404- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1404- ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 1312-1401 ●
110 SPRING; RETURN,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-435-0 01 1 1402-1403 ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33619-435-0 01 1 1402-1403 ●
110 SPRING; RETURN,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-435-0 01 1 1404- ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33619-435-0 01 1 1404- ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 1404- ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 1312-1401 ●
112 RUBBER; CUSHION
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-442-0 04 1 1402-1403 ●
112 RUBBER; CUSHION
ZF9S1110 DD M/T(Y5P) 		1-33619-442-0 04 1 1402-1403 ●
112 RUBBER; CUSHION
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-442-0 04 1 1404- ●
112 RUBBER; CUSHION
ZF9S1110 DD M/T(Y5P) 		1-33619-442-0 04 1 1404- ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 1404- ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1312-1401 ●
123 COLLAR; DIST,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-443-0 04 1 1402-1403 ●
123 COLLAR; DIST,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33619-443-0 04 1 1402-1403 ●
123 COLLAR; DIST,CHANGE LEVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-443-0 04 1 1404- ●
123 COLLAR; DIST,CHANGE LEVER
ZF9S1110 DD M/T(Y5P) 		1-33619-443-0 04 1 1404- ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1404- ●
140 RING; SNAP
ID=10 IDN 		0-91805-510-0 01 1 1312-1401 ●
140 RING; SNAP
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=10 IDN 		0-91805-510-0 01 1 1402-1403 ●
140 RING; SNAP
ZF9S1110 DD M/T(Y5P) ID=10 IDN 		0-91805-510-0 01 1 1402-1403 ●
140 RING; SNAP
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=10 IDN 		0-91805-510-0 01 1 1404- ●
140 RING; SNAP
ZF9S1110 DD M/T(Y5P) ID=10 IDN 		0-91805-510-0 01 1 1404- ●
140 RING; SNAP
ID=10 IDN 		0-91805-510-0 01 1 1404- ●
264 PLATE; COVER 1-33619-430-0 01 1 1312-1401 ●
264 PLATE; COVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-430-0 01 1 1402-1403 ●
264 PLATE; COVER
ZF9S1110 DD M/T(Y5P) 		1-33619-430-0 01 1 1402-1403 ●
264 PLATE; COVER
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33619-430-0 01 1 1404- ●
264 PLATE; COVER
ZF9S1110 DD M/T(Y5P) 		1-33619-430-0 01 1 1404- ●
264 PLATE; COVER 1-33619-430-0 01 1 1404- ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1312-1403 ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1404- ● ●
441 LEVER; SELECT 8-98093-449-0 01 1 1312-1401 ●
441 LEVER; SELECT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98093-449-0 01 1 1402-1403 ●
441 LEVER; SELECT
ZF9S1110 DD M/T(Y5P) 		8-98093-449-0 01 1 1402-1403 ●
441 LEVER; SELECT
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98093-449-0 01 1 1404- ●
441 LEVER; SELECT
ZF9S1110 DD M/T(Y5P) 		8-98093-449-0 01 1 1404- ●
441 LEVER; SELECT 8-98093-449-0 01 1 1404- ●
445 NUT; PLATE
M6 FLANGE IDN 		0-91180-106-0 02 1 1312-1401 ●
445 NUT; PLATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6 FLANGE IDN 		0-91180-106-0 02 1 1402-1403 ●
445 NUT; PLATE
ZF9S1110 DD M/T(Y5P) M6 FLANGE IDN 		0-91180-106-0 02 1 1402-1403 ●
445 NUT; PLATE
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6 FLANGE IDN 		0-91180-106-0 02 1 1404- ●
445 NUT; PLATE
ZF9S1110 DD M/T(Y5P) M6 FLANGE IDN 		0-91180-106-0 02 1 1404- ●
445 NUT; PLATE
M6 FLANGE IDN 		0-91180-106-0 02 1 1404- ●
529 RING; BOOT
ZF9S1110 DD M/T(Y5P) 		1-33619-504-0 01 1 1312- ●
530 PIN; SPRING
ZF9S1110 DD M/T(Y5P) 		1-33619-505-0 01 1 1312- ●

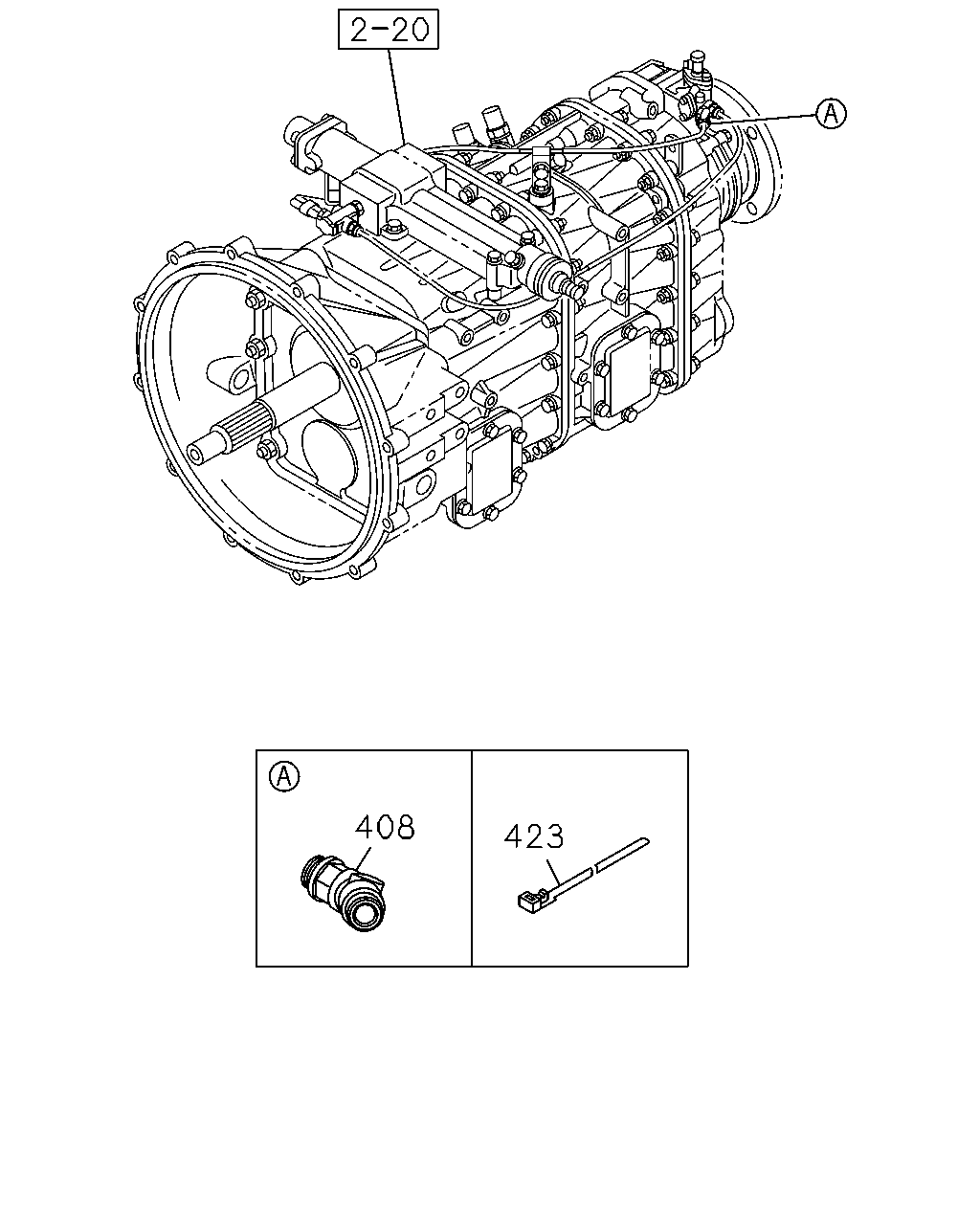

çizim 389148
408 423
BalonParca AdiParca NoAdetTipApplied Date A B
408 CONNECTOR; AIR HOSE
FULLER ES11109 DD M/T(Y5N) 		1-33549-381-0 01 1 1312-1403 ●
408 CONNECTOR; AIR HOSE
FULLER ES11109 DD M/T(Y5N) 		1-33549-381-0 01 1 1404- ● ●
423 CLIP; BAND
FULLER ES11109 DD M/T(Y5N) L=140 IDN 		5-09707-031-1 01 1 1312-1401 ●
423 CLIP; BAND
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=140 IDN 		5-09707-031-1 01 1 1402-1403 ●
423 CLIP; BAND
FULLER ES11109 DD M/T(Y5N) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=140 IDN 		5-09707-031-1 01 1 1404- ●
423 CLIP; BAND
L=140 IDN 		5-09707-031-1 01 1 1404- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
