◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#131664) — 82 parça

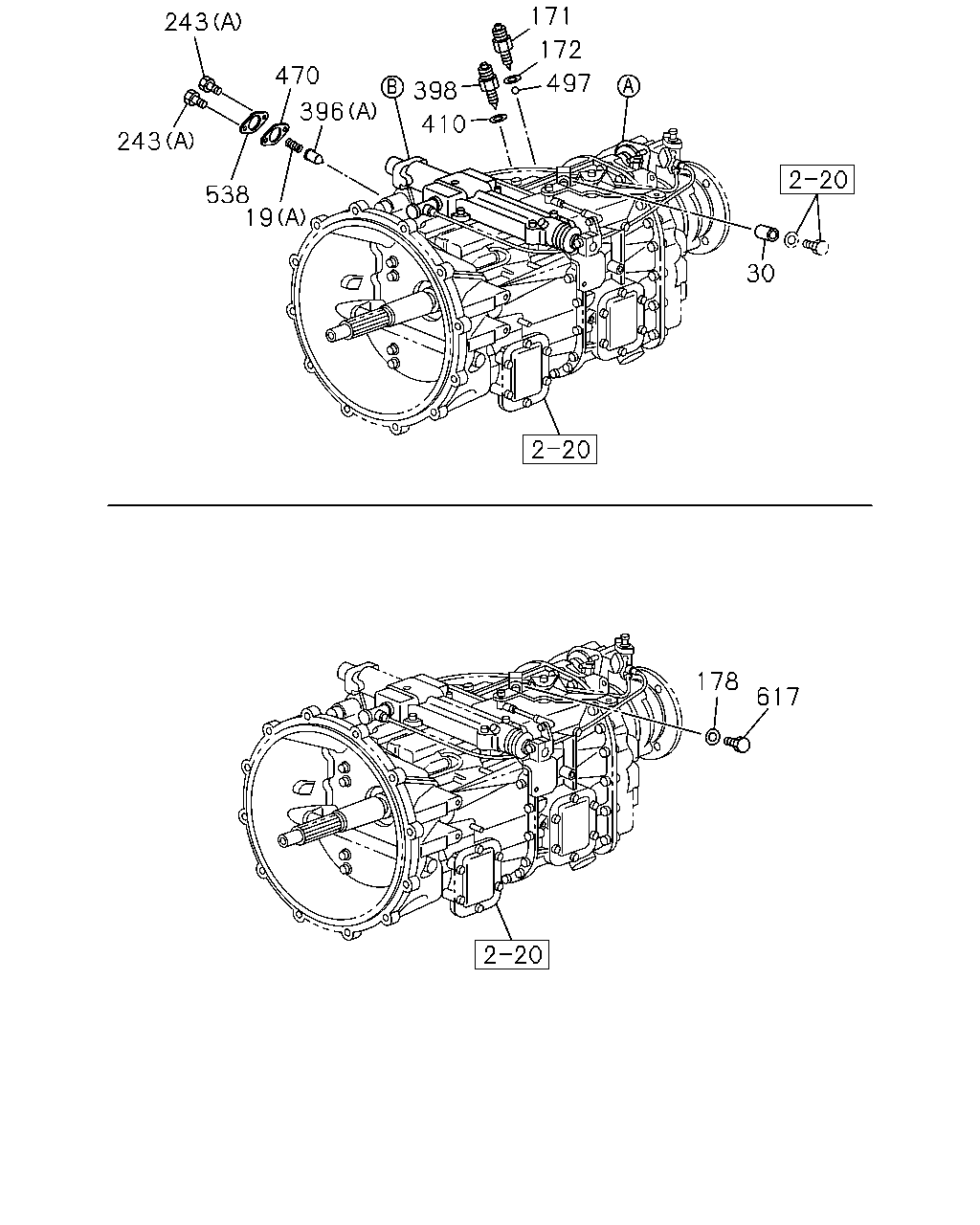

çizim 388387
243 243 538 470 396 19 398 410 171 172 497 30 617 178
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 1312-
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 1312-
30 PIN; INTER LK 1-33119-309-0 01 1 1312-
171 SWITCH; NEUTRAL 1-82440-123-0 01 1 1312-
172 GASKET; NEUTRAL SW 1-33119-601-0 01 1 1312-
178 GASKET; PLUG 1-33119-601-0 01 1 1312-
243 BOLT; COVER
(A) 		1-33119-630-0 02 1 1312-
243 BOLT; COVER
(B) 		1-33119-609-0 02 1 1312-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-084-0 01 1 1312-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-390-0 01 1 1312-
398 SWITCH; REV LAMP 1-82440-128-0 01 1 1312-
410 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-601-0 01 1 1312-
470 GASKET; SPRING COVER 1-33119-489-0 02 1 1312-
497 BALL; SWITCH 1-33119-308-0 01 1 1312-
538 COVER; DETENT 1-33119-574-0 01 1 1312-
617 PLUG 1-33119-605-0 01 1 1312-

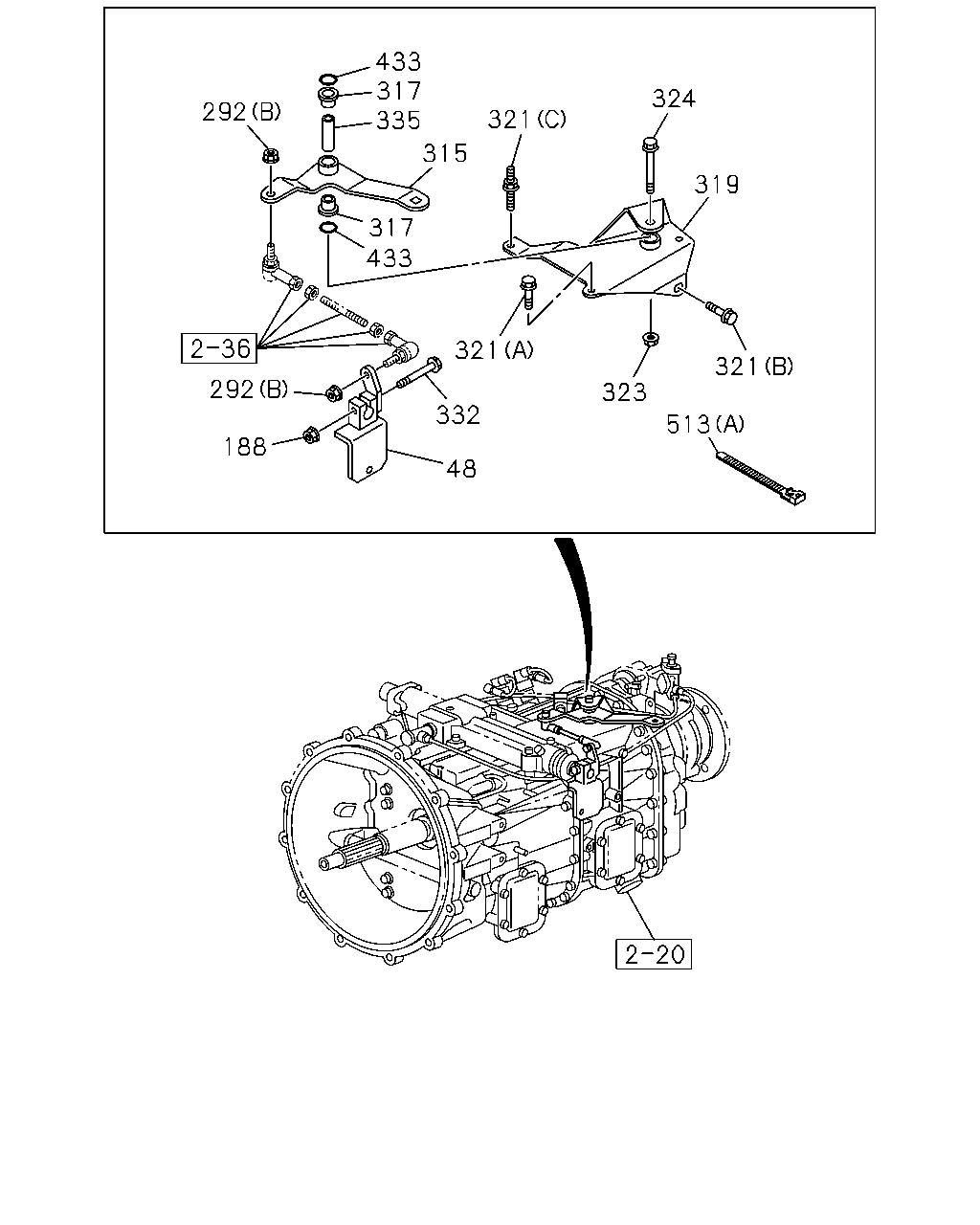

çizim 388397
292 433 335 317 315 321 324 319 321 323 321 513 317 433 332 48 292 188
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 8-98031-634-0 01 1 1312-
188 NUT; SELECT LEVER
M10 FLANGE IDN 		0-91180-110-0 01 1 1312-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1312-
315 LEVER; SELECT 8-98032-139-0 01 1 1312-
317 BUSHING; LEVER 1-09330-119-0 02 1 1312-
319 BRACKET; SELECT LEVER 1-33657-816-0 01 1 1312-
321 BOLT; BRKT,RELAY LEVER
(A) M10X60 FLANGE 		0-28151-060-0 01 1 1312-
321 BOLT; BRKT,RELAY LEVER
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1312-
321 BOLT; BRKT,RELAY LEVER
(C) M10X35 L=65 		8-97178-725-0 01 1 1312-
323 NUT; LK,SELECT LEVER
M10 FLANGE IDN 		0-91180-110-0 01 1 1312-
324 BOLT; SHAFT
M10X60 FLANGE IDN 		0-28051-060-0 01 1 1312-
332 BOLT; 4TH,SHIFT LEVER 0-29261-060-0 01 1 1312-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 1312-
433 GASKET; BUSHING 1-09623-594-0 02 1 1312-
513 CLIP; BAND
(A) L=180 		1-09707-162-1 02 1 1312-
513 CLIP; BAND
(A) L=250 IDN 		5-09707-030-1 01 1 1312-

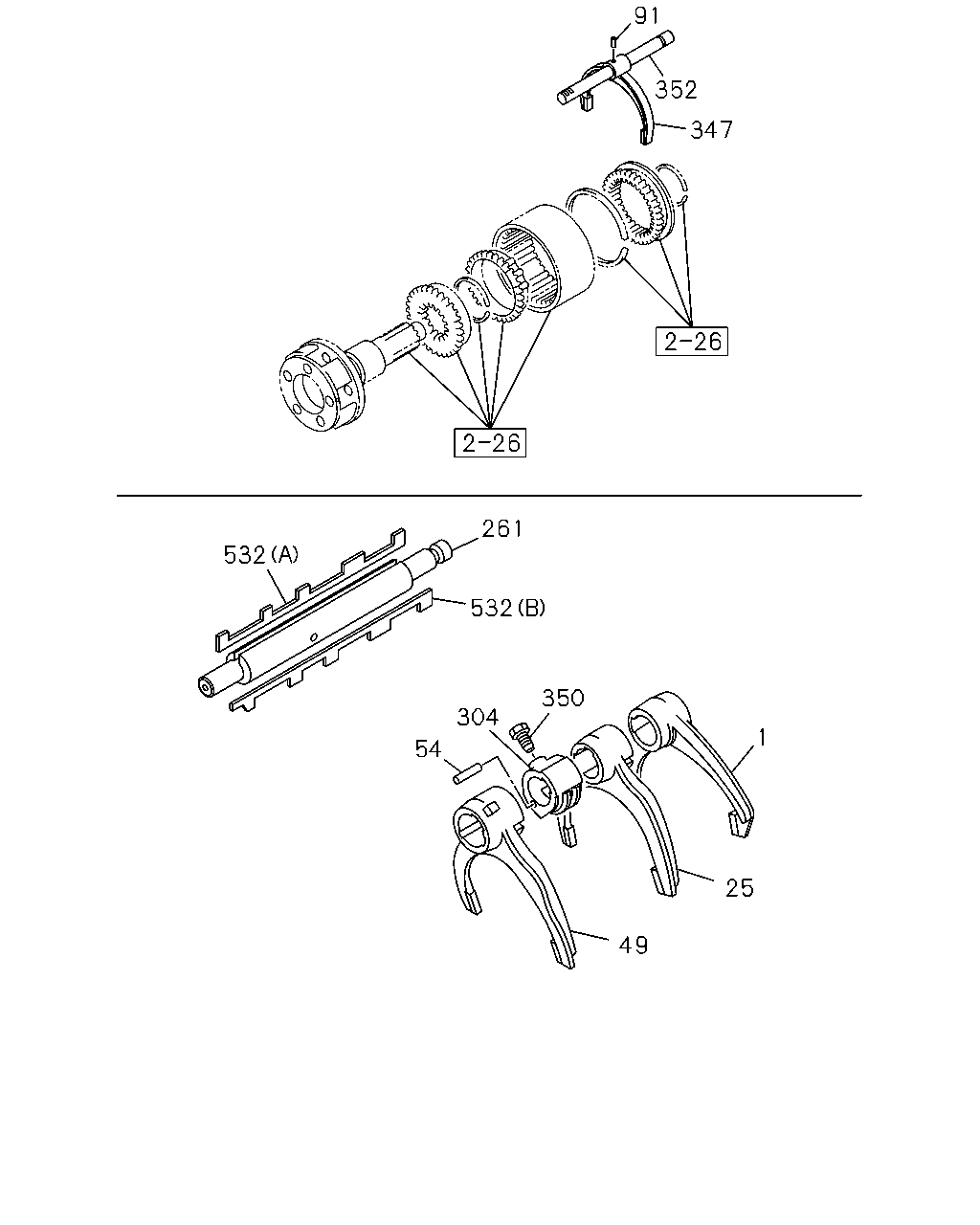

çizim 388431
91 352 347 532 261 532 304 350 54 1 25 49
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-629-0 01 1 1312-
25 ARM; SHIFT,2ND & 3RD 1-33511-630-0 01 1 1312-
49 ARM; SHIFT,4TH & 5TH 1-33511-537-0 01 1 1312-
54 PIN; SPR,SHIFT BLOCK 1-33519-101-0 01 1 1312-
91 PIN; SPR,SHIFT ARM 1-33519-192-0 01 1 1312-
261 ROD; GEAR CONT 1-33531-498-0 01 1 1312-
304 BLOCK; SHIFT SHAFT 1-33511-534-0 01 1 1312-
347 ARM; SHIFT,RANGE CHANGE 1-33511-671-0 01 1 1312-
350 SCREW; SHIFT ARM 1-33519-163-0 01 1 1312-
352 ROD; SHIFT,RANGE CHANGE 1-33531-435-0 01 1 1312-
532 PLATE; SHIFT FORK
(B) 		1-33539-080-0 01 1 1312-
532 PLATE; SHIFT FORK
(A) 		1-33539-054-0 01 1 1312-

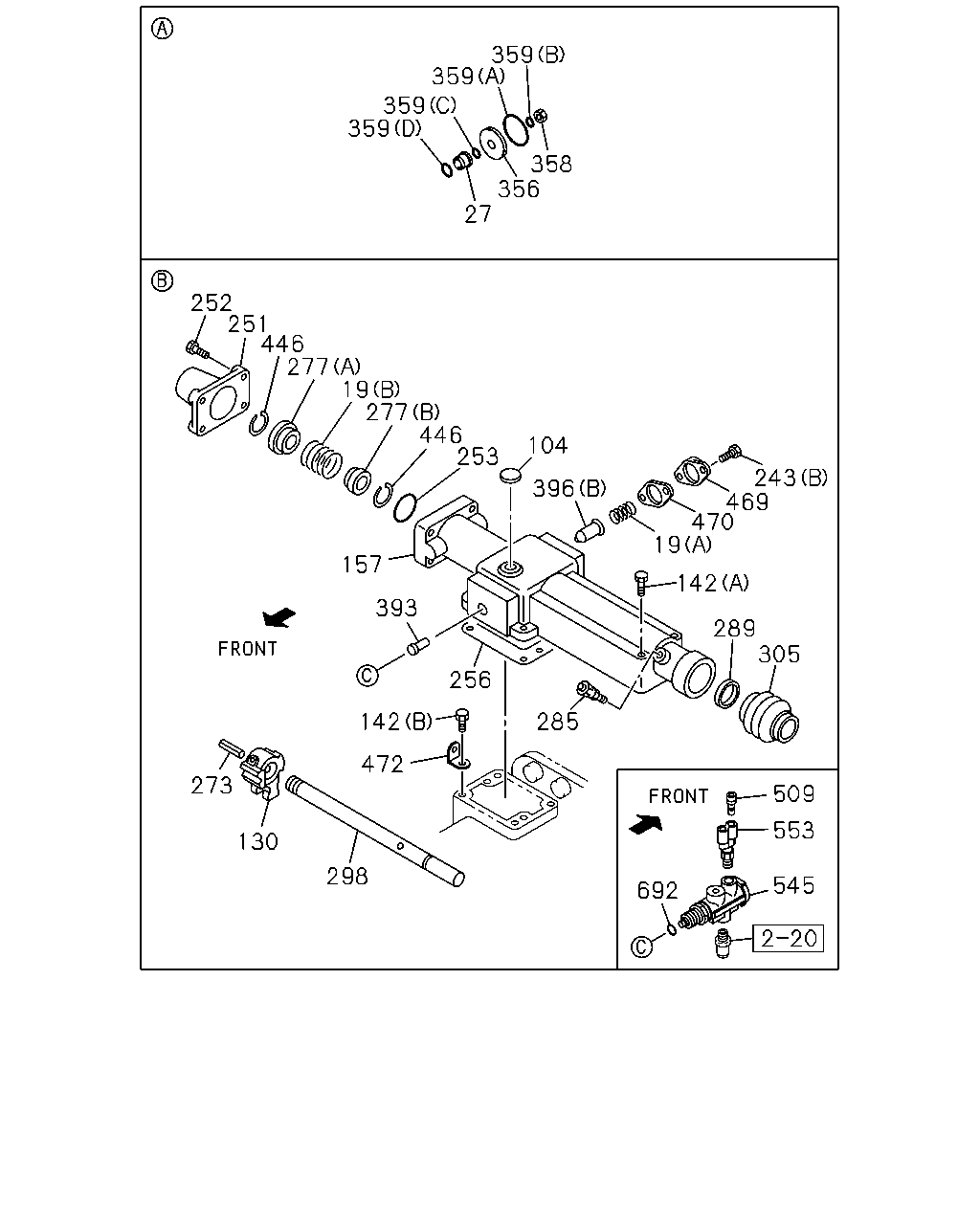

çizim 389190
359 359 359 359 27 356 358 252 277 446 251 19 253 446 277 396 104 470 469 243 19 157 393 256 285 142 472 273 130 298 509 553 545 692 305 289 142
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 1312-
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 1312-
27 BUSHING; SHIFT ROD 1-33569-042-0 01 1 1312-
104 PLUG; PLATE 1-33549-353-0 01 1 1312-
130 LEVER; SHIFT,INTERNAL 1-33521-181-0 01 1 1312-
142 BOLT; QUAD BOX
(B) M10X35 		1-33549-524-0 04 1 1312-
142 BOLT; QUAD BOX
(A) 		1-33549-580-0 02 1 1312-
157 BOX; QUAD,TRANS 1-33541-537-0 01 1 1312-
243 BOLT; COVER
(A) 		1-33119-630-0 02 1 1312-
243 BOLT; COVER
(B) 		1-33119-609-0 02 1 1312-
251 COVER; SIDE 1-33545-013-0 01 1 1312-
252 BOLT; SIDE COVER 1-33549-552-0 04 1 1312-
253 GASKET; SIDE COVER 1-33544-055-0 01 1 1312-
256 GASKET; QUAD BOX TO TRANS CASE 1-33549-391-0 01 1 1312-
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 1312-
277 PLATE; SPRING SEAT
(B) 		1-33549-388-0 01 1 1312-
277 PLATE; SPRING SEAT
(A) 		1-33549-389-0 01 1 1312-
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 1312-
289 SEAL; OIL,CONT SHAFT,QUAD BOX 1-33542-061-0 01 1 1312-
298 SHAFT; SHIFT LEVER 1-33522-209-0 01 1 1312-
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 1312-
356 PISTON; AIR CYL 1-33551-015-0 01 1 1312-
358 NUT; SHIFT ROD 1-33539-091-0 01 1 1312-
359 GASKET; AIR CYL
(D) 		1-33569-043-0 01 1 1312-
359 GASKET; AIR CYL
(C) 		1-33569-044-0 01 1 1312-
359 GASKET; AIR CYL
(A) 		1-87061-122-0 01 1 1312-
359 GASKET; AIR CYL
(B) 		1-87061-123-0 01 1 1312-
393 PIN; SW 1-33549-394-0 01 1 1312-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-084-0 01 1 1312-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-390-0 01 1 1312-
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 1312-
469 COVER; SPRING,QUAD BOX 1-33119-425-0 01 1 1312-
470 GASKET; SPRING COVER 1-33119-489-0 02 1 1312-
472 EYE; LIFTING 1-33119-596-0 01 1 1312-
509 ADAPTER 1-33119-603-0 01 1 1312-
545 VALVE; POPPET 1-33549-383-0 01 1 1312-
553 ADAPTER; AIR 1-33119-602-0 01 1 1312-
692 GASKET; VALVE 1-33119-601-0 01 1 1312-
