2-26B — MANUAL TRANSMISSION GEAR (#131662) — 137 parça

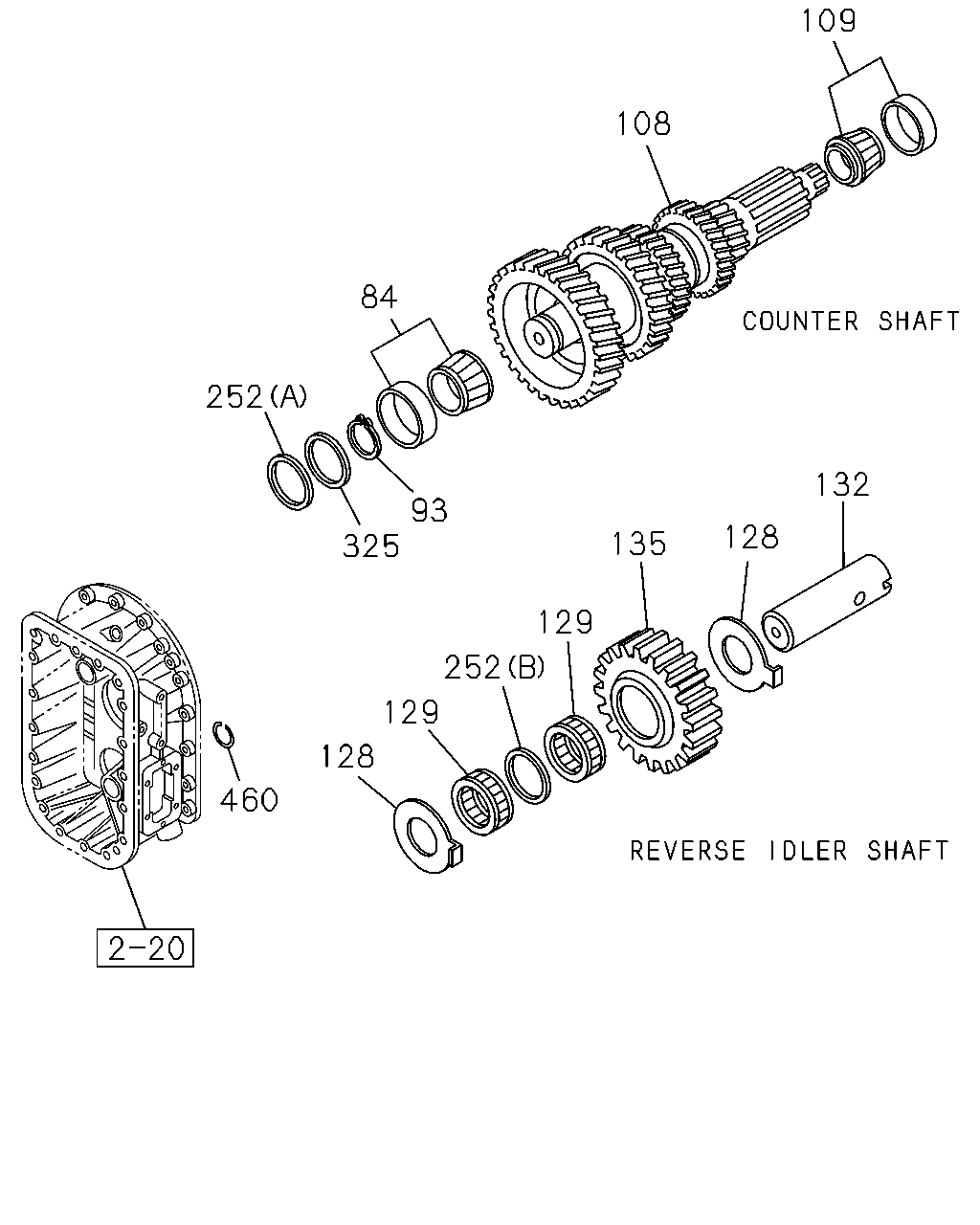

çizim 388374
128 129 129 135 128 132 109 108 84 252 325 93 460 252
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33319-262-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 1312-
108 SHAFT; COUNTER 1-33311-354-0 01 1 1312-
109 BEARING; COUNTER SHAFT,RR 1-33319-262-0 01 1 1312-
128 WASHER; THRUST,REV SHAFT 1-33359-016-0 02 1 1312-
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 1312-
132 SHAFT; REV 1-33351-044-0 01 1 1312-
135 GEAR; REV IDLER 1-33361-097-0 01 1 1312-
252 SPACER
(A) 		1-33319-223-0 01 1 1312-
252 SPACER
(B) 		1-33359-017-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 1312-
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 1312-

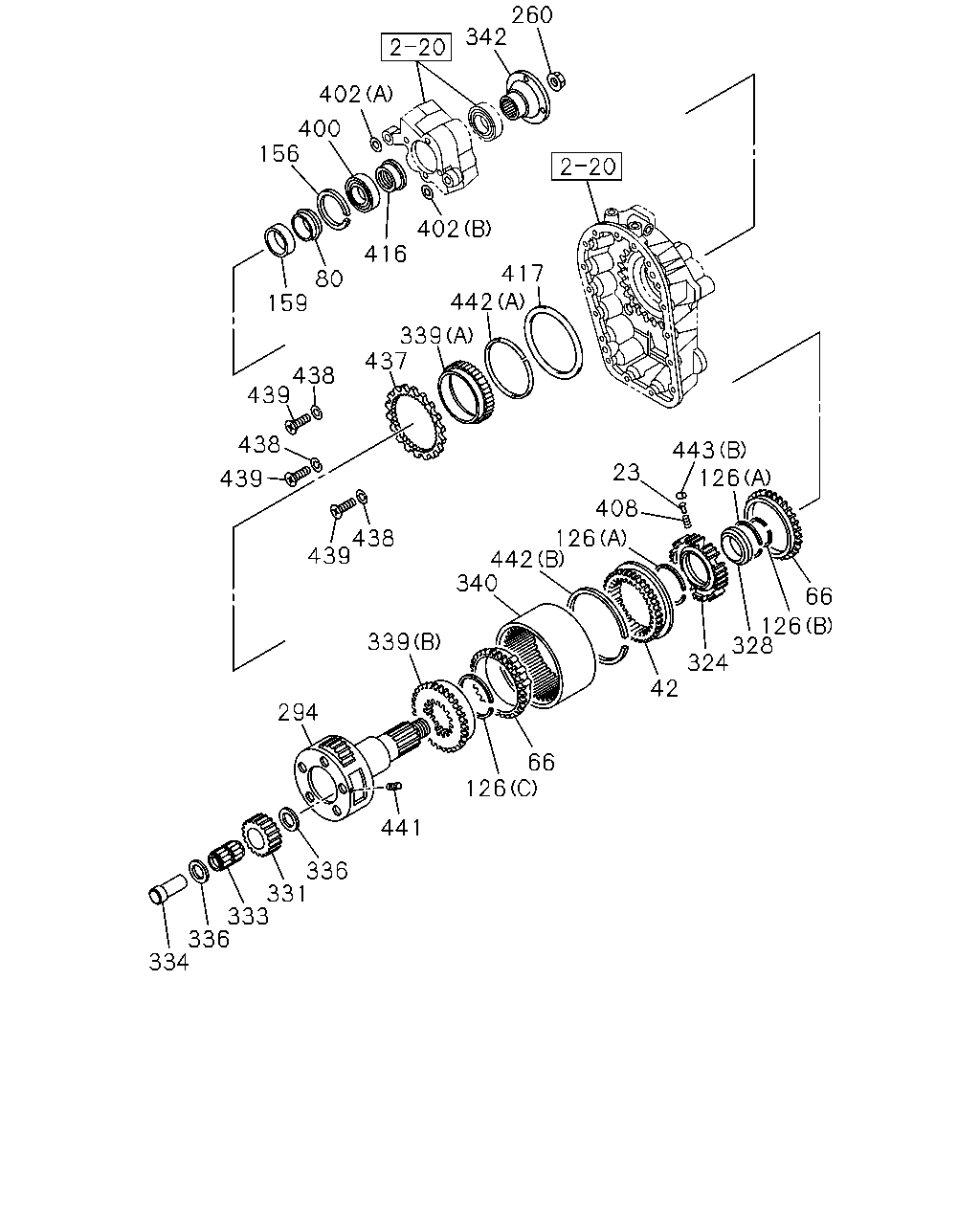

çizim 388678
260 342 402 400 156 402 416 80 159 417 442 339 437 438 439 438 439 438 439 339 294 441 336 331 333 336 334 126 66 340 442 126 408 23 443 126 66 126 328 324 42
BalonParca AdiParca NoAdetTipApplied Date
23 PLUNGER; DETENT,SYN 1-33265-600-0 18 1 1312-
42 SLEEVE 1-33262-246-0 01 1 1312-
66 RING; BLOCK,SYN 1-33265-557-0 02 1 1312-
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 1312-
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 01 1 1312-
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 1312-
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 1312-
126 RING; SNAP,CLU HUB
(D) 		1-33269-065-0 01 1 1312-
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 1312-
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 1312-
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 1312-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.70 		1-37249-193-0 01 1 1312-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.77 		1-37249-194-0 01 1 1312-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.83 		1-37249-195-0 01 1 1312-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.89 		1-37249-196-0 01 1 1312-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.95 		1-37249-197-0 01 1 1312-
159 SPACER; SPD DRIVE GEAR 1-33159-054-0 01 1 1312-
260 NUT; MAINSHAFT END 1-33119-612-0 01 1 1312-
294 SHAFT; OUTPUT 1-33231-345-0 01 1 1312-
324 HUB; CLU 1-33261-234-0 01 1 1312-
328 BEARING; CARRIER 1-33269-060-0 01 1 1312-
331 GEAR SET; PLANETARY 1-33239-375-0 05 1 1312-
333 ROLLER; PLANETARY GEAR 1-33239-250-0 05 1 1312-
334 SHAFT; PLANETARY GEAR 1-33239-374-0 05 1 1312-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-276-0 10 1 1312-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 1312-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 1312-
340 GEAR; RING 1-33339-052-0 01 1 1312-
342 FLANGE; OUTPUT 1-37243-325-0 01 1 1312-
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 1312-
402 SHIM
(A) T=0.005" 		1-33159-050-0 01 1 1312-
402 SHIM
(B) T=0.10" 		1-33159-051-0 01 1 1312-
408 SPRING 1-33264-039-0 18 1 1312-
416 BUSHING; OUTPUT SHAFT 1-37249-168-0 01 1 1312-
417 SPACER; OUTPUT SHAFT 1-33269-053-0 01 1 1312-
437 PLATE; LOCK 1-33269-054-0 01 1 1312-
438 WASHER; LOCK PLATE 1-33269-056-0 03 1 1312-
439 SCREW; LOCK PLATE 1-33269-098-0 03 1 1312-
441 SCREW; STOPPER,PIN 1-33239-251-0 05 1 1312-
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 1312-
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 1312-
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 1312-
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 1312-

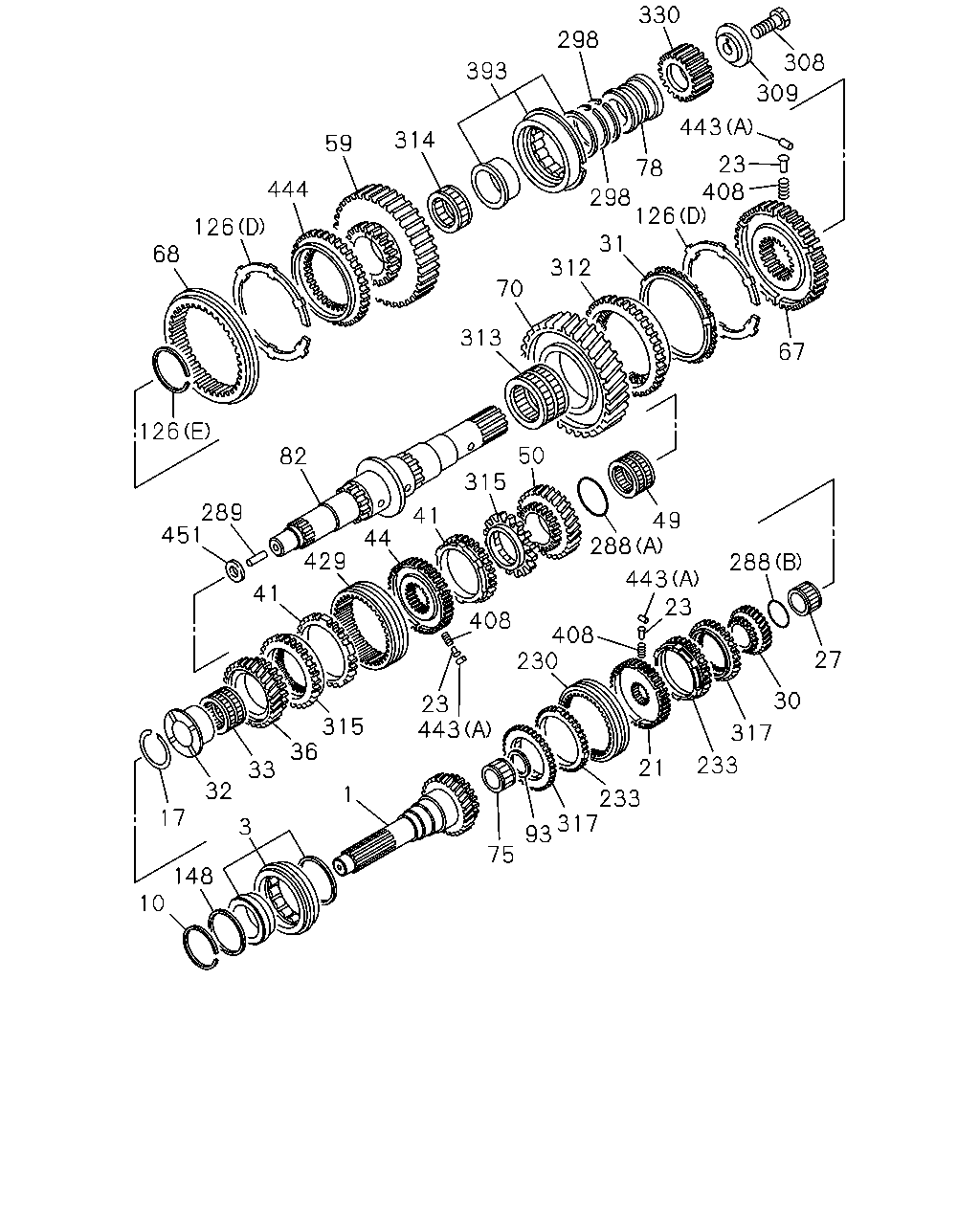

çizim 389079
330 298 393 314 59 444 126 68 126 451 289 82 313 70 312 31 126 298 78 443 309 308 23 408 67 49 50 315 41 44 429 41 17 33 32 3 148 10 36 1 315 443 230 23 75 408 408 443 288 288 27 30 317 233 233 317 21 93 23
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-039-0 01 1 1312-
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 1312-
10 RING; SNAP,PILOT BRG 1-33219-268-0 01 1 1312-
17 RING; SNAP,4TH GEAR
T=2.15 		1-33269-111-0 01 1 1312-
17 RING; SNAP,4TH GEAR
T=2.20 		1-33269-112-0 01 1 1312-
17 RING; SNAP,4TH GEAR
T=2.00 		1-33269-064-0 01 1 1312-
17 RING; SNAP,4TH GEAR
T=2.10 		1-33269-100-0 01 1 1312-
17 RING; SNAP,4TH GEAR
T=2.05 		1-33269-101-0 01 1 1312-
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 1312-
23 PLUNGER; DETENT,SYN 1-33265-600-0 18 1 1312-
27 BEARING; 4TH GEAR 1-33259-079-0 01 1 1312-
30 GEAR; 4TH,MAINSHAFT 1-33252-485-0 01 1 1312-
31 RING; BLOCK,3RD & 4TH 1-33265-599-0 01 1 1312-
32 COLLAR; 3RD GEAR 1-33259-123-0 01 1 1312-
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 1312-
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 1312-
41 RING; BLOCK,2ND & 3RD 1-33265-643-0 02 1 1312-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 1312-
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 1312-
50 GEAR; 2ND,MAINSHAFT 1-33259-137-0 01 1 1312-
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 1312-
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 1312-
68 SLEEVE; 1ST TO REV 1-33265-645-0 01 1 1312-
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 1312-
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 1312-
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-373-0 01 1 1312-
82 SHAFT; MAIN,TRANS 1-33231-346-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 1312-
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 01 1 1312-
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 1312-
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 1312-
126 RING; SNAP,CLU HUB
(D) 		1-33269-065-0 01 1 1312-
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 1312-
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 1312-
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 1312-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.10 		1-33219-298-0 01 1 1312-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.15 		1-33219-299-0 01 1 1312-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.20 		1-33219-300-0 01 1 1312-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.25 		1-33219-301-0 01 1 1312-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.30 		1-33219-302-0 01 1 1312-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.35 		1-33219-303-0 01 1 1312-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.40 		1-33219-304-0 01 1 1312-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.45 		1-33219-305-0 01 1 1312-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.50 		1-33219-306-0 01 1 1312-
230 SLEEVE; 4TH TO 5TH 1-33262-245-0 01 1 1312-
233 RING; BLOCK 4TH TO 5TH 1-33265-643-0 02 1 1312-
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 1312-
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 1312-
289 PIN; MAINSHAFT 1-33239-242-0 01 1 1312-
298 GASKET; MAINSHAFT 1-33239-245-0 02 1 1312-
308 BOLT; MAINSHAFT 1-33239-366-0 01 1 1312-
309 PLATE; MAINSHAFT 1-33239-317-0 01 1 1312-
312 CLUTCH; DOG,1ST GEAR 1-33265-596-0 01 1 1312-
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 1312-
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 1312-
315 CLUTCH; DOG,2ND GEAR 1-33265-644-0 02 1 1312-
317 CLUTCH; DOG,4TH GEAR 1-33265-644-0 02 1 1312-
330 GEAR; SUN 1-34311-011-0 01 1 1312-
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 1312-
408 SPRING 1-33264-039-0 18 1 1312-
429 SLEEVE; 2ND & 3RD 1-33262-245-0 01 1 1312-
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 1312-
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 1312-
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 1312-
451 RESTRICTOR; MAIN SHAFT 1-33239-275-0 01 1 1312-
