2-26A — MANUAL TRANSMISSION GEAR (#131661) — 194 parça

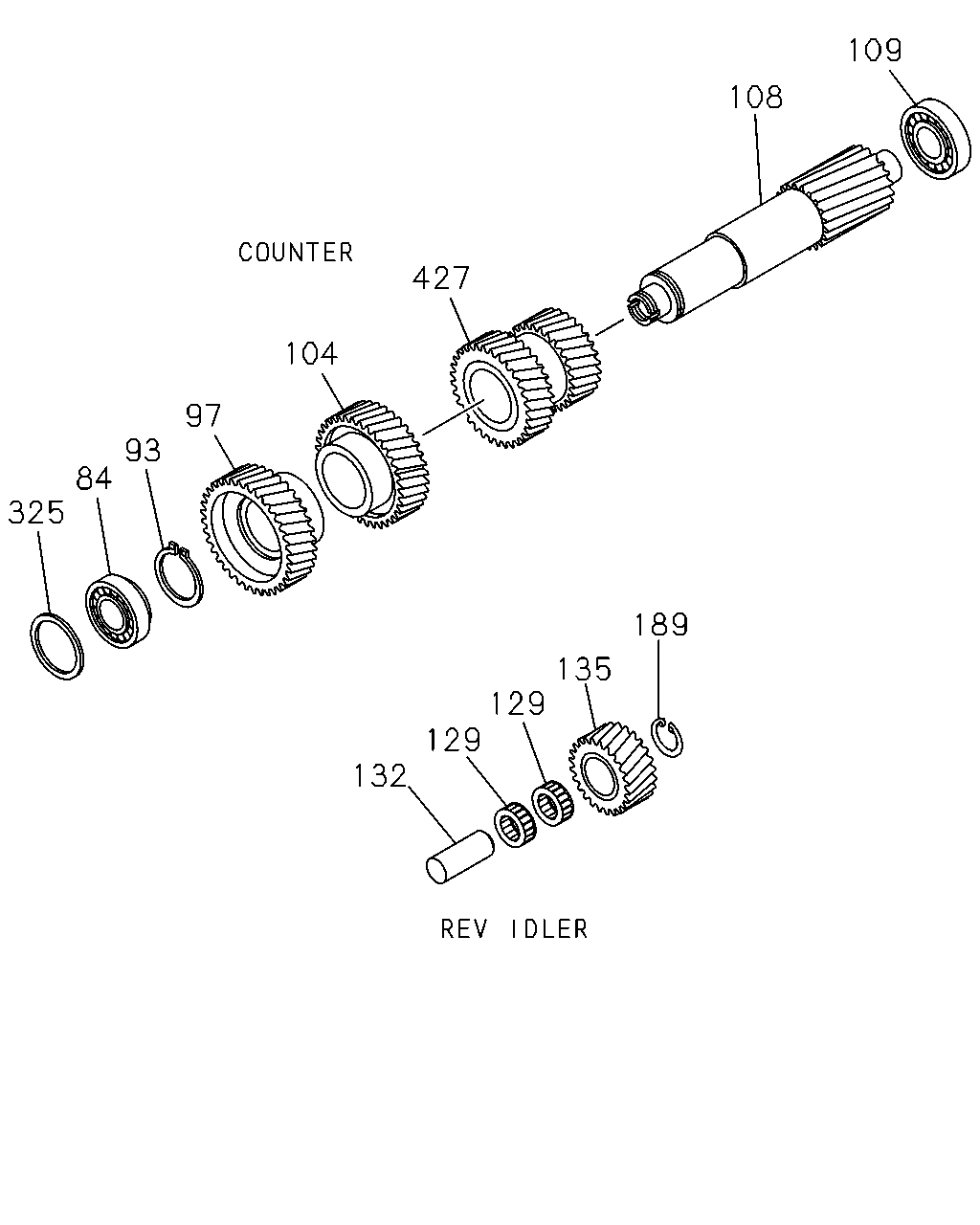

çizim 388367
325 84 93 97 104 427 108 109 189 135 129 129 132
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1312-
97 GEAR; 5TH,COUNTER 1-33338-407-0 01 1 1312-
104 GEAR; 4TH,COUNTER 1-33338-406-0 01 1 1312-
108 SHAFT; COUNTER 1-33311-347-0 01 1 1312-
109 BEARING; COUNTER SHAFT,RR 1-33312-019-0 01 1 1312-
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1312-
132 SHAFT; REV 1-33351-024-0 01 1 1312-
135 GEAR; REV IDLER 1-33361-096-0 01 1 1312-
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		8-98080-572-0 01 1 1312-
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1312-

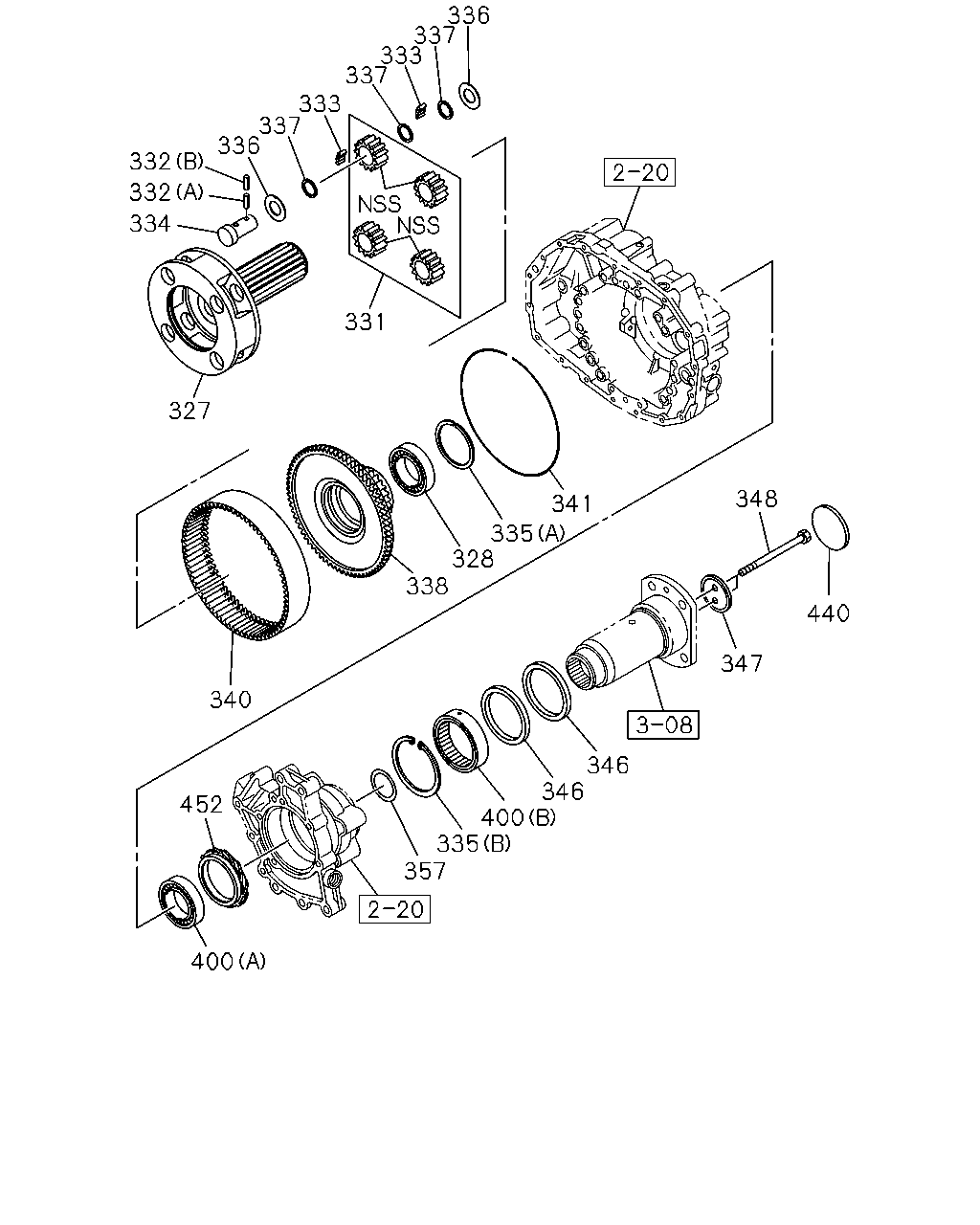

çizim 388372
336 337 333 337 333 337 336 332 334 332 327 331 348 341 335 328 338 340 357 346 347 346 440 335 400 400 452
BalonParca AdiParca NoAdetTipApplied Date
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 1312-
328 BEARING; CARRIER 1-33339-094-0 01 1 1312-
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 1312-
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 1312-
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 1312-
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 1312-
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1312-
335 RING; SNAP,BEARING
(B) 		1-33339-050-0 01 1 1312-
335 RING; SNAP,BEARING
(A) T=2.50 		1-33339-075-0 01 1 1312-
335 RING; SNAP,BEARING
(A) T=2.40 		1-33339-076-0 01 1 1312-
335 RING; SNAP,BEARING
(A) T=2.30 		1-33339-077-0 01 1 1312-
335 RING; SNAP,BEARING
(A) T=2.20 		1-33339-078-0 01 1 1312-
335 RING; SNAP,BEARING
(A) T=2.10 		1-33339-079-0 01 1 1312-
335 RING; SNAP,BEARING
(A) T=2.00 		1-33339-080-0 01 1 1312-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 1312-
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 1312-
338 CARRIER; RING GEAR 1-33331-275-0 01 1 1312-
340 GEAR; RING 1-33339-099-0 01 1 1312-
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 1312-
346 GASKET; FLANGE 1-33339-051-0 02 1 1312-
347 WASHER; FLANGE 1-09509-060-0 01 1 1312-
348 BOLT; SHAFT 1-09009-168-0 02 1 1312-
357 RING 1-33139-218-0 01 1 1312-
400 BEARING; OUTPUT SHAFT RR
(A) 		1-33139-212-0 01 1 1312-
400 BEARING; OUTPUT SHAFT RR
(B) 		1-33339-098-0 01 1 1312-
440 COVER; FLANGE 1-37249-152-0 01 1 1312-
452 DISC; COUNTING 1-33139-217-0 01 1 1312-
çizim 388375
323 408 408 42 66 126 339 324 66 339
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE 1-33262-195-0 01 1 1312-
66 RING; BLOCK,SYN 1-33339-069-0 02 1 1312-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1312-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1312-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1312-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1312-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1312-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1312-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1312-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1312-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1312-
323 INSERT
(B) 		1-33263-027-0 09 1 1312-
323 INSERT
(A) 		1-33263-030-0 06 1 1312-
324 HUB; CLU 1-33261-230-0 01 1 1312-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 1312-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-649-0 01 1 1312-
408 SPRING
(B) 		1-33269-038-0 09 1 1312-
408 SPRING
(C) 		1-33269-039-0 09 1 1312-
408 SPRING
(A) 		1-33269-042-0 06 1 1312-

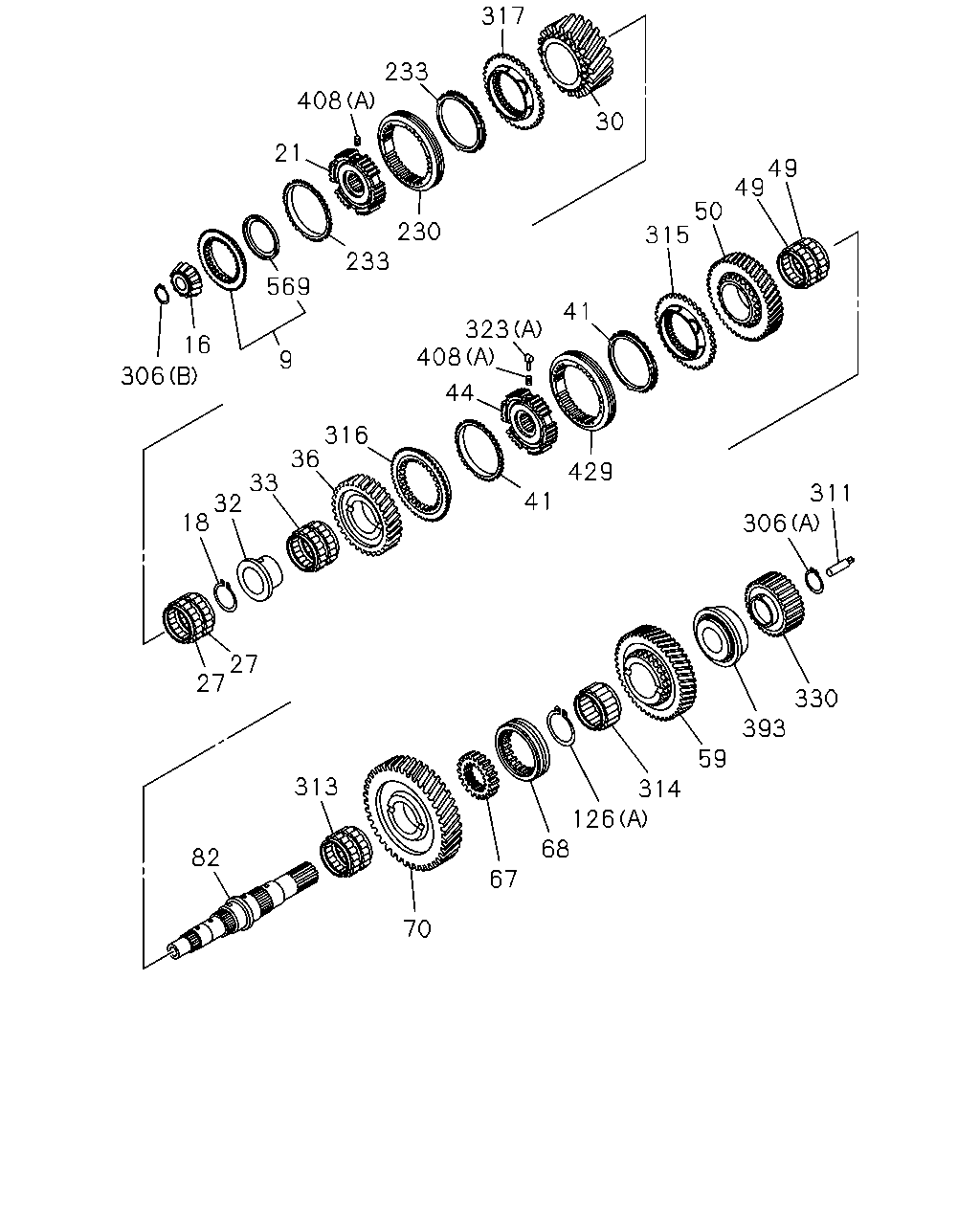

çizim 388788
408 233 317 21 306 16 569 41 41 230 233 323 315 50 49 49 44 316 36 33 32 18 27 429 27 313 82 70 67 126 68 314 393 59 330 306 311 408 9 30
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 1312-
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 1312-
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1312-
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 1312-
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 1312-
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 1312-
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 1312-
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 1312-
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 1312-
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1312-
30 GEAR; 4TH,MAINSHAFT 1-33251-449-0 01 1 1312-
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1312-
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1312-
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 1312-
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 1312-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1312-
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1312-
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1312-
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1312-
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1312-
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 1312-
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 1312-
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 1312-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1312-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1312-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1312-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1312-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1312-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1312-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1312-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1312-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1312-
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 1312-
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 1312-
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 1312-
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 1312-
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1312-
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1312-
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 1312-
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 1312-
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 1312-
323 INSERT
(B) 		1-33263-027-0 09 1 1312-
323 INSERT
(A) 		1-33263-030-0 06 1 1312-
330 GEAR; SUN 1-33259-134-0 01 1 1312-
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 1312-
408 SPRING
(B) 		1-33269-038-0 09 1 1312-
408 SPRING
(C) 		1-33269-039-0 09 1 1312-
408 SPRING
(A) 		1-33269-042-0 06 1 1312-
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1312-
569 DAM; OIL 1-33269-097-0 01 1 1312-

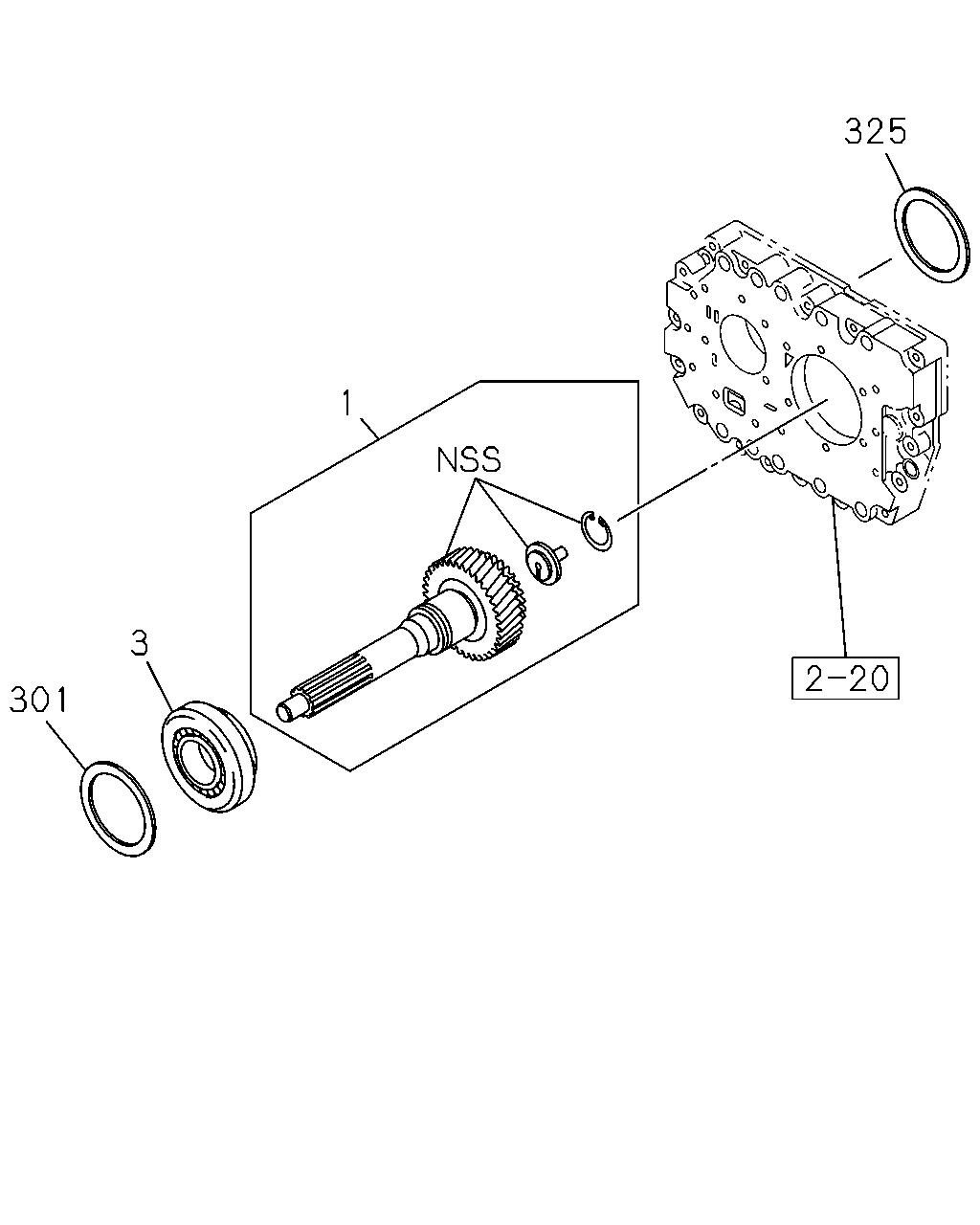

çizim 388969
325 1 3 301
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-040-0 01 1 1312-
3 BEARING; TOP GEAR SHAFT 1-33219-340-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1312-
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		8-98080-572-0 01 1 1312-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
