2-20B — MANUAL TRANSMISSION ASM AND CASE (#131658) — 81 parça

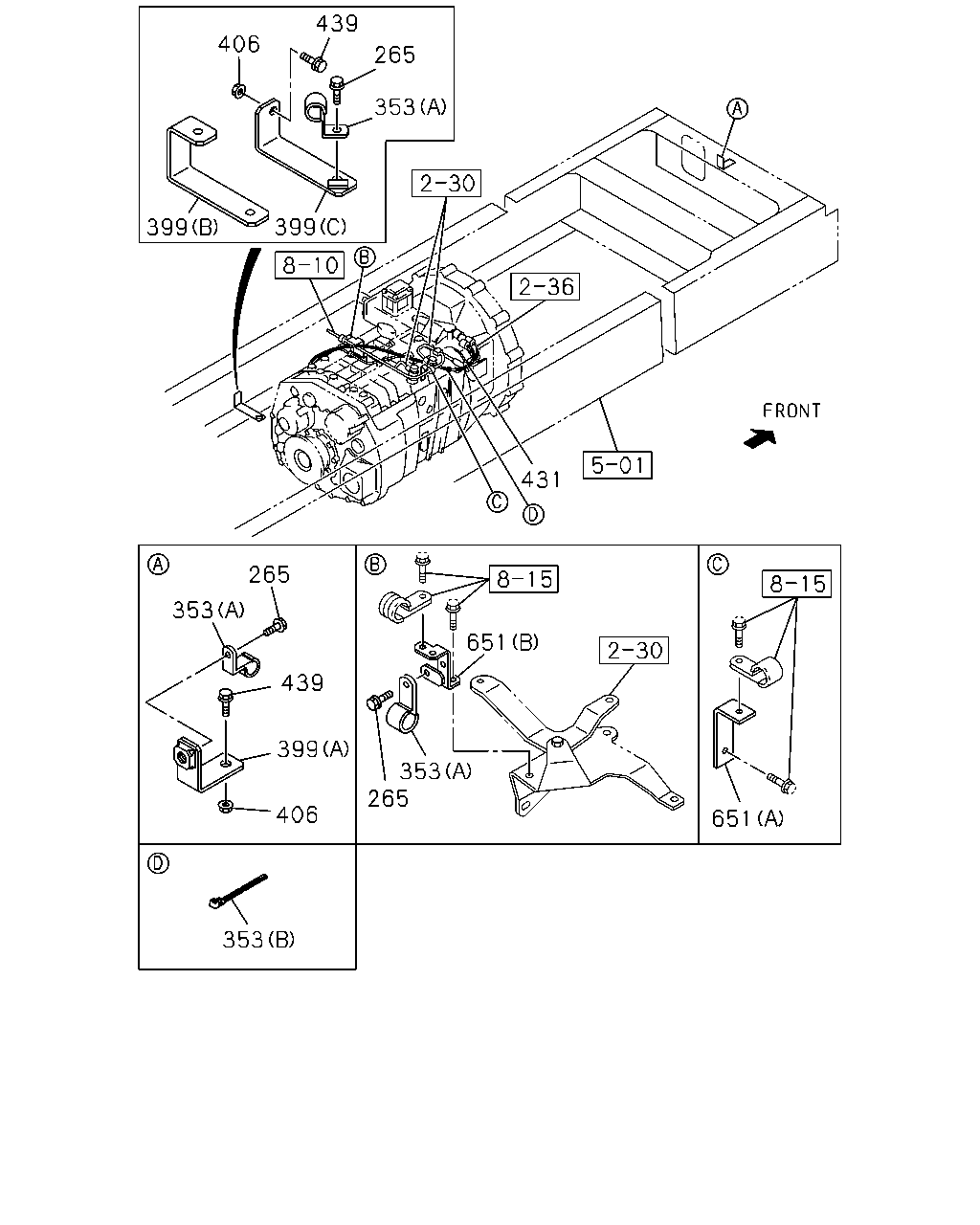

439 406 399 399 353 265 431 265 353 439 399 406 651 353 265 651 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; CLIP M8X20 FLANGE IDN	0-28650-820-0	03	1	1312-1401
265	BOLT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE IDN	0-28650-820-0	03	1	1402-
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	03	1	1312-1401
353	CLIP; NYLON TUBE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11 L=20	0-95235-035-0	03	1	1402-
353	CLIP; NYLON TUBE (B) L=140 IDN	5-09707-031-1	01	1	1312-1401
353	CLIP; NYLON TUBE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 IDN	5-09707-031-1	01	1	1402-
399	BRACKET; CLIP GVZ WIDE CAB(GG****) (C)	8-98205-634-0	01	1	1404-
399	BRACKET; CLIP (A)	8-98085-674-0	01	1	1312-1401
399	BRACKET; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98085-674-0	01	1	1402-
399	BRACKET; CLIP (B)	8-98182-470-0	01	1	1312-1401
399	BRACKET; CLIP FVZ WIDE CAB(FG****) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98182-470-0	01	1	1402-
406	NUT; BRKT M8 FLANGE IDN	0-91180-108-0	03	1	1312-1401
406	NUT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE IDN	0-91180-108-0	03	1	1402-
431	TUBE; NYLON	1-33119-474-0	02	1	1312-
439	BOLT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X30 FLANGE	0-28650-830-0	01	1	1312-
439	BOLT; BRKT M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1401
439	BOLT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE IDN	0-28650-820-0	02	1	1402-
651	BRACKET; T/M HARNESS (A)	1-82698-630-0	01	1	1312-
651	BRACKET; T/M HARNESS (B)	8-98098-890-0	01	1	1312-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

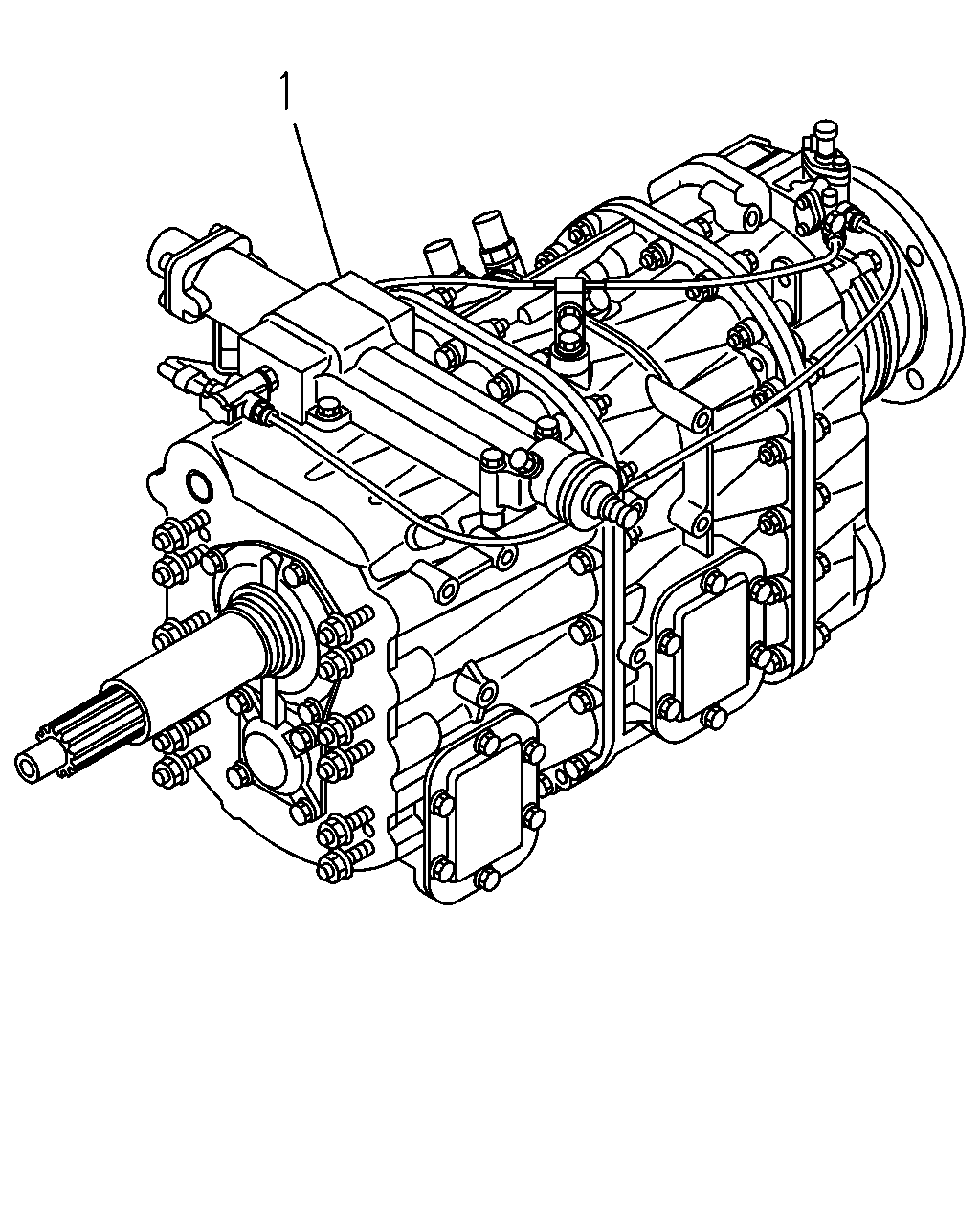

	1	TRANSMISSION ASM; MANUAL	8-98257-471-0	01	1	1312-

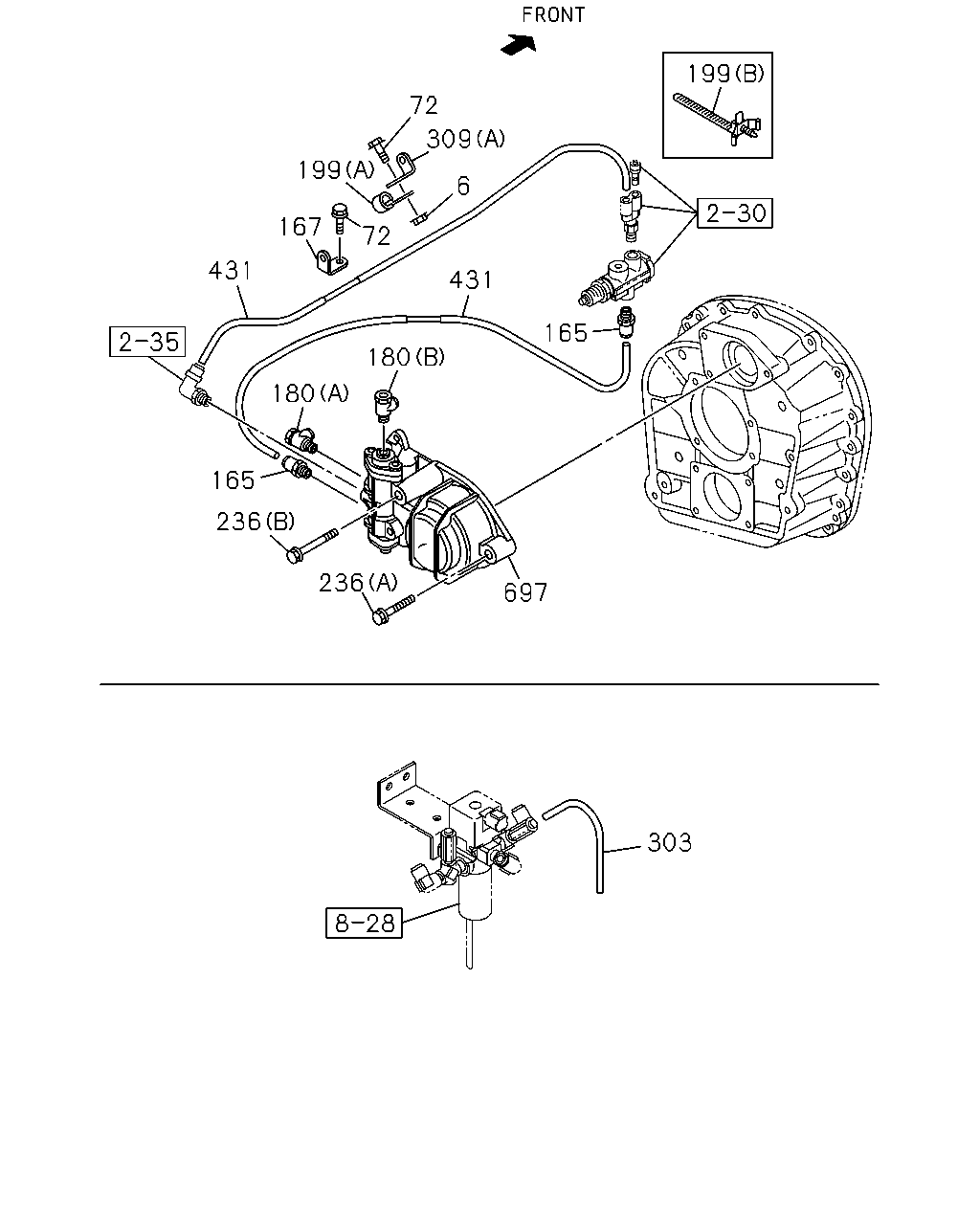

72 199 167 6 309 72 431 165 431 180 180 165 236 236 697 303 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	NUT; CASE,TRANS	1-33119-571-0	15	1	1312-
72	BOLT; SIDE COVER	1-33119-589-0	14	1	1312-
165	ADAPTER; STRAIGHT	1-33119-461-0	02	1	1312-
167	BRACKET; CLIP,AIR TUBE	1-33119-599-0	01	1	1312-
180	CONNECTOR; NYLON TUBE (A)	1-33119-597-0	01	1	1312-
180	CONNECTOR; NYLON TUBE (B)	1-33119-598-0	01	1	1312-
199	CLIP; NYLON TUBE (B)	1-33119-600-0	01	1	1312-
199	CLIP; NYLON TUBE (A)	1-33119-475-0	01	1	1312-
236	BOLT; VALVE BRKT (A)	1-33119-549-0	02	1	1312-
236	BOLT; VALVE BRKT (B)	1-33119-550-0	01	1	1312-
303	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1312-
309	EYE; LIFTING (A)	1-33119-596-0	01	1	1312-
309	EYE; LIFTING (B)	1-33119-604-0	01	1	1312-
431	TUBE; NYLON	1-33119-474-0	02	1	1312-
697	VALVE; AIR	1-33119-547-0	01	1	1312-

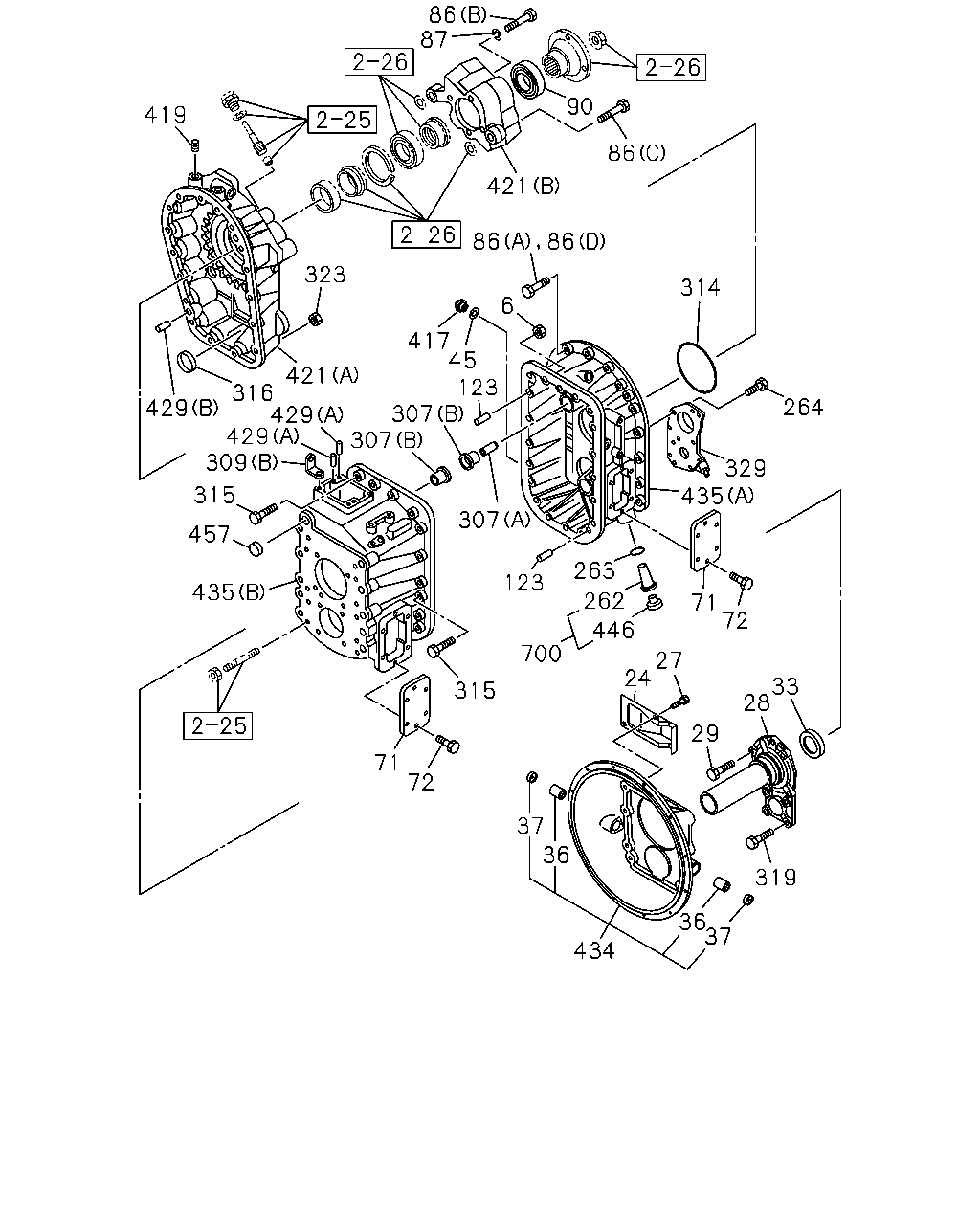

86 419 87 90 86 421 86 86 323 421 316 429 309 429 429 315 457 435 307 307 417 45 123 314 6 307 123 700 315 71 72 263 262 446 27 24 71 72 435 264 329 33 28 29 319 36 36 37 434 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	NUT; CASE,TRANS	1-33119-571-0	15	1	1312-
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1312-1410
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1312-
28	COVER; FRT,TRANS CASE	1-33121-144-0	01	1	1312-
29	BOLT; FRT COVER	1-33129-016-0	05	1	1312-
33	SEAL; OIL,FRT COVER,T/M	1-33219-194-0	01	1	1312-
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	1312-
37	SEAL; DUST,CLU HSG	1-09625-002-0	02	1	1312-
45	GASKET; FILLER PLUG	1-33119-459-0	01	1	1312-
71	COVER; SIDE,TRANS CASE	1-33141-073-0	02	1	1312-
72	BOLT; SIDE COVER	1-33119-589-0	14	1	1312-
86	BOLT; RR COVER (A) M10X58	1-33119-573-0	16	1	1312-
86	BOLT; RR COVER (B)	1-33119-611-0	04	1	1312-
86	BOLT; RR COVER (C)	1-33119-613-0	02	1	1312-
86	BOLT; RR COVER (D)	1-33119-614-0	01	1	1312-
87	WASHER; LK,RR COVER	1-33119-610-0	04	1	1312-
90	SEAL; OIL,RR COVER	1-33159-046-0	01	1	1312-
123	DOWEL; TRANS CASE	1-33119-305-0	02	1	1312-
262	STRAINER; OIL PUMP	1-33119-608-0	01	1	1312-
263	GASKET; STRAINER	1-33119-428-0	01	1	1312-
264	BOLT; OIL PUMP	1-33129-016-0	08	1	1312-
307	BUSHING; SHIFT FORK SHAFT (A)	1-33119-303-0	01	1	1312-
307	BUSHING; SHIFT FORK SHAFT (B)	1-33119-562-0	02	1	1312-
309	EYE; LIFTING (A)	1-33119-596-0	01	1	1312-
309	EYE; LIFTING (B)	1-33119-604-0	01	1	1312-
314	GASKET; CASE	1-33119-606-0	01	1	1312-
315	BOLT; CASE M10X40	1-33119-572-0	04	1	1312-
315	BOLT; CASE M10X58	1-33119-573-0	13	1	1312-
315	BOLT; CASE M10X58 FLANGE	1-33119-595-0	01	1	1312-
316	MAGNET; TRANS CASE	1-87060-696-0	01	1	1312-
319	BOLT; COVER	1-33159-071-0	04	1	1312-
323	NUT; RR COVER	1-33119-571-0	17	1	1312-
329	PUMP ASM; OIL	1-34150-125-0	01	1	1312-
417	PLUG; OIL FILLER,TRANS	1-33119-577-0	01	1	1312-
419	PLUG; RR COVER	1-33119-615-0	01	1	1312-
421	COVER; RR,TRANS (A)	1-33131-271-0	01	1	1312-
421	COVER; RR,TRANS (B)	1-33159-048-0	01	1	1312-
429	PIN; STRAIGHT (B)	1-33119-305-0	02	1	1312-
429	PIN; STRAIGHT (A)	1-33119-311-0	02	1	1312-
434	HOUSING; CLU	1-31110-188-2	01	1	1312-
435	CASE; TRANS (B)	1-33111-363-0	01	1	1312-
435	CASE; TRANS (A)	1-33111-320-0	01	1	1312-
446	PLUG; CASE,TRANS	1-33119-546-0	01	1	1312-
457	CUP; SEALING,CASE	1-33119-578-0	01	1	1312-
700	STRAINER ASM	1-33119-324-0	01	1	1312-
