Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#131657) — 82 parça

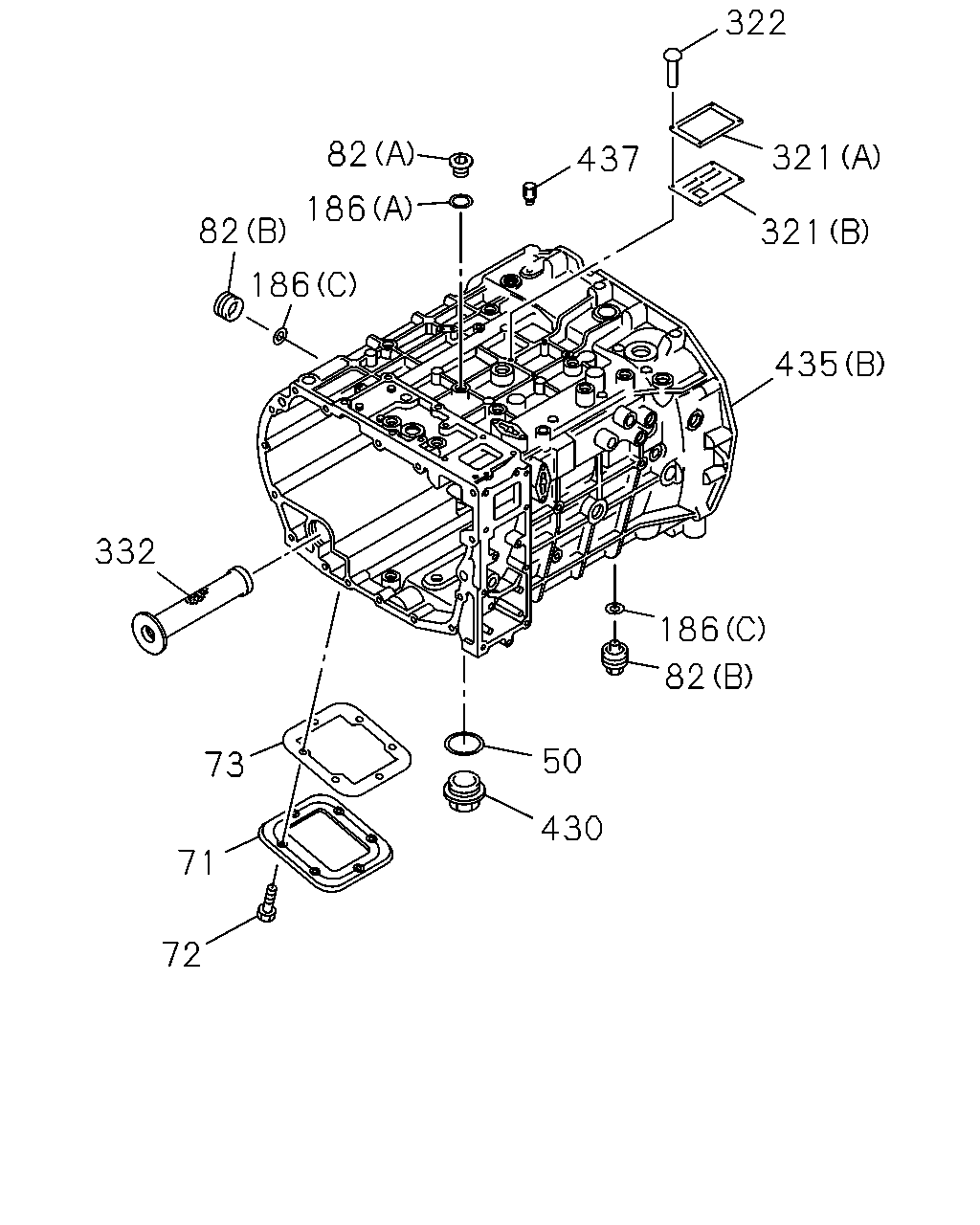

322 321 321 435 186 82 50 430 437 82 186 82 186 332 73 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG	1-33119-293-0	01	1	1312-
71	COVER; SIDE,TRANS CASE	1-33119-622-0	01	1	1312-
72	BOLT; SIDE COVER M10X22	1-33119-592-0	06	1	1312-
73	GASKET; SIDE COVER TO TRANS CASE	1-33119-237-0	01	1	1312-
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1312-
82	PLUG; SCREW,CASE (A)	1-33119-619-0	02	1	1312-
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1312-
186	RING; SEAL (A)	1-33119-249-0	02	1	1312-
186	RING; SEAL (B)	1-33119-286-0	02	1	1312-
186	RING; SEAL (C)	1-33119-435-0	02	1	1312-
321	PLATE; NAME (A)	1-33119-519-0	01	1	1312-
321	PLATE; NAME (B)	1-33119-520-0	01	1	1312-
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1312-
332	FILTER; OIL	1-33119-437-0	01	1	1312-
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1312-
435	CASE; TRANS (B)	1-33111-372-0	01	1	1312-
435	CASE; TRANS (A)	1-33111-380-0	01	1	1312-
437	BREATHER; TRANS	1-36122-006-0	01	1	1312-

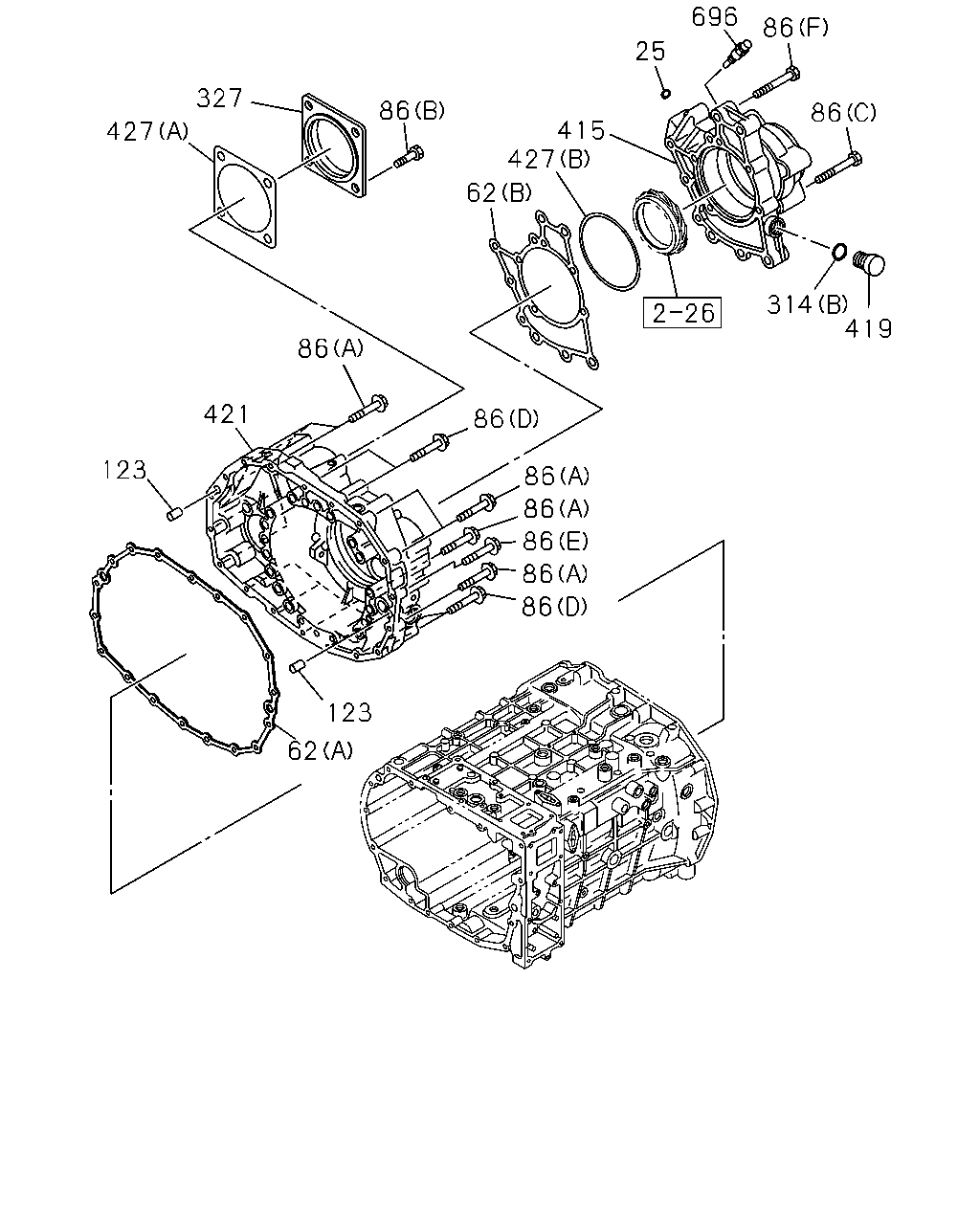

86 86 696 25 415 427 62 314 419 86 327 427 86 86 86 86 86 86 86 421 123 123 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER	1-33139-060-0	01	1	1312-
62	GASKET; RR COVER (B)	1-33132-076-0	01	1	1312-
62	GASKET; RR COVER (A)	1-33132-087-0	01	1	1312-
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1312-
86	BOLT; RR COVER (D) M10X110	1-33139-235-0	05	1	1312-
86	BOLT; RR COVER (E) M10X50	1-33139-236-0	01	1	1312-
86	BOLT; RR COVER (F) M10X65	1-33139-238-0	08	1	1312-
86	BOLT; RR COVER (C) M12X75	1-33139-239-0	05	1	1312-
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (B) M12X25	1-33119-594-0	04	1	1312-
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	1312-
314	GASKET; CASE (A)	1-33112-052-0	01	1	1312-
314	GASKET; CASE (B)	1-33379-021-0	01	1	1312-
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM)	1-33131-273-0	01	1	1312-
415	COVER; BRG	1-33131-274-0	01	1	1312-
419	PLUG; RR COVER	1-33549-594-0	01	1	1312-
421	COVER; RR,TRANS	1-33131-275-0	01	1	1312-
427	GASKET; RR COVER (B)	8-98241-467-0	01	1	1312-
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM) (A)	1-33132-054-0	01	1	1312-
696	SENSOR; PULSE	1-83227-018-0	01	1	1312-

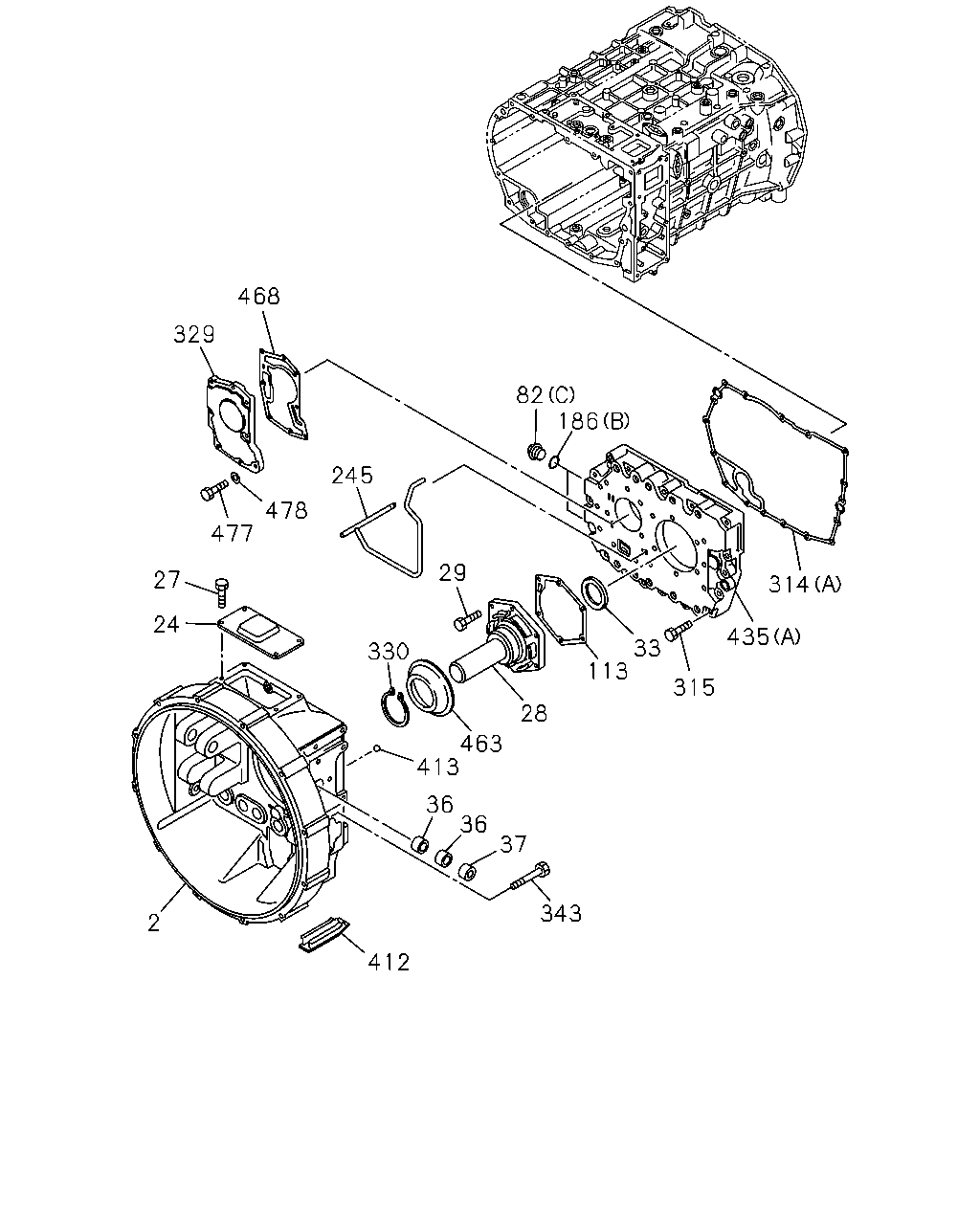

468 329 477 478 245 27 24 2 330 29 82 186 113 33 315 435 314 28 463 413 36 36 37 343 412

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-183-0	01	1	1312-
24	COVER; CHECK HOLE,DUST	1-31119-059-0	01	1	1312-
27	BOLT; COVER TO CLU HSG	1-31119-058-0	04	1	1312-
28	COVER; FRT,TRANS CASE	1-33121-166-0	01	1	1312-
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1312-
33	SEAL; OIL,FRT COVER,T/M	1-33219-321-0	01	1	1312-
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	1312-
37	SEAL; DUST,CLU HSG	1-09625-002-0	02	1	1312-
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1312-
82	PLUG; SCREW,CASE (A)	1-33119-619-0	02	1	1312-
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1312-
113	GASKET; FRT COVER TO TRANS CASE	1-33122-024-0	01	1	1312-
186	RING; SEAL (A)	1-33119-249-0	02	1	1312-
186	RING; SEAL (B)	1-33119-286-0	02	1	1312-
186	RING; SEAL (C)	1-33119-435-0	02	1	1312-
245	PIPE; OIL	1-33119-517-0	01	1	1312-
314	GASKET; CASE (A)	1-33112-052-0	01	1	1312-
314	GASKET; CASE (B)	1-33379-021-0	01	1	1312-
315	BOLT; CASE M10X70	1-33119-616-0	17	1	1312-
329	PUMP ASM; OIL	1-34150-123-0	01	1	1312-
330	RING; RET	1-33129-005-0	01	1	1312-
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	1312-
412	CAP; CLU HSG	1-31119-026-0	01	1	1312-
413	BALL; CLU HSG	1-31119-014-0	04	1	1312-
435	CASE; TRANS (B)	1-33111-372-0	01	1	1312-
435	CASE; TRANS (A)	1-33111-380-0	01	1	1312-
463	COVER; DUST,FRT COVER	1-33129-018-0	01	1	1312-
468	GASKET; OIL PUMP	1-34159-122-0	01	1	1312-
477	BOLT; OIL PUMP M8X30	1-33549-581-0	08	1	1312-
478	WASHER; LK,OIL PUMP	1-33549-583-0	08	1	1312-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM)	8-98183-351-2	01	1	1312-
	1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM)	8-98183-350-2	01	1	1312-

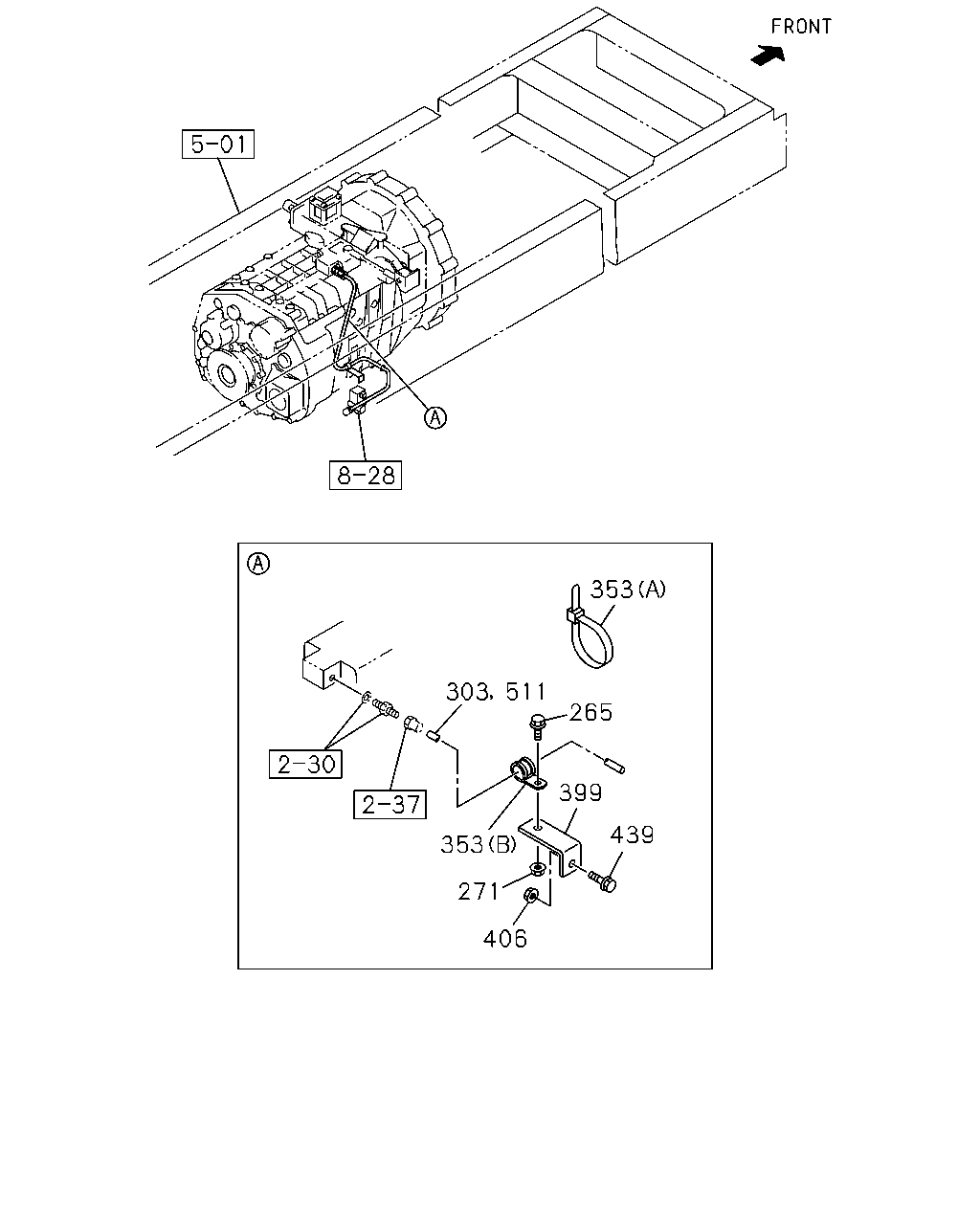

303 511 353 265 399 439 353 271 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; CLIP M8X20 FLANGE IDN	0-28650-820-0	01	1	1312-
271	NUT; CLIP M8 FLANGE IDN	0-91180-108-0	01	1	1312-
303	TUBE; NYLON POWER TAKE OFF-FLYWHEEL(6SZ) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1402-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1312-1401
303	TUBE; NYLON EXC. POWER TAKE OFF-FLYWHEEL(6SZ) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1402-
353	CLIP; NYLON TUBE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1312-
353	CLIP; NYLON TUBE EXC. PTO CONTROL<SV6> (A) L=350	1-09707-183-0	03	1	1312-
399	BRACKET; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) L=90 B=25	1-47476-630-0	01	1	1402-
399	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	1312-1401
399	BRACKET; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=90 B=25	1-47475-530-0	01	1	1402-
406	NUT; BRKT M8 FLANGE IDN	0-91180-108-0	01	1	1312-
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1312-
511	TUBE; CORRUGATE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1312-
