◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶

2-05 — CLUTCH PIPING (#131653) — 124 parça

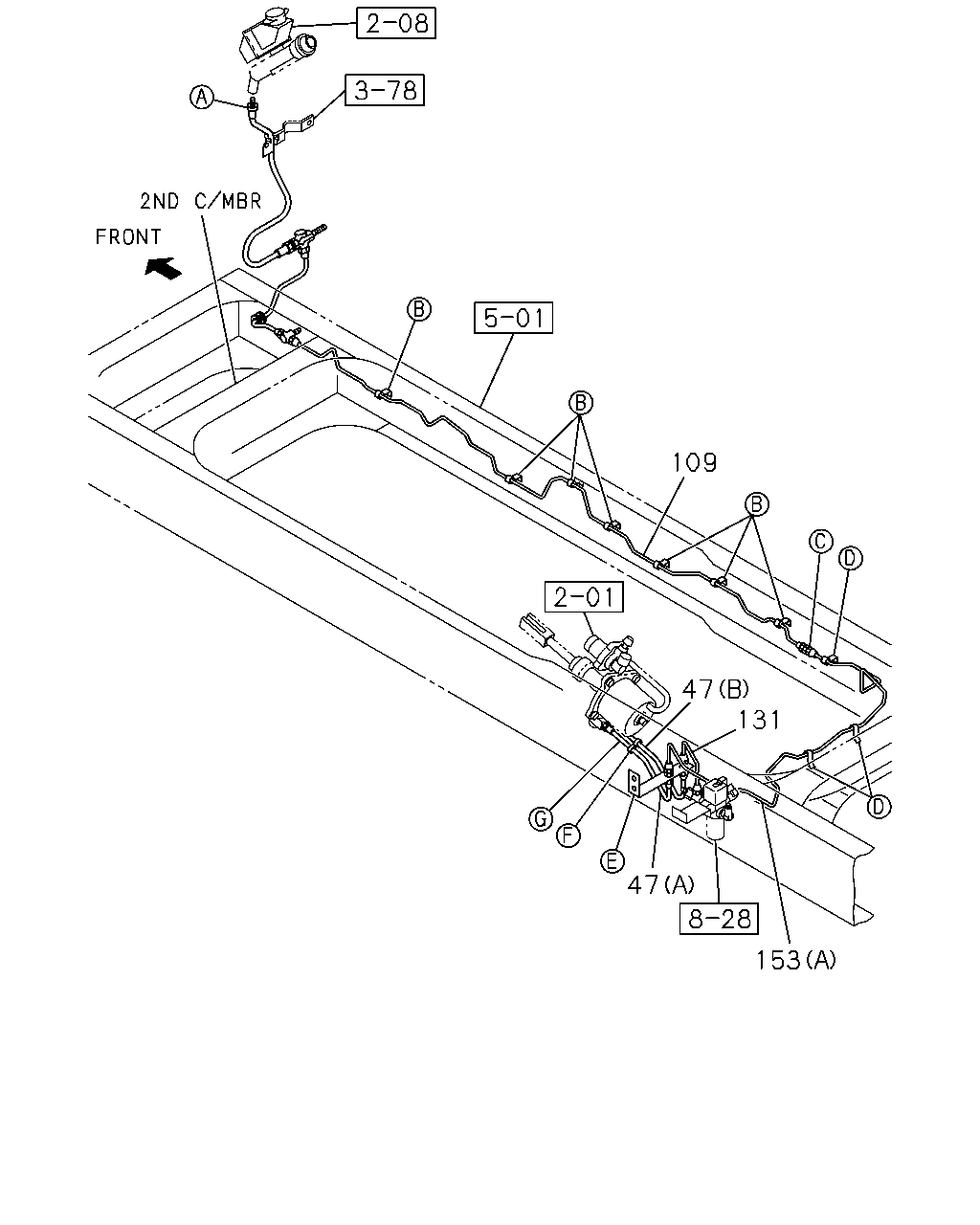

109 47 131 47 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=500	1-09363-720-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=470	1-09364-692-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT (D) L=350	1-09364-446-0	01	1	1404-		●
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1312-1403	●
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1404-	●	●
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1312-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (B) L=560	1-09363-689-0	01	1	1312-1401	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=560	1-09363-689-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (A) L=520	1-09364-583-0	01	1	1312-1401	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=520	1-09364-583-0	01	1	1402-	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 DD M/T(Y5P) L=2766 SERVICED BY L=3000	1-47428-773-0	01	1	1312-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 DD M/T(Y5P) L=218 IDN	8-98108-924-0	01	1	1312-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2921	8-98250-585-0	01	1	1404-		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) (B) L=2749 SERVICED BY L=3000	1-47428-773-0	01	1	1312-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) (A) L=1691 SERVICED BY L=1700	1-47428-767-0	01	1	1312-	●

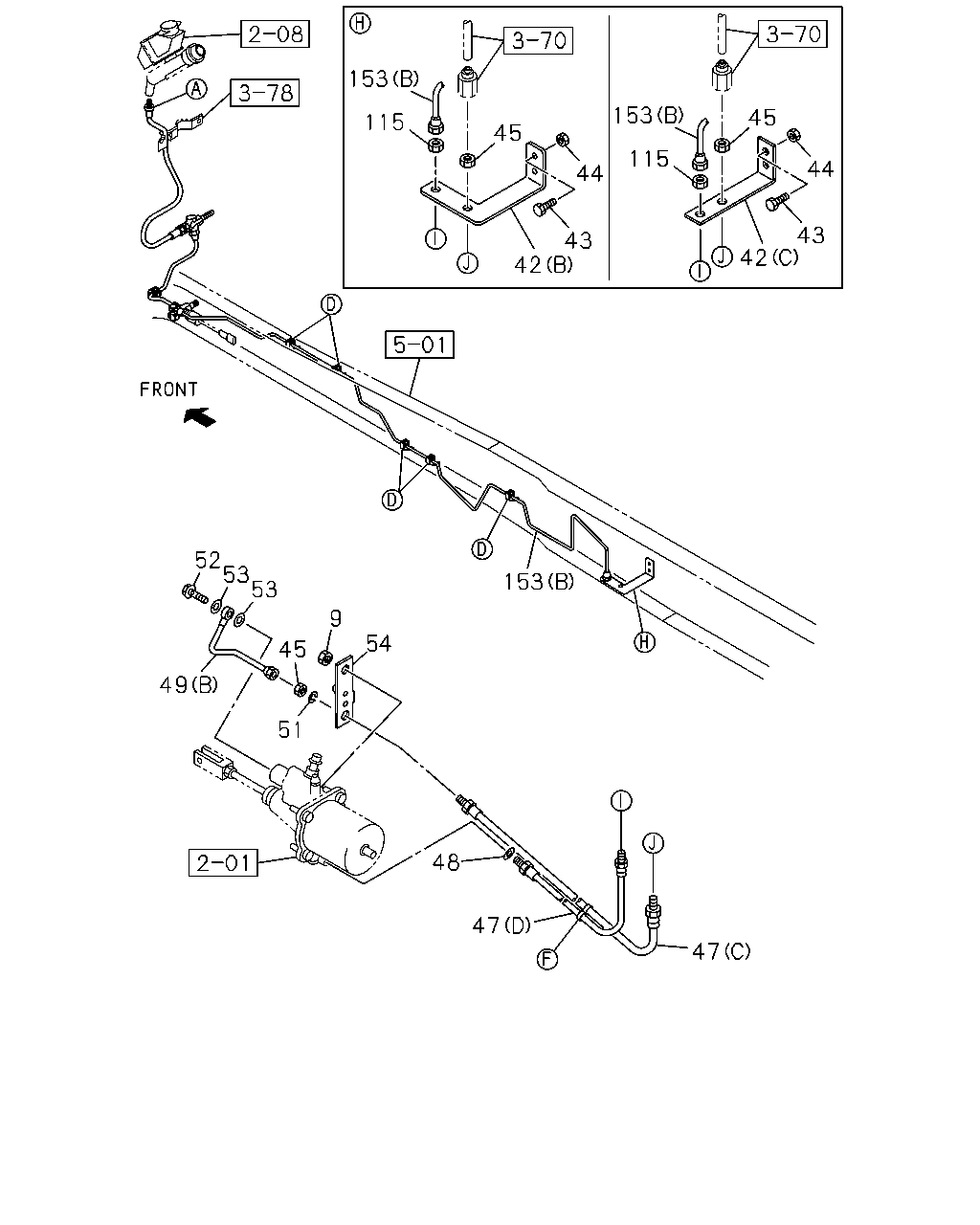

153 45 115 153 44 43 42 115 45 44 43 42 153 47 47 48 51 49 45 54 9 53 53 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE FULLER ES11109 DD M/T(Y5N) M10 FLANGE	0-91180-210-0	02	1	1312-1403	●
9	NUT; BRKT,FLEX HOSE FULLER ES11109 DD M/T(Y5N) M10 FLANGE	0-91180-210-0	02	1	1404-	●	●
42	BRACKET; FLEX HOSE,CLU CONT FULLER ES11109 DD M/T(Y5N) (C)	8-98273-138-1	01	1	1404-		●
42	BRACKET; FLEX HOSE,CLU CONT FULLER ES11109 DD M/T(Y5N) (B)	8-98100-603-0	01	1	1312-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) (A)	8-98077-571-0	01	1	1312-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1312-1403	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1404-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE IDN	0-91180-108-0	02	1	1312-1403	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE IDN	0-91180-108-0	02	1	1404-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1312-1403	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1404-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=500	1-09363-720-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=470	1-09364-692-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT (D) L=350	1-09364-446-0	01	1	1404-		●
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1312-1403	●
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1404-	●	●
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1312-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (B) L=560	1-09363-689-0	01	1	1312-1401	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=560	1-09363-689-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (A) L=520	1-09364-583-0	01	1	1312-1401	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=520	1-09364-583-0	01	1	1402-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1312-1403	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1404-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N) (B)	1-49124-974-0	01	1	1312-1403	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N) (B)	1-49124-974-0	01	1	1404-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B)	1-49124-974-0	01	1	1404-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 DD M/T(Y5P) (A) L=232 IDN	1-49124-795-0	01	1	1312-	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1312-1403	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1404-	●	●
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1312-1403	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1404-	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1312-1312	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1403	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1404-	●	●
54	BRACKET; AIR,FLEX HOSE FULLER ES11109 DD M/T(Y5N)	8-98081-247-0	01	1	1312-1403	●
54	BRACKET; AIR,FLEX HOSE FULLER ES11109 DD M/T(Y5N)	8-98081-247-0	01	1	1404-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1312-1403	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1404-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2921	8-98250-585-0	01	1	1404-		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) (B) L=2749 SERVICED BY L=3000	1-47428-773-0	01	1	1312-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) (A) L=1691 SERVICED BY L=1700	1-47428-767-0	01	1	1312-	●

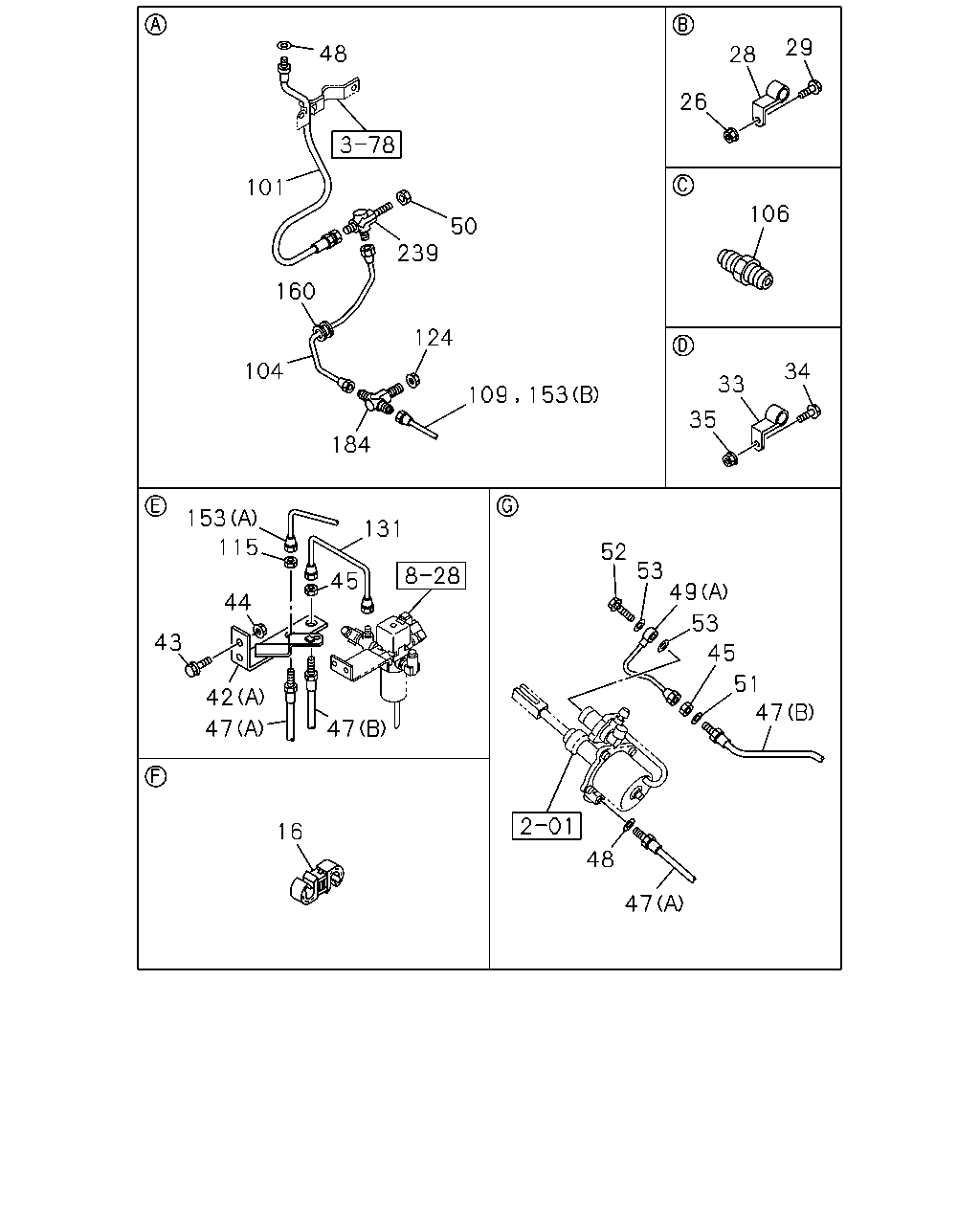

48 101 239 50 160 124 109 153 184 104 26 28 29 106 34 33 35 153 44 115 131 45 42 47 43 47 16 48 47 47 51 45 53 49 53 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1312-1403	●
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1404-	●	●
26	NUT; CLIP,OIL PIPE ZF9S1110 DD M/T(Y5P) M8 FLANGE IDN	0-91180-108-0	07	1	1312-	●
28	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) ID=8 H=20 L=20	1-09700-604-0	07	1	1312-	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 DD M/T(Y5P) M8X30 FLANGE	0-28650-830-0	07	1	1312-	●
33	CLIP; OIL PIPE FULLER ES11109 DD M/T(Y5N) ID=8 H=20 L=20	1-09700-604-0	06	1	1312-1403	●
33	CLIP; OIL PIPE FULLER ES11109 DD M/T(Y5N) ID=8 H=20 L=20	1-09700-604-0	06	1	1404-	●	●
33	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) ID=8 H=20 L=20	1-09700-604-0	03	1	1312-	●
34	BOLT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	06	1	1312-1403	●
34	BOLT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	06	1	1404-	●	●
34	BOLT; PIPE CLIP ZF9S1110 DD M/T(Y5P) M8X30 FLANGE	0-28650-830-0	03	1	1312-	●
35	NUT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8 FLANGE IDN	0-91180-108-0	06	1	1312-1403	●
35	NUT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8 FLANGE IDN	0-91180-108-0	06	1	1404-	●	●
35	NUT; PIPE CLIP ZF9S1110 DD M/T(Y5P) M8 FLANGE IDN	0-91180-108-0	03	1	1312-	●
42	BRACKET; FLEX HOSE,CLU CONT FULLER ES11109 DD M/T(Y5N) (C)	8-98273-138-1	01	1	1404-		●
42	BRACKET; FLEX HOSE,CLU CONT FULLER ES11109 DD M/T(Y5N) (B)	8-98100-603-0	01	1	1312-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) (A)	8-98077-571-0	01	1	1312-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1312-1403	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1404-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE IDN	0-91180-108-0	02	1	1312-1403	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE IDN	0-91180-108-0	02	1	1404-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1312-1403	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1404-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=500	1-09363-720-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=470	1-09364-692-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT (D) L=350	1-09364-446-0	01	1	1404-		●
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1312-1403	●
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1404-	●	●
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1312-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (B) L=560	1-09363-689-0	01	1	1312-1401	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=560	1-09363-689-0	01	1	1402-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (A) L=520	1-09364-583-0	01	1	1312-1401	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=520	1-09364-583-0	01	1	1402-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1312-1403	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1404-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N) (B)	1-49124-974-0	01	1	1312-1403	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N) (B)	1-49124-974-0	01	1	1404-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B)	1-49124-974-0	01	1	1404-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 DD M/T(Y5P) (A) L=232 IDN	1-49124-795-0	01	1	1312-	●
50	NUT; UNION M12	0-91111-512-0	01	1	1312-1403	●
50	NUT; UNION M12	0-91111-512-0	01	1	1404-	●	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1312-1403	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1404-	●	●
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1312-1403	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1404-	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1312-1312	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1403	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1404-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 IDN	8-98072-346-0	01	1	1312-1403	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 IDN	8-98072-346-0	01	1	1404-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=544 SERVICED BY L=550	1-47428-753-0	01	1	1312-1403	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=544 SERVICED BY L=550	1-47428-753-0	01	1	1404-	●	●
106	UNION; OIL PIPE ZF9S1110 DD M/T(Y5P) M14 STRAIGHT	0-92113-008-0	01	1	1312-	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 DD M/T(Y5P) L=2766 SERVICED BY L=3000	1-47428-773-0	01	1	1312-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1312-1403	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1404-	●	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1312-1403	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1404-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 DD M/T(Y5P) L=218 IDN	8-98108-924-0	01	1	1312-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2921	8-98250-585-0	01	1	1404-		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) (B) L=2749 SERVICED BY L=3000	1-47428-773-0	01	1	1312-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) (A) L=1691 SERVICED BY L=1700	1-47428-767-0	01	1	1312-	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1312-1403	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1404-	●	●
184	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	1312-1403	●
184	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	1404-	●	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	1312-1403	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	1404-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
