◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#131647) — 40 parça
çizim 388814
1 2 87
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
(B) 		8-98086-193-1 01 1 1312-1403 ●
1 SEDIMENTER; FUEL
(B) 		8-98086-193-1 01 1 1404- ● ●
1 SEDIMENTER; FUEL
(A) 		8-98162-904-4 01 1 1312-1403 ●
1 SEDIMENTER; FUEL
(A) 		8-98162-904-4 01 1 1404- ● ●
2 ELEMENT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1312-1403 ●
2 ELEMENT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1404- ● ●
2 ELEMENT; FUEL FILTER
(B) BEST VALUE PARTS 		1-87610-094-1 01 1 1312-1403 ●
2 ELEMENT; FUEL FILTER
(B) BEST VALUE PARTS 		1-87610-094-1 01 1 1404- ● ●
2 ELEMENT; FUEL FILTER
(B) 		8-98092-481-1 01 1 1312-1403 ●
2 ELEMENT; FUEL FILTER
(B) 		8-98092-481-1 01 1 1404- ● ●
2 ELEMENT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1312-1403 ●
2 ELEMENT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1404- ● ●
87 CASE ASM; SEDIMENTER
(A) 		8-98039-987-1 01 1 1312-1403 ●
87 CASE ASM; SEDIMENTER
(A) 		8-98039-987-1 01 1 1404- ● ●
87 CASE ASM; SEDIMENTER
(B) 		8-98092-482-1 01 1 1312-1403 ●
87 CASE ASM; SEDIMENTER
(B) 		8-98092-482-1 01 1 1404- ● ●

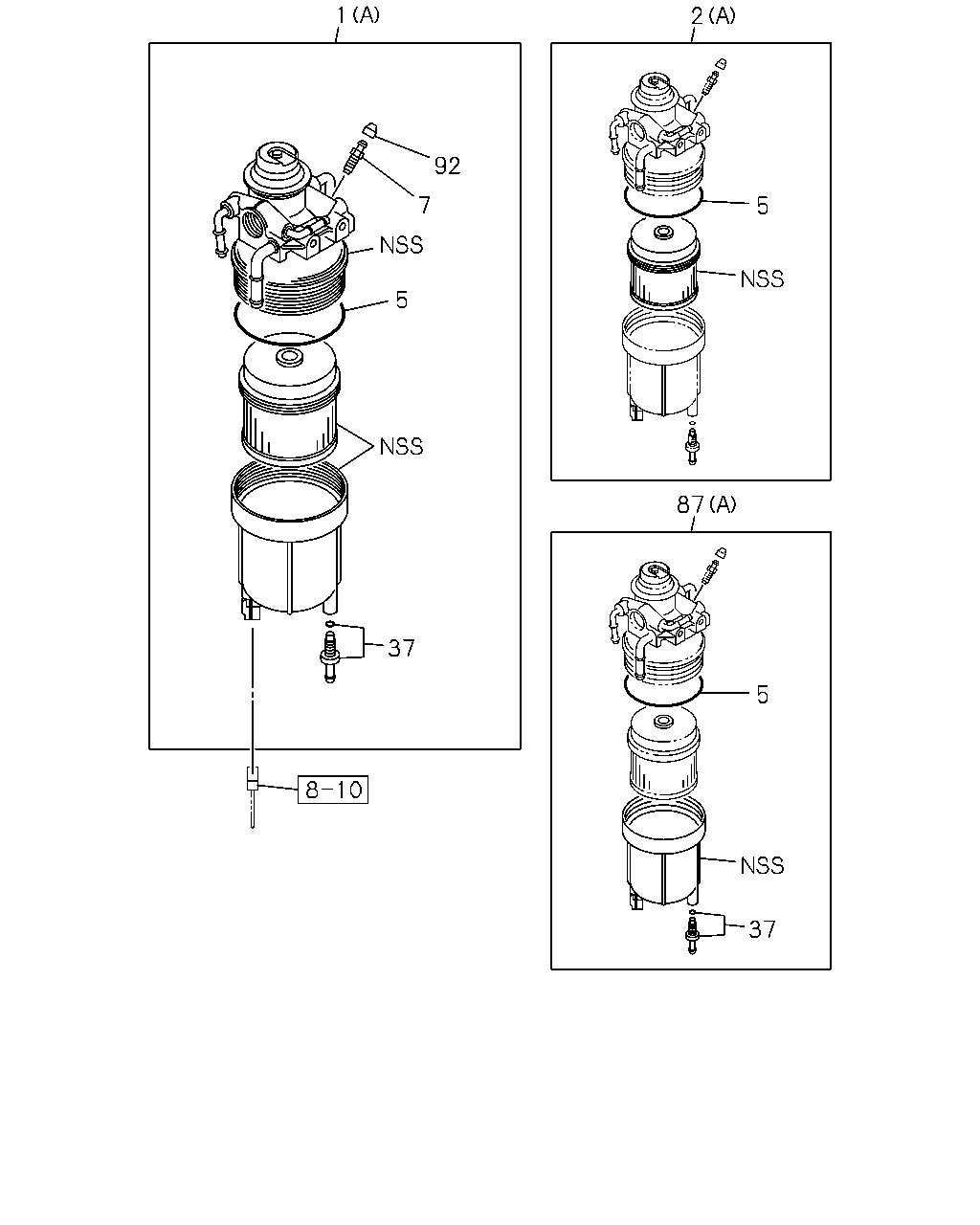

çizim 389049
1 92 7 5 37 2 5 87 5 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
(B) 		8-98086-193-1 01 1 1312-1403 ●
1 SEDIMENTER; FUEL
(B) 		8-98086-193-1 01 1 1404- ● ●
1 SEDIMENTER; FUEL
(A) 		8-98162-904-4 01 1 1312-1403 ●
1 SEDIMENTER; FUEL
(A) 		8-98162-904-4 01 1 1404- ● ●
2 ELEMENT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1312-1403 ●
2 ELEMENT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1404- ● ●
2 ELEMENT; FUEL FILTER
(B) BEST VALUE PARTS 		1-87610-094-1 01 1 1312-1403 ●
2 ELEMENT; FUEL FILTER
(B) BEST VALUE PARTS 		1-87610-094-1 01 1 1404- ● ●
2 ELEMENT; FUEL FILTER
(B) 		8-98092-481-1 01 1 1312-1403 ●
2 ELEMENT; FUEL FILTER
(B) 		8-98092-481-1 01 1 1404- ● ●
2 ELEMENT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1312-1403 ●
2 ELEMENT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1404- ● ●
5 GASKET; UPR COVER,SEDIMENTER 8-98203-600-0 01 1 1312-1403 ●
5 GASKET; UPR COVER,SEDIMENTER 8-98203-600-0 01 1 1404- ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		8-98034-312-0 01 1 1312-1403 ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		8-98034-312-0 01 1 1404- ● ●
37 PLUG; SENSOR 8-98037-095-0 01 1 1312-1403 ●
37 PLUG; SENSOR 8-98037-095-0 01 1 1404- ● ●
87 CASE ASM; SEDIMENTER
(A) 		8-98039-987-1 01 1 1312-1403 ●
87 CASE ASM; SEDIMENTER
(A) 		8-98039-987-1 01 1 1404- ● ●
87 CASE ASM; SEDIMENTER
(B) 		8-98092-482-1 01 1 1312-1403 ●
87 CASE ASM; SEDIMENTER
(B) 		8-98092-482-1 01 1 1404- ● ●
92 CAP; DRAIN 8-98034-314-0 01 1 1312-1403 ●
92 CAP; DRAIN 8-98034-314-0 01 1 1404- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
