Sayfa 1-41 - Isuzu EPC

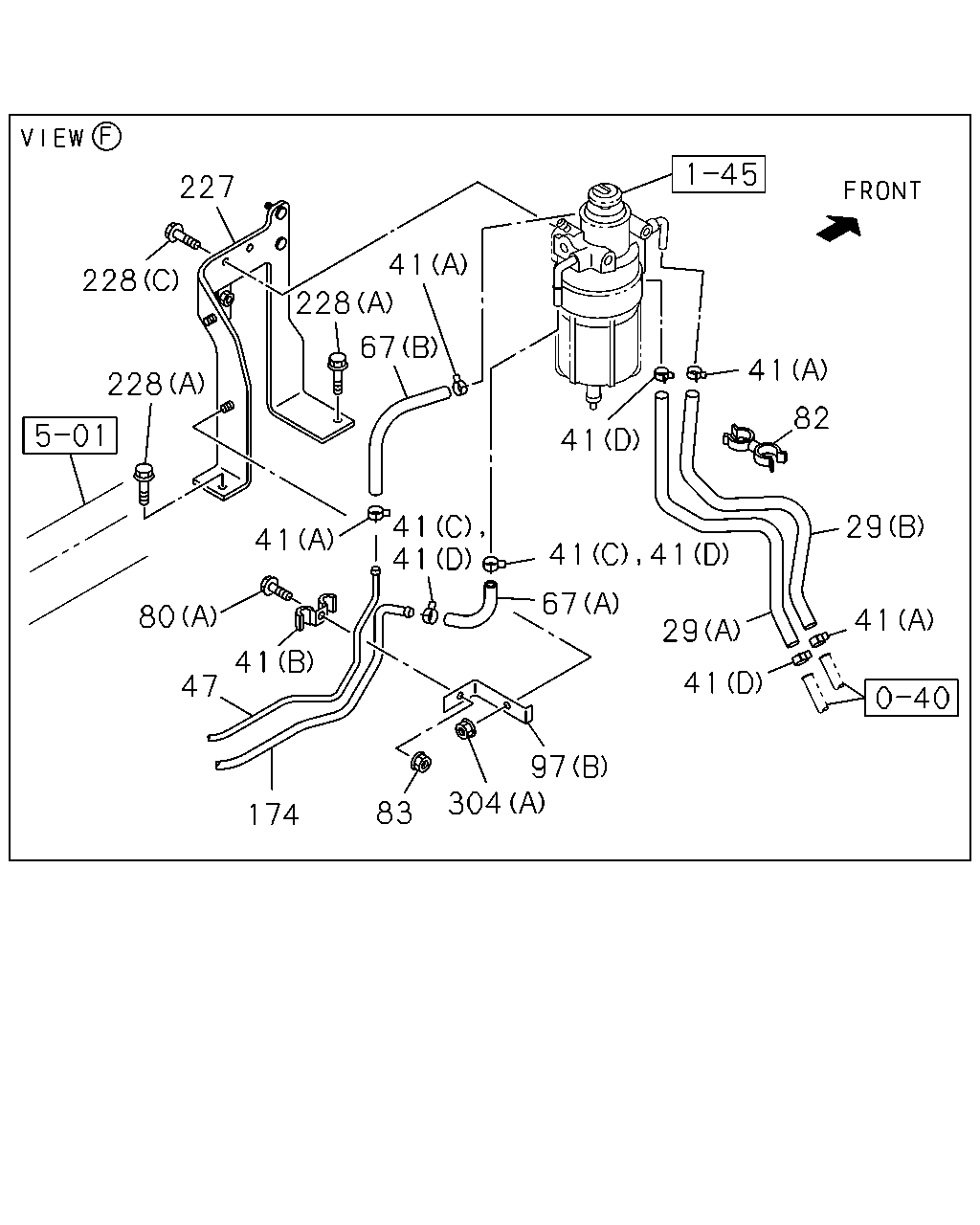

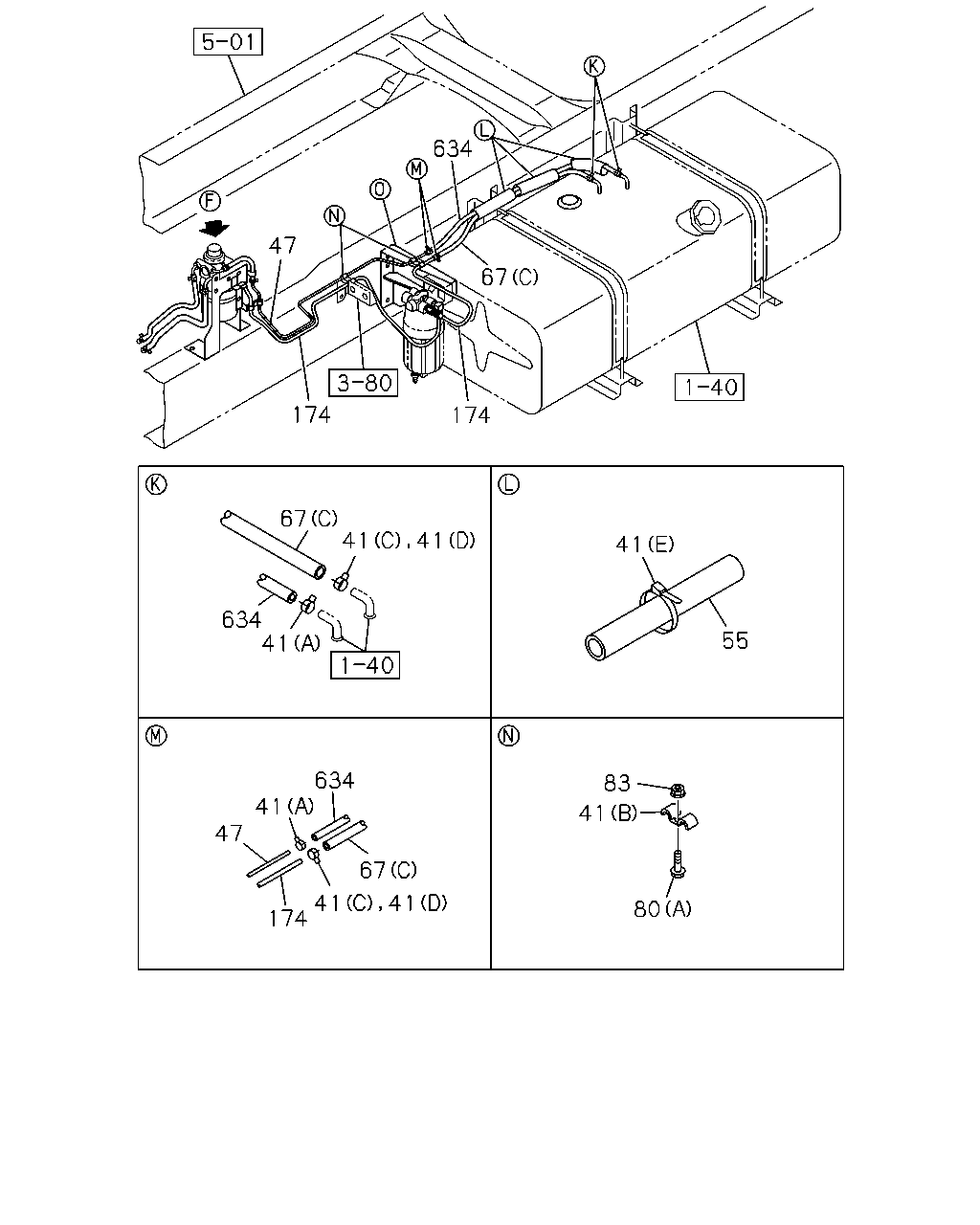

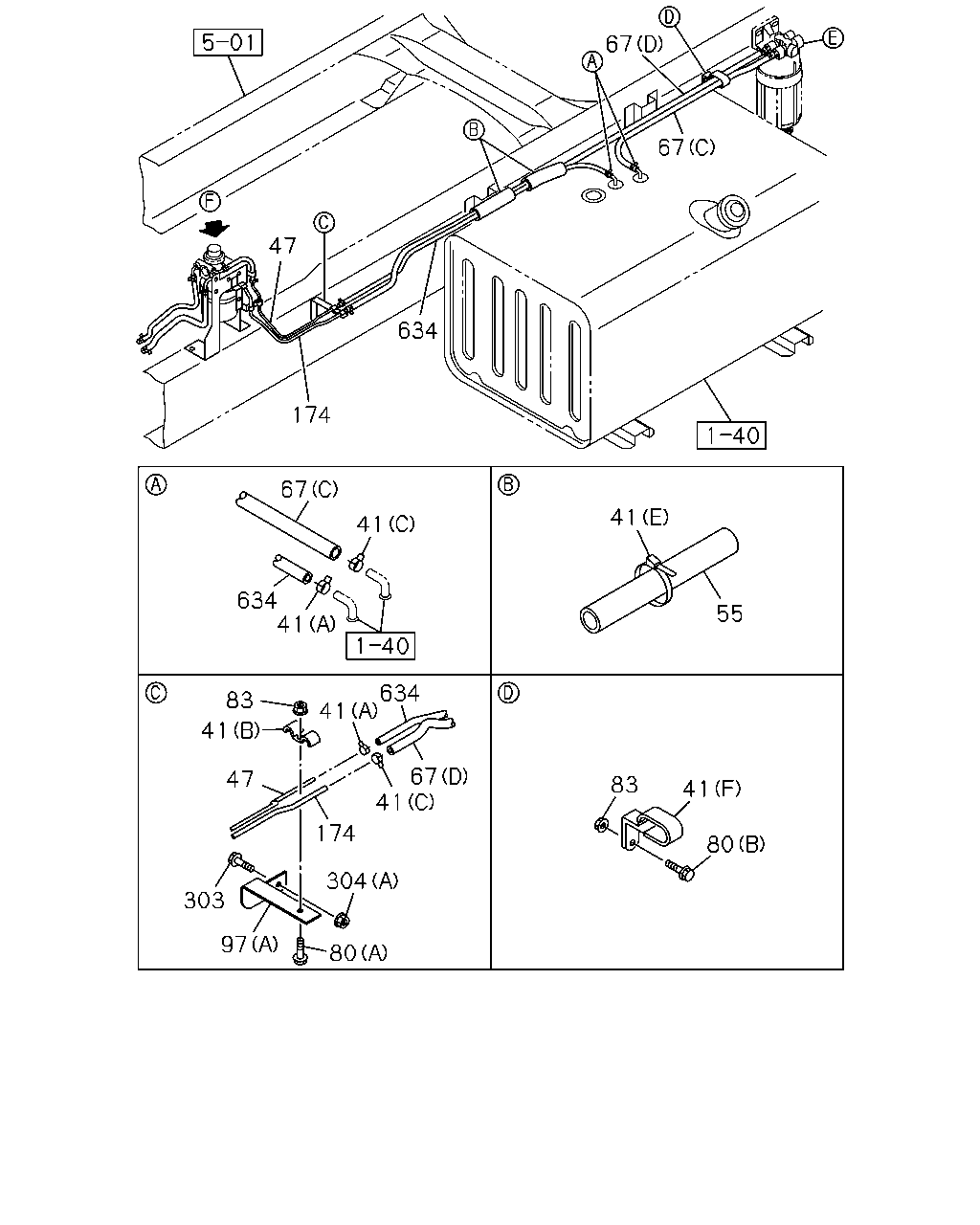

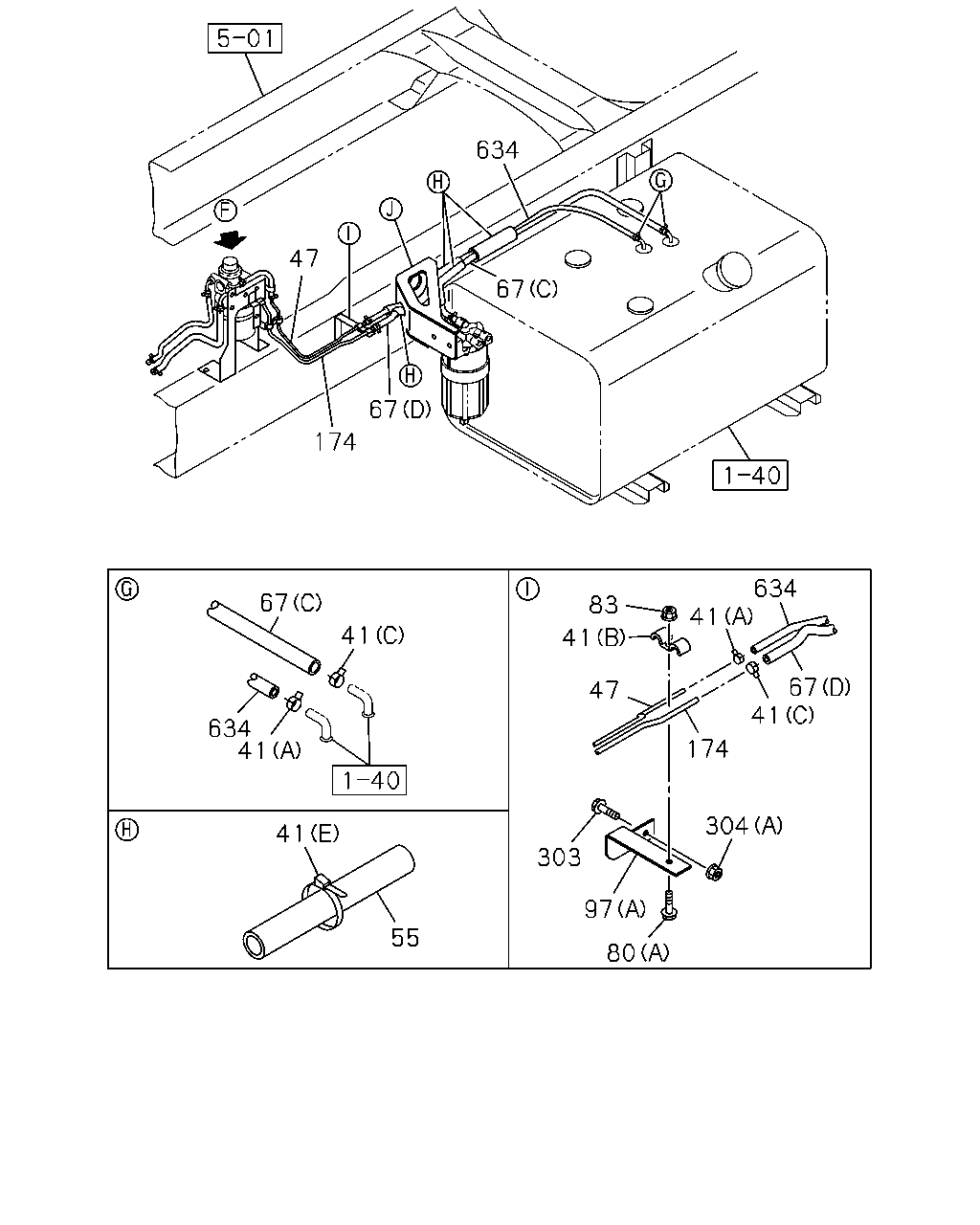

1-41 — FUEL PIPING; CHASSIS (#131646) — 680 parça

67 67 634 47 174 67 634 41 41 41 55 83 41 80 41 41 67 634 83 41 47 174 304 80 97 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (D) ID=16 IDN	8-94238-568-0	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (D) ID=16 IDN	8-94238-568-0	04	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (F) ID=24 & 24 L=49	1-09701-018-0	01	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (F) ID=15 & 19 H=33 L=25	1-09701-317-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (D) ID=16 IDN	8-94238-568-0	06	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	04	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	04	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	03	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (E) L=250 IDN	5-09707-030-1	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1312-1401	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1402-1703	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	06	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	06	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	04	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	03	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1312-1403	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1404-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1312-1403	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1404-	●	●
47	PIPE; FUEL,RETURN L=987	8-98248-097-0	01	1	1404-1703		●
47	PIPE; FUEL,RETURN MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=987	8-98248-097-0	01	1	1704-	●
47	PIPE; FUEL,RETURN L=987	8-98248-097-0	01	1	1704-		●
47	PIPE; FUEL,RETURN L=539 IDN	8-98117-709-0	01	1	1312-1703	●
47	PIPE; FUEL,RETURN EXC. MIXER CHASSIS<6NR> L=539 IDN	8-98117-709-0	01	1	1704-	●
47	PIPE; FUEL,RETURN MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> L=539 IDN	8-98117-709-0	01	1	1704-	●
55	COVER; PIPE,FUEL TANK MIXER CHASSIS<6NR> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1402-1403	●
55	COVER; PIPE,FUEL TANK MIXER CHASSIS<6NR> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1404-	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1404-		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	04	1	1312-1401	●
55	COVER; PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> L=150 SERVICED BY L=1300	1-09360-677-1	04	1	1402-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-		●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=110 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-	●	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (A) L=940 IDN	8-98286-079-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (A) L=1890 IDN	8-98286-080-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1401	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR> (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1401	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> (D) L=300	8-98157-878-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (D) L=300	8-98157-878-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> (C) L=1000	8-98250-603-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (C) L=1000	8-98250-603-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1403	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1404-1703	●	●
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1312-1403	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1404-	●	●
67	HOSE; FUEL,DELIVERY (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1404-1703		●
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1704-		●
80	BOLT; CLIP,FUEL TANK MIXER CHASSIS<6NR> (B) M8X30 FLANGE	0-28650-830-0	01	1	1402-	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1404-1703		●
80	BOLT; CLIP,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1704-	●
80	BOLT; CLIP,FUEL TANK EXC. MIXER CHASSIS<6NR> (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1704-	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1703	●
80	BOLT; CLIP,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1704-	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1704-		●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	03	1	1312-1401	●
80	BOLT; CLIP,FUEL TANK EXC. MIXER CHASSIS<6NR> (B) M8X30 FLANGE	0-28650-830-0	03	1	1402-	●
83	NUT; CLIP,FUEL TANK MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	03	1	1402-1403	●
83	NUT; CLIP,FUEL TANK MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	03	1	1404-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE IDN	0-91180-108-0	03	1	1404-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE IDN	0-91180-108-0	05	1	1312-1401	●
83	NUT; CLIP,FUEL TANK EXC. MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	05	1	1402-	●
97	BRACKET; CLIP MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A)	8-97639-488-0	01	1	1704-	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1312-1403	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1404-	●	●
97	BRACKET; CLIP (A)	8-98126-612-0	01	1	1312-1703	●
97	BRACKET; CLIP MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98126-612-0	01	1	1704-	●
97	BRACKET; CLIP EXC. MIXER CHASSIS<6NR> (A)	8-98126-612-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT L=1089 IDN	8-98248-096-0	01	1	1404-1703		●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=1089 IDN	8-98248-096-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT L=1089 IDN	8-98248-096-0	01	1	1704-		●
174	PIPE; FUEL,FEED,FRT L=489 IDN	8-98248-098-0	01	1	1404-1703		●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=489 IDN	8-98248-098-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT L=489 IDN	8-98248-098-0	01	1	1704-		●
174	PIPE; FUEL,FEED,FRT L=548 IDN	8-98117-708-0	01	1	1312-1703	●
174	PIPE; FUEL,FEED,FRT EXC. MIXER CHASSIS<6NR> L=548 IDN	8-98117-708-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> L=548 IDN	8-98117-708-0	01	1	1704-	●
303	BOLT; BRKT WHEEL BASE 4700MM(47W) M10X35 FLANGE IDN	0-28651-035-0	02	1	1402-1403	●
303	BOLT; BRKT WHEEL BASE 4700MM(47W) M10X35 FLANGE IDN	0-28651-035-0	02	1	1404-	●
303	BOLT; BRKT M10X35 FLANGE IDN	0-28651-035-0	02	1	1404-		●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1312-1703	●
303	BOLT; BRKT EXC. MIXER CHASSIS<6NR> M8X35 FLANGE	0-28650-835-0	02	1	1704-	●
303	BOLT; BRKT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> M8X35 FLANGE	0-28650-835-0	02	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1404-1703		●
304	NUT; BRKT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (A) M8 FLANGE IDN	0-91180-108-0	03	1	1704-	●
304	NUT; BRKT EXC. MIXER CHASSIS<6NR> (A) M8 FLANGE IDN	0-91180-108-0	03	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	03	1	1312-1703	●
304	NUT; BRKT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) M8 FLANGE IDN	0-91180-108-0	01	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1704-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1312-1401	●
304	NUT; BRKT WHEEL BASE 4700MM(47W) (B) M10 FLANGE	0-91180-210-0	02	1	1402-1403	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1402-1403	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●	●
304	NUT; BRKT WHEEL BASE 4700MM(47W) (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-		●
634	HOSE; RUBBER RETURN MIXER CHASSIS<6NR> L=1080	8-98250-604-0	01	1	1402-1703	●
634	HOSE; RUBBER RETURN MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> L=1080	8-98250-604-0	01	1	1704-	●
634	HOSE; RUBBER RETURN L=730 SERVICED BY L=3000	0-01558-300-0	01	1	1404-1703		●
634	HOSE; RUBBER RETURN MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=730 SERVICED BY L=3000	0-01558-300-0	01	1	1704-	●
634	HOSE; RUBBER RETURN L=730 SERVICED BY L=3000	0-01558-300-0	01	1	1704-		●
634	HOSE; RUBBER RETURN L=1100 SERVICED BY L=3000	0-01558-300-0	01	1	1312-1401	●
634	HOSE; RUBBER RETURN EXC. MIXER CHASSIS<6NR> L=1100 SERVICED BY L=3000	0-01558-300-0	01	1	1402-	●

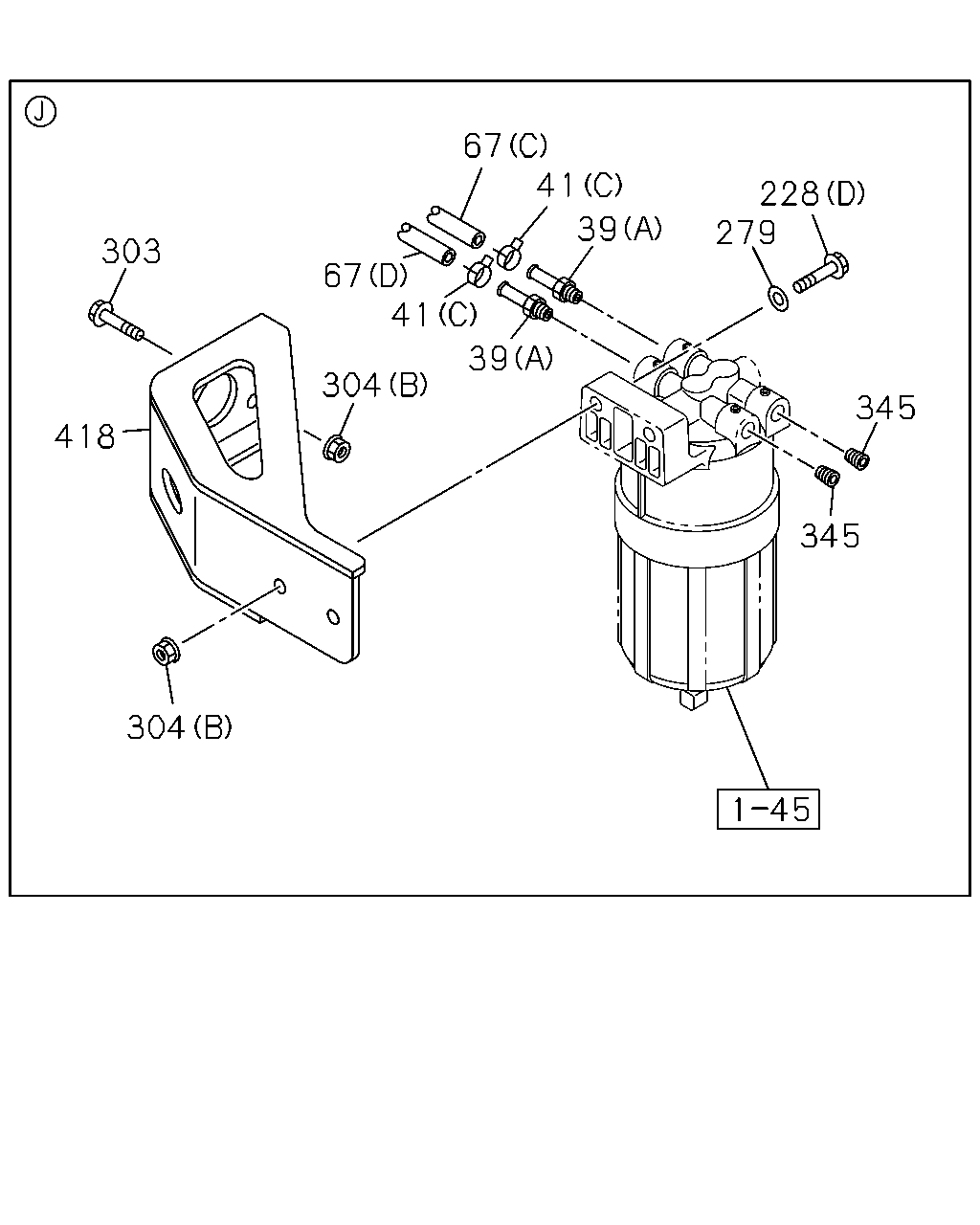

279 228 345 345 304 39 41 67 39 41 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1404-1703		●
39	PIPE; FUEL MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1704-	●
39	PIPE; FUEL (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1704-		●
39	PIPE; FUEL (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1404-1703		●
39	PIPE; FUEL MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1704-	●
39	PIPE; FUEL (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1704-		●
39	PIPE; FUEL (C) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1404-1703		●
39	PIPE; FUEL MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (C) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1704-	●
39	PIPE; FUEL (C) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1704-		●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1312-1403	●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1404-	●	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (D) ID=16 IDN	8-94238-568-0	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (D) ID=16 IDN	8-94238-568-0	04	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (F) ID=24 & 24 L=49	1-09701-018-0	01	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (F) ID=15 & 19 H=33 L=25	1-09701-317-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (D) ID=16 IDN	8-94238-568-0	06	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	04	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	04	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	03	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (E) L=250 IDN	5-09707-030-1	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1312-1401	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1402-1703	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	06	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	06	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	04	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	03	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1312-1403	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1404-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1312-1403	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1404-	●	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-		●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=110 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-	●	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (A) L=940 IDN	8-98286-079-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (A) L=1890 IDN	8-98286-080-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1401	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR> (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1401	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> (D) L=300	8-98157-878-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (D) L=300	8-98157-878-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> (C) L=1000	8-98250-603-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (C) L=1000	8-98250-603-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1403	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1404-1703	●	●
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1312-1403	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1404-	●	●
67	HOSE; FUEL,DELIVERY (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1404-1703		●
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1704-		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4700MM(47W) (D) M10X50 FLANGE	0-28051-050-0	02	1	1402-1403	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4700MM(47W) (D) M10X50 FLANGE	0-28051-050-0	02	1	1404-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1312-1403	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1404-	●	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5300MM(53W),WHEEL BASE 7100MM(71W) (B) M10X60 FLANGE IDN	0-28051-060-0	02	1	1312-	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1403	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE IDN	0-28650-820-0	02	1	1404-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1312-1403	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1404-	●	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1404-1703		●
304	NUT; BRKT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (A) M8 FLANGE IDN	0-91180-108-0	03	1	1704-	●
304	NUT; BRKT EXC. MIXER CHASSIS<6NR> (A) M8 FLANGE IDN	0-91180-108-0	03	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	03	1	1312-1703	●
304	NUT; BRKT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) M8 FLANGE IDN	0-91180-108-0	01	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1704-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1312-1401	●
304	NUT; BRKT WHEEL BASE 4700MM(47W) (B) M10 FLANGE	0-91180-210-0	02	1	1402-1403	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1402-1403	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●	●
304	NUT; BRKT WHEEL BASE 4700MM(47W) (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-		●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1312-1403	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1404-	●	●

47 174 67 634 67 634 67 41 174 304 303 97 80 47 41 83 41 67 41 634 41 41 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (D) ID=16 IDN	8-94238-568-0	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (D) ID=16 IDN	8-94238-568-0	04	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (F) ID=24 & 24 L=49	1-09701-018-0	01	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (F) ID=15 & 19 H=33 L=25	1-09701-317-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (D) ID=16 IDN	8-94238-568-0	06	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	04	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	04	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	03	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (E) L=250 IDN	5-09707-030-1	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1312-1401	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1402-1703	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	06	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	06	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	04	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	03	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1312-1403	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1404-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1312-1403	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1404-	●	●
47	PIPE; FUEL,RETURN L=987	8-98248-097-0	01	1	1404-1703		●
47	PIPE; FUEL,RETURN MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=987	8-98248-097-0	01	1	1704-	●
47	PIPE; FUEL,RETURN L=987	8-98248-097-0	01	1	1704-		●
47	PIPE; FUEL,RETURN L=539 IDN	8-98117-709-0	01	1	1312-1703	●
47	PIPE; FUEL,RETURN EXC. MIXER CHASSIS<6NR> L=539 IDN	8-98117-709-0	01	1	1704-	●
47	PIPE; FUEL,RETURN MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> L=539 IDN	8-98117-709-0	01	1	1704-	●
55	COVER; PIPE,FUEL TANK MIXER CHASSIS<6NR> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1402-1403	●
55	COVER; PIPE,FUEL TANK MIXER CHASSIS<6NR> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1404-	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1404-		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	04	1	1312-1401	●
55	COVER; PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> L=150 SERVICED BY L=1300	1-09360-677-1	04	1	1402-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-		●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=110 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-	●	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (A) L=940 IDN	8-98286-079-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (A) L=1890 IDN	8-98286-080-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1401	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR> (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1401	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> (D) L=300	8-98157-878-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (D) L=300	8-98157-878-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> (C) L=1000	8-98250-603-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (C) L=1000	8-98250-603-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1403	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1404-1703	●	●
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1312-1403	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1404-	●	●
67	HOSE; FUEL,DELIVERY (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1404-1703		●
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1704-		●
80	BOLT; CLIP,FUEL TANK MIXER CHASSIS<6NR> (B) M8X30 FLANGE	0-28650-830-0	01	1	1402-	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1404-1703		●
80	BOLT; CLIP,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1704-	●
80	BOLT; CLIP,FUEL TANK EXC. MIXER CHASSIS<6NR> (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1704-	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1703	●
80	BOLT; CLIP,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1704-	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1704-		●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	03	1	1312-1401	●
80	BOLT; CLIP,FUEL TANK EXC. MIXER CHASSIS<6NR> (B) M8X30 FLANGE	0-28650-830-0	03	1	1402-	●
83	NUT; CLIP,FUEL TANK MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	03	1	1402-1403	●
83	NUT; CLIP,FUEL TANK MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	03	1	1404-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE IDN	0-91180-108-0	03	1	1404-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE IDN	0-91180-108-0	05	1	1312-1401	●
83	NUT; CLIP,FUEL TANK EXC. MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	05	1	1402-	●
97	BRACKET; CLIP MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A)	8-97639-488-0	01	1	1704-	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1312-1403	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1404-	●	●
97	BRACKET; CLIP (A)	8-98126-612-0	01	1	1312-1703	●
97	BRACKET; CLIP MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98126-612-0	01	1	1704-	●
97	BRACKET; CLIP EXC. MIXER CHASSIS<6NR> (A)	8-98126-612-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT L=1089 IDN	8-98248-096-0	01	1	1404-1703		●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=1089 IDN	8-98248-096-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT L=1089 IDN	8-98248-096-0	01	1	1704-		●
174	PIPE; FUEL,FEED,FRT L=489 IDN	8-98248-098-0	01	1	1404-1703		●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=489 IDN	8-98248-098-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT L=489 IDN	8-98248-098-0	01	1	1704-		●
174	PIPE; FUEL,FEED,FRT L=548 IDN	8-98117-708-0	01	1	1312-1703	●
174	PIPE; FUEL,FEED,FRT EXC. MIXER CHASSIS<6NR> L=548 IDN	8-98117-708-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> L=548 IDN	8-98117-708-0	01	1	1704-	●
303	BOLT; BRKT WHEEL BASE 4700MM(47W) M10X35 FLANGE IDN	0-28651-035-0	02	1	1402-1403	●
303	BOLT; BRKT WHEEL BASE 4700MM(47W) M10X35 FLANGE IDN	0-28651-035-0	02	1	1404-	●
303	BOLT; BRKT M10X35 FLANGE IDN	0-28651-035-0	02	1	1404-		●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1312-1703	●
303	BOLT; BRKT EXC. MIXER CHASSIS<6NR> M8X35 FLANGE	0-28650-835-0	02	1	1704-	●
303	BOLT; BRKT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> M8X35 FLANGE	0-28650-835-0	02	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1404-1703		●
304	NUT; BRKT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (A) M8 FLANGE IDN	0-91180-108-0	03	1	1704-	●
304	NUT; BRKT EXC. MIXER CHASSIS<6NR> (A) M8 FLANGE IDN	0-91180-108-0	03	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	03	1	1312-1703	●
304	NUT; BRKT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) M8 FLANGE IDN	0-91180-108-0	01	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1704-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1312-1401	●
304	NUT; BRKT WHEEL BASE 4700MM(47W) (B) M10 FLANGE	0-91180-210-0	02	1	1402-1403	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1402-1403	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●	●
304	NUT; BRKT WHEEL BASE 4700MM(47W) (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-		●
634	HOSE; RUBBER RETURN MIXER CHASSIS<6NR> L=1080	8-98250-604-0	01	1	1402-1703	●
634	HOSE; RUBBER RETURN MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> L=1080	8-98250-604-0	01	1	1704-	●
634	HOSE; RUBBER RETURN L=730 SERVICED BY L=3000	0-01558-300-0	01	1	1404-1703		●
634	HOSE; RUBBER RETURN MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=730 SERVICED BY L=3000	0-01558-300-0	01	1	1704-	●
634	HOSE; RUBBER RETURN L=730 SERVICED BY L=3000	0-01558-300-0	01	1	1704-		●
634	HOSE; RUBBER RETURN L=1100 SERVICED BY L=3000	0-01558-300-0	01	1	1312-1401	●
634	HOSE; RUBBER RETURN EXC. MIXER CHASSIS<6NR> L=1100 SERVICED BY L=3000	0-01558-300-0	01	1	1402-	●

47 634 67 174 174 41 41 67 41 634 41 55 83 41 80 67 41 41 174 41 47 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (D) ID=16 IDN	8-94238-568-0	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (D) ID=16 IDN	8-94238-568-0	04	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (F) ID=24 & 24 L=49	1-09701-018-0	01	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (F) ID=15 & 19 H=33 L=25	1-09701-317-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (D) ID=16 IDN	8-94238-568-0	06	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	04	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	04	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	03	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (E) L=250 IDN	5-09707-030-1	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1312-1401	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1402-1703	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	06	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	06	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	04	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	03	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1312-1403	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1404-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1312-1403	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1404-	●	●
47	PIPE; FUEL,RETURN L=987	8-98248-097-0	01	1	1404-1703		●
47	PIPE; FUEL,RETURN MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=987	8-98248-097-0	01	1	1704-	●
47	PIPE; FUEL,RETURN L=987	8-98248-097-0	01	1	1704-		●
47	PIPE; FUEL,RETURN L=539 IDN	8-98117-709-0	01	1	1312-1703	●
47	PIPE; FUEL,RETURN EXC. MIXER CHASSIS<6NR> L=539 IDN	8-98117-709-0	01	1	1704-	●
47	PIPE; FUEL,RETURN MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> L=539 IDN	8-98117-709-0	01	1	1704-	●
55	COVER; PIPE,FUEL TANK MIXER CHASSIS<6NR> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1402-1403	●
55	COVER; PIPE,FUEL TANK MIXER CHASSIS<6NR> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1404-	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1404-		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	04	1	1312-1401	●
55	COVER; PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> L=150 SERVICED BY L=1300	1-09360-677-1	04	1	1402-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-		●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=110 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-	●	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (A) L=940 IDN	8-98286-079-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (A) L=1890 IDN	8-98286-080-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1401	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR> (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1401	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> (D) L=300	8-98157-878-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (D) L=300	8-98157-878-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> (C) L=1000	8-98250-603-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (C) L=1000	8-98250-603-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1403	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1404-1703	●	●
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1312-1403	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1404-	●	●
67	HOSE; FUEL,DELIVERY (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1404-1703		●
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1704-		●
80	BOLT; CLIP,FUEL TANK MIXER CHASSIS<6NR> (B) M8X30 FLANGE	0-28650-830-0	01	1	1402-	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1404-1703		●
80	BOLT; CLIP,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1704-	●
80	BOLT; CLIP,FUEL TANK EXC. MIXER CHASSIS<6NR> (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1704-	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1703	●
80	BOLT; CLIP,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1704-	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1704-		●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	03	1	1312-1401	●
80	BOLT; CLIP,FUEL TANK EXC. MIXER CHASSIS<6NR> (B) M8X30 FLANGE	0-28650-830-0	03	1	1402-	●
83	NUT; CLIP,FUEL TANK MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	03	1	1402-1403	●
83	NUT; CLIP,FUEL TANK MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	03	1	1404-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE IDN	0-91180-108-0	03	1	1404-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE IDN	0-91180-108-0	05	1	1312-1401	●
83	NUT; CLIP,FUEL TANK EXC. MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	05	1	1402-	●
174	PIPE; FUEL,FEED,FRT L=1089 IDN	8-98248-096-0	01	1	1404-1703		●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=1089 IDN	8-98248-096-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT L=1089 IDN	8-98248-096-0	01	1	1704-		●
174	PIPE; FUEL,FEED,FRT L=489 IDN	8-98248-098-0	01	1	1404-1703		●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=489 IDN	8-98248-098-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT L=489 IDN	8-98248-098-0	01	1	1704-		●
174	PIPE; FUEL,FEED,FRT L=548 IDN	8-98117-708-0	01	1	1312-1703	●
174	PIPE; FUEL,FEED,FRT EXC. MIXER CHASSIS<6NR> L=548 IDN	8-98117-708-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> L=548 IDN	8-98117-708-0	01	1	1704-	●
634	HOSE; RUBBER RETURN MIXER CHASSIS<6NR> L=1080	8-98250-604-0	01	1	1402-1703	●
634	HOSE; RUBBER RETURN MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> L=1080	8-98250-604-0	01	1	1704-	●
634	HOSE; RUBBER RETURN L=730 SERVICED BY L=3000	0-01558-300-0	01	1	1404-1703		●
634	HOSE; RUBBER RETURN MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=730 SERVICED BY L=3000	0-01558-300-0	01	1	1704-	●
634	HOSE; RUBBER RETURN L=730 SERVICED BY L=3000	0-01558-300-0	01	1	1704-		●
634	HOSE; RUBBER RETURN L=1100 SERVICED BY L=3000	0-01558-300-0	01	1	1312-1401	●
634	HOSE; RUBBER RETURN EXC. MIXER CHASSIS<6NR> L=1100 SERVICED BY L=3000	0-01558-300-0	01	1	1402-	●

303 418 67 67 41 39 304 41 39 228 279 345 345 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1404-1703		●
39	PIPE; FUEL MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1704-	●
39	PIPE; FUEL (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1704-		●
39	PIPE; FUEL (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1404-1703		●
39	PIPE; FUEL MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1704-	●
39	PIPE; FUEL (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1704-		●
39	PIPE; FUEL (C) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1404-1703		●
39	PIPE; FUEL MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (C) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1704-	●
39	PIPE; FUEL (C) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1704-		●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1312-1403	●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1404-	●	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (D) ID=16 IDN	8-94238-568-0	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (D) ID=16 IDN	8-94238-568-0	04	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (F) ID=24 & 24 L=49	1-09701-018-0	01	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (F) ID=15 & 19 H=33 L=25	1-09701-317-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (D) ID=16 IDN	8-94238-568-0	06	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	04	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	04	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	03	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (E) L=250 IDN	5-09707-030-1	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1312-1401	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1402-1703	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	06	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	06	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	04	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	03	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1312-1403	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1404-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1312-1403	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1404-	●	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-		●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=110 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-	●	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (A) L=940 IDN	8-98286-079-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (A) L=1890 IDN	8-98286-080-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1401	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR> (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1401	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> (D) L=300	8-98157-878-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (D) L=300	8-98157-878-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> (C) L=1000	8-98250-603-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (C) L=1000	8-98250-603-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1403	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1404-1703	●	●
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1312-1403	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1404-	●	●
67	HOSE; FUEL,DELIVERY (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1404-1703		●
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1704-		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4700MM(47W) (D) M10X50 FLANGE	0-28051-050-0	02	1	1402-1403	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4700MM(47W) (D) M10X50 FLANGE	0-28051-050-0	02	1	1404-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1312-1403	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1404-	●	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5300MM(53W),WHEEL BASE 7100MM(71W) (B) M10X60 FLANGE IDN	0-28051-060-0	02	1	1312-	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1403	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE IDN	0-28650-820-0	02	1	1404-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1312-1403	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1404-	●	●
303	BOLT; BRKT WHEEL BASE 4700MM(47W) M10X35 FLANGE IDN	0-28651-035-0	02	1	1402-1403	●
303	BOLT; BRKT WHEEL BASE 4700MM(47W) M10X35 FLANGE IDN	0-28651-035-0	02	1	1404-	●
303	BOLT; BRKT M10X35 FLANGE IDN	0-28651-035-0	02	1	1404-		●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1312-1703	●
303	BOLT; BRKT EXC. MIXER CHASSIS<6NR> M8X35 FLANGE	0-28650-835-0	02	1	1704-	●
303	BOLT; BRKT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> M8X35 FLANGE	0-28650-835-0	02	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1404-1703		●
304	NUT; BRKT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (A) M8 FLANGE IDN	0-91180-108-0	03	1	1704-	●
304	NUT; BRKT EXC. MIXER CHASSIS<6NR> (A) M8 FLANGE IDN	0-91180-108-0	03	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	03	1	1312-1703	●
304	NUT; BRKT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) M8 FLANGE IDN	0-91180-108-0	01	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1704-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1312-1401	●
304	NUT; BRKT WHEEL BASE 4700MM(47W) (B) M10 FLANGE	0-91180-210-0	02	1	1402-1403	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1402-1403	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●	●
304	NUT; BRKT WHEEL BASE 4700MM(47W) (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-		●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1312-1403	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1404-	●	●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 4700MM(47W)	8-98128-254-0	01	1	1402-1407	●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 4700MM(47W) EXC. BIO DIESEL FUEL B10<8NV>	8-98128-254-0	01	1	1408-	●
418	BRACKET; PRE FUEL FILTER	8-98136-381-0	01	1	1404-1407		●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 4700MM(47W) BIO DIESEL FUEL B10<8NV>	8-98136-381-0	01	1	1408-	●
418	BRACKET; PRE FUEL FILTER	8-98136-381-0	01	1	1408-		●

228 279 418 304 304 345 345 39 39 174 174 39 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1404-1703		●
39	PIPE; FUEL MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1704-	●
39	PIPE; FUEL (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1704-		●
39	PIPE; FUEL (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1404-1703		●
39	PIPE; FUEL MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1704-	●
39	PIPE; FUEL (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1704-		●
39	PIPE; FUEL (C) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1404-1703		●
39	PIPE; FUEL MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (C) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1704-	●
39	PIPE; FUEL (C) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1704-		●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1312-1403	●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1404-	●	●
174	PIPE; FUEL,FEED,FRT L=1089 IDN	8-98248-096-0	01	1	1404-1703		●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=1089 IDN	8-98248-096-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT L=1089 IDN	8-98248-096-0	01	1	1704-		●
174	PIPE; FUEL,FEED,FRT L=489 IDN	8-98248-098-0	01	1	1404-1703		●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=489 IDN	8-98248-098-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT L=489 IDN	8-98248-098-0	01	1	1704-		●
174	PIPE; FUEL,FEED,FRT L=548 IDN	8-98117-708-0	01	1	1312-1703	●
174	PIPE; FUEL,FEED,FRT EXC. MIXER CHASSIS<6NR> L=548 IDN	8-98117-708-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> L=548 IDN	8-98117-708-0	01	1	1704-	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4700MM(47W) (D) M10X50 FLANGE	0-28051-050-0	02	1	1402-1403	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4700MM(47W) (D) M10X50 FLANGE	0-28051-050-0	02	1	1404-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1312-1403	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1404-	●	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5300MM(53W),WHEEL BASE 7100MM(71W) (B) M10X60 FLANGE IDN	0-28051-060-0	02	1	1312-	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1403	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE IDN	0-28650-820-0	02	1	1404-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1312-1403	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1404-	●	●
303	BOLT; BRKT WHEEL BASE 4700MM(47W) M10X35 FLANGE IDN	0-28651-035-0	02	1	1402-1403	●
303	BOLT; BRKT WHEEL BASE 4700MM(47W) M10X35 FLANGE IDN	0-28651-035-0	02	1	1404-	●
303	BOLT; BRKT M10X35 FLANGE IDN	0-28651-035-0	02	1	1404-		●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1312-1703	●
303	BOLT; BRKT EXC. MIXER CHASSIS<6NR> M8X35 FLANGE	0-28650-835-0	02	1	1704-	●
303	BOLT; BRKT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> M8X35 FLANGE	0-28650-835-0	02	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1404-1703		●
304	NUT; BRKT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (A) M8 FLANGE IDN	0-91180-108-0	03	1	1704-	●
304	NUT; BRKT EXC. MIXER CHASSIS<6NR> (A) M8 FLANGE IDN	0-91180-108-0	03	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	03	1	1312-1703	●
304	NUT; BRKT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) M8 FLANGE IDN	0-91180-108-0	01	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1704-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1312-1401	●
304	NUT; BRKT WHEEL BASE 4700MM(47W) (B) M10 FLANGE	0-91180-210-0	02	1	1402-1403	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1402-1403	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●	●
304	NUT; BRKT WHEEL BASE 4700MM(47W) (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-		●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1312-1403	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1404-	●	●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 4700MM(47W)	8-98128-254-0	01	1	1402-1407	●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 4700MM(47W) EXC. BIO DIESEL FUEL B10<8NV>	8-98128-254-0	01	1	1408-	●
418	BRACKET; PRE FUEL FILTER	8-98136-381-0	01	1	1404-1407		●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 4700MM(47W) BIO DIESEL FUEL B10<8NV>	8-98136-381-0	01	1	1408-	●
418	BRACKET; PRE FUEL FILTER	8-98136-381-0	01	1	1408-		●

227 228 228 228 80 47 174 41 41 83 97 67 41 41 41 29 29 41 41 41 41 67 82 41 41 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> (A) IDN	8-98156-579-0	01	1	1704-	●	●
29	HOSE; FUEL (A) IDN	8-98078-196-2	01	1	1312-1403	●
29	HOSE; FUEL (A) IDN	8-98078-196-2	01	1	1404-1703	●	●
29	HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (A) IDN	8-98078-196-2	01	1	1704-	●	●
29	HOSE; FUEL (B) IDN	8-98078-197-1	01	1	1312-1403	●
29	HOSE; FUEL (B) IDN	8-98078-197-1	01	1	1404-	●	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (D) ID=16 IDN	8-94238-568-0	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (D) ID=16 IDN	8-94238-568-0	04	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (F) ID=24 & 24 L=49	1-09701-018-0	01	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (F) ID=15 & 19 H=33 L=25	1-09701-317-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (D) ID=16 IDN	8-94238-568-0	06	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	04	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	04	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	03	1	1404-1703		●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (E) L=250 IDN	5-09707-030-1	04	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1312-1401	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR> (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1402-1703	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (F) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	06	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	06	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	04	1	1312-1703	●
41	CLIP; FUEL PIPE,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	03	1	1704-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	03	1	1704-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1312-1403	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1404-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1312-1403	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1404-	●	●
47	PIPE; FUEL,RETURN L=987	8-98248-097-0	01	1	1404-1703		●
47	PIPE; FUEL,RETURN MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=987	8-98248-097-0	01	1	1704-	●
47	PIPE; FUEL,RETURN L=987	8-98248-097-0	01	1	1704-		●
47	PIPE; FUEL,RETURN L=539 IDN	8-98117-709-0	01	1	1312-1703	●
47	PIPE; FUEL,RETURN EXC. MIXER CHASSIS<6NR> L=539 IDN	8-98117-709-0	01	1	1704-	●
47	PIPE; FUEL,RETURN MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> L=539 IDN	8-98117-709-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-		●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=110 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-	●	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (A) L=940 IDN	8-98286-079-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> EXC. MIXER CHASSIS<6NR> (A) L=1890 IDN	8-98286-080-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1401	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR> (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (A) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1401	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY EXC. MIXER CHASSIS<6NR>,BIO DIESEL FUEL B10<8NV> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> (D) L=300	8-98157-878-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (D) L=300	8-98157-878-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> (C) L=1000	8-98250-603-0	01	1	1402-1703	●
67	HOSE; FUEL,DELIVERY MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (C) L=1000	8-98250-603-0	01	1	1704-	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1403	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1404-1703	●	●
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1704-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1312-1403	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1404-	●	●
67	HOSE; FUEL,DELIVERY (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1404-1703		●
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1704-		●
80	BOLT; CLIP,FUEL TANK MIXER CHASSIS<6NR> (B) M8X30 FLANGE	0-28650-830-0	01	1	1402-	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1404-1703		●
80	BOLT; CLIP,FUEL TANK MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1704-	●
80	BOLT; CLIP,FUEL TANK EXC. MIXER CHASSIS<6NR> (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1704-	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1703	●
80	BOLT; CLIP,FUEL TANK MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1704-	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1704-		●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	03	1	1312-1401	●
80	BOLT; CLIP,FUEL TANK EXC. MIXER CHASSIS<6NR> (B) M8X30 FLANGE	0-28650-830-0	03	1	1402-	●
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1312-1403	●
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1404-	●	●
83	NUT; CLIP,FUEL TANK MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	03	1	1402-1403	●
83	NUT; CLIP,FUEL TANK MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	03	1	1404-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE IDN	0-91180-108-0	03	1	1404-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE IDN	0-91180-108-0	05	1	1312-1401	●
83	NUT; CLIP,FUEL TANK EXC. MIXER CHASSIS<6NR> M8 FLANGE IDN	0-91180-108-0	05	1	1402-	●
97	BRACKET; CLIP MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A)	8-97639-488-0	01	1	1704-	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1312-1403	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1404-	●	●
97	BRACKET; CLIP (A)	8-98126-612-0	01	1	1312-1703	●
97	BRACKET; CLIP MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98126-612-0	01	1	1704-	●
97	BRACKET; CLIP EXC. MIXER CHASSIS<6NR> (A)	8-98126-612-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT L=1089 IDN	8-98248-096-0	01	1	1404-1703		●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=1089 IDN	8-98248-096-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT L=1089 IDN	8-98248-096-0	01	1	1704-		●
174	PIPE; FUEL,FEED,FRT L=489 IDN	8-98248-098-0	01	1	1404-1703		●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> L=489 IDN	8-98248-098-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT L=489 IDN	8-98248-098-0	01	1	1704-		●
174	PIPE; FUEL,FEED,FRT L=548 IDN	8-98117-708-0	01	1	1312-1703	●
174	PIPE; FUEL,FEED,FRT EXC. MIXER CHASSIS<6NR> L=548 IDN	8-98117-708-0	01	1	1704-	●
174	PIPE; FUEL,FEED,FRT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> L=548 IDN	8-98117-708-0	01	1	1704-	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1312-1403	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1404-	●	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4700MM(47W) (D) M10X50 FLANGE	0-28051-050-0	02	1	1402-1403	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4700MM(47W) (D) M10X50 FLANGE	0-28051-050-0	02	1	1404-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1312-1403	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1404-	●	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5300MM(53W),WHEEL BASE 7100MM(71W) (B) M10X60 FLANGE IDN	0-28051-060-0	02	1	1312-	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1403	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE IDN	0-28650-820-0	02	1	1404-	●	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1404-1703		●
304	NUT; BRKT MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> (A) M8 FLANGE IDN	0-91180-108-0	03	1	1704-	●
304	NUT; BRKT EXC. MIXER CHASSIS<6NR> (A) M8 FLANGE IDN	0-91180-108-0	03	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	03	1	1312-1703	●
304	NUT; BRKT MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (A) M8 FLANGE IDN	0-91180-108-0	01	1	1704-	●
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1704-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1312-1401	●
304	NUT; BRKT WHEEL BASE 4700MM(47W) (B) M10 FLANGE	0-91180-210-0	02	1	1402-1403	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1402-1403	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●	●
304	NUT; BRKT WHEEL BASE 4700MM(47W) (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
