Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11567 - FVZ/GVZ(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#131643) — 40 parça
◀

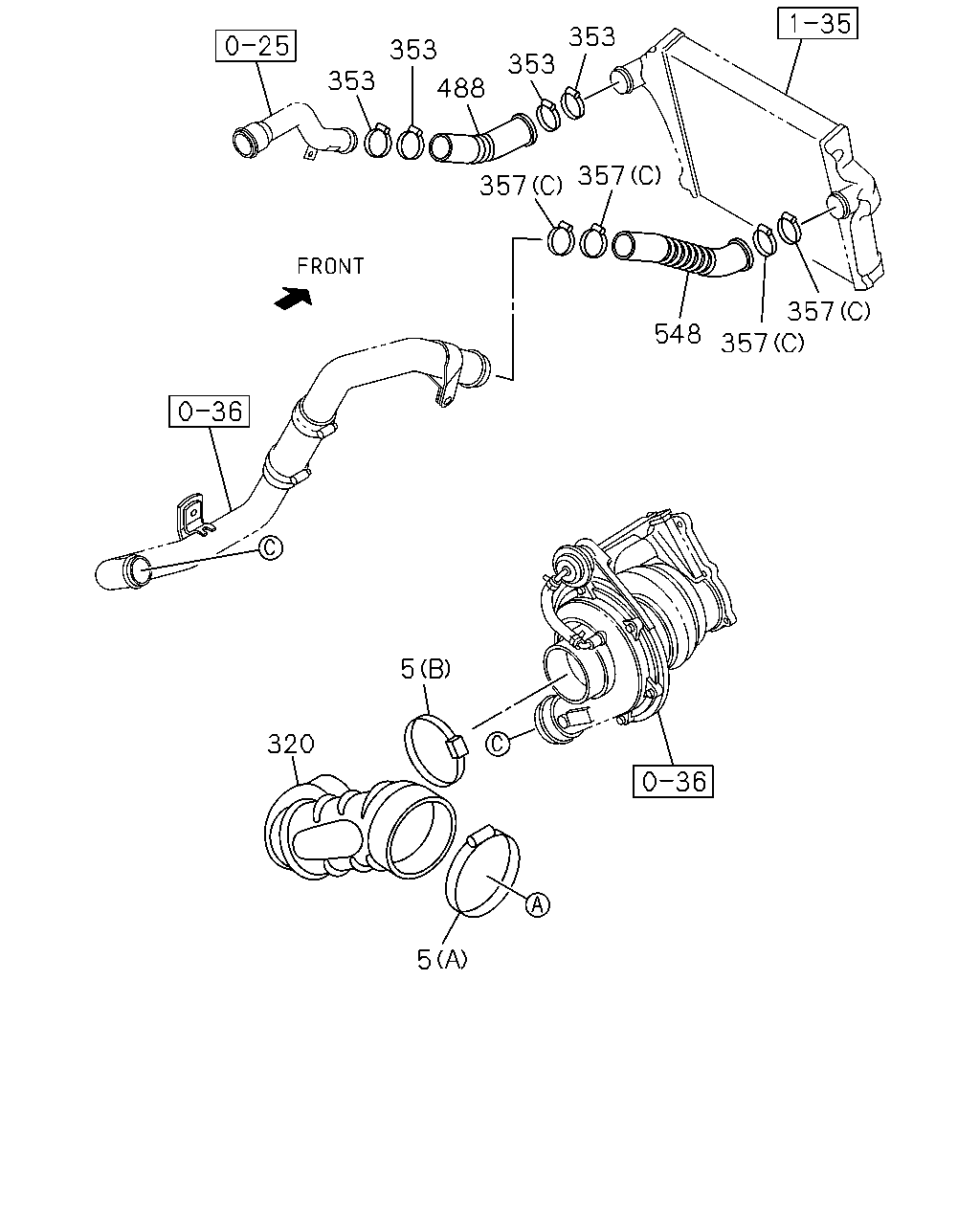

[131A] PIPING (9 parça)
[131A] DUCT FIXING (31 parça)
▶
5
320
5
548
357
357
357
357
353
353
488
353
353
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=130-150
8-98133-360-0
01
1
1312-
5
CLIP; AIR DUCT
(B) ID=90-110
8-98133-365-0
01
1
1312-
320
HOSE; CONN,ACL
IDN
8-98073-259-0
01
1
1312-
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
04
1
1312-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
1312-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
1312-
357
CLIP; RUBBER HOSE
(C) ID=55-75
8-98133-349-0
04
1
1312-
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
1312-
548
HOSE; RUBBER,TURBO TO INL PIPE
IDN
8-98181-974-1
01
1
1312-
49
242
58
56
56
49
245
58
48
49
56
56
58
242
58
242
49
252
26
560
450
316
543
543
368
564
71
480
357
379
357
210
209
296
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1312-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1312-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1312-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1312-
49
NUT; AIR DUCT
(C) M8 FLANGE IDN
8-94279-517-0
02
1
1312-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1312-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1312-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1312-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1312-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1312-
71
CLIP; AIR DUCT
ID=140-160
8-98133-368-0
01
1
1312-
209
BRACKET; ACL
IDN
8-97948-148-0
01
1
1312-
210
BOLT; ACL BRKT
M10X25 FLANGE IDN
0-28651-025-0
04
1
1312-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1312-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1312-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1312-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1312-
252
DUCT; AIR INT
8-98021-989-1
01
1
1312-
296
NUT; ACL
M8 FLANGE IDN
0-91180-108-0
04
1
1312-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1312-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
1312-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
1312-
357
CLIP; RUBBER HOSE
(C) ID=55-75
8-98133-349-0
04
1
1312-
368
SENSOR; TEMP
8-98065-377-0
01
1
1312-
379
HOSE; RUBBER
IDN
8-97639-463-0
01
1
1312-
450
CLAMP; HOSE
9-09915-504-1
01
1
1312-
480
ADAPTER
8-98086-417-0
01
1
1312-
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1312-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1312-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1312-
564
GASKET; ADAPTER
8-98071-416-0
01
1
1312-
