1-10 — RADIATOR (#131640) — 67 parça

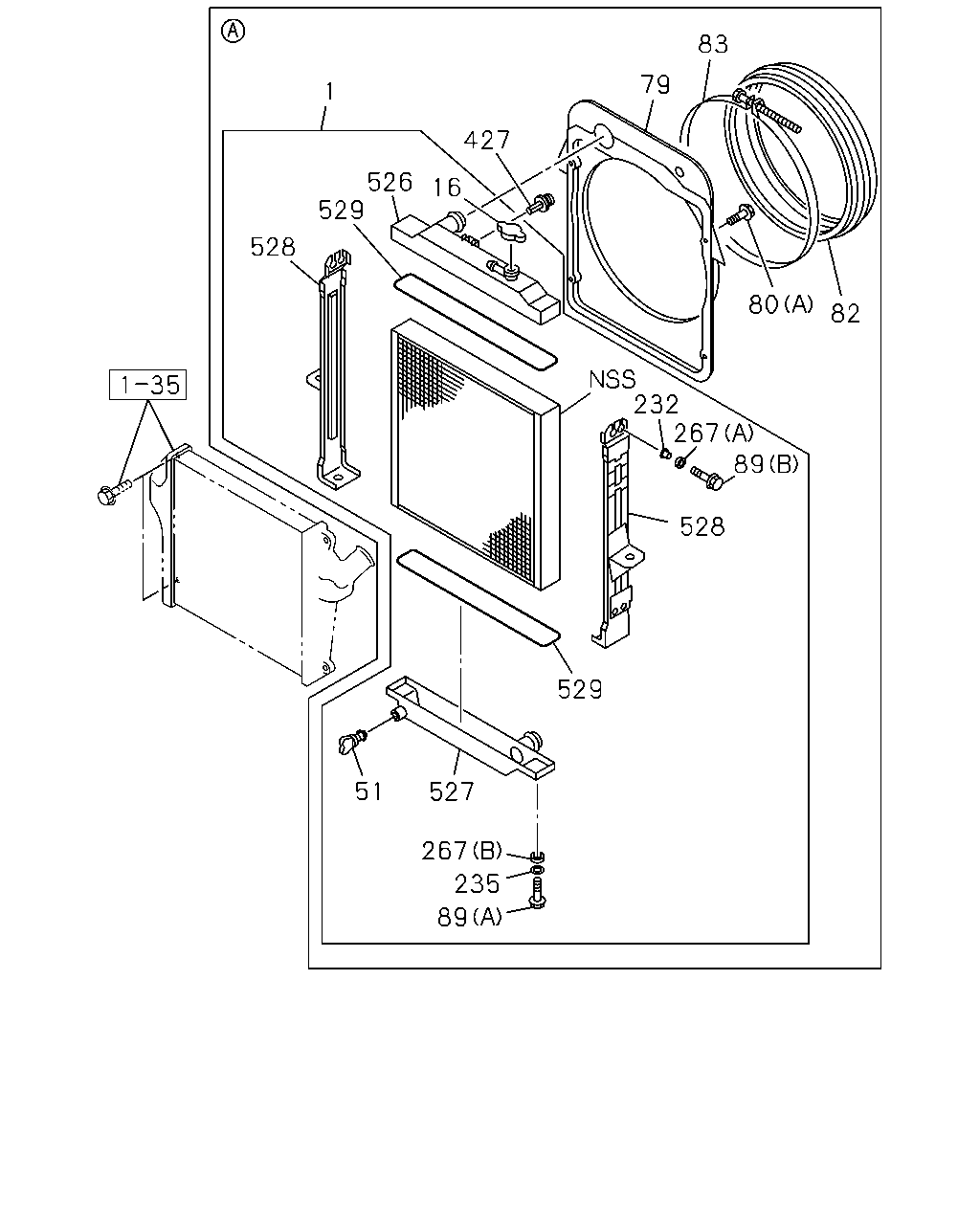

çizim 388229
83 79 427 16 526 529 528 51 527 267 235 89 529 528 89 267 232 80 82 1
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM
IDN 		8-98248-324-0 01 1 1312-
16 CAP; RAD
IDN 		8-98096-226-0 01 1 1312-
51 PLUG; DRAIN
W/GASKET IDN 		8-97171-437-0 01 1 1312-
79 GUIDE; FAN,RAD
IDN 		8-98010-384-0 01 1 1312-1410
79 GUIDE; FAN,RAD
IDN 		8-98273-634-0 01 1 1411-
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1312-
80 BOLT; FAN GUIDE
(A) M8X14 IDN 		8-98046-222-0 04 1 1312-1410
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1411-
82 COVER; FAN,RAD
IDN 		8-98004-211-0 01 1 1312-1410
82 COVER; FAN,RAD
IDN 		8-98293-253-0 01 1 1411-
83 CLIP; FAN COVER
IDN 		1-09707-177-2 01 1 1411-
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1312-
89 BOLT
(B) M8X25 W/PL WASHER IDN 		1-21469-153-0 04 1 1312-
232 COLLAR; DIST,CUSHION RUBBER
IDN 		8-98141-232-0 04 1 1312-
235 WASHER; CUSHION RUBBER
IDN 		1-21469-133-0 02 1 1312-
267 RUBBER; CUSHION
(A) IDN 		1-21469-130-0 04 1 1312-
267 RUBBER; CUSHION
(B) IDN 		1-21469-131-0 02 1 1312-
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1312-1410
526 TANK; UPR,RADIATOR CORE
IDN 		8-98004-202-2 01 1 1312-
527 TANK; LWR,RADIATOR CORE
IDN 		8-98004-203-0 01 1 1312-
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98010-372-4 01 1 1312-
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98185-754-0 01 1 1312-
529 GASKET; CORE,RADIATOR
IDN 		8-98004-206-0 02 1 1312-

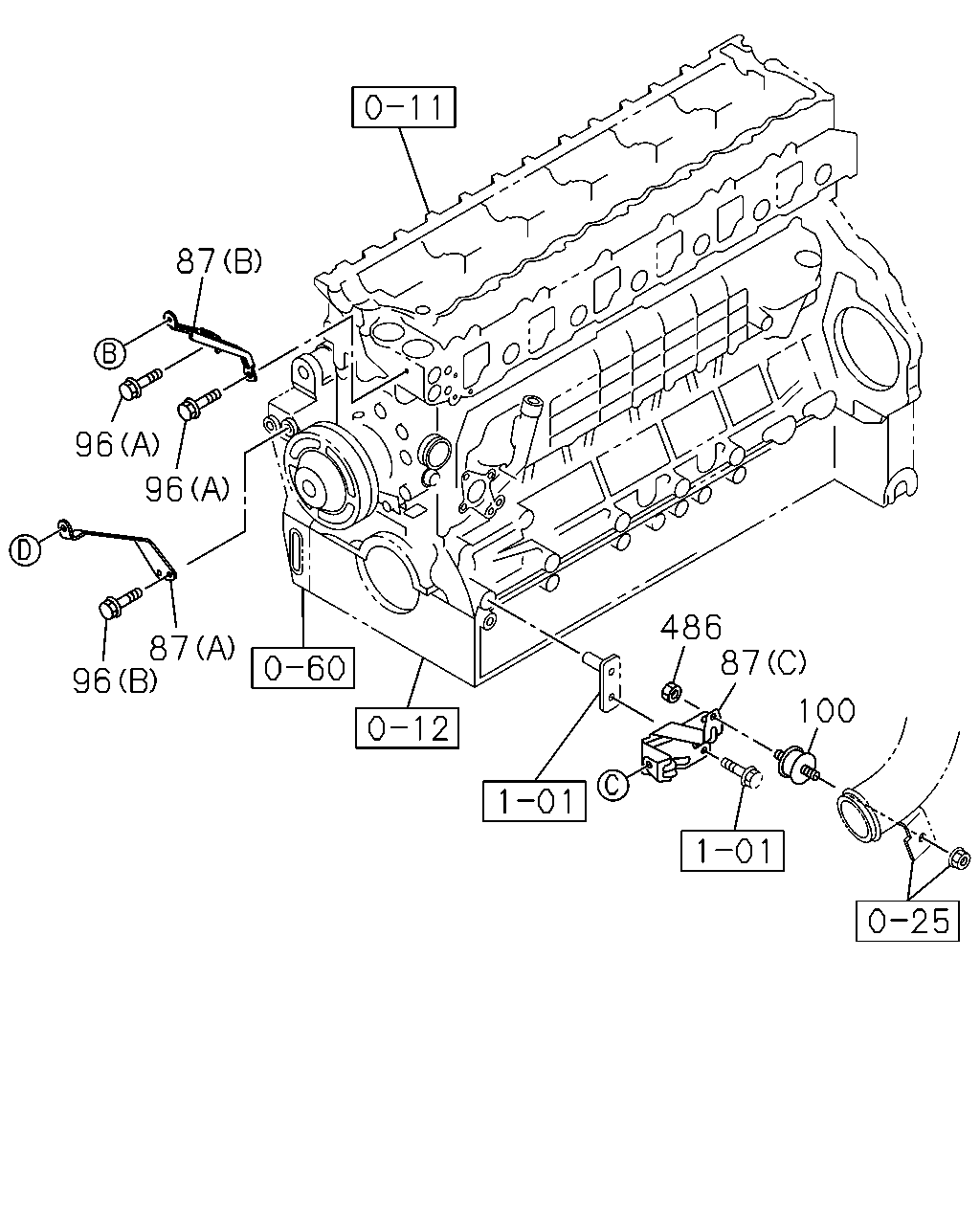

çizim 388235
87 96 96 87 96 486 100 87
BalonParca AdiParca NoAdetTipApplied Date
87 STAY; FAN GUIDE
FVZ WIDE CAB(FG****) KD ENGINE<7MB> (B) 		8-97520-825-0 01 1 1411-
87 STAY; FAN GUIDE
FVZ WIDE CAB(FG****) KD ENGINE<7MB> (C) 		8-97520-826-0 01 1 1411-
87 STAY; FAN GUIDE
FVZ WIDE CAB(FG****) KD ENGINE<7MB> (A) 		8-97520-828-0 01 1 1411-
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1312-1410
87 STAY; FAN GUIDE
FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (B) 		8-94393-776-1 01 1 1411-
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1312-1410
87 STAY; FAN GUIDE
FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (C) 		8-94393-778-2 01 1 1411-
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1312-1410
87 STAY; FAN GUIDE
FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (A) 		8-97602-988-0 01 1 1411-
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1312-
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1312-
100 RUBBER; MTG 8-98148-109-0 01 1 1312-1410
100 RUBBER; MTG
FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> 		8-98148-109-0 01 1 1411-
100 RUBBER; MTG
FVZ WIDE CAB(FG****) KD ENGINE<7MB> 		8-98148-109-0 01 1 1411-
486 NUT; MTG RUBBER
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1410
486 NUT; MTG RUBBER
FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> M8 FLANGE IDN 		0-91180-108-0 01 1 1411-
486 NUT; MTG RUBBER
FVZ WIDE CAB(FG****) KD ENGINE<7MB> M8 FLANGE IDN 		0-91180-108-0 01 1 1411-

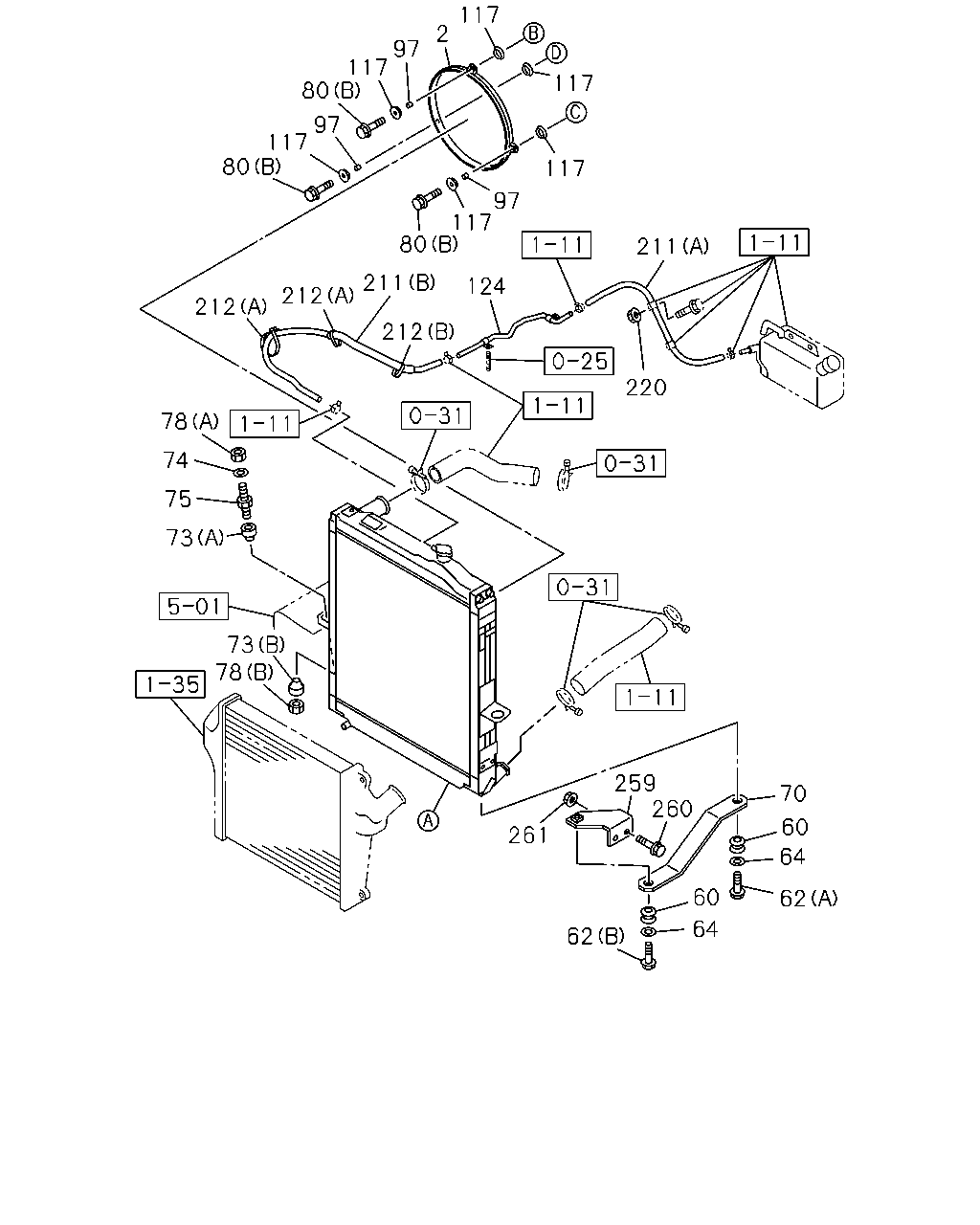

çizim 388902
80 117 97 80 117 97 2 117 117 117 97 117 80 211 124 211 212 212 78 75 74 73 73 78 212 220 259 260 70 60 64 62 60 64 62 261
BalonParca AdiParca NoAdetTipApplied Date
2 GUIDE; FAN 8-94393-779-1 01 1 1312-
60 GROMMET 1-09332-117-0 04 1 1312-
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1312-
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1312-
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 1312-
70 STAY; RAD 8-98004-132-2 02 1 1312-
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1312-
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1312-
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1312-
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1312-
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1312-
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1312-
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1312-
80 BOLT; FAN GUIDE
(A) M8X14 IDN 		8-98046-222-0 04 1 1312-1410
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1411-
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1312-
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1312-
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1312-
211 HOSE; RAD TO PIPE
(B) L=970 IDN 		8-98073-545-0 01 1 1312-
211 HOSE; RAD TO PIPE
(A) L=560 IDN 		8-98119-375-0 01 1 1312-
212 CLIP; HOSE
(A) L=250 IDN 		5-09707-030-1 02 1 1312-
212 CLIP; HOSE
(B) L=140 IDN 		5-09707-031-1 01 1 1312-
220 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-
259 BRACKET; RAD STAY 8-98071-821-0 01 1 1312-
259 BRACKET; RAD STAY 8-98071-822-0 01 1 1312-
260 BOLT; BRKT
M8X20 FLANGE IDN 		0-28650-820-0 04 1 1312-
261 NUT; BRKT
M8 FLANGE IDN 		0-91180-108-0 04 1 1312-
