◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#131636) — 97 parça

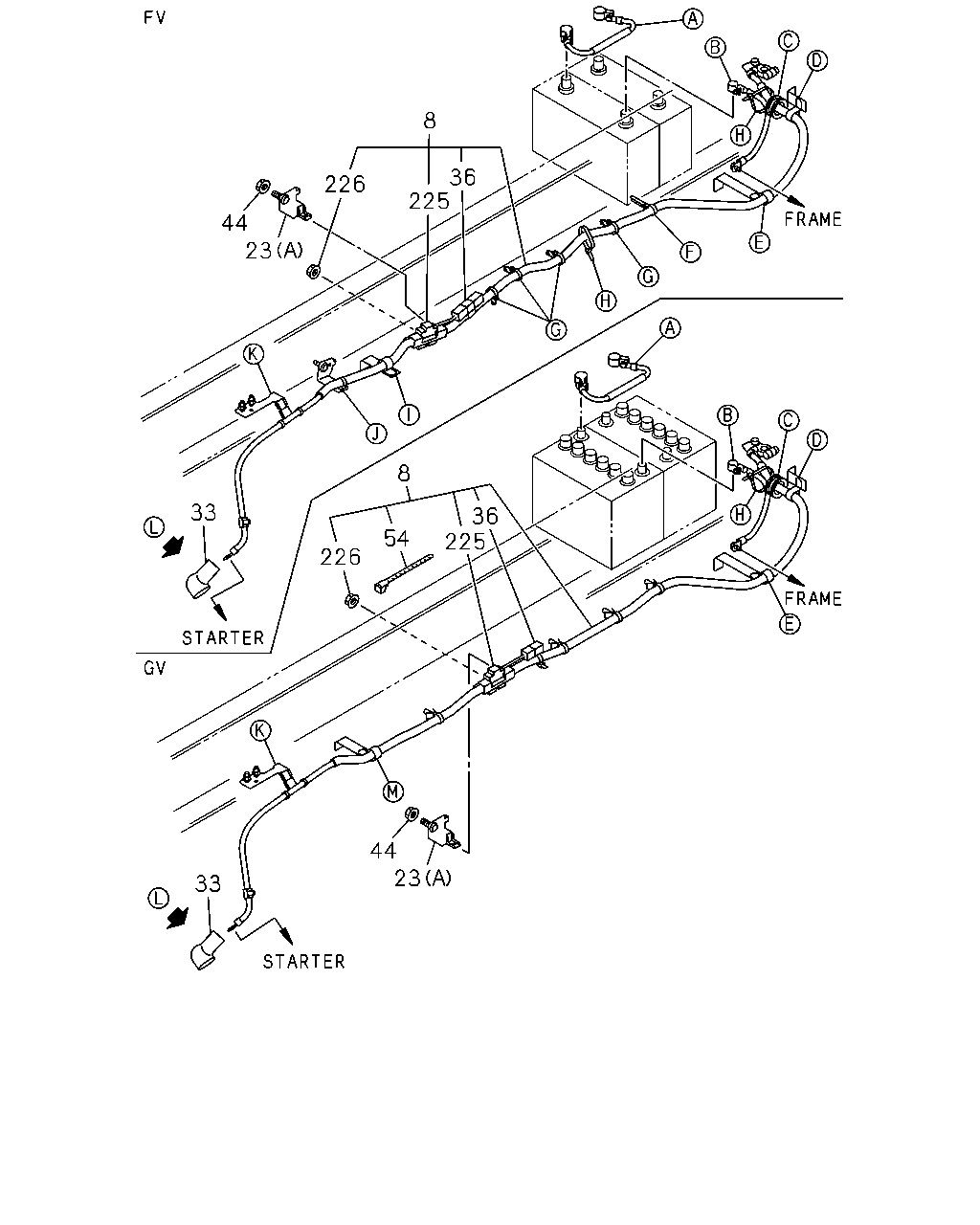

çizim 388208
23 44 33 33 226 54 8 225 36 23 44 226 225 36 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
MIXER CHASSIS<6NR> IDN 		8-98248-210-0 01 1 1402-1502 ●
8 CABLE; BATTERY,STARTER
MIXER CHASSIS<6NR> IDN 		8-98295-236-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
IDN 		8-98250-280-0 01 1 1404-1502 ●
8 CABLE; BATTERY,STARTER
IDN 		8-98295-237-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
IDN 		8-98182-518-0 01 1 1312-1401 ●
8 CABLE; BATTERY,STARTER
EXC. MIXER CHASSIS<6NR> IDN 		8-98182-518-0 01 1 1402-1502 ●
8 CABLE; BATTERY,STARTER
EXC. MIXER CHASSIS<6NR> IDN 		8-98295-225-0 01 1 1503- ●
23 BRACKET; CABLE CLIP TO FRAME
MIXER CHASSIS<6NR> (F) 		8-98091-358-0 01 1 1402- ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=55 		1-47475-304-0 01 1 1312-1403 ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=55 		1-47475-304-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) L=145 		1-47475-655-0 01 1 1312-1403 ●
23 BRACKET; CABLE CLIP TO FRAME
(D) L=145 		1-47475-655-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 01 1 1312-1403 ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1312-1403 ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98201-490-0 01 1 1312-1403 ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98201-490-0 01 1 1404- ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1312-1403 ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1404- ● ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1312-1403 ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1404-1502 ● ●
36 FUSIBLE LINK; BATTERY
IDN 		8-98295-762-0 01 1 1503- ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1312-1403 ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1404- ● ●
54 CLIP; BAND,BATTERY CABLE
L=175 		1-09707-176-1 01 1 1404-1502 ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1312-1403 ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1404-1502 ● ●
225 BLOCK; TERMINAL
IDN 		8-98294-524-0 01 1 1503- ● ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1312-1403 ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1404-1502 ● ●
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS IDN 		8-98297-112-0 01 1 1503- ● ●

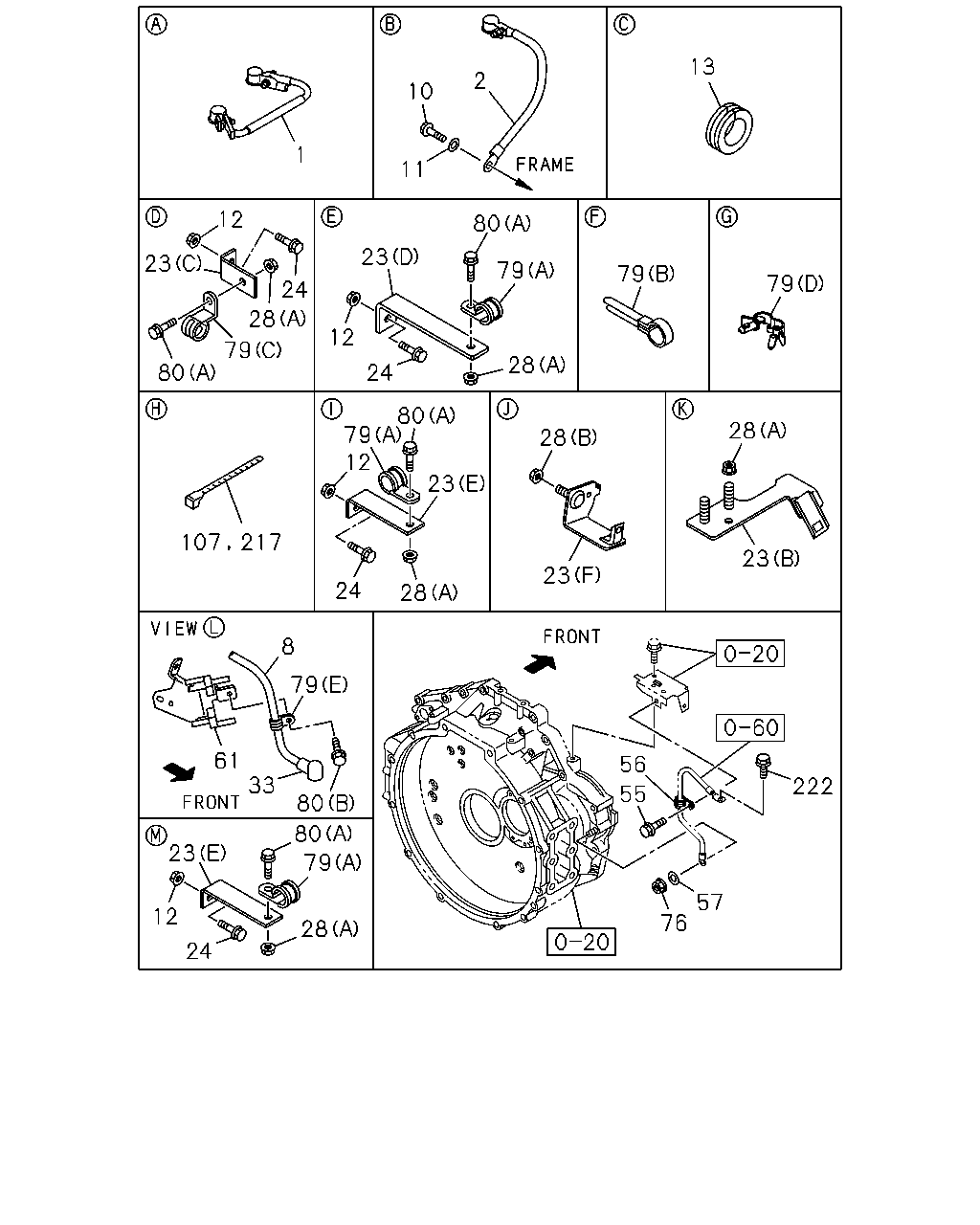

çizim 388690
1 10 2 11 13 12 23 24 28 79 80 12 23 24 80 79 28 79 79 28 28 23 80 79 12 217 107 24 28 23 23 222 57 76 55 56 79 8 61 33 80 80 79 23 12 24 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 IDN 		8-98025-412-3 01 1 1312-1403 ●
1 CABLE; BATTERY
L=280 IDN 		8-98025-412-3 01 1 1404- ● ●
2 CABLE; BATTERY
L=280 IDN 		8-98035-647-1 01 1 1312-1403 ●
2 CABLE; BATTERY
L=280 IDN 		8-98035-647-1 01 1 1404- ● ●
8 CABLE; BATTERY,STARTER
MIXER CHASSIS<6NR> IDN 		8-98248-210-0 01 1 1402-1502 ●
8 CABLE; BATTERY,STARTER
MIXER CHASSIS<6NR> IDN 		8-98295-236-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
IDN 		8-98250-280-0 01 1 1404-1502 ●
8 CABLE; BATTERY,STARTER
IDN 		8-98295-237-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
IDN 		8-98182-518-0 01 1 1312-1401 ●
8 CABLE; BATTERY,STARTER
EXC. MIXER CHASSIS<6NR> IDN 		8-98182-518-0 01 1 1402-1502 ●
8 CABLE; BATTERY,STARTER
EXC. MIXER CHASSIS<6NR> IDN 		8-98295-225-0 01 1 1503- ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1312-1403 ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1404- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1312-1403 ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1404- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE IDN 		0-91180-108-0 03 1 1312-1403 ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE IDN 		0-91180-108-0 03 1 1404- ● ●
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1312-1403 ●
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
MIXER CHASSIS<6NR> (F) 		8-98091-358-0 01 1 1402- ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=55 		1-47475-304-0 01 1 1312-1403 ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=55 		1-47475-304-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) L=145 		1-47475-655-0 01 1 1312-1403 ●
23 BRACKET; CABLE CLIP TO FRAME
(D) L=145 		1-47475-655-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 01 1 1312-1403 ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1312-1403 ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98201-490-0 01 1 1312-1403 ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98201-490-0 01 1 1404- ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 03 1 1312-1403 ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 03 1 1404- ● ●
28 NUT; BRKT TO FRAME
MIXER CHASSIS<6NR> (B) M10 FLANGE 		0-91180-210-0 01 1 1402- ●
28 NUT; BRKT TO FRAME
(A) M8 FLANGE IDN 		0-91180-108-0 05 1 1312-1403 ●
28 NUT; BRKT TO FRAME
(A) M8 FLANGE IDN 		0-91180-108-0 05 1 1404- ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1312-1403 ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1404- ● ●
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 1312-1403 ●
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 1404- ● ●
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1312-1403 ●
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1404- ● ●
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1312-1403 ●
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1404- ● ●
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1312-1403 ●
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1404- ● ●
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 1312-1403 ●
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 1404- ● ●
79 CLIP; BATTERY CABLE
MIXER CHASSIS<6NR> (D) ID=13-18 L=26 		1-09709-293-0 01 1 1402- ●
79 CLIP; BATTERY CABLE
(C) ID=19 L=24 H=21 		1-09700-109-1 01 1 1312-1403 ●
79 CLIP; BATTERY CABLE
(C) ID=19 L=24 H=21 		1-09700-109-1 01 1 1404- ● ●
79 CLIP; BATTERY CABLE
(B) ID=20 L=70 		1-09700-485-0 01 1 1312- ●
79 CLIP; BATTERY CABLE
(E) ID=16 L=28 		1-09700-872-0 01 1 1312-1403 ●
79 CLIP; BATTERY CABLE
(E) ID=16 L=28 		1-09700-872-0 01 1 1404- ● ●
79 CLIP; BATTERY CABLE
(D) ID=13-18 L=26 		1-09709-293-0 03 1 1312- ●
79 CLIP; BATTERY CABLE
(A) ID=21 L=24 		8-98019-191-0 02 1 1312-1403 ●
79 CLIP; BATTERY CABLE
(A) ID=21 L=24 		8-98019-191-0 02 1 1404- ● ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1403 ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1404- ● ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE IDN 		0-28650-825-0 03 1 1312-1403 ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE IDN 		0-28650-825-0 03 1 1404- ● ●
107 CLIP; BAND
L=140 IDN 		5-09707-031-1 01 1 1312-1403 ●
107 CLIP; BAND
L=140 IDN 		5-09707-031-1 01 1 1404- ● ●
217 CLIP; BAND,CABLE
L=250 IDN 		5-09707-030-1 01 1 1312- ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1312-1403 ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1404- ● ●
