0-60 — ENGINE ELECTRICAL CONTROL PARTS (#131635) — 103 parça

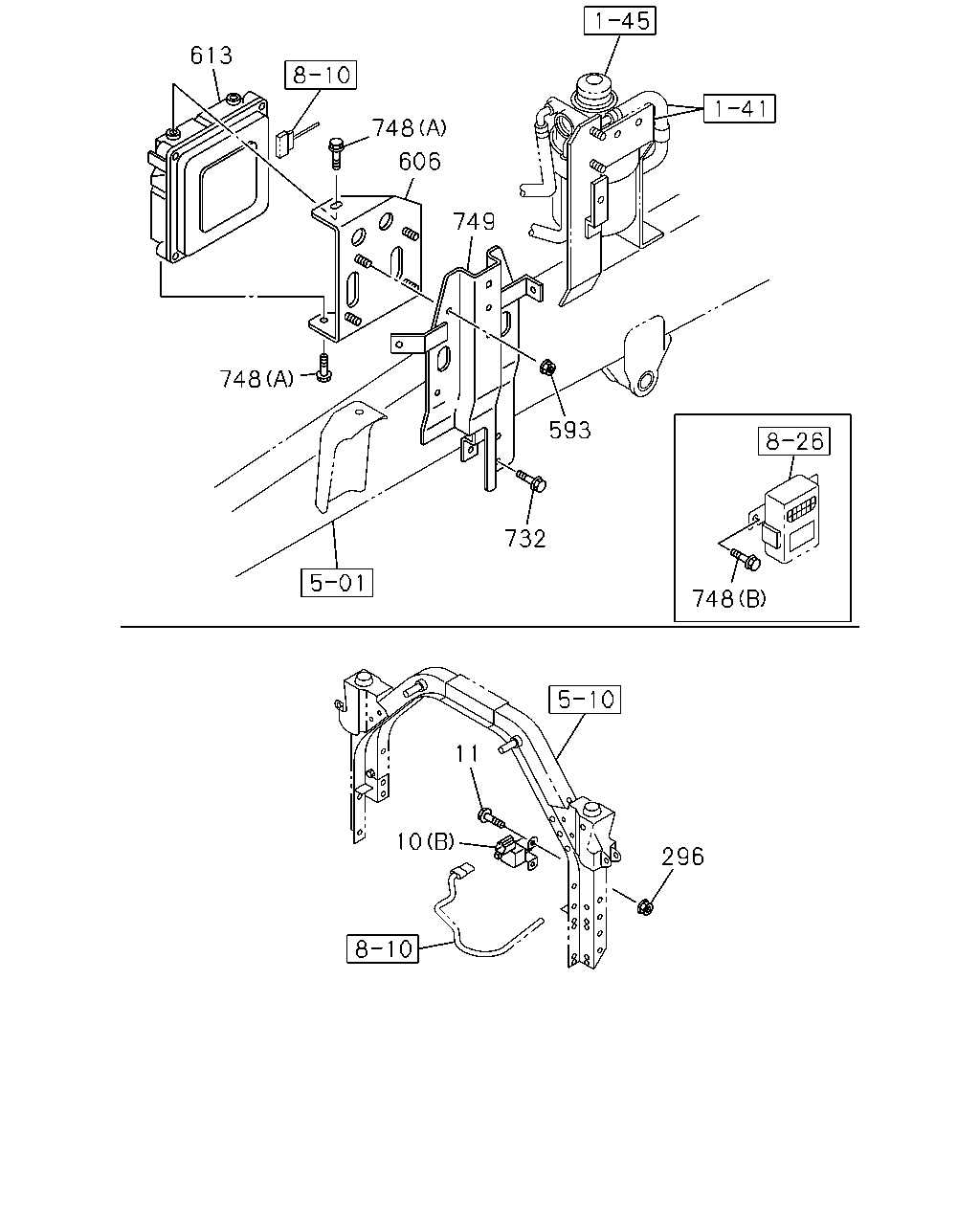

çizim 388189
613 748 606 749 748 593 732 748 11 10 296
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1312-1403 ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1404- ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1312-1403 ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1404- ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-1403 ●
11 BOLT; RELAY STARTER
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1404- ● ●
296 NUT; RELAY,STARTER
M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1403 ●
296 NUT; RELAY,STARTER
M8 FLANGE IDN 		0-91180-108-0 02 1 1404- ● ●
593 NUT; BRKT
M6 FLANGE IDN 		0-91180-106-0 04 1 1312-1403 ●
593 NUT; BRKT
M6 FLANGE IDN 		0-91180-106-0 04 1 1404- ● ●
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 1312-1403 ●
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 1404- ● ●
613 CONTROL UNIT; ENG
MANUAL TRANSMISSION<X9C> KD ENGINE<7MB> EXC. VIN MODEL YEAR 2014<VZE> 		8-98247-126-0 01 1 1402-1403 ●
613 CONTROL UNIT; ENG
MANUAL TRANSMISSION<X9C> KD ENGINE<7MB> EXC. VIN MODEL YEAR 2014<VZE> 		8-98247-126-0 01 1 1404-1404 ●
613 CONTROL UNIT; ENG
KD ENGINE<7MB> EXC. VIN MODEL YEAR 2014<VZE> 		8-98247-126-0 01 1 1404-1404 ●
613 CONTROL UNIT; ENG
MANUAL TRANSMISSION<X9C> KD ENGINE<7MB> EXC. VIN MODEL YEAR 2014<VZE> 		8-98247-127-1 01 1 1405- ●
613 CONTROL UNIT; ENG
KD ENGINE<7MB> EXC. VIN MODEL YEAR 2014<VZE> 		8-98247-127-1 01 1 1405- ●
613 CONTROL UNIT; ENG 8-98229-599-0 01 1 1312-1401 ●
613 CONTROL UNIT; ENG
EXC. KD ENGINE<7MB> 		8-98229-599-0 01 1 1402-1403 ●
613 CONTROL UNIT; ENG
EXC. KD ENGINE<7MB> 		8-98229-599-0 01 1 1404- ● ●
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 1312-1403 ●
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 1404- ● ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 1312-1403 ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 1404- ● ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE 		0-28650-616-0 02 1 1312-1403 ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE 		0-28650-616-0 02 1 1404- ● ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 1312-1403 ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 1404- ● ●

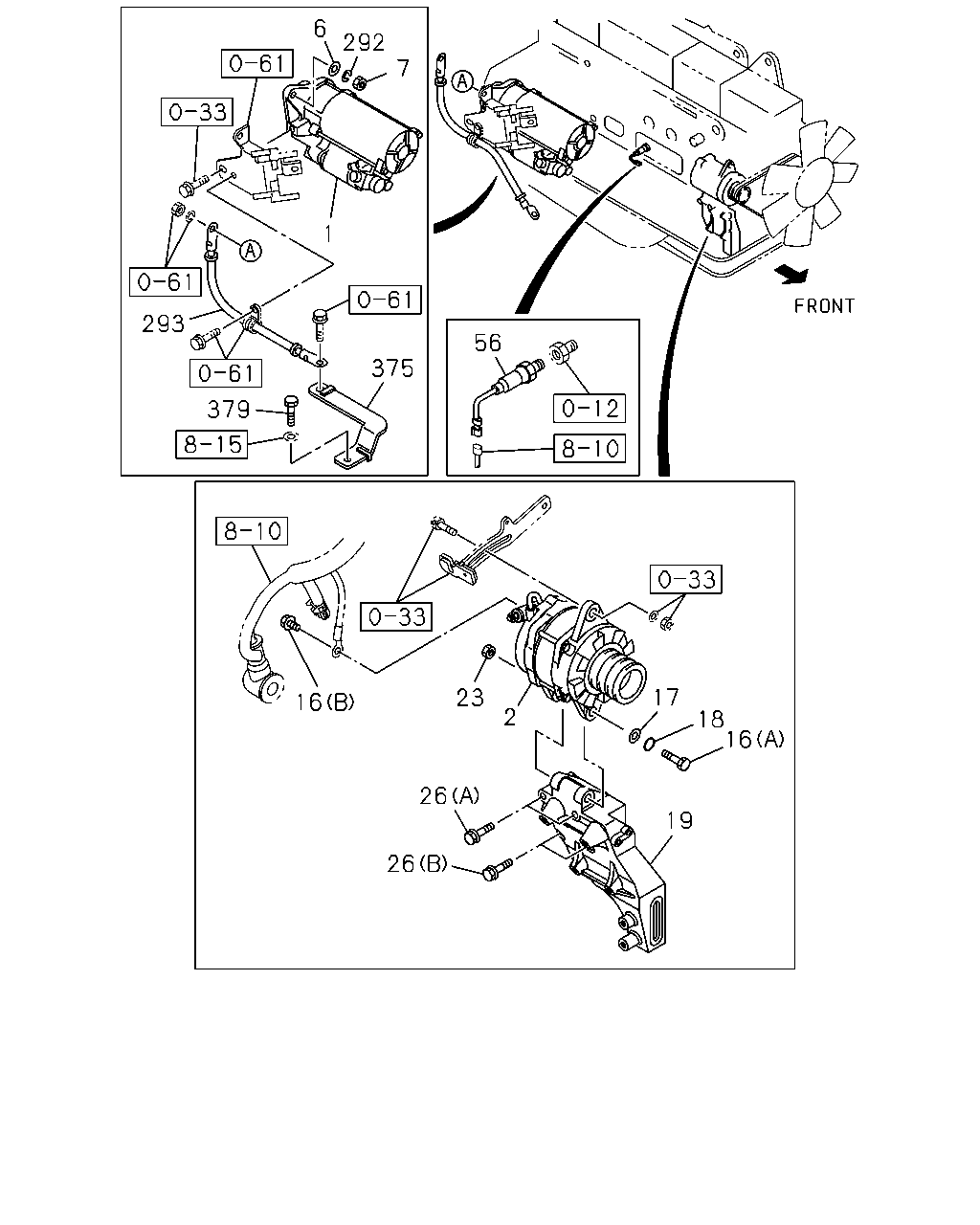

çizim 388191
7 292 6 1 293 375 56 379 16 23 2 26 26 17 18 16 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. KD ENGINE<7MB> 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 1312-1403 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 1404-1409 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. KD ENGINE<7MB> 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 1410-1410 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. KD ENGINE<7MB> 24V 5.0KW NIKKO 		8-97695-240-2 01 1 1411- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. KD ENGINE<7MB> 20V 50A NIKKO 		8-97695-268-0 01 1 1411- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO 		8-98013-461-4 01 1 1312-1403 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO 		8-98013-461-4 01 1 1404-1410 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. KD ENGINE<7MB> 24V 50A NIKKO 		8-98013-461-5 01 1 1411- ● ●
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 1312-1403 ●
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 1404- ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 1312-1403 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 1404- ● ●
16 BOLT; GEN
(B) M6X10 FLANGE IDN 		0-28050-610-0 01 1 1312-1403 ●
16 BOLT; GEN
(B) M6X10 FLANGE IDN 		0-28050-610-0 01 1 1404- ● ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1312-1403 ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1404- ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1312-1403 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1404- ● ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 1312-1403 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 1404- ● ●
19 BRACKET; GEN 8-98082-615-1 01 1 1312-1403 ●
19 BRACKET; GEN 8-98082-615-1 01 1 1404- ● ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 1312-1403 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 1404- ● ●
26 BOLT; GEN BRKT
(B) M10X40 FLANGE 		0-28151-040-0 02 1 1312-1403 ●
26 BOLT; GEN BRKT
(B) M10X40 FLANGE 		0-28151-040-0 02 1 1404- ● ●
26 BOLT; GEN BRKT
(A) M10X80 FLANGE 		0-28151-080-0 02 1 1312-1403 ●
26 BOLT; GEN BRKT
(A) M10X80 FLANGE 		0-28151-080-0 02 1 1404- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 1312-1403 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 1404- ● ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 1312-1403 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 1404- ● ●
293 CABLE; STARTER EARTH
KD ENGINE<7MB> 		8-97520-860-0 01 1 1411- ● ●
293 CABLE; STARTER EARTH
POWER TAKE OFF-FLYWHEEL(6SZ) L=430 		8-97621-357-0 01 1 1402- ●
293 CABLE; STARTER EARTH
L=420 		8-98131-856-0 01 1 1312-1401 ●
293 CABLE; STARTER EARTH
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=420 		8-98131-856-0 01 1 1402-1403 ●
293 CABLE; STARTER EARTH
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=420 		8-98131-856-0 01 1 1404-1410 ●
293 CABLE; STARTER EARTH
L=420 		8-98131-856-0 01 1 1404-1410 ●
293 CABLE; STARTER EARTH
EXC. KD ENGINE<7MB> L=420 		8-98131-856-0 01 1 1411- ● ●
375 BRACKET 8-98131-726-0 01 1 1312-1401 ●
375 BRACKET
EXC. MIXER CHASSIS<6NR> 		8-98131-726-0 01 1 1402-1403 ●
375 BRACKET
EXC. MIXER CHASSIS<6NR> 		8-98131-726-0 01 1 1404- ●
375 BRACKET 8-98131-726-0 01 1 1404- ●
379 BOLT; BRKT
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1312-1401 ●
379 BOLT; BRKT
EXC. MIXER CHASSIS<6NR> M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1402-1403 ●
379 BOLT; BRKT
EXC. MIXER CHASSIS<6NR> M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1404- ●
379 BOLT; BRKT
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1404- ●

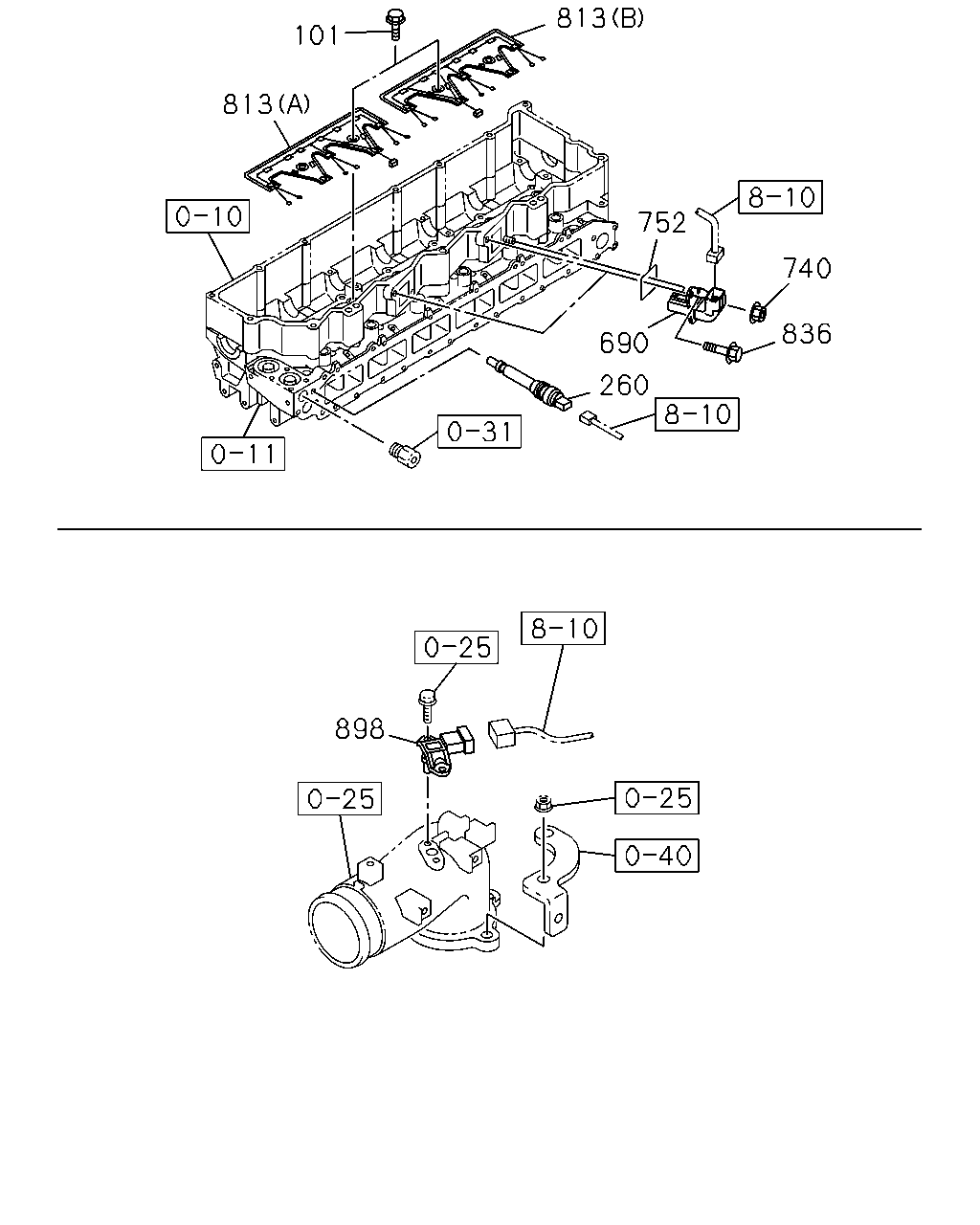

çizim 388194
752 690 740 836 101 813 813 898 260
BalonParca AdiParca NoAdetTipApplied Date A B
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 1312-1403 ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 1404- ● ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1312-1403 ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1404-1503 ● ●
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
690 CONNECTOR 8-94390-858-1 02 1 1312-1403 ●
690 CONNECTOR 8-94390-858-1 02 1 1404- ● ●
740 NUT
M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1403 ●
740 NUT
M8 FLANGE IDN 		0-91180-108-0 02 1 1404- ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1312-1403 ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1404- ● ●
813 HARNESS; INJECTOR
KD ENGINE<7MB> (A) FRONT 		8-97520-851-0 01 1 1411- ● ●
813 HARNESS; INJECTOR
KD ENGINE<7MB> (B) REAR 		8-97520-852-0 01 1 1411- ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98204-717-0 01 1 1312-1403 ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98204-717-0 01 1 1404-1410 ● ●
813 HARNESS; INJECTOR
EXC. KD ENGINE<7MB> (A) FRONT 		8-98204-717-0 01 1 1411- ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1312-1403 ●
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1404-1410 ● ●
813 HARNESS; INJECTOR
EXC. KD ENGINE<7MB> (B) REAR 		8-98204-718-0 01 1 1411- ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1312-1403 ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1404- ● ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1312-1403 ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1404- ● ●

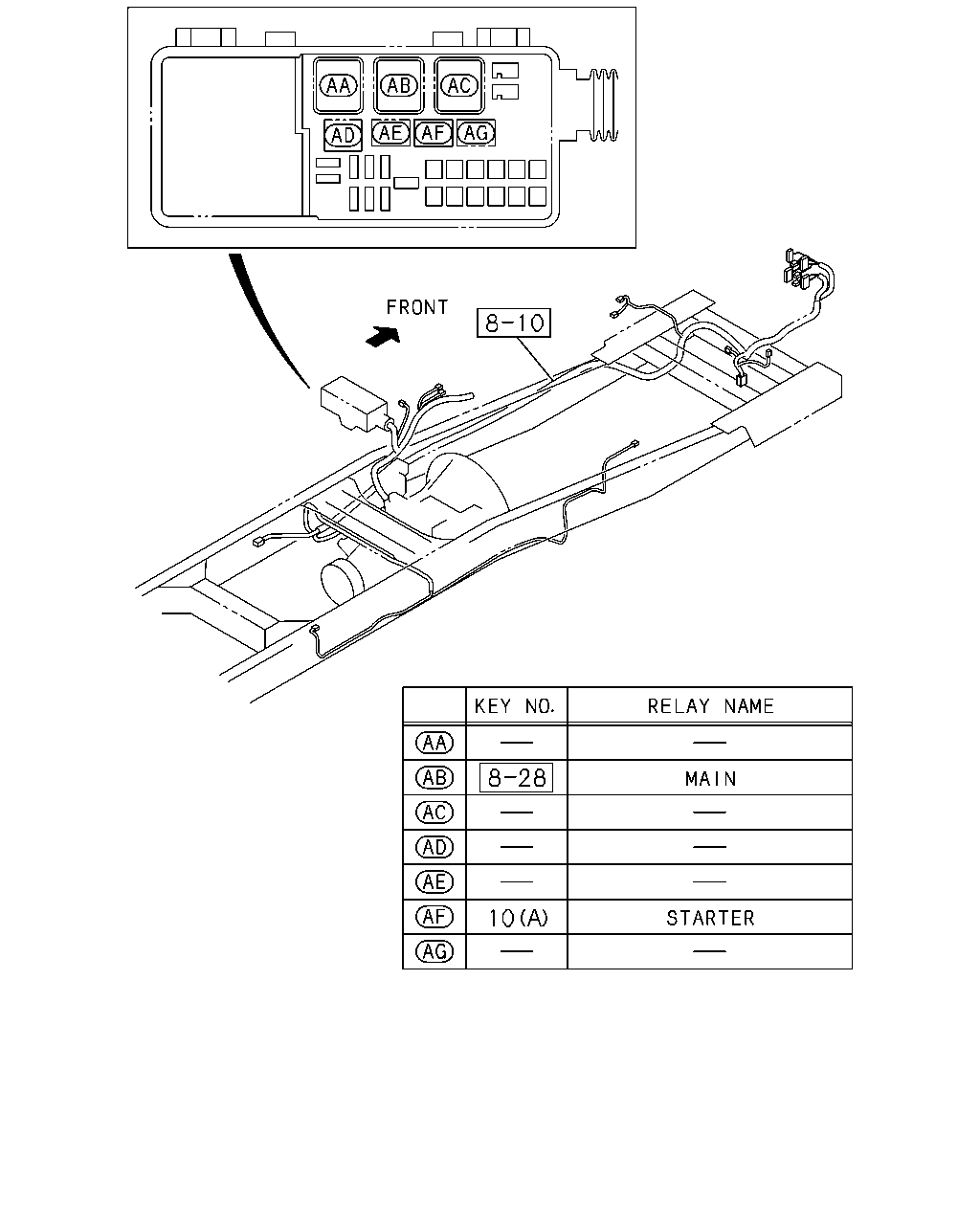

çizim 388922
10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1312-1403 ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1404- ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1312-1403 ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1404- ● ●
