0-40 — FUEL INJECTION SYSTEM (#131629) — 119 parça

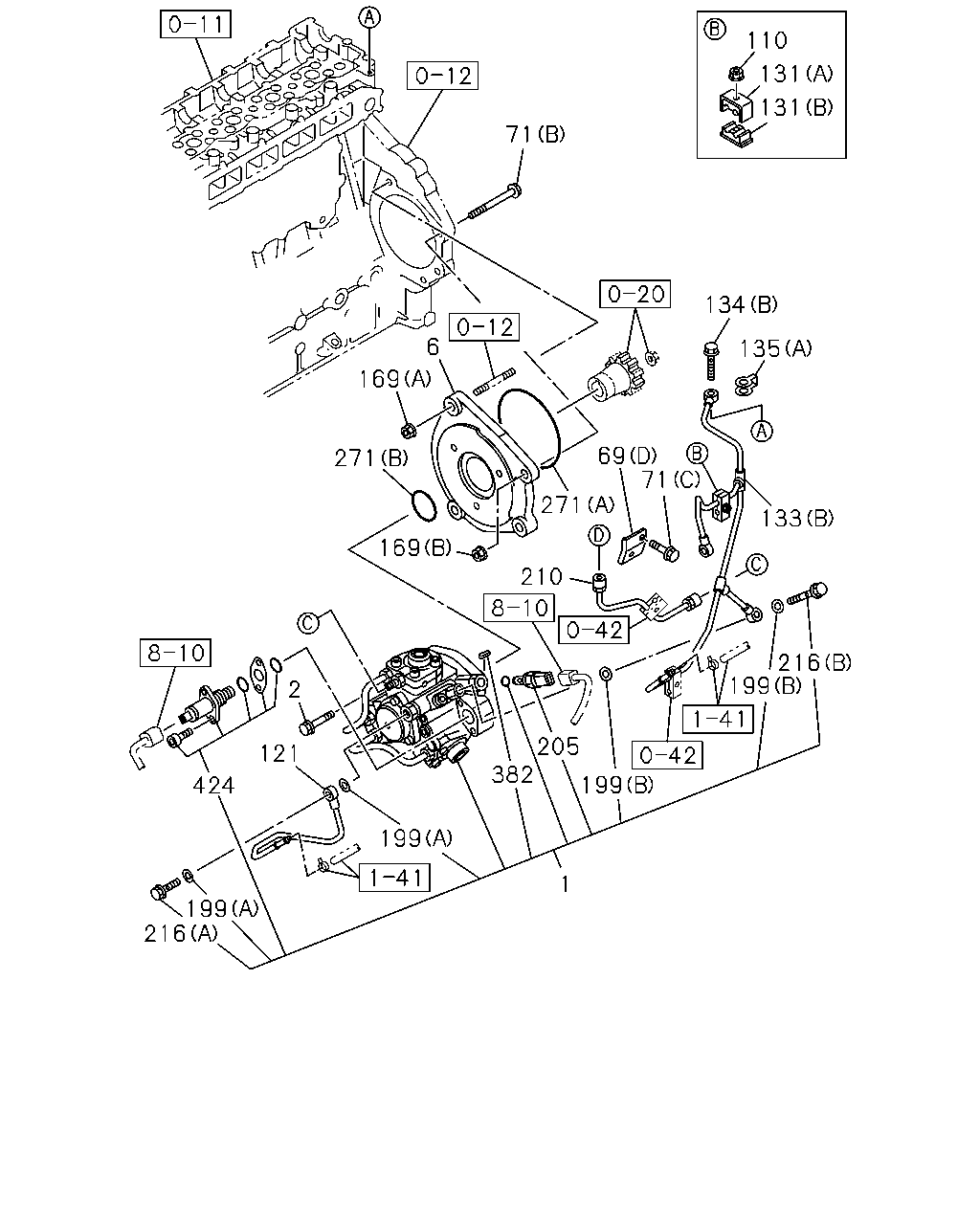

71 110 131 131 6 169 271 169 271 69 133 135 134 71 210 216 199 199 205 382 199 1 121 2 424 199 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ	8-97605-946-7	01	1	1312-
2	BOLT; INJ PUMP M8X28	8-94399-256-0	03	1	1312-
6	BRACKET; INJ PUMP TO C/BL	8-97601-154-1	01	1	1312-
69	BRACKET; INJ PIPE CLIP FVZ WIDE CAB(FG****) KD ENGINE<7MB> (B)	8-97520-846-0	01	1	1411-
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1312-1410
69	BRACKET; INJ PIPE CLIP FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (B)	8-98038-940-0	01	1	1411-
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1312-
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1312-
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	1312-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1312-
71	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	01	1	1312-
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1312-
110	NUT; CLIP M6 FLANGE IDN	0-91180-106-0	05	1	1312-
121	PIPE; FUEL,FEED PUMP,SUCTION	8-98126-331-0	01	1	1312-
131	CLIP; OVERFLOW LEAK OFF (A) ID=7 & 9 L=25	8-98000-010-2	01	1	1312-
131	CLIP; OVERFLOW LEAK OFF (B) ID=7 & 9 L=25	8-98000-011-2	01	1	1312-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	1312-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1312-
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1312-
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1312-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1312-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1312-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1312-
169	NUT; BRKT (A) M10 FLANGE IDN	0-91180-110-0	02	1	1312-
169	NUT; BRKT (B) M12 FLANGE IDN	0-91180-112-0	01	1	1312-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1312-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1312-
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1312-
210	PIPE; INJ,C/R FVZ WIDE CAB(FG****) KD ENGINE<7MB>	8-97520-845-0	01	1	1411-
210	PIPE; INJ,C/R	8-98059-805-0	01	1	1312-1410
210	PIPE; INJ,C/R FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB>	8-98059-805-0	01	1	1411-
216	BOLT; EYE (A)	5-15759-003-0	01	1	1312-
216	BOLT; EYE (B)	8-97351-388-0	01	1	1312-
216	BOLT; EYE (C)	8-98043-033-0	01	1	1312-
271	GASKET; INJ PUMP (A) ID=139.6	1-09623-464-0	01	1	1312-
271	GASKET; INJ PUMP (B) ID=52	8-98031-844-0	01	1	1312-
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1312-
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1312-

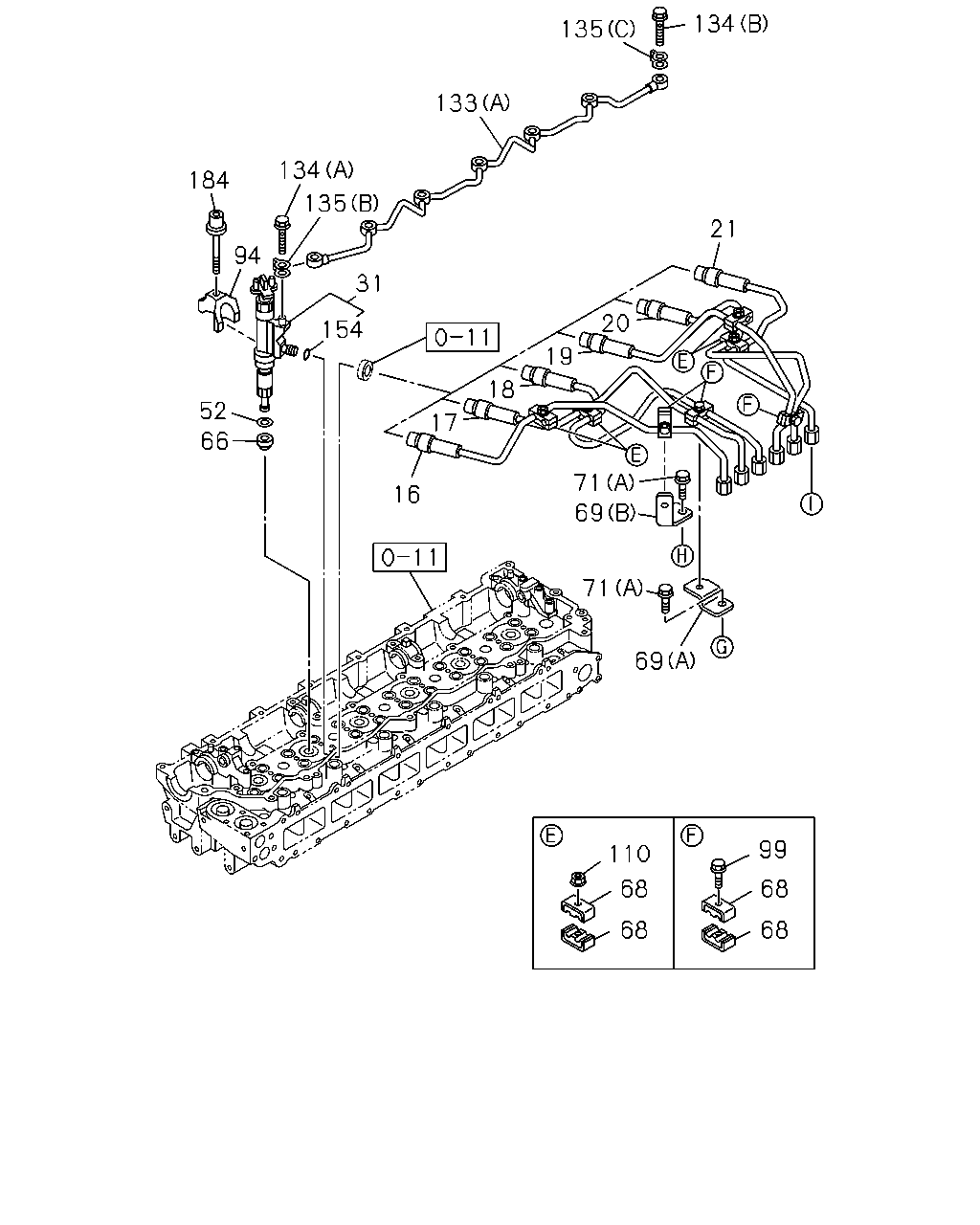

134 135 133 134 184 31 135 94 154 18 52 66 16 71 17 20 21 19 69 71 69 110 68 68 99 68 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PIPE; INJ NO.1 FVZ WIDE CAB(FG****) KD ENGINE<7MB>	8-97520-840-1	01	1	1411-1412
16	PIPE; INJ NO.1 FVZ WIDE CAB(FG****) KD ENGINE<7MB> IDN	8-98298-618-0	01	1	1501-
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1312-1403
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1410
16	PIPE; INJ NO.1 FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB>	8-98271-207-0	01	1	1411-1501
16	PIPE; INJ NO.1 FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB>	8-98298-611-0	01	1	1502-
17	PIPE; INJ NO.2 FVZ WIDE CAB(FG****) KD ENGINE<7MB>	8-97520-841-1	01	1	1411-1412
17	PIPE; INJ NO.2 FVZ WIDE CAB(FG****) KD ENGINE<7MB> IDN	8-98298-619-0	01	1	1501-
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1312-1403
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1410
17	PIPE; INJ NO.2 FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB>	8-98271-208-0	01	1	1411-1501
17	PIPE; INJ NO.2 FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB>	8-98298-612-0	01	1	1502-
18	PIPE; INJ NO.3 FVZ WIDE CAB(FG****) KD ENGINE<7MB>	8-97520-842-1	01	1	1411-1412
18	PIPE; INJ NO.3 FVZ WIDE CAB(FG****) KD ENGINE<7MB> IDN	8-98298-620-0	01	1	1501-
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1312-1403
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1410
18	PIPE; INJ NO.3 FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB>	8-98271-209-0	01	1	1411-1501
18	PIPE; INJ NO.3 FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB>	8-98298-613-0	01	1	1502-
19	PIPE; INJ NO.4 FVZ WIDE CAB(FG****) KD ENGINE<7MB>	8-97520-843-1	01	1	1411-1412
19	PIPE; INJ NO.4 FVZ WIDE CAB(FG****) KD ENGINE<7MB> IDN	8-98298-621-0	01	1	1501-
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1312-1403
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1410
19	PIPE; INJ NO.4 FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB>	8-98271-210-0	01	1	1411-1501
19	PIPE; INJ NO.4 FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB>	8-98298-614-0	01	1	1502-
20	PIPE; INJ NO.5 FVZ WIDE CAB(FG****) KD ENGINE<7MB>	8-97520-844-1	01	1	1411-1412
20	PIPE; INJ NO.5 FVZ WIDE CAB(FG****) KD ENGINE<7MB> IDN	8-98298-622-0	01	1	1501-
20	PIPE; INJ NO.5	8-98185-366-0	01	1	1312-1403
20	PIPE; INJ NO.5	8-98271-211-0	01	1	1404-1410
20	PIPE; INJ NO.5 FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB>	8-98271-211-0	01	1	1411-1501
20	PIPE; INJ NO.5 FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB>	8-98298-615-0	01	1	1502-
21	PIPE; INJ NO.6 FVZ WIDE CAB(FG****) KD ENGINE<7MB>	8-97520-864-1	01	1	1411-1412
21	PIPE; INJ NO.6 FVZ WIDE CAB(FG****) KD ENGINE<7MB> IDN	8-98298-623-0	01	1	1501-
21	PIPE; INJ NO.6	8-98185-367-0	01	1	1312-1403
21	PIPE; INJ NO.6	8-98271-212-0	01	1	1404-1410
21	PIPE; INJ NO.6 FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB>	8-98271-212-0	01	1	1411-1501
21	PIPE; INJ NO.6 FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB>	8-98298-617-0	01	1	1502-
31	NOZZLE ASM; INJ	8-97609-789-6	06	1	1312-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3	8-94173-412-0	06	1	1312-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	1312-
68	CLIP; INJ PIPE ID=11 & 11 L=19	8-98039-293-0	14	1	1312-1405
68	CLIP; INJ PIPE ID=11 & 11 L=19	8-98148-996-2	14	1	1406-
69	BRACKET; INJ PIPE CLIP FVZ WIDE CAB(FG****) KD ENGINE<7MB> (B)	8-97520-846-0	01	1	1411-
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1312-1410
69	BRACKET; INJ PIPE CLIP FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (B)	8-98038-940-0	01	1	1411-
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1312-
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1312-
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	1312-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1312-
71	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	01	1	1312-
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1312-
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1312-
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	03	1	1312-
110	NUT; CLIP M6 FLANGE IDN	0-91180-106-0	05	1	1312-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	1312-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1312-
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1312-
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1312-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1312-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1312-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1312-
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1312-
184	BOLT; NOZZLE HOLDER M8X54	8-98008-895-0	06	1	1312-

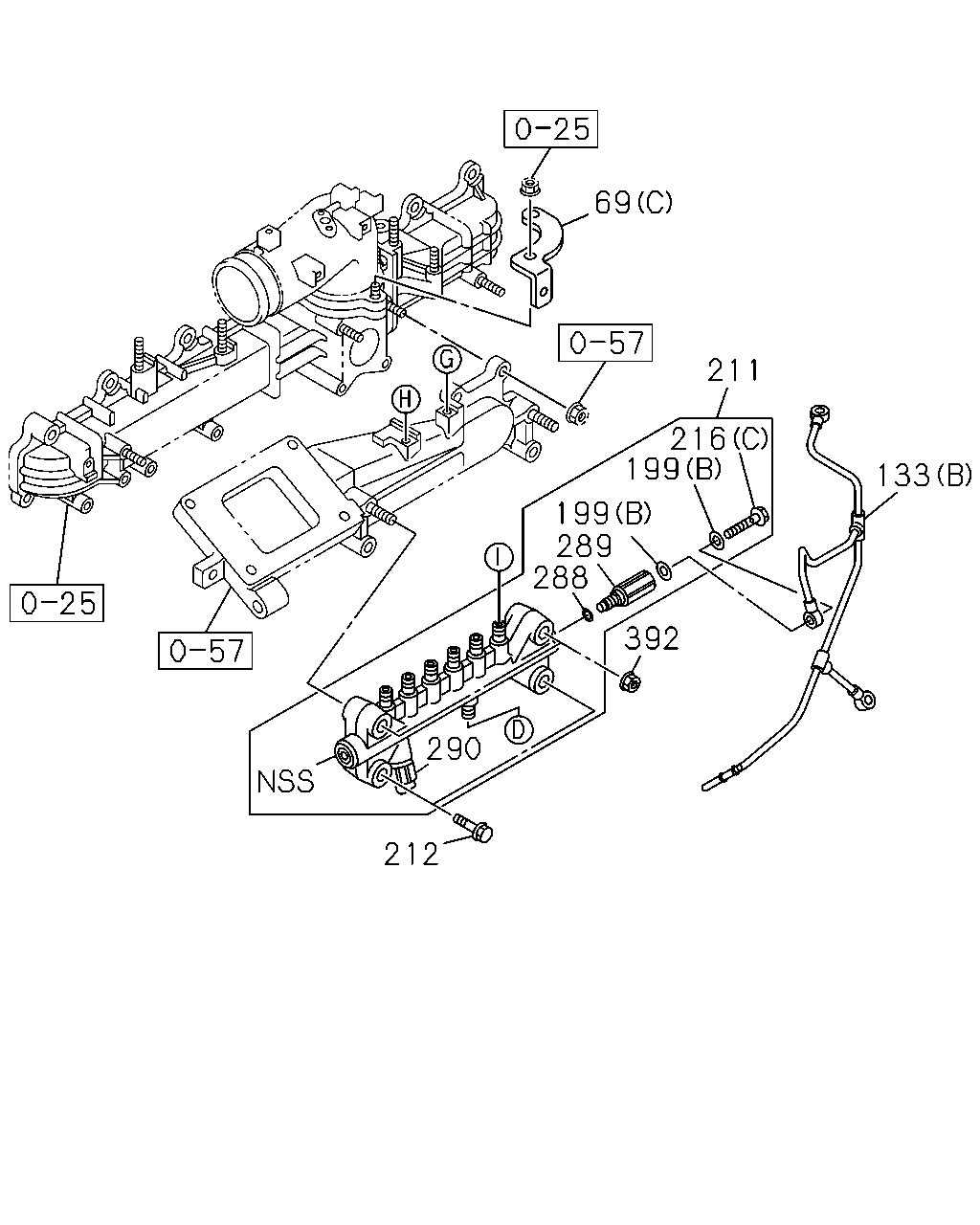

211 216 199 199 288 289 392 212 290 133 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	BRACKET; INJ PIPE CLIP FVZ WIDE CAB(FG****) KD ENGINE<7MB> (B)	8-97520-846-0	01	1	1411-
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1312-1410
69	BRACKET; INJ PIPE CLIP FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (B)	8-98038-940-0	01	1	1411-
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1312-
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1312-
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	1312-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	1312-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1312-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1312-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1312-
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1312-
212	BOLT; RAIL ASM M10X50 FLANGE	8-97372-243-0	02	1	1312-
216	BOLT; EYE (A)	5-15759-003-0	01	1	1312-
216	BOLT; EYE (B)	8-97351-388-0	01	1	1312-
216	BOLT; EYE (C)	8-98043-033-0	01	1	1312-
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1312-
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1312-
290	SENSOR; PRESS	8-98119-790-0	01	1	1312-
392	NUT; RAIL ASM M10 FLANGE IDN	0-91180-110-0	02	1	1312-
