0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#131627) — 111 parça

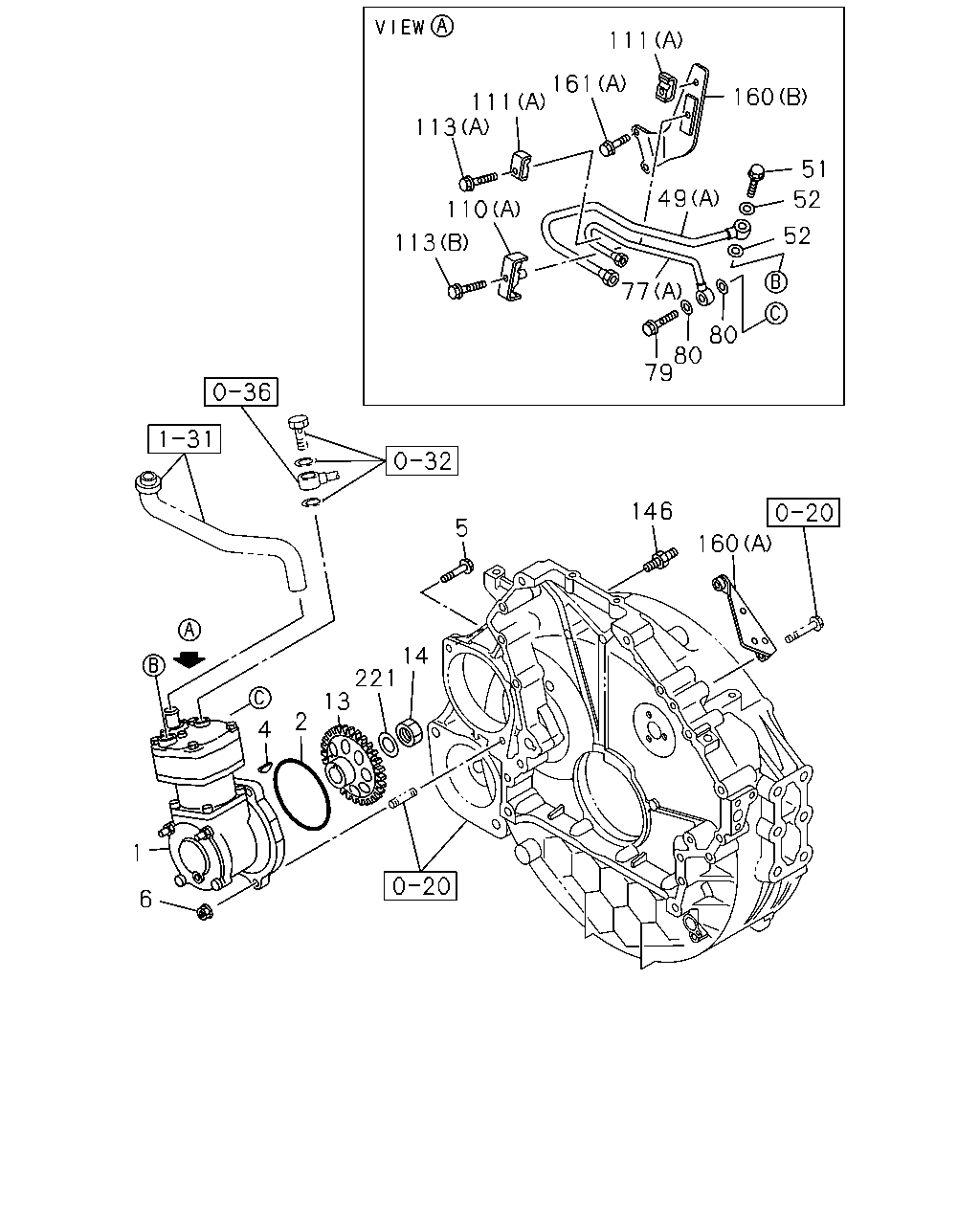

113 111 161 111 160 49 51 52 52 80 80 79 77 110 113 146 160 5 14 221 13 2 4 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-299-0	01	1	1312-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FVZ WIDE CAB(FG****) KD ENGINE<7MB> ID=162	8-97520-877-0	01	1	1411-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1312-1410
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> ID=162	1-09623-570-0	01	1	1411-
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	1312-
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	1312-
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1312-
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1312-
14	NUT; GEAR M20	0-91110-520-0	01	1	1312-
49	PIPE; AIR,CHARGE FVZ WIDE CAB(FG****) KD ENGINE<7MB> (A)	8-97520-849-0	01	1	1411-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98248-811-0	01	1	1402-
49	PIPE; AIR,CHARGE (A)	8-97618-722-0	01	1	1312-1401
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97618-722-0	01	1	1402-1410
49	PIPE; AIR,CHARGE FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (A)	8-97618-722-0	01	1	1411-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1312-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1312-
77	PIPE; AIR,GOV POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98249-512-0	01	1	1402-
77	PIPE; AIR,GOV (A)	8-97618-724-0	01	1	1312-1401
77	PIPE; AIR,GOV EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97618-724-0	01	1	1402-
79	BOLT; EYE,AIR PIPE TO CMPR M10X23	8-98037-824-0	01	1	1312-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	1312-
110	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=17 L=17	1-09701-284-0	06	1	1402-
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	1312-1401
110	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-94393-037-0	01	1	1402-
111	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98249-713-1	04	1	1402-
111	CLIP; AIR PIPE (A) ID=5.5 L=10.5	8-98029-953-1	02	1	1312-1401
111	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=5.5 L=10.5	8-98029-953-1	02	1	1402-
113	BOLT; CLIP,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) M6X35 FLANGE	0-28050-635-0	02	1	1402-
113	BOLT; CLIP,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X45 FLANGE	0-28050-845-0	03	1	1402-
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	1312-1401
113	BOLT; CLIP,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M6X40 FLANGE	0-28050-640-0	01	1	1402-
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28650-640-0	01	1	1312-1401
113	BOLT; CLIP,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6X40 FLANGE	0-28650-640-0	01	1	1402-
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1312-
160	BRACKET; AIR PIPE FVZ WIDE CAB(FG****) KD ENGINE<7MB> (A)	8-97520-815-0	01	1	1411-
160	BRACKET; AIR PIPE FVZ WIDE CAB(FG****) KD ENGINE<7MB> (B)	8-97520-816-1	01	1	1411-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98052-613-1	01	1	1402-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-98052-614-0	01	1	1402-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98248-812-0	01	1	1402-
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1312-1401
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97614-182-2	01	1	1402-1410
160	BRACKET; AIR PIPE FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (A)	8-97614-182-2	01	1	1411-
160	BRACKET; AIR PIPE (B)	8-98074-255-0	01	1	1312-1401
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98074-255-0	01	1	1402-1410
160	BRACKET; AIR PIPE FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (B)	8-98074-255-0	01	1	1411-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10X30 FLANGE	0-28151-030-0	02	1	1402-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X185	8-94393-483-0	01	1	1402-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) M12X128	8-94399-252-0	01	1	1402-
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	1312-1401
161	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE	0-28050-816-0	02	1	1402-
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1312-

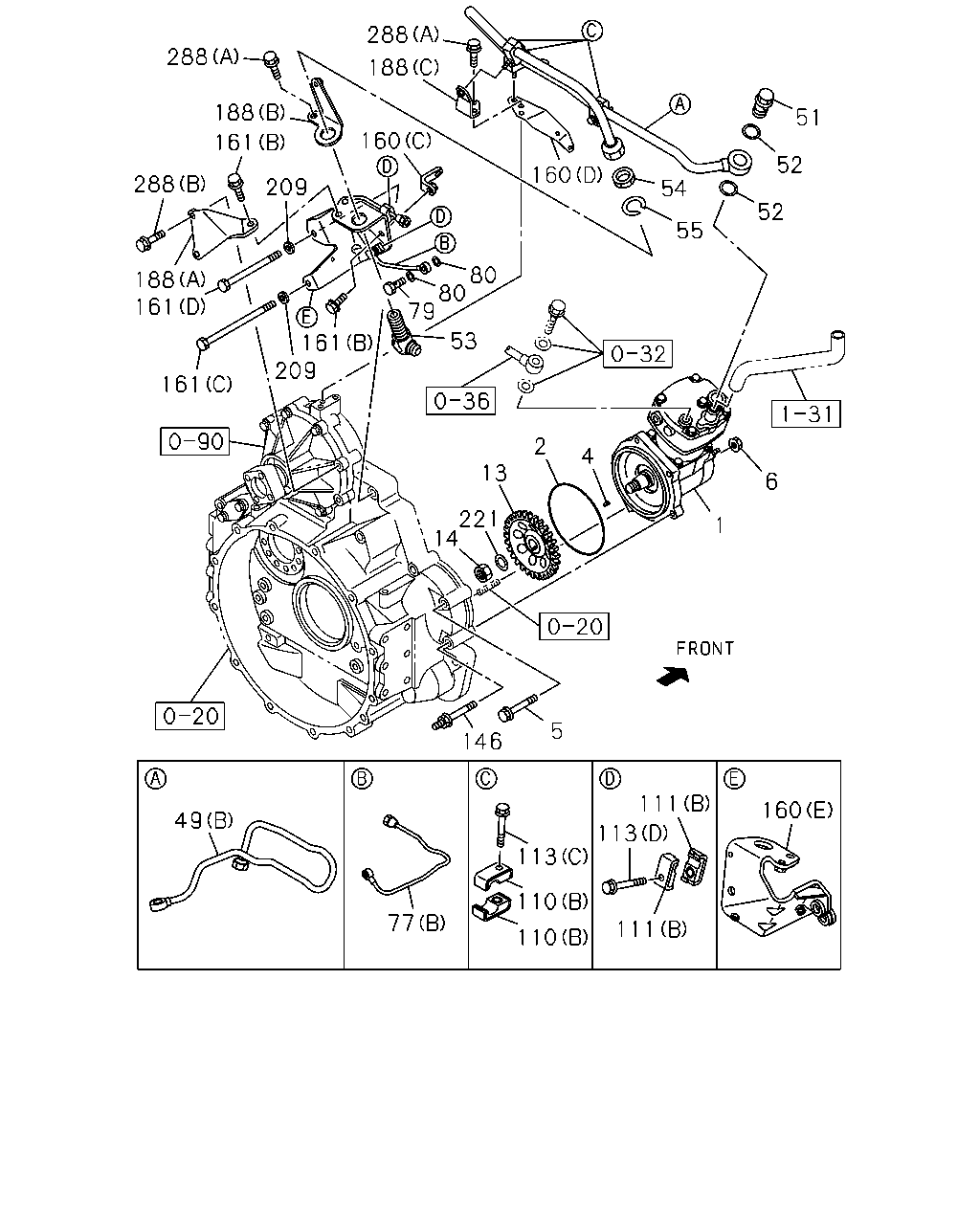

288 188 161 288 209 188 161 161 209 161 160 188 288 80 80 79 53 14 221 13 2 4 1 6 160 54 55 52 52 51 5 146 49 77 113 110 110 113 111 160 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-299-0	01	1	1312-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FVZ WIDE CAB(FG****) KD ENGINE<7MB> ID=162	8-97520-877-0	01	1	1411-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1312-1410
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> ID=162	1-09623-570-0	01	1	1411-
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	1312-
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	1312-
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1312-
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1312-
14	NUT; GEAR M20	0-91110-520-0	01	1	1312-
49	PIPE; AIR,CHARGE FVZ WIDE CAB(FG****) KD ENGINE<7MB> (A)	8-97520-849-0	01	1	1411-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98248-811-0	01	1	1402-
49	PIPE; AIR,CHARGE (A)	8-97618-722-0	01	1	1312-1401
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97618-722-0	01	1	1402-1410
49	PIPE; AIR,CHARGE FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (A)	8-97618-722-0	01	1	1411-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1312-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1312-
53	UNION; CHARGE PIPE POWER TAKE OFF-FLYWHEEL(6SZ) M22 & M26 ELBOW	8-98008-887-2	01	1	1402-
54	NUT; PIPE UNION POWER TAKE OFF-FLYWHEEL(6SZ) M26	8-98049-390-0	01	1	1402-
55	WASHER; LK,PIPE UNION POWER TAKE OFF-FLYWHEEL(6SZ) ID=27.5	0-91510-527-0	01	1	1402-
77	PIPE; AIR,GOV POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98249-512-0	01	1	1402-
77	PIPE; AIR,GOV (A)	8-97618-724-0	01	1	1312-1401
77	PIPE; AIR,GOV EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97618-724-0	01	1	1402-
79	BOLT; EYE,AIR PIPE TO CMPR M10X23	8-98037-824-0	01	1	1312-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	1312-
110	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=17 L=17	1-09701-284-0	06	1	1402-
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	1312-1401
110	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-94393-037-0	01	1	1402-
111	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98249-713-1	04	1	1402-
111	CLIP; AIR PIPE (A) ID=5.5 L=10.5	8-98029-953-1	02	1	1312-1401
111	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=5.5 L=10.5	8-98029-953-1	02	1	1402-
113	BOLT; CLIP,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) M6X35 FLANGE	0-28050-635-0	02	1	1402-
113	BOLT; CLIP,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X45 FLANGE	0-28050-845-0	03	1	1402-
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	1312-1401
113	BOLT; CLIP,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M6X40 FLANGE	0-28050-640-0	01	1	1402-
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28650-640-0	01	1	1312-1401
113	BOLT; CLIP,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6X40 FLANGE	0-28650-640-0	01	1	1402-
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1312-
160	BRACKET; AIR PIPE FVZ WIDE CAB(FG****) KD ENGINE<7MB> (A)	8-97520-815-0	01	1	1411-
160	BRACKET; AIR PIPE FVZ WIDE CAB(FG****) KD ENGINE<7MB> (B)	8-97520-816-1	01	1	1411-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98052-613-1	01	1	1402-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-98052-614-0	01	1	1402-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98248-812-0	01	1	1402-
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1312-1401
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97614-182-2	01	1	1402-1410
160	BRACKET; AIR PIPE FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (A)	8-97614-182-2	01	1	1411-
160	BRACKET; AIR PIPE (B)	8-98074-255-0	01	1	1312-1401
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98074-255-0	01	1	1402-1410
160	BRACKET; AIR PIPE FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (B)	8-98074-255-0	01	1	1411-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10X30 FLANGE	0-28151-030-0	02	1	1402-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X185	8-94393-483-0	01	1	1402-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) M12X128	8-94399-252-0	01	1	1402-
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	1312-1401
161	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X16 FLANGE	0-28050-816-0	02	1	1402-
188	STAY; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98052-615-1	01	1	1402-
188	STAY; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98053-882-0	01	1	1402-
188	STAY; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98053-883-0	01	1	1402-
209	WASHER; PL POWER TAKE OFF-FLYWHEEL(6SZ) ID=12.5 OD=22	8-94393-140-1	02	1	1402-
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1312-
288	BOLT; STAY FIX POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE	0-28050-820-0	03	1	1402-
288	BOLT; STAY FIX POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10X45 FLANGE	0-28151-045-0	02	1	1402-
