Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11567 - FVZ/GVZ(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

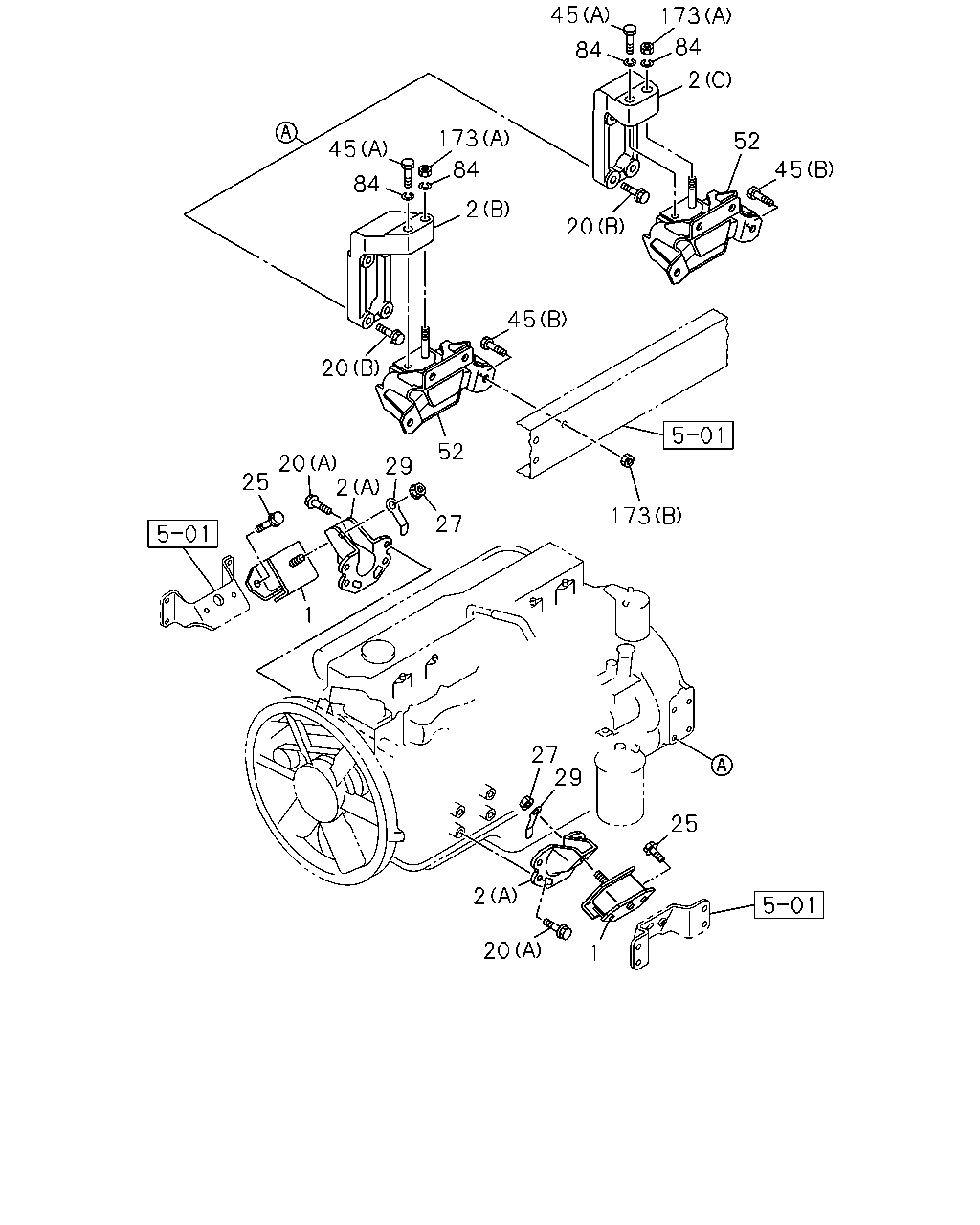

0-22 — ENGINE MOUNTING
(#131617) — 23 parça
45
84
173
2
84
52
45
20
45
52
27
29
2
20
25
1
20
2
84
173
84
45
173
25
29
27
2
1
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
1312-
2
FOOT; ENG
FVZ WIDE CAB(FG****) KD ENGINE<7MB> (B)
8-97520-873-0
01
1
1411-
2
FOOT; ENG
FVZ WIDE CAB(FG****) KD ENGINE<7MB> (B)
8-97520-874-0
01
1
1411-
2
FOOT; ENG
POWER TAKE OFF-FLYWHEEL(6SZ) (C)
8-97616-619-0
01
1
1402-
2
FOOT; ENG
POWER TAKE OFF-FLYWHEEL(6SZ) (C)
8-97616-620-0
01
1
1402-
2
FOOT; ENG
(A)
8-97602-589-1
02
1
1312-
2
FOOT; ENG
(B)
8-97611-990-0
01
1
1312-1401
2
FOOT; ENG
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)
8-97611-990-0
01
1
1402-1410
2
FOOT; ENG
FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (B)
8-97611-990-0
01
1
1411-
2
FOOT; ENG
(B)
8-97611-991-0
01
1
1312-1401
2
FOOT; ENG
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)
8-97611-991-0
01
1
1402-1410
2
FOOT; ENG
FVZ WIDE CAB(FG****) EXC. KD ENGINE<7MB> (B)
8-97611-991-0
01
1
1411-
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
1312-
20
BOLT; ENG FOOT
(B) M12X55
8-94399-884-1
08
1
1312-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
1312-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
1312-
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
1312-
45
BOLT; CUSHION RUBBER TO FRAME
(A) M16X60
0-10956-660-0
02
1
1312-
45
BOLT; CUSHION RUBBER TO FRAME
(B) M14X50
0-29261-450-0
08
1
1312-
52
RUBBER; CUSHION,ENG MTG,RR
8-98013-022-1
02
1
1312-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=17
0-91614-516-0
04
1
1312-
173
NUT; ENG MTG RR TO FRAME
(A) M16 IDN
0-91110-516-0
02
1
1312-
173
NUT; ENG MTG RR TO FRAME
(B) M14 FLANGE
0-91180-214-0
08
1
1312-
