◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11042 - FTR(LHD) EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#13161) — 129 parça

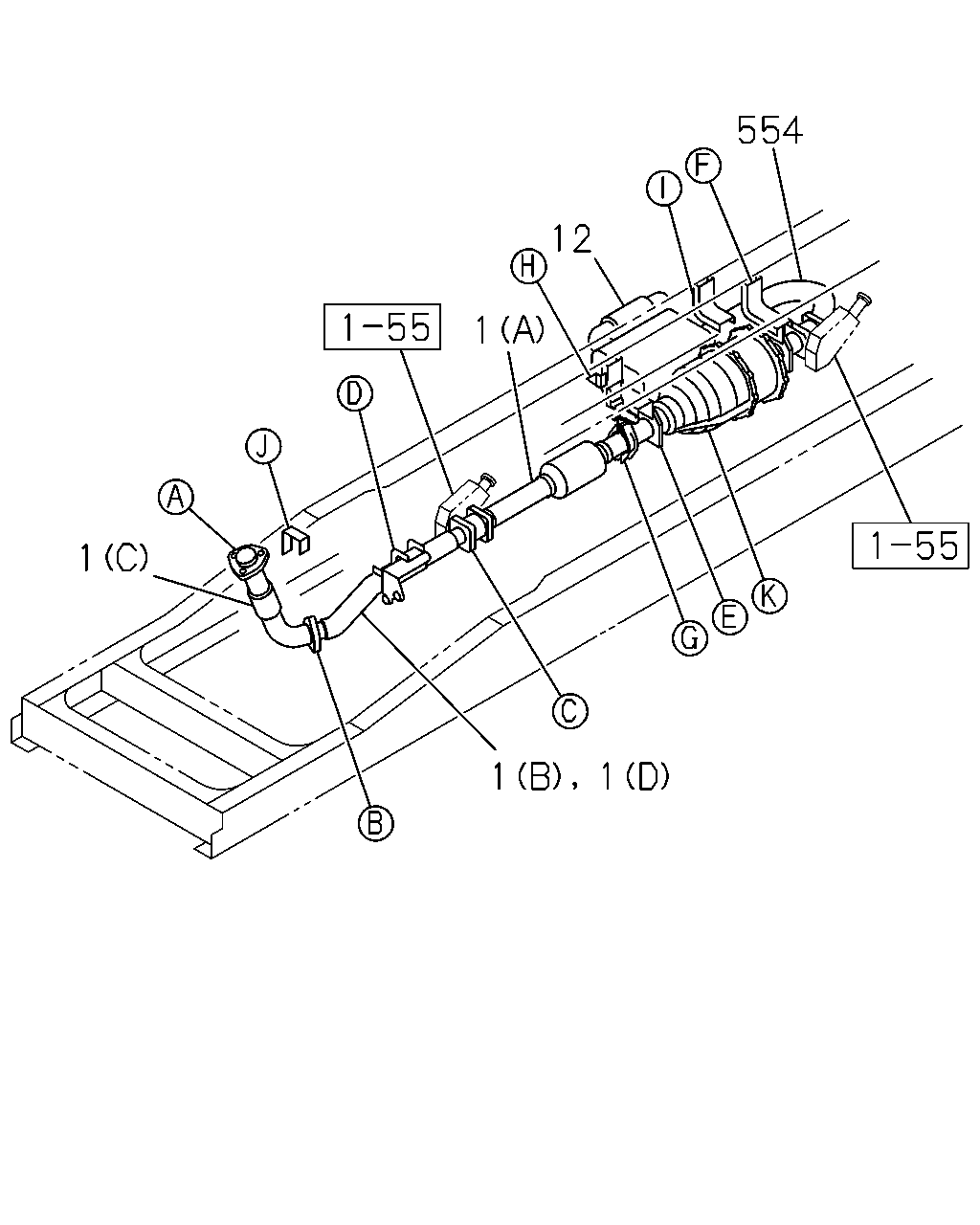

çizim 105444
554 12 1 1 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98063-857-0 01 1 0612-0712
1 PIPE; EXH
(D) 		8-98079-293-0 01 1 0801-1304
1 PIPE; EXH
(D) 		8-98234-513-0 01 1 1305-
1 PIPE; EXH
(A) 		8-98058-346-0 01 1 0612-
1 PIPE; EXH
(C) 		8-98050-133-2 01 1 0612-1304
1 PIPE; EXH
(C) 		8-98234-509-1 01 1 1305-
12 SILENCER ASM; EXH 8-98043-317-2 01 1 0612-
554 PIPE; EXH,SILENCER 8-98043-306-0 01 1 0612-

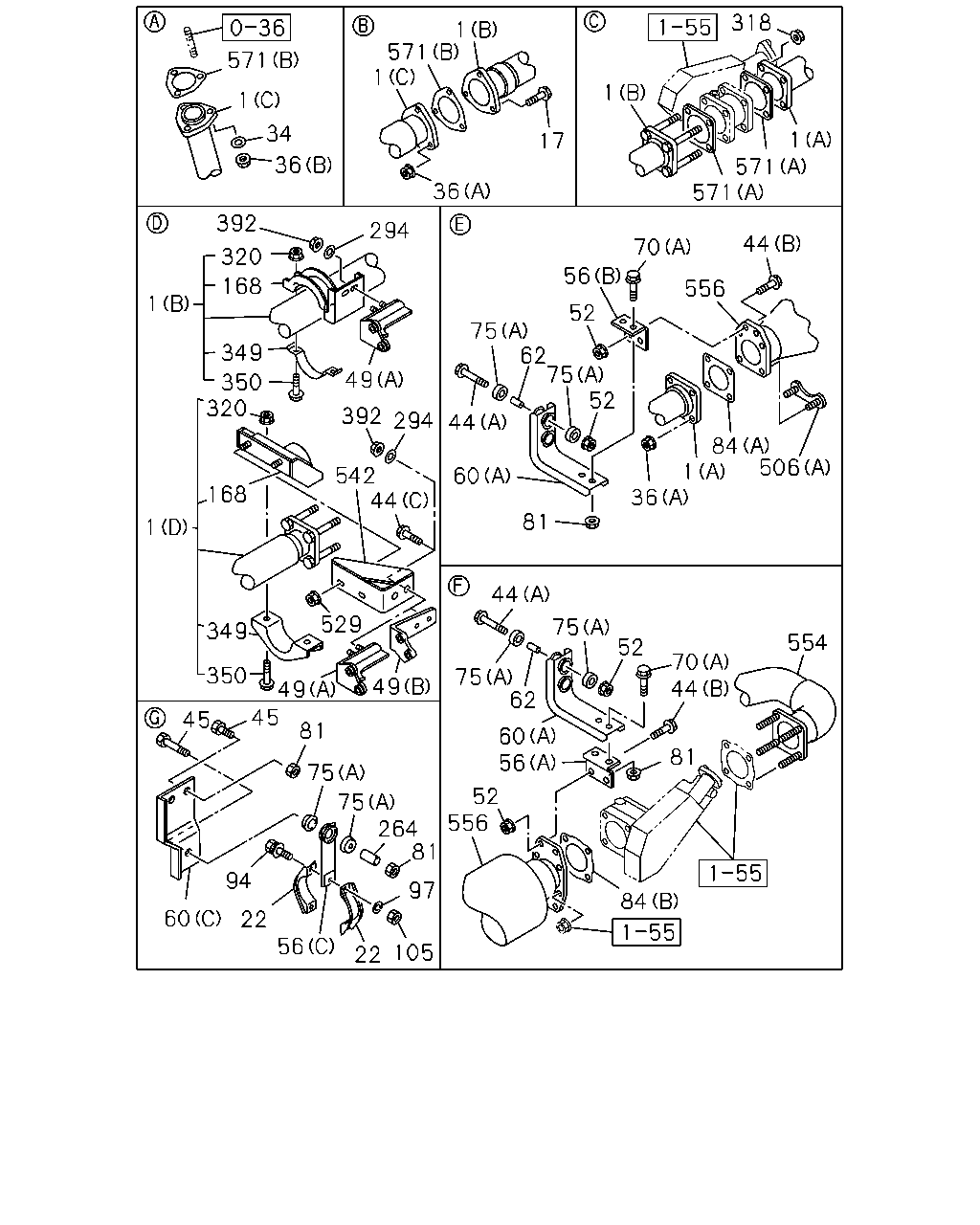

çizim 106245
318 1 571 571 1 17 1 571 1 36 36 34 1 571 44 556 70 56 52 75 62 75 52 36 1 84 506 81 60 44 294 392 49 294 392 320 168 1 349 350 320 168 1 349 350 45 94 60 22 56 22 105 97 81 264 75 75 81 45 49 529 49 44 542 44 75 75 62 60 56 52 556 84 81 44 70 52 554
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98063-857-0 01 1 0612-0712
1 PIPE; EXH
(D) 		8-98079-293-0 01 1 0801-1304
1 PIPE; EXH
(D) 		8-98234-513-0 01 1 1305-
1 PIPE; EXH
(A) 		8-98058-346-0 01 1 0612-
1 PIPE; EXH
(C) 		8-98050-133-2 01 1 0612-1304
1 PIPE; EXH
(C) 		8-98234-509-1 01 1 1305-
17 BOLT; EXH PIPE
M12X40 FLANGE 		0-28051-240-0 03 1 0612-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0612-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0612-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 04 1 0612-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 07 1 0612-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0612-
44 BOLT; BRKT
(C) M10X25 L=40 		0-44011-025-0 02 1 1305-
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0612-
44 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 04 1 0612-
45 BOLT; BRKT
M10X50 		0-10856-050-0 01 1 0612-
45 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0612-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98050-142-0 01 1 0612-0712
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98079-287-0 01 1 0801-1304
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-98113-012-0 01 1 1305-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0612-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(C) L=94 		1-22131-575-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-273-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-274-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(C) 		8-98059-537-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-155-0 02 1 0612-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-156-0 02 1 0612-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 04 1 0612-
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0612-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 08 1 0612-
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 04 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0612-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 02 1 0612-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0612-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0612-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0612-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0612-
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0612-
168 BRACKET; EXH PIPE,FRT 8-98063-859-0 01 1 0612-0712
168 BRACKET; EXH PIPE,FRT 8-98079-295-0 01 1 0801-
264 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 0612-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 02 1 0612-0712
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0801-
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0612-0712
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0801-
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0612-
349 CLAMP; EXH PIPE 8-98058-351-0 01 1 0612-1304
349 CLAMP; EXH PIPE 8-98115-162-0 01 1 1305-
350 BOLT; CLAMP,EXH PIPE
M10X30 FLANGE 		0-28651-030-0 02 1 0612-
392 NUT; CLAMP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0612-
506 BRACKET; STUD
(B) 		1-22134-214-0 02 1 0612-
529 NUT; BRKT,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0801-
542 BRACKET 8-98079-291-0 01 1 0801-1304
542 BRACKET 8-98234-525-0 01 1 1305-
554 PIPE; EXH,SILENCER 8-98043-306-0 01 1 0612-
556 DPD ASM 8-97613-331-6 01 1 0612-1010
556 DPD ASM 8-97622-883-4 01 1 1011-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0612-
571 GASKET
(B) ID=81 		8-98043-481-0 02 1 0612-

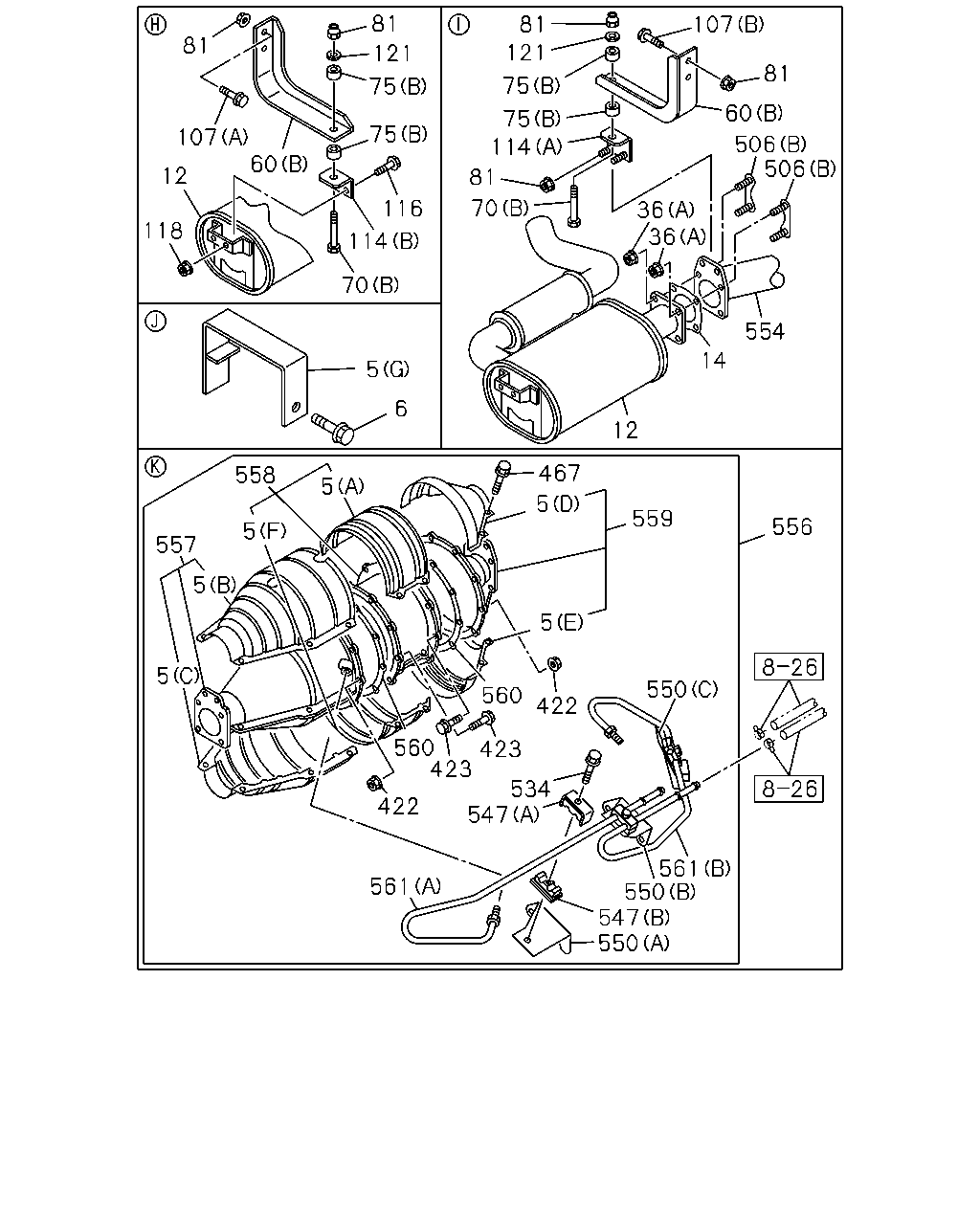

çizim 106501
81 81 107 81 121 121 81 75 75 60 75 114 75 107 60 506 506 12 81 70 116 36 36 118 114 70 554 14 5 6 12 467 558 5 5 559 556 5 557 5 5 5 550 560 422 560 423 423 534 547 422 561 550 547 550 561
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(G) 		1-33659-250-0 01 1 0612-
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0612-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0612-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0612-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0612-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0612-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0612-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 01 1 0612-
12 SILENCER ASM; EXH 8-98043-317-2 01 1 0612-
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 0612-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 04 1 0612-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 07 1 0612-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0612-
60 BRACKET; FRAME TO BRKT
(C) 		8-98059-537-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-155-0 02 1 0612-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-156-0 02 1 0612-
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0612-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 08 1 0612-
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 04 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0612-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 02 1 0612-
107 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 02 1 0612-
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0612-
114 BRACKET; EXH SILENCER
(A) 		1-22139-270-0 01 1 0612-
114 BRACKET; EXH SILENCER
(B) 		1-22139-311-0 01 1 0612-
116 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0612-0612
116 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0701-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 02 1 0612-
422 NUT; PIPE
M8 FLANGE 		0-91180-208-0 20 1 0612-0702
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0703-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0612-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0612-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0612-
506 BRACKET; STUD
(B) 		1-22134-214-0 02 1 0612-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0612-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0612-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0612-
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0612-
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0612-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0612-
554 PIPE; EXH,SILENCER 8-98043-306-0 01 1 0612-
556 DPD ASM 8-97613-331-6 01 1 0612-1010
556 DPD ASM 8-97622-883-4 01 1 1011-
557 CATALYST ASM 8-97608-055-8 01 1 0612-
558 FILTER ASM 8-97608-057-3 01 1 0612-
559 COVER; RR 8-97611-078-0 01 1 0612-1010
559 COVER; RR 8-97622-887-0 01 1 1011-
560 GASKET; DPD 8-97611-080-0 02 1 0612-
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0612-1010
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011-
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0612-1010
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011-
