◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#131602) — 63 parça

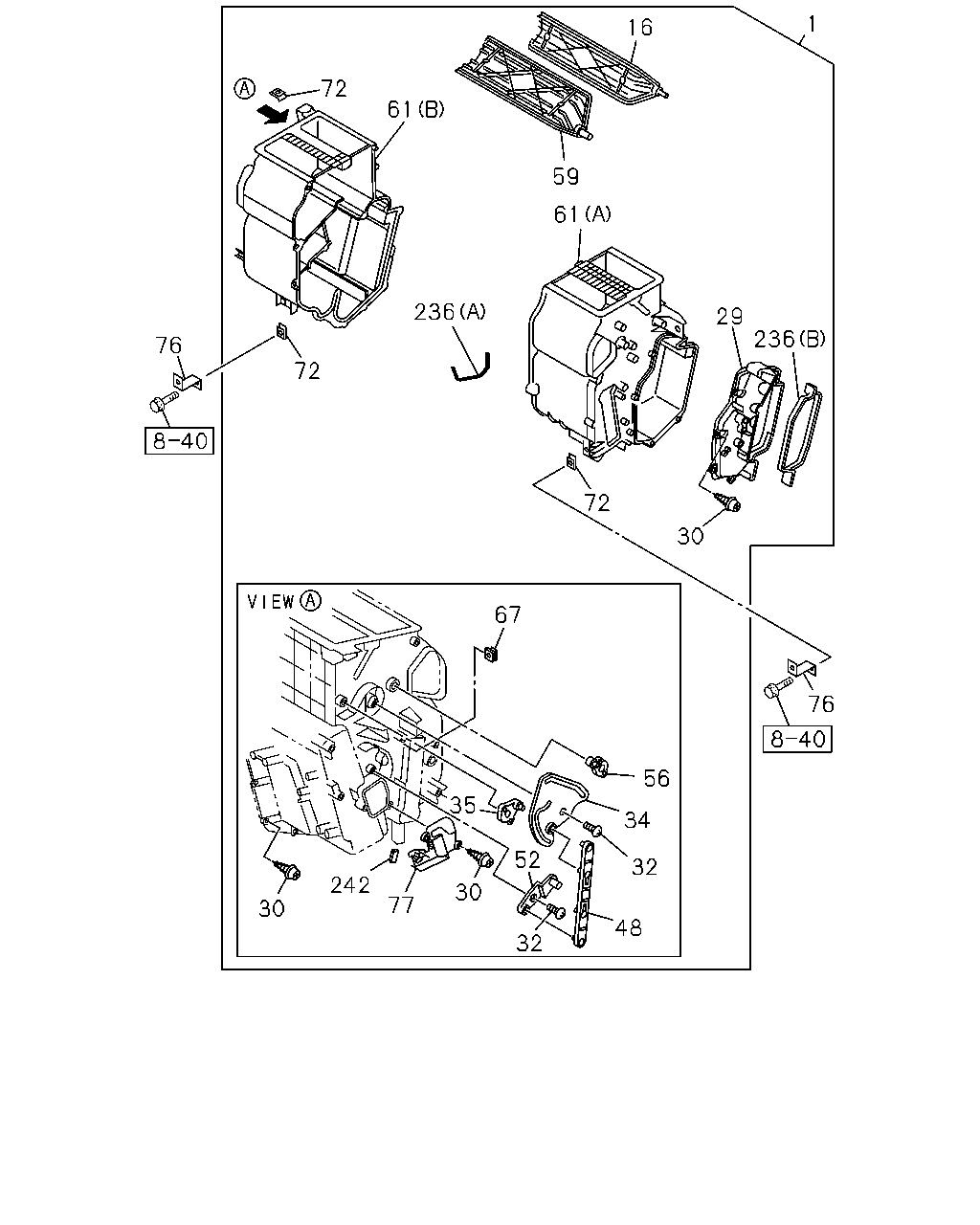

çizim 389575
1 16 61 59 61 236 72 76 29 236 30 72 76 67 56 34 32 52 32 30 35 77 242 30 48 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98214-400-0 01 1 1312-1401 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98214-400-1 01 1 1402-1402 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98214-400-1 01 1 1403- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-387-0 01 1 1312-1401 ●
16 SHUTTER; HTR UNIT,CENTER UPR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-387-0 01 1 1402-1402 ●
16 SHUTTER; HTR UNIT,CENTER UPR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-387-0 01 1 1403- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98231-367-0 01 1 1312-1401 ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98231-367-0 01 1 1402-1402 ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98231-367-0 01 1 1403- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING IDN 		8-97957-708-0 20 1 1312-1401 ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M4X16 TAPPING IDN 		8-97957-708-0 20 1 1402-1402 ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M4X16 TAPPING IDN 		8-97957-708-0 20 1 1403- ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 		8-98047-416-0 02 1 1312-1401 ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M4X16 		8-98047-416-0 02 1 1402-1402 ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M4X16 		8-98047-416-0 02 1 1403- ● ●
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-389-0 01 1 1312-1401 ●
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-389-0 01 1 1402-1402 ●
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-389-0 01 1 1403- ● ●
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-392-0 01 1 1312-1401 ●
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-392-0 01 1 1402-1402 ●
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-392-0 01 1 1403- ● ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-391-0 01 1 1312-1401 ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-391-0 01 1 1402-1402 ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-391-0 01 1 1403- ● ●
52 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-390-0 01 1 1312-1401 ●
52 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-390-0 01 1 1402-1402 ●
52 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-390-0 01 1 1403- ● ●
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-393-0 01 1 1312-1401 ●
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-393-0 01 1 1402-1402 ●
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-393-0 01 1 1403- ● ●
59 SHUTTER; HTR UNIT,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-386-0 01 1 1312-1401 ●
59 SHUTTER; HTR UNIT,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-386-0 01 1 1402-1402 ●
59 SHUTTER; HTR UNIT,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-386-0 01 1 1403- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98077-422-0 01 1 1312-1401 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A) 		8-98077-422-0 01 1 1402-1402 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A) 		8-98077-422-0 01 1 1403- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-423-0 01 1 1312-1401 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) 		8-98077-423-0 01 1 1402-1402 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) 		8-98077-423-0 01 1 1403- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-417-0 01 1 1312-1401 ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-417-0 01 1 1402-1402 ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-417-0 01 1 1403- ● ●
72 NUT; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 		8-98047-428-0 03 1 1312-1401 ●
72 NUT; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M6 		8-98047-428-0 03 1 1402-1402 ●
72 NUT; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M6 		8-98047-428-0 03 1 1403- ● ●
76 BRACKET; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98009-742-1 02 1 1312-1401 ●
76 BRACKET; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98009-742-1 02 1 1402-1402 ●
76 BRACKET; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98009-742-1 02 1 1403- ● ●
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-414-0 01 1 1312-1401 ●
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-414-0 01 1 1402-1402 ●
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-414-0 01 1 1403- ● ●
236 GASKET; HEATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98047-420-0 01 1 1312-1401 ●
236 GASKET; HEATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A) 		8-98047-420-0 01 1 1402-1402 ●
236 GASKET; HEATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A) 		8-98047-420-0 01 1 1403- ● ●
236 GASKET; HEATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98047-421-0 01 1 1312-1401 ●
236 GASKET; HEATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) 		8-98047-421-0 01 1 1402-1402 ●
236 GASKET; HEATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) 		8-98047-421-0 01 1 1403- ● ●
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98048-816-0 01 1 1312-1401 ●
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98048-816-0 01 1 1402-1402 ●
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98048-816-0 01 1 1403-1411 ● ●

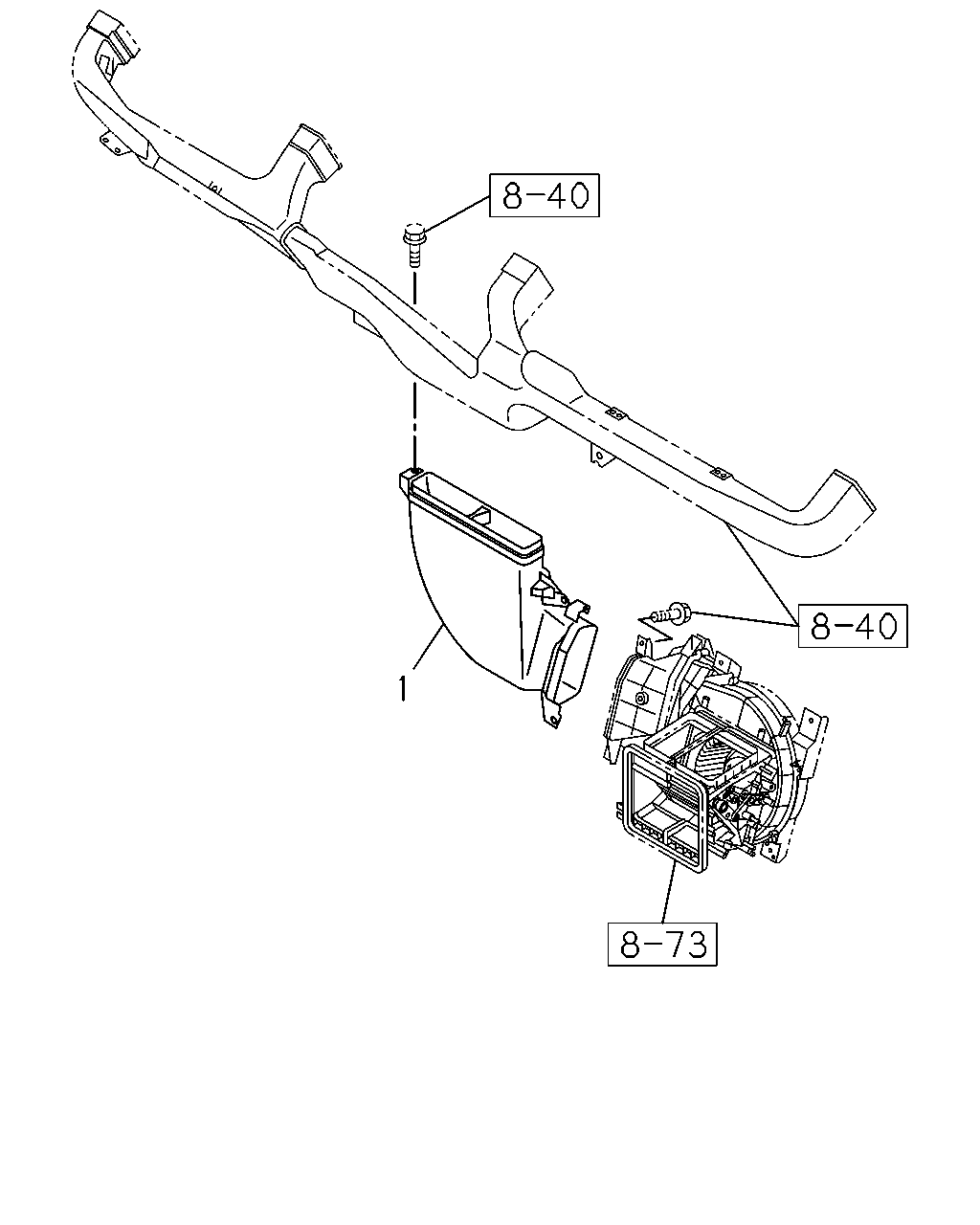

çizim 413892
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98214-400-0 01 1 1312-1401 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98214-400-1 01 1 1402-1402 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98214-400-1 01 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
