◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#131600) — 109 parça

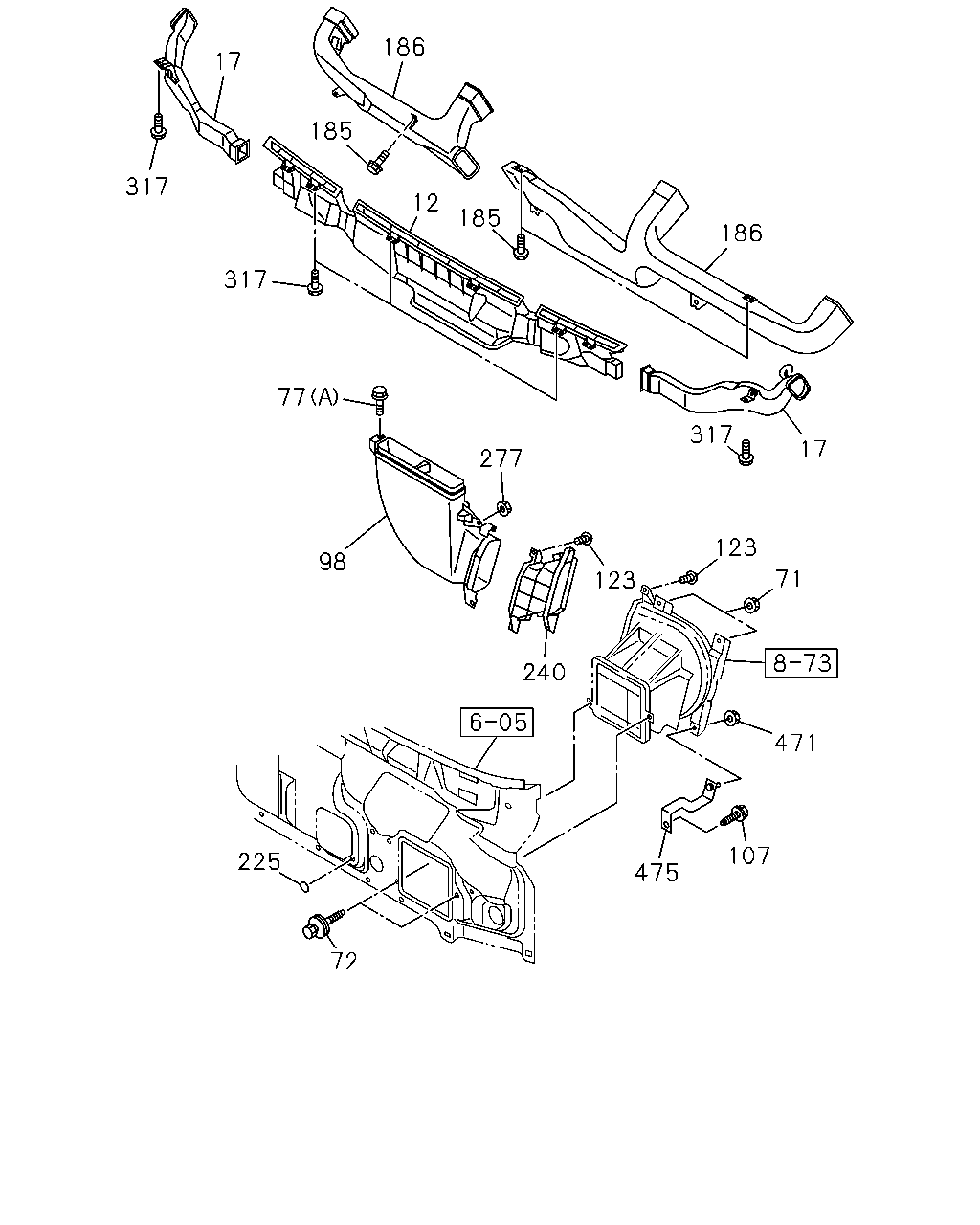

çizim 389016
17 317 317 77 98 277 123 240 123 71 471 107 475 72 225 317 17 186 185 12 186 185
BalonParca AdiParca NoAdetTipApplied Date A B
12 NOZZLE; DEFROSTER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98040-009-3 01 1 1312-1401 ●
12 NOZZLE; DEFROSTER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98040-009-3 01 1 1402-1402 ●
12 NOZZLE; DEFROSTER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98040-009-3 01 1 1403- ● ●
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98040-018-1 01 1 1312-1401 ●
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98040-018-1 01 1 1402-1402 ●
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98040-018-1 01 1 1403- ● ●
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98040-013-1 01 1 1312-1401 ●
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98040-013-1 01 1 1402-1402 ●
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98040-013-1 01 1 1403- ● ●
71 NUT; BLOWER UNIT TO DASH
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 02 1 1312-1402 ●
71 NUT; BLOWER UNIT TO DASH
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 02 1 1403- ● ●
72 BOLT; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1312-1402 ●
72 BOLT; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1403- ● ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16 FLANGE 		0-28650-616-0 01 1 1312-1402 ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16 FLANGE 		0-28650-616-0 01 1 1403- ● ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X20 FLANGE IDN 		0-28650-620-0 02 1 1312-1401 ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) M6X20 FLANGE IDN 		0-28650-620-0 02 1 1402-1402 ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) M6X20 FLANGE IDN 		0-28650-620-0 02 1 1403- ● ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1312-1401 ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1402-1402 ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1403- ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> IDN 		8-97520-909-0 01 1 1402-1402 ●
98 DUCT; BLOWER UNIT TO HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> IDN 		8-97520-909-0 01 1 1403- ● ●
107 BOLT; STAY,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1312-1402 ●
107 BOLT; STAY,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1403- ● ●
123 SCREW; DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1312-1402 ●
123 SCREW; DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1403- ● ●
185 SCREW; VENT DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1312-1402 ●
185 SCREW; VENT DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1403- ● ●
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-97585-489-4 01 1 1312-1402 ●
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-97585-489-4 01 1 1403-1410 ● ●
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98285-574-0 01 1 1411- ● ●
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98174-737-0 01 1 1312-1402 ●
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98174-737-0 01 1 1403-1410 ● ●
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98285-571-0 01 1 1411- ● ●
225 SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> OD=25 BLACK 		1-76798-019-0 01 1 1402-1402 ●
225 SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> OD=25 BLACK 		1-76798-019-0 01 1 1403- ● ●
225 SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK 		1-76798-019-0 01 1 1312-1401 ●
225 SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> OD=25 BLACK 		1-76798-019-0 03 1 1402-1402 ●
225 SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> OD=25 BLACK 		1-76798-019-0 03 1 1403- ● ●
240 DUCT; AIR,HTR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98041-402-1 01 1 1312-1402 ●
240 DUCT; AIR,HTR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98041-402-1 01 1 1403- ● ●
277 NUT; HTR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 01 1 1312-1402 ●
277 NUT; HTR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 01 1 1403- ● ●
317 SCREW; DEFROSTER NOZZLE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1312-1401 ●
317 SCREW; DEFROSTER NOZZLE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1402-1402 ●
317 SCREW; DEFROSTER NOZZLE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1403- ● ●
471 NUT; BLOWER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 01 1 1312-1402 ●
471 NUT; BLOWER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 01 1 1403- ● ●
475 BRACKET; BLOWER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98043-500-1 01 1 1312-1402 ●
475 BRACKET; BLOWER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98043-500-1 01 1 1403- ● ●

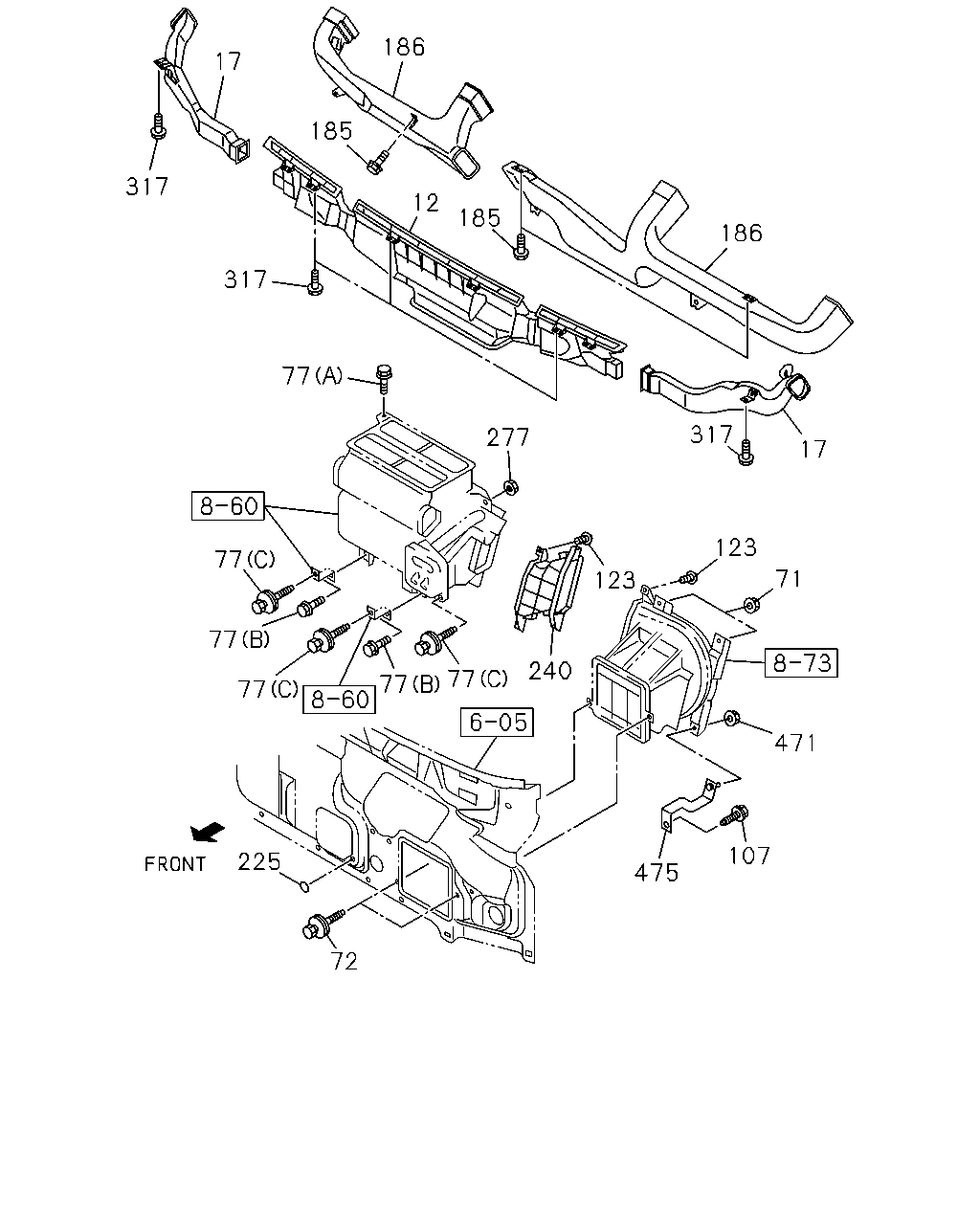

çizim 389537
17 317 317 77 277 185 186 12 185 186 17 317 123 71 123 471 107 475 240 77 77 77 77 77 225 72
BalonParca AdiParca NoAdetTipApplied Date A B
12 NOZZLE; DEFROSTER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98040-009-3 01 1 1312-1401 ●
12 NOZZLE; DEFROSTER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98040-009-3 01 1 1402-1402 ●
12 NOZZLE; DEFROSTER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98040-009-3 01 1 1403- ● ●
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98040-018-1 01 1 1312-1401 ●
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98040-018-1 01 1 1402-1402 ●
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98040-018-1 01 1 1403- ● ●
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98040-013-1 01 1 1312-1401 ●
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98040-013-1 01 1 1402-1402 ●
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98040-013-1 01 1 1403- ● ●
71 NUT; BLOWER UNIT TO DASH
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 02 1 1312-1402 ●
71 NUT; BLOWER UNIT TO DASH
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 02 1 1403- ● ●
72 BOLT; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1312-1402 ●
72 BOLT; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1403- ● ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16 FLANGE 		0-28650-616-0 01 1 1312-1402 ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16 FLANGE 		0-28650-616-0 01 1 1403- ● ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X20 FLANGE IDN 		0-28650-620-0 02 1 1312-1401 ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) M6X20 FLANGE IDN 		0-28650-620-0 02 1 1402-1402 ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) M6X20 FLANGE IDN 		0-28650-620-0 02 1 1403- ● ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1312-1401 ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1402-1402 ●
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1403- ● ●
107 BOLT; STAY,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1312-1402 ●
107 BOLT; STAY,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1403- ● ●
123 SCREW; DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1312-1402 ●
123 SCREW; DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1403- ● ●
185 SCREW; VENT DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1312-1402 ●
185 SCREW; VENT DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1403- ● ●
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-97585-489-4 01 1 1312-1402 ●
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-97585-489-4 01 1 1403-1410 ● ●
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98285-574-0 01 1 1411- ● ●
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98174-737-0 01 1 1312-1402 ●
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98174-737-0 01 1 1403-1410 ● ●
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98285-571-0 01 1 1411- ● ●
225 SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> OD=25 BLACK 		1-76798-019-0 01 1 1402-1402 ●
225 SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> OD=25 BLACK 		1-76798-019-0 01 1 1403- ● ●
225 SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK 		1-76798-019-0 01 1 1312-1401 ●
225 SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> OD=25 BLACK 		1-76798-019-0 03 1 1402-1402 ●
225 SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> OD=25 BLACK 		1-76798-019-0 03 1 1403- ● ●
240 DUCT; AIR,HTR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98041-402-1 01 1 1312-1402 ●
240 DUCT; AIR,HTR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98041-402-1 01 1 1403- ● ●
277 NUT; HTR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 01 1 1312-1402 ●
277 NUT; HTR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 01 1 1403- ● ●
317 SCREW; DEFROSTER NOZZLE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1312-1401 ●
317 SCREW; DEFROSTER NOZZLE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1402-1402 ●
317 SCREW; DEFROSTER NOZZLE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1403- ● ●
471 NUT; BLOWER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 01 1 1312-1402 ●
471 NUT; BLOWER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 01 1 1403- ● ●
475 BRACKET; BLOWER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98043-500-1 01 1 1312-1402 ●
475 BRACKET; BLOWER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98043-500-1 01 1 1403- ● ●
çizim 413807
223 50 476 206
BalonParca AdiParca NoAdetTipApplied Date A B
50 VALVE ASM; HTR
IDN 		8-97925-112-0 01 1 1312-1402 ●
50 VALVE ASM; HTR
IDN 		8-97925-112-0 01 1 1403- ● ●
206 GROMMET; A/C PIPE TO BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98019-649-0 01 1 1312-1401 ●
206 GROMMET; A/C PIPE TO BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98019-649-0 01 1 1402-1402 ●
206 GROMMET; A/C PIPE TO BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98019-649-0 01 1 1403- ● ●
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 IDN 		8-94441-539-0 01 1 1312-1402 ●
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 IDN 		8-94441-539-0 01 1 1403- ● ●
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR IDN 		8-98062-675-0 01 1 1312-1402 ●
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR IDN 		8-98062-675-0 01 1 1403- ● ●
