Isuzu WW
▶
TRUCKS
▶
FVR
▶
10631 - FVR-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#1316) — 42 parça
Tümü
A - FVR6MC
B - FVR6MF
◀

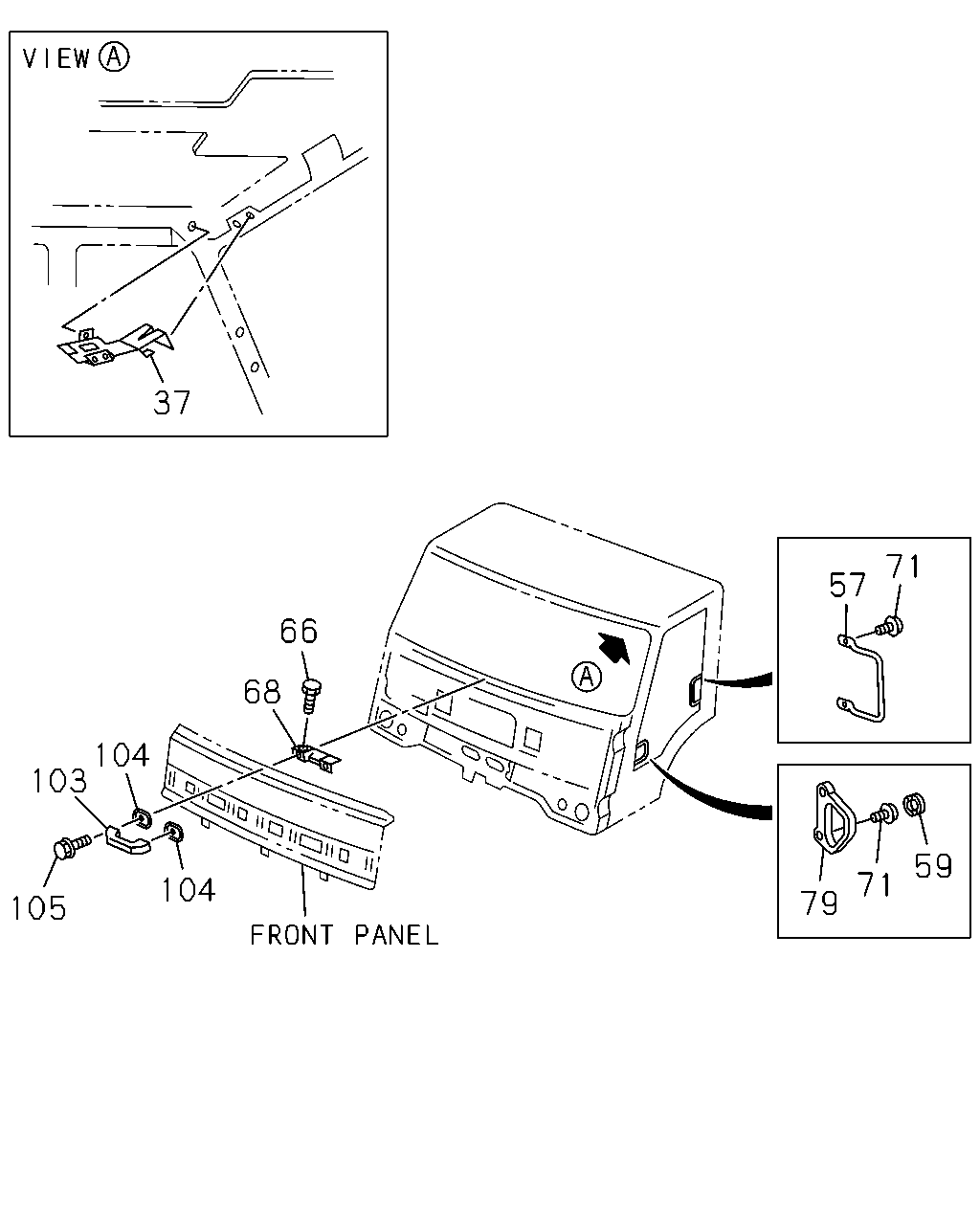

[743A] NO.1 (15 parça)

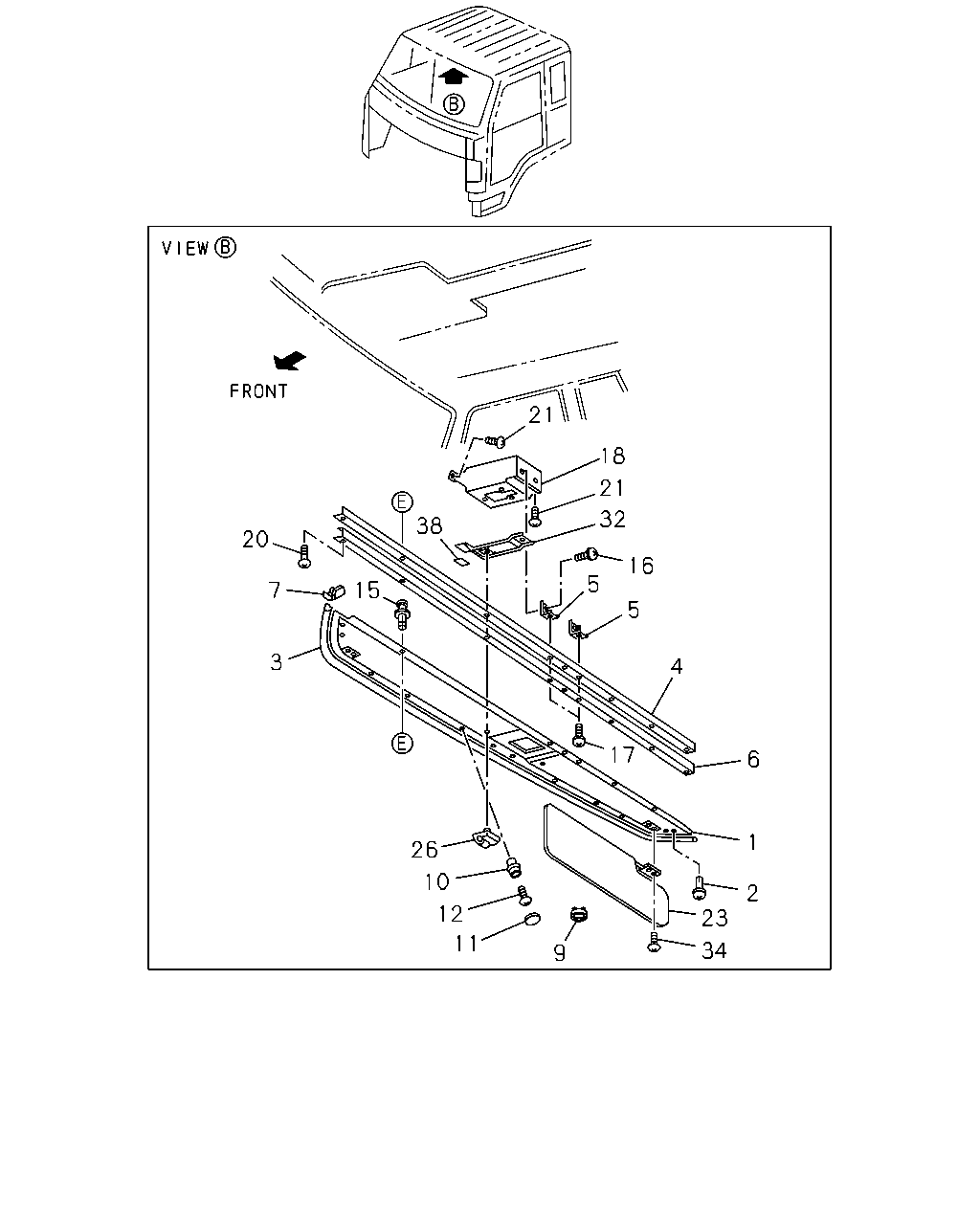

[743A] NO.2 (27 parça)
▶
37
71
57
66
68
104
103
59
71
104
79
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
37
SUPPORT; SUN VISOR & HTR SHELF FRAME
DELUXE CAB(W14)
1-73318-234-2
01
1
9202-
●
●
37
SUPPORT; SUN VISOR & HTR SHELF FRAME
DELUXE CAB(W14)
1-73318-233-2
01
1
9202-
●
●
57
GRIP; ASSIST,RR PILLAR
1-71998-467-0
02
1
9202-
●
●
59
COVER; ASSIST GRIP
1-73617-056-0
02
1
9202-9208
●
●
59
COVER; ASSIST GRIP
1-73617-037-1
02
1
9209-
●
●
66
BOLT; ASSIST GRIP BRKT
M6X20 W/LK&PL WASHER
1-09980-493-0
04
1
9202-
●
●
68
BRACKET; ASSIST GRIP,FRT PANEL
1-65580-192-0
02
1
9202-
●
●
71
SCREW
M6X16 W/LK&PL WASHER
1-09981-172-0
08
1
9202-
●
●
79
GRIP; ASSIST
1-73617-055-1
01
1
9202-9208
●
●
79
GRIP; ASSIST
1-73617-054-1
01
1
9202-9208
●
●
79
GRIP; ASSIST
1-73617-036-5
01
1
9209-
●
●
79
GRIP; ASSIST
1-73617-035-5
01
1
9209-
●
●
103
GRIP; ASSIST,FRT PNL
WHITE
1-71998-131-0
02
1
9202-
●
●
104
SPACER; ASSIST GRIP
1-71997-529-2
04
1
9202-
●
●
105
SCREW; ASSIST GRIP
M6X30 W/PL WASHER M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
9202-
●
●
21
18
21
38
32
20
16
5
15
7
5
3
4
17
6
1
26
10
2
12
23
11
34
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BOARD; HEADER SHELF
DELUXE CAB(W14)
1-73318-501-2
01
1
9202-
●
●
2
FASTENER; HEADER SHELF BOARD
DELUXE CAB(W14) GRAY
1-73318-356-0
04
1
9202-
●
●
3
FINISHER; HEADER SHELF,FRT
DELUXE CAB(W14) L=2030
1-73318-363-0
01
1
9202-
●
●
4
FRAME; HEADER SHELF
DELUXE CAB(W14)
1-73318-204-5
01
1
9202-
●
●
5
BRACKET; HEADER SHELF FRAME
DELUXE CAB(W14)
1-73318-206-0
02
1
9202-
●
●
6
FINISHER; HEADER SHELF,REAR
DELUXE CAB(W14) L=1596
1-73318-147-4
01
1
9202-
●
●
7
FINISHER; HEADER SHELF,CORNER
DELUXE CAB(W14)
1-73318-269-1
01
1
9202-
●
●
7
FINISHER; HEADER SHELF,CORNER
DELUXE CAB(W14)
1-73318-268-1
01
1
9202-
●
●
9
COVER; HOLE,HEADER SHELF CENTER
DELUXE CAB(W14) EXC. RADIO AM & TAPE PLAYER(UM1)
1-73317-231-0
02
1
9202-
●
●
10
COLLAR; HEADER SHELF
DELUXE CAB(W14)
1-73318-341-0
06
1
9202-
●
●
11
CAP; HEADER SHELF
DELUXE CAB(W14) GRAY
1-73318-357-0
06
1
9202-
●
●
12
SCREW; HEADER SHELF
DELUXE CAB(W14) M6X16
1-09981-531-0
06
1
9202-
●
●
15
FASTENER; HEADER SHELF BOARD
DELUXE CAB(W14) D6.8X11 PUSH RIVET
1-73318-230-0
07
1
9202-
●
●
16
SCREW; FRAME,HEADER SHELF
DELUXE CAB(W14) M6X12 W/LK WASHER
9-03910-612-0
04
1
9202-
●
●
17
SCREW; BRKT,HEADER SHELF FRAME
DELUXE CAB(W14) M6X12 W/LK WASHER
9-03910-612-0
02
1
9202-
●
●
18
SUPPORT; HEADER SHELF CENTER
DELUXE CAB(W14) EXC. RADIO AM & TAPE PLAYER(UM1)
1-73318-476-0
01
1
9202-
●
●
18
SUPPORT; HEADER SHELF CENTER
RADIO AM & TAPE PLAYER(UM1) GRAY
1-73318-416-1
01
1
9202-
●
●
20
SCREW; SUPPORT,HEADER SHELF
DELUXE CAB(W14) M6X12 W/LK WASHER
9-03910-612-0
06
1
9202-
●
●
21
SCREW; SUPPORT,HEADER SHELF CENTER
DELUXE CAB(W14) M6X12 W/LK WASHER
9-03910-612-0
04
1
9202-
●
●
23
SUN VISOR
DELUXE CAB(W14) GRAY
1-73138-112-1
01
1
9202-
●
●
23
SUN VISOR
DELUXE CAB(W14) GRAY
1-73138-113-1
01
1
9202-
●
●
23
SUN VISOR
EXC. DELUXE CAB(W14)
1-73138-115-0
01
1
9202-
●
●
23
SUN VISOR
EXC. DELUXE CAB(W14)
1-73138-121-0
01
1
9202-
●
●
26
HOLDER; SUN VISOR
GRAY
1-73137-141-0
02
1
9202-
●
●
32
PLATE; HOLDER,SUN VISOR
DELUXE CAB(W14)
1-73318-229-0
02
1
9202-
●
●
34
SCREW; SUN VISOR
M6X20
1-09981-310-0
04
1
9202-
●
●
38
CUSHION; PLATE
DELUXE CAB(W14)
1-73318-286-0
02
1
9202-
●
●
