◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#131598) — 35 parça

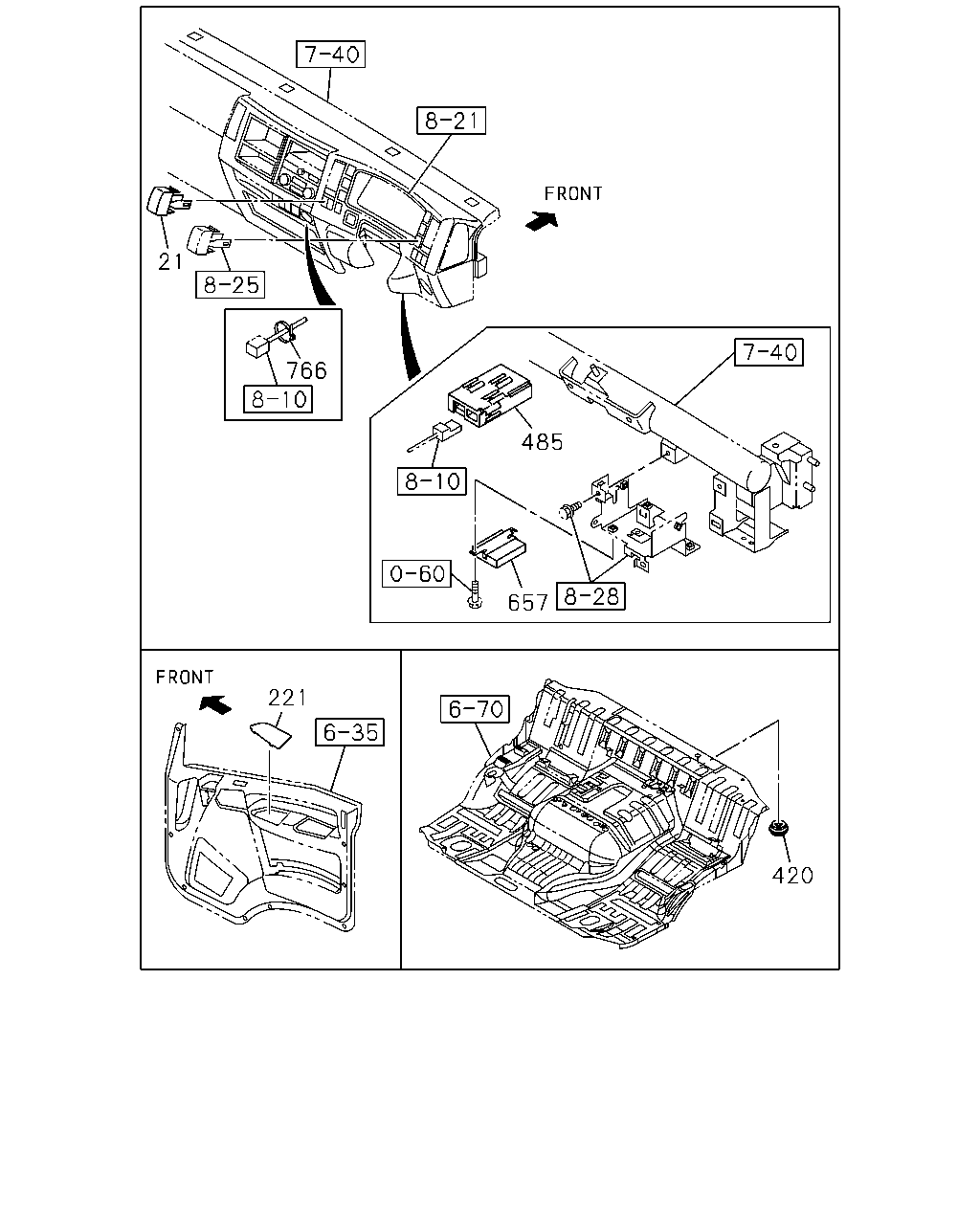

çizim 388757
786 21 485 657 221 420
BalonParca AdiParca NoAdetTipApplied Date A B
21 COVER; HOLE 8-98025-954-1 01 1 1312-1402 ●
21 COVER; HOLE 8-98025-954-1 01 1 1403- ● ●
221 COVER; HOLE,DOOR LOCK SW
IDN 		8-98029-915-2 01 1 1312-1402 ●
221 COVER; HOLE,DOOR LOCK SW
IDN 		8-98029-915-2 01 1 1403- ● ●
221 COVER; HOLE,DOOR LOCK SW
IDN 		8-98029-916-2 01 1 1312-1402 ●
221 COVER; HOLE,DOOR LOCK SW
IDN 		8-98029-916-2 01 1 1403- ● ●
420 PLUG; SWITCH
OD=35 IDN 		8-94122-971-0 01 1 1312-1402 ●
420 PLUG; SWITCH
OD=35 IDN 		8-94122-971-0 01 1 1403- ● ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 DD M/T(Y5P) 		1-80190-063-0 01 1 1406- ●
657 CONTROL UNIT; MIMAMORI
IDN 		8-97948-260-2 01 1 1312-1402 ●
657 CONTROL UNIT; MIMAMORI
IDN 		8-97948-260-2 01 1 1403- ● ●
766 BAND; CLIP
L=140 IDN 		5-09707-031-1 01 1 1312-1402 ●
766 BAND; CLIP
L=140 IDN 		5-09707-031-1 01 1 1403- ● ●

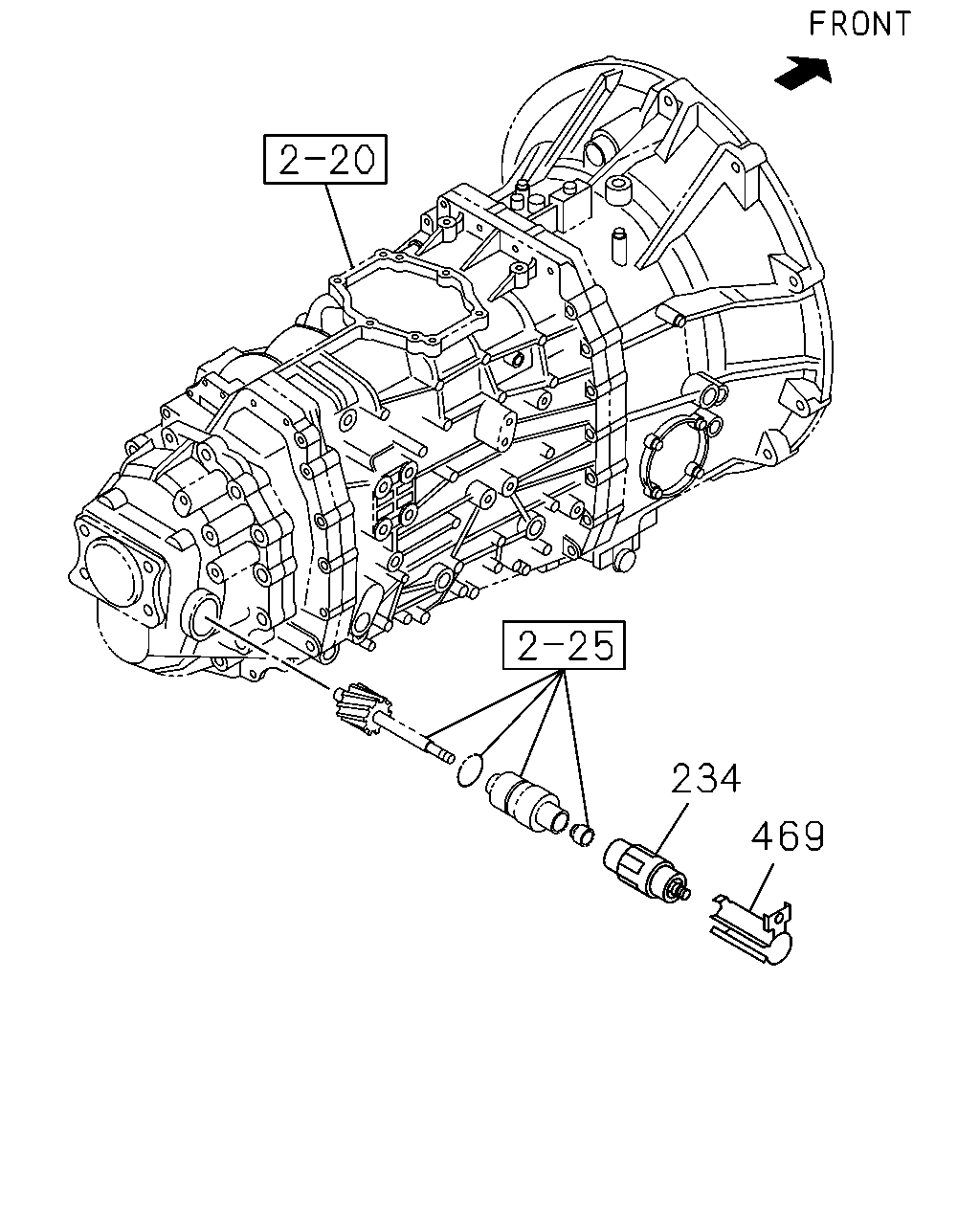

çizim 388818
234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1312-1402 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1403- ● ●
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1312- ●
766 BAND; CLIP
L=140 IDN 		5-09707-031-1 01 1 1312-1402 ●
766 BAND; CLIP
L=140 IDN 		5-09707-031-1 01 1 1403- ● ●

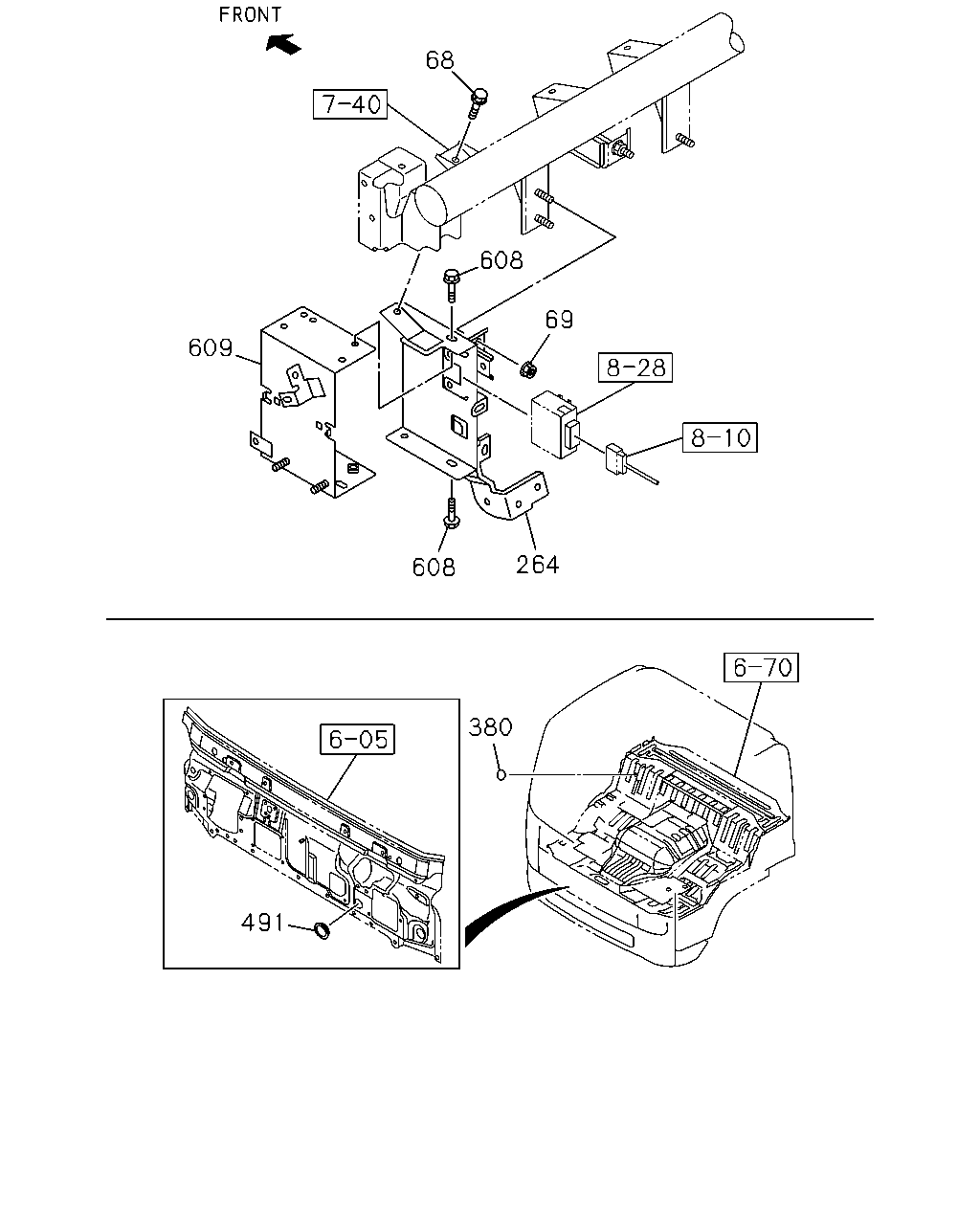

çizim 389620
68 608 69 264 608 609 491 380
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 01 1 1312-1402 ●
68 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 01 1 1403- ● ●
69 NUT; BRKT
M6 FLANGE IDN 		0-91180-106-0 01 1 1312-1402 ●
69 NUT; BRKT
M6 FLANGE IDN 		0-91180-106-0 01 1 1403- ● ●
264 BRACKET; CONT UNIT
VIN MODEL YEAR 2014<VZE> 		8-98246-453-0 01 1 1402-1402 ●
264 BRACKET; CONT UNIT
VIN MODEL YEAR 2014<VZE> 		8-98246-453-0 01 1 1403- ● ●
264 BRACKET; CONT UNIT 8-98249-082-1 01 1 1312-1401 ●
264 BRACKET; CONT UNIT
EXC. VIN MODEL YEAR 2014<VZE> 		8-98249-082-1 01 1 1402-1402 ●
264 BRACKET; CONT UNIT
EXC. VIN MODEL YEAR 2014<VZE> 		8-98249-082-1 01 1 1403- ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1312-1402 ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1403- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 IDN 		8-98054-651-0 01 1 1312-1402 ●
491 PLUG; HOLE,CONT UNIT
OD=60 IDN 		8-98054-651-0 01 1 1403- ● ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1403- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98250-445-0 01 1 1403- ●
766 BAND; CLIP
L=140 IDN 		5-09707-031-1 01 1 1312-1402 ●
766 BAND; CLIP
L=140 IDN 		5-09707-031-1 01 1 1403- ● ●
