◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#131595) — 185 parça
çizim 388809
48 16 217 503 14 1 1 14 530 538 178 178
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
KD ENGINE<7MB> (A) ID=14 OD=18 L=60 		8-97520-856-0 01 1 1411- ● ●
1 SLEEVE; RUBBER
KD ENGINE<7MB> (B) ID=10 OD=14 L=30 IDN 		8-97520-857-0 04 1 1411- ● ●
1 SLEEVE; RUBBER
(A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1312-1402 ●
1 SLEEVE; RUBBER
(A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1403-1410 ● ●
1 SLEEVE; RUBBER
EXC. KD ENGINE<7MB> (A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1411- ● ●
1 SLEEVE; RUBBER
(B) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1312-1402 ●
1 SLEEVE; RUBBER
(B) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1403-1410 ● ●
1 SLEEVE; RUBBER
EXC. KD ENGINE<7MB> (B) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1411- ● ●
14 CLIP; BAND,HARNESS
EXC. KD ENGINE<7MB> (A) L=250 		8-98216-430-0 09 1 1411- ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1312-1402 ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1403- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 09 1 1312-1402 ●
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 09 1 1403-1410 ● ●
14 CLIP; BAND,HARNESS
KD ENGINE<7MB> (A) L=250 		8-98216-430-0 13 1 1411- ● ●
16 CLIP; HARNESS
ZF9S1110 DD M/T(Y5P) (J) ID=16X2 L=50 		0-95325-586-0 01 1 1406- ●
16 CLIP; HARNESS
ZF9S1110 DD M/T(Y5P) (K) ID=14.5 L=40 		1-09701-014-0 01 1 1406- ●
16 CLIP; HARNESS
(G) ID=11 L=20 		0-95235-035-0 01 1 1403- ●
16 CLIP; HARNESS
(H) ID=14.5 L=20 		1-09701-012-0 01 1 1403- ●
16 CLIP; HARNESS
(I) ID=12 & 15 		1-09709-281-1 01 1 1403- ●
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1312-1402 ●
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1403- ● ●
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 01 1 1312- ●
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1312-1402 ●
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1403- ● ●
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1312-1402 ●
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1403- ● ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1312-1402 ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1403- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1312-1402 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1403- ● ●
48 CLIP; FRAME HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 1312- ●
48 CLIP; FRAME HARNESS
(B) L=140 IDN 		5-09707-031-1 02 1 1312-1402 ●
48 CLIP; FRAME HARNESS
(B) L=140 IDN 		5-09707-031-1 02 1 1403- ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1403- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1312- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1312- ●
217 CLIP; RR BODY HARNESS
L=250 IDN 		5-09707-030-1 02 1 1312-1402 ●
217 CLIP; RR BODY HARNESS
L=250 IDN 		5-09707-030-1 02 1 1403- ● ●
503 CONNECTOR 1-82690-668-0 01 1 1312-1402 ●
503 CONNECTOR 1-82690-668-0 01 1 1403- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 11 1 1312-1402 ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1312-1402 ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1403- ● ●
çizim 388836
53 59 137 137 308 308 308 308
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
IDN 		8-98052-458-0 01 1 1312-1402 ●
53 BRACKET; HARNESS
IDN 		8-98052-458-0 01 1 1403- ● ●
59 BRACKET; FRAME HARNESS 8-97609-264-2 01 1 1312-1402 ●
59 BRACKET; FRAME HARNESS 8-97609-264-2 01 1 1403- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1312-1402 ●
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1403- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1312-1402 ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1403- ● ●
308 BRACKET; CLIP,ENG HARNESS
KD ENGINE<7MB> (C) 		8-97520-855-0 01 1 1411- ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1312-1402 ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1403- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98021-692-1 01 1 1312-1402 ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98021-692-1 01 1 1403- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98032-178-0 01 1 1312-1402 ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98032-178-0 01 1 1403-1410 ● ●
308 BRACKET; CLIP,ENG HARNESS
EXC. KD ENGINE<7MB> (C) 		8-98032-178-0 01 1 1411- ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98075-824-0 01 1 1312-1402 ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98075-824-0 01 1 1403- ● ●
çizim 389507
16 16 305 305 305 470 116 16 305 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ZF9S1110 DD M/T(Y5P) (J) ID=16X2 L=50 		0-95325-586-0 01 1 1406- ●
16 CLIP; HARNESS
ZF9S1110 DD M/T(Y5P) (K) ID=14.5 L=40 		1-09701-014-0 01 1 1406- ●
16 CLIP; HARNESS
(G) ID=11 L=20 		0-95235-035-0 01 1 1403- ●
16 CLIP; HARNESS
(H) ID=14.5 L=20 		1-09701-012-0 01 1 1403- ●
16 CLIP; HARNESS
(I) ID=12 & 15 		1-09709-281-1 01 1 1403- ●
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1312-1402 ●
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1403- ● ●
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 01 1 1312- ●
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1312-1402 ●
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1403- ● ●
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1312-1402 ●
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1403- ● ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1312-1402 ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1403- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1312-1402 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1403- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1312-1402 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1403- ● ●
305 CLIP; ENG HARNESS
(J) L=100 		8-94443-021-1 02 1 1312-1402 ●
305 CLIP; ENG HARNESS
(J) L=100 		8-94443-021-1 02 1 1403- ● ●
305 CLIP; ENG HARNESS
(B) ID=16 L=28 		0-95235-556-0 02 1 1312-1402 ●
305 CLIP; ENG HARNESS
(B) ID=16 L=28 		0-95235-556-0 02 1 1403- ● ●
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1403- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1403- ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=27 		1-09700-809-0 03 1 1312-1402 ●
305 CLIP; ENG HARNESS
(E) ID=24 L=27 		1-09700-809-0 03 1 1403- ● ●
305 CLIP; ENG HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1403- ● ●
305 CLIP; ENG HARNESS
(G) ID=19 L=39 H=21 		1-09700-972-1 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(G) ID=19 L=39 H=21 		1-09700-972-1 01 1 1403- ● ●
305 CLIP; ENG HARNESS
(H) ID=25 L=60 		1-09701-041-1 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(H) ID=25 L=60 		1-09701-041-1 01 1 1403- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1403- ● ●
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1403- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1312-1402 ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1403- ● ●
çizim 389539
38 139 304 304 304 38 127 38 386 38 139 139 38 139 184 524 219 525 516 377
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1403-1405 ●
38 BOLT; CLIP,HARNESS
ZF9S1110 DD M/T(Y5P) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1406- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1406- ●
38 BOLT; CLIP,HARNESS
(D) M10X16 FLANGE 		0-28151-016-0 01 1 1403- ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE IDN 		0-28651-020-0 01 1 1403- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1312-1402 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1403- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE IDN 		0-28650-825-0 03 1 1312-1402 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE IDN 		0-28650-825-0 03 1 1403- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 03 1 1312-1402 ●
38 BOLT; CLIP,HARNESS
(A) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 03 1 1403- ● ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET IDN 		8-98063-767-0 01 1 1312-1402 ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET IDN 		8-98063-767-0 01 1 1403- ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1312-1402 ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1403- ● ●
139 BOLT; BRKT
(D) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1312-1402 ●
139 BOLT; BRKT
(D) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1403- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1312-1402 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1403- ● ●
139 BOLT; BRKT
(C) M10X35 FLANGE IDN 		0-28651-035-0 01 1 1312-1402 ●
139 BOLT; BRKT
(C) M10X35 FLANGE IDN 		0-28651-035-0 01 1 1403- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1312-1402 ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1403- ● ●
219 NUT
M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1402 ●
219 NUT
M8 FLANGE IDN 		0-91180-108-0 02 1 1403- ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1312-1402 ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1403- ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 05 1 1312-1402 ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 05 1 1403- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1312-1402 ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1403- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1312-1402 ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1403- ● ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER IDN 		8-98141-255-0 02 1 1312-1402 ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER IDN 		8-98141-255-0 02 1 1403- ● ●
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1312-1402 ●
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1403- ● ●
524 NUT; HARNESS
M6 FLANGE IDN 		0-91180-106-0 02 1 1312-1402 ●
524 NUT; HARNESS
M6 FLANGE IDN 		0-91180-106-0 02 1 1403- ● ●
525 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1402 ●
525 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 02 1 1403- ● ●

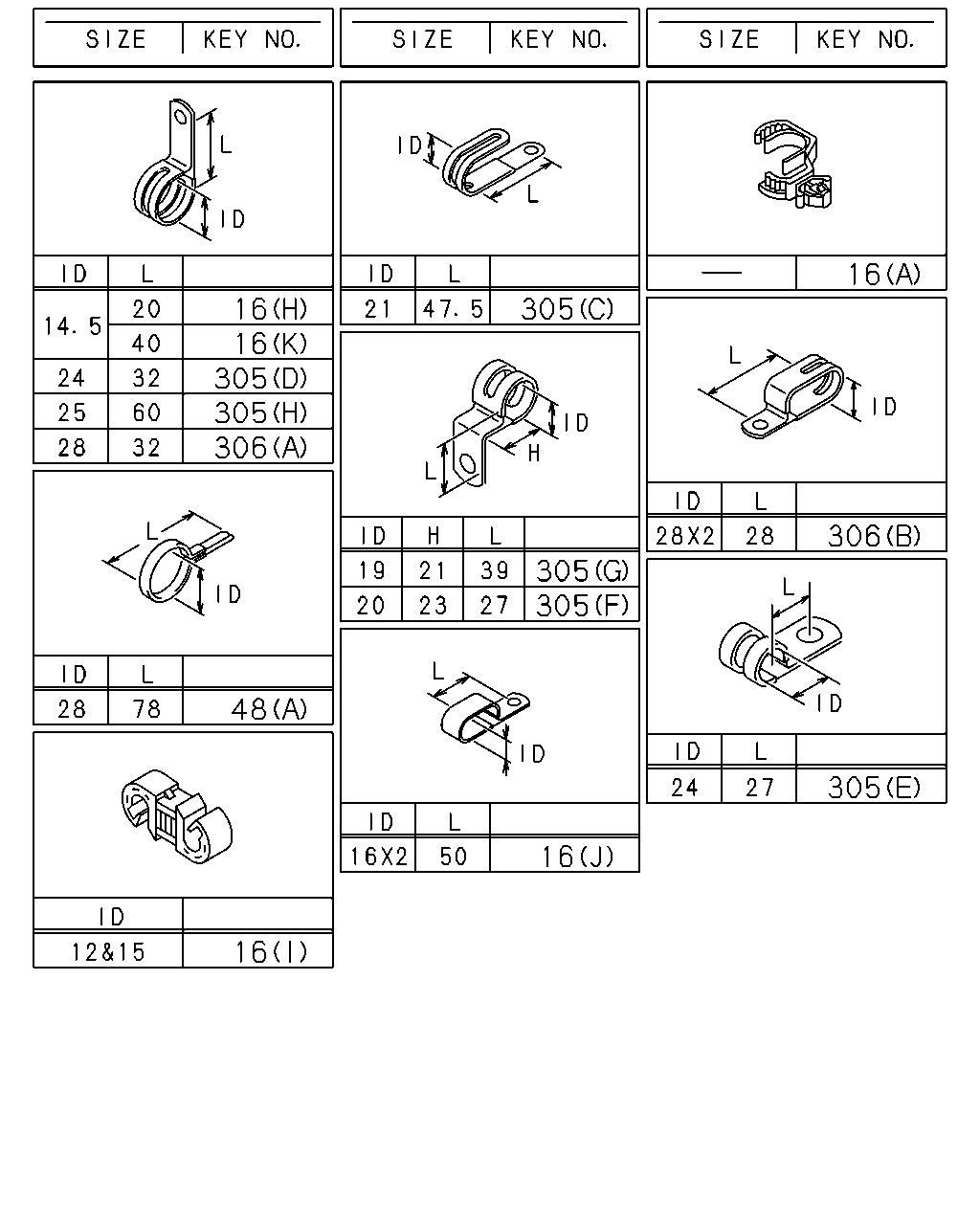

çizim 389585
16 16 305 305 306 48 16 305 305 305 16 16 306 305
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ZF9S1110 DD M/T(Y5P) (J) ID=16X2 L=50 		0-95325-586-0 01 1 1406- ●
16 CLIP; HARNESS
ZF9S1110 DD M/T(Y5P) (K) ID=14.5 L=40 		1-09701-014-0 01 1 1406- ●
16 CLIP; HARNESS
(G) ID=11 L=20 		0-95235-035-0 01 1 1403- ●
16 CLIP; HARNESS
(H) ID=14.5 L=20 		1-09701-012-0 01 1 1403- ●
16 CLIP; HARNESS
(I) ID=12 & 15 		1-09709-281-1 01 1 1403- ●
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1312-1402 ●
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1403- ● ●
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 01 1 1312- ●
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1312-1402 ●
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1403- ● ●
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1312-1402 ●
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1403- ● ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1312-1402 ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1403- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1312-1402 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1403- ● ●
48 CLIP; FRAME HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 1312- ●
48 CLIP; FRAME HARNESS
(B) L=140 IDN 		5-09707-031-1 02 1 1312-1402 ●
48 CLIP; FRAME HARNESS
(B) L=140 IDN 		5-09707-031-1 02 1 1403- ● ●
305 CLIP; ENG HARNESS
(J) L=100 		8-94443-021-1 02 1 1312-1402 ●
305 CLIP; ENG HARNESS
(J) L=100 		8-94443-021-1 02 1 1403- ● ●
305 CLIP; ENG HARNESS
(B) ID=16 L=28 		0-95235-556-0 02 1 1312-1402 ●
305 CLIP; ENG HARNESS
(B) ID=16 L=28 		0-95235-556-0 02 1 1403- ● ●
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1403- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1403- ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=27 		1-09700-809-0 03 1 1312-1402 ●
305 CLIP; ENG HARNESS
(E) ID=24 L=27 		1-09700-809-0 03 1 1403- ● ●
305 CLIP; ENG HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1403- ● ●
305 CLIP; ENG HARNESS
(G) ID=19 L=39 H=21 		1-09700-972-1 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(G) ID=19 L=39 H=21 		1-09700-972-1 01 1 1403- ● ●
305 CLIP; ENG HARNESS
(H) ID=25 L=60 		1-09701-041-1 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(H) ID=25 L=60 		1-09701-041-1 01 1 1403- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1403- ● ●
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1312-1402 ●
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1403- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1312-1402 ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1403- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1312-1402 ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
