◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#131594) — 239 parça

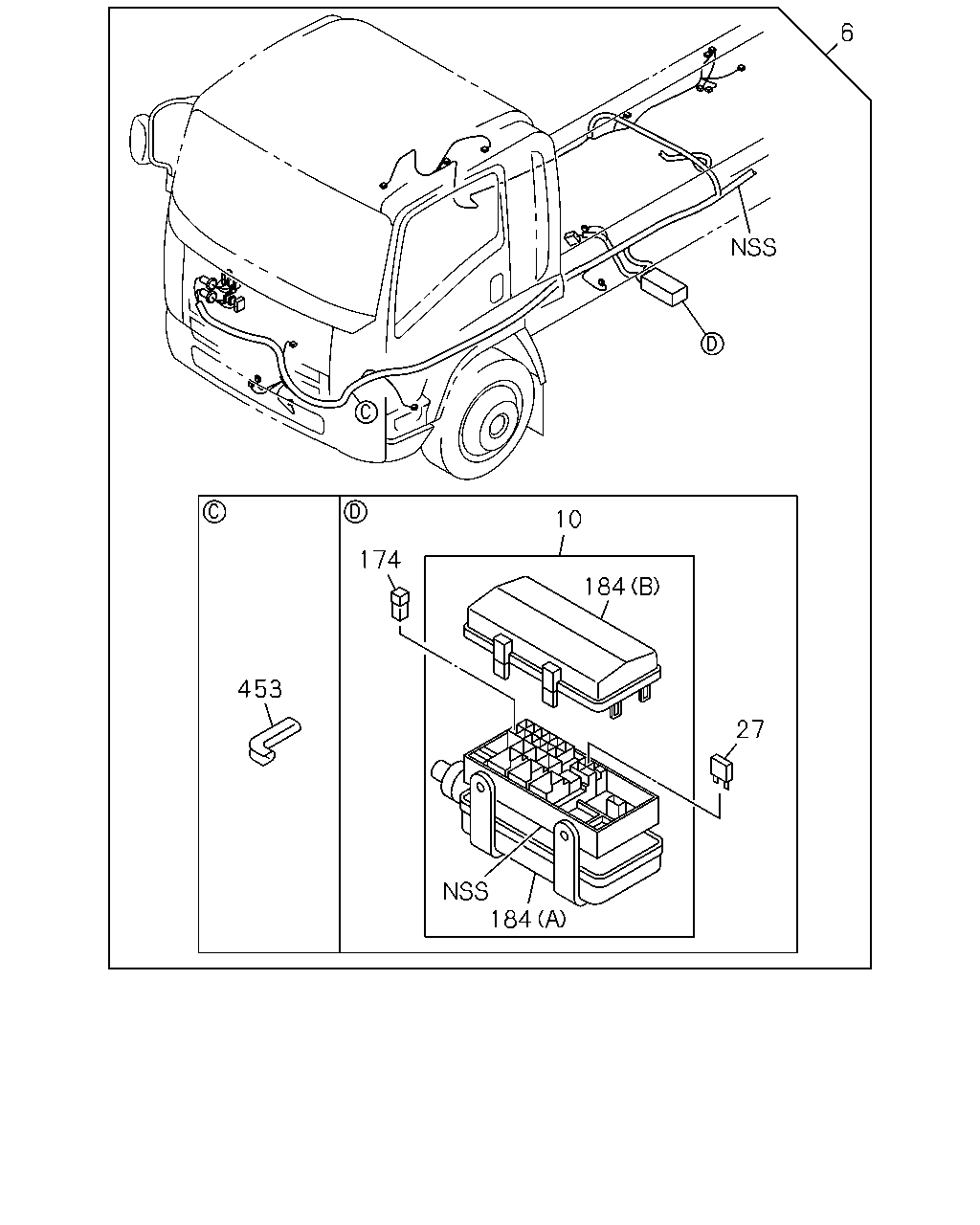

çizim 388864
6 27 184 10 174 184 453
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ZF9S1110 DD M/T(Y5P) IDN 		8-98268-800-0 01 1 1406- ●
6 HARNESS; FRAME
IDN 		8-98246-391-2 01 1 1403- ●
6 HARNESS; FRAME
MZW6P M/T(RSZ) IDN 		8-98246-386-1 01 1 1312- ●
10 BOX; FUSE,HARNESS
IDN 		8-98030-762-0 01 1 1312-1402 ●
10 BOX; FUSE,HARNESS
IDN 		8-98030-762-0 01 1 1403- ● ●
27 FUSE UNIT
15A BLUE IDN 		8-98054-258-0 AR 1 1312-1402 ●
27 FUSE UNIT
15A BLUE IDN 		8-98054-258-0 AR 1 1403- ● ●
174 FUSE; SLOW BLOW
60A YELLOW IDN 		8-97219-407-0 01 1 1312-1402 ●
174 FUSE; SLOW BLOW
60A YELLOW IDN 		8-97219-407-0 01 1 1403- ● ●
174 FUSE; SLOW BLOW
60A YELLOW IDN 		8-97219-407-0 01 1 1312-1402 ●
174 FUSE; SLOW BLOW
60A YELLOW IDN 		8-97219-407-0 01 1 1403- ● ●
174 FUSE; SLOW BLOW
30A PINK IDN 		8-98079-191-0 01 1 1312-1402 ●
174 FUSE; SLOW BLOW
30A PINK IDN 		8-98079-191-0 01 1 1403- ● ●
174 FUSE; SLOW BLOW
40A GREEN IDN 		8-98079-192-0 01 1 1312-1402 ●
174 FUSE; SLOW BLOW
40A GREEN IDN 		8-98079-192-0 01 1 1403- ● ●
174 FUSE; SLOW BLOW
50A RED IDN 		8-98079-193-0 03 1 1312-1402 ●
174 FUSE; SLOW BLOW
50A RED IDN 		8-98079-193-0 03 1 1403- ● ●
184 COVER; RELAY & FUSE BOX
(A) IDN 		8-98030-766-0 01 1 1312-1402 ●
184 COVER; RELAY & FUSE BOX
(A) IDN 		8-98030-766-0 01 1 1403- ● ●
184 COVER; RELAY & FUSE BOX
(B) IDN 		8-98030-767-1 01 1 1312-1402 ●
184 COVER; RELAY & FUSE BOX
(B) IDN 		8-98030-767-1 01 1 1403- ● ●
453 PROTECTOR; HARNESS
IDN 		1-82699-709-0 01 1 1312-1402 ●
453 PROTECTOR; HARNESS
IDN 		1-82699-709-0 01 1 1403- ● ●

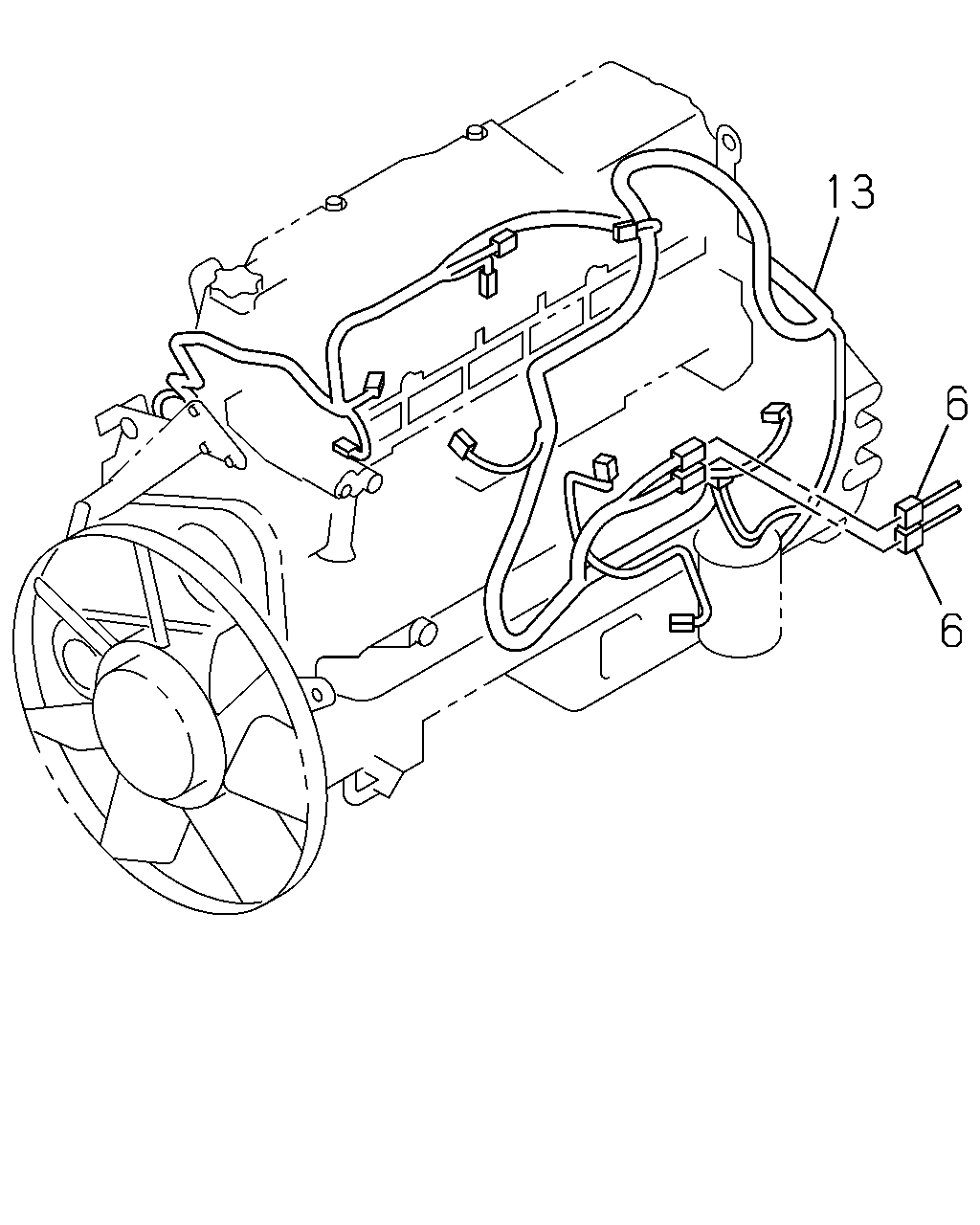

çizim 389161
13 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ZF9S1110 DD M/T(Y5P) IDN 		8-98268-800-0 01 1 1406- ●
6 HARNESS; FRAME
IDN 		8-98246-391-2 01 1 1403- ●
6 HARNESS; FRAME
MZW6P M/T(RSZ) IDN 		8-98246-386-1 01 1 1312- ●
13 HARNESS; ENG
KD ENGINE<7MB> 		8-97520-854-0 01 1 1411- ● ●
13 HARNESS; ENG 8-98075-774-5 01 1 1312-1402 ●
13 HARNESS; ENG
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98075-774-5 01 1 1403-1405 ●
13 HARNESS; ENG 8-98075-774-5 01 1 1403-1405 ●
13 HARNESS; ENG 8-98075-774-5 01 1 1406-1410 ● ●
13 HARNESS; ENG
EXC. KD ENGINE<7MB> 		8-98075-774-5 01 1 1411- ● ●

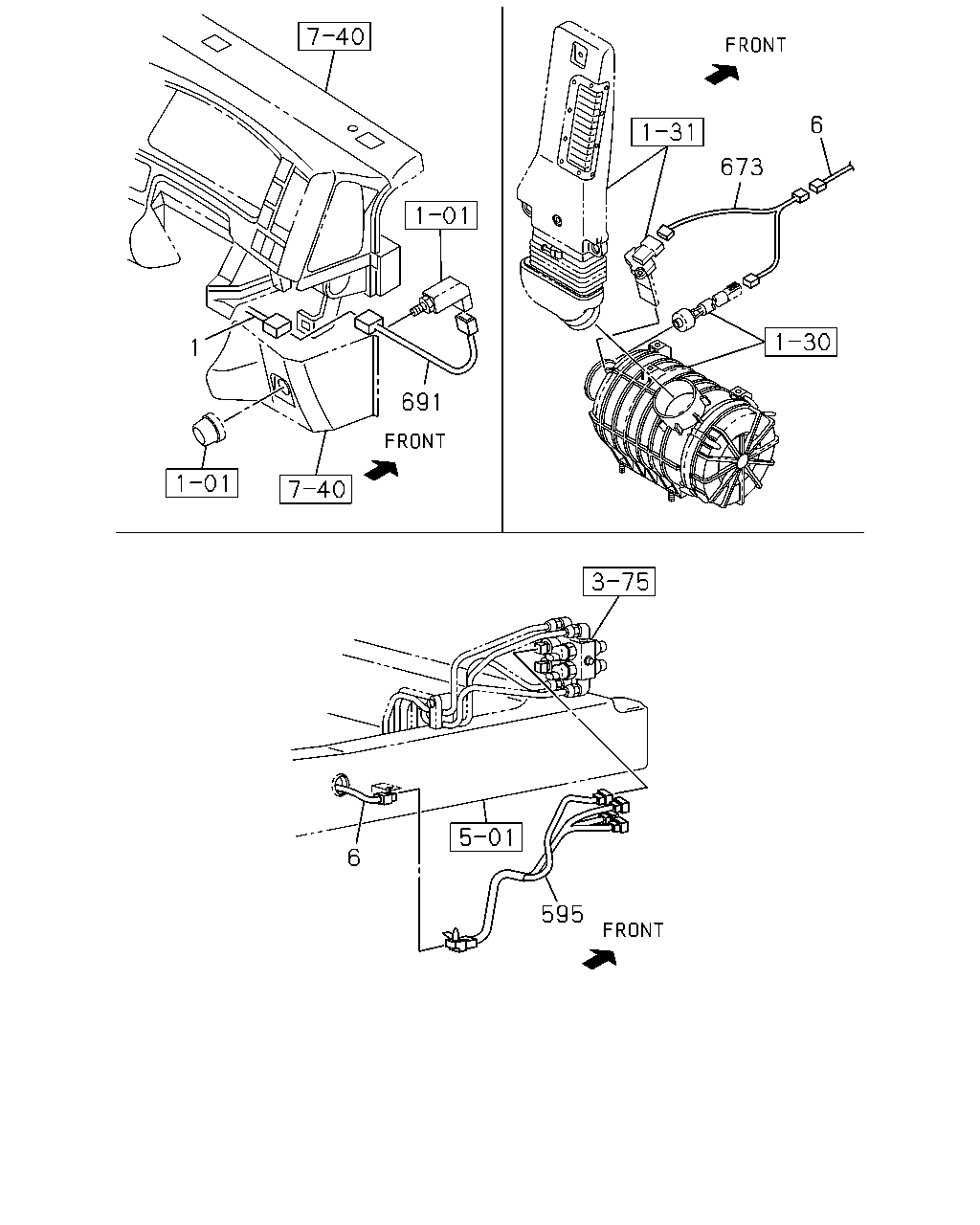

çizim 389291
6 673 691 1 6 595
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
ZF9S1110 DD M/T(Y5P) VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> IDN 		8-98268-556-0 01 1 1406- ●
1 HARNESS; CAB
ZF9S1110 DD M/T(Y5P) VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98246-464-1 01 1 1406- ●
1 HARNESS; CAB
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> IDN 		8-98268-555-0 01 1 1402- ●
1 HARNESS; CAB
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> IDN 		8-98268-558-0 01 1 1403- ●
1 HARNESS; CAB
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98250-444-0 01 1 1403- ●
1 HARNESS; CAB
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98246-463-0 01 1 1312-1401 ●
1 HARNESS; CAB
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98246-463-0 01 1 1402- ●
6 HARNESS; FRAME
ZF9S1110 DD M/T(Y5P) IDN 		8-98268-800-0 01 1 1406- ●
6 HARNESS; FRAME
IDN 		8-98246-391-2 01 1 1403- ●
6 HARNESS; FRAME
MZW6P M/T(RSZ) IDN 		8-98246-386-1 01 1 1312- ●
595 HARNESS; WARNING,BRK
IDN 		8-97620-487-1 01 1 1312-1402 ●
595 HARNESS; WARNING,BRK
IDN 		8-97620-487-1 01 1 1403- ● ●
673 HARNESS; EXT,SENSOR
IDN 		8-98069-172-0 01 1 1312-1402 ●
673 HARNESS; EXT,SENSOR
IDN 		8-98069-172-0 01 1 1403- ● ●
691 HARNESS; IDLE CONT
IDN 		8-98049-014-2 01 1 1312-1402 ●
691 HARNESS; IDLE CONT
IDN 		8-98049-014-2 01 1 1403- ● ●

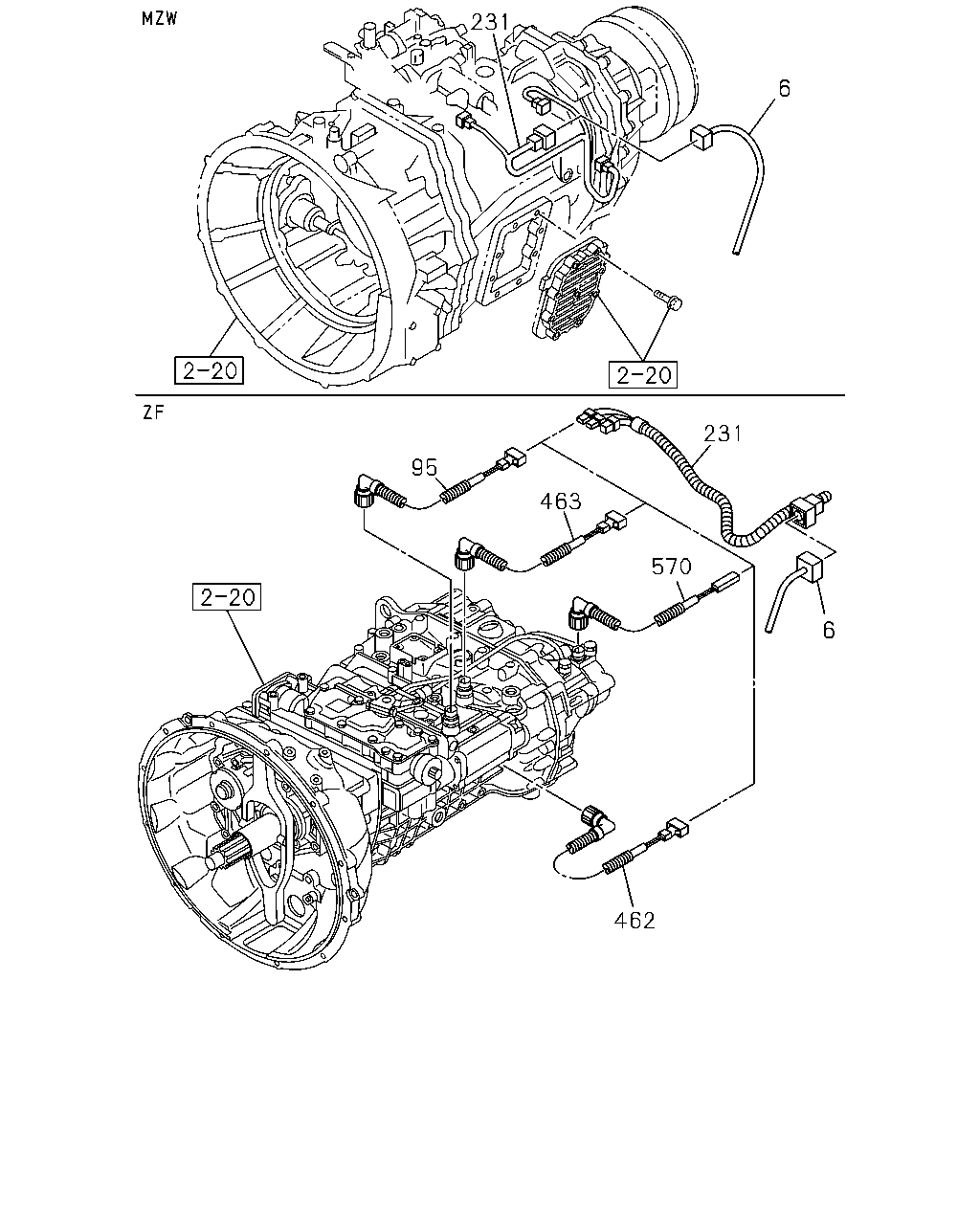

çizim 389335
231 6 231 463 95 570 6 462
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ZF9S1110 DD M/T(Y5P) IDN 		8-98268-800-0 01 1 1406- ●
6 HARNESS; FRAME
IDN 		8-98246-391-2 01 1 1403- ●
6 HARNESS; FRAME
MZW6P M/T(RSZ) IDN 		8-98246-386-1 01 1 1312- ●
95 HARNESS; NEUTRAL SW
ZF9S1110 DD M/T(Y5P) RED 		8-98145-855-0 01 1 1406- ●
231 HARNESS; TRANS
IDN 		8-97618-932-2 01 1 1312- ●
462 HARNESS; SW,RANGE
ZF9S1110 DD M/T(Y5P) BLUE 		8-98145-857-0 01 1 1406- ●
463 HARNESS; SW,BACK UP
ZF9S1110 DD M/T(Y5P) BLACK 		8-98145-856-0 01 1 1406- ●
570 HARNESS; SPEED SENSOR
ZF9S1110 DD M/T(Y5P) 		8-98148-602-0 01 1 1406- ●

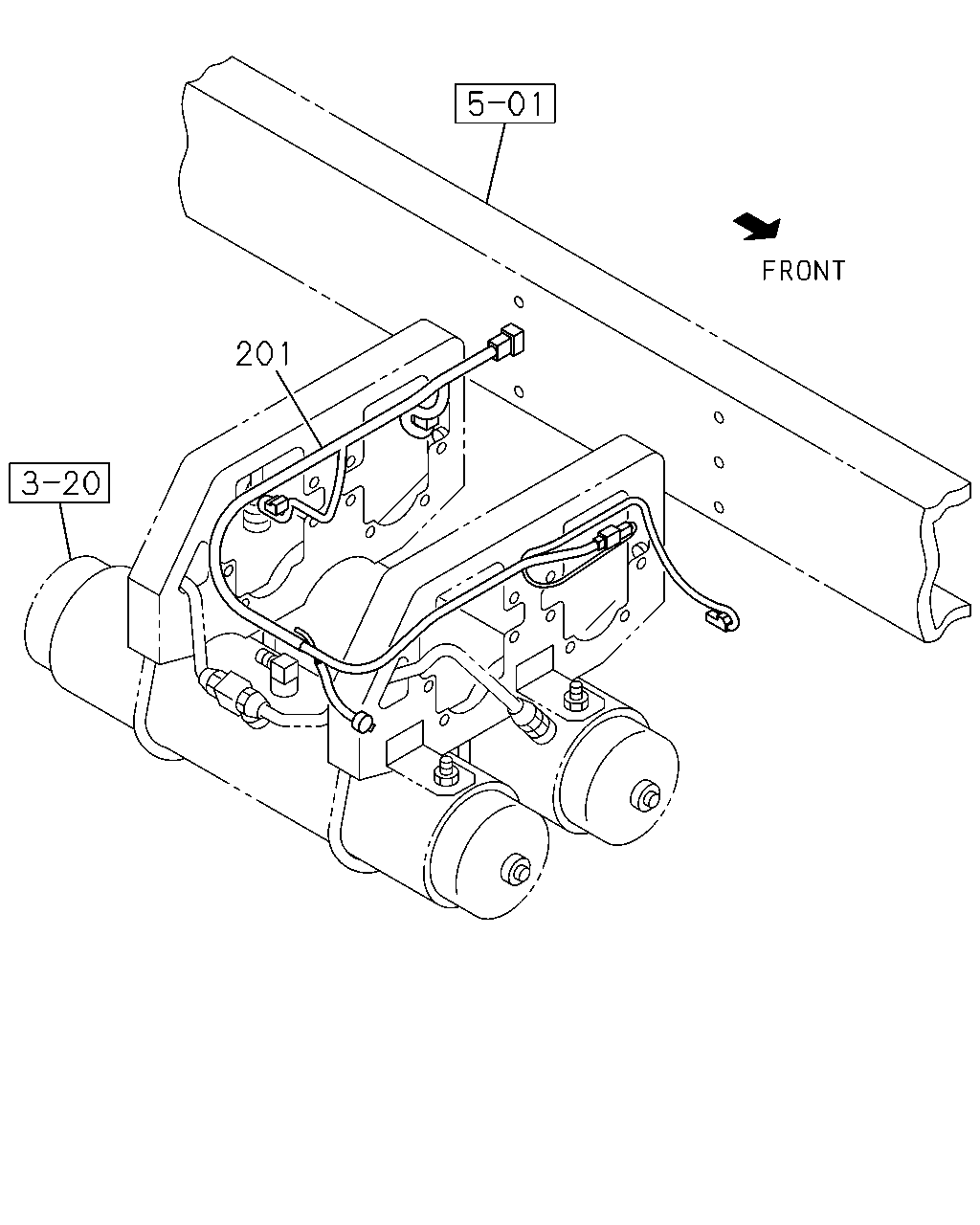

çizim 389358
201
BalonParca AdiParca NoAdetTipApplied Date A B
201 HARNESS; AIR TANK
IDN 		8-98250-276-1 01 1 1403- ●
201 HARNESS; AIR TANK
IDN 		8-98178-658-2 01 1 1312- ●

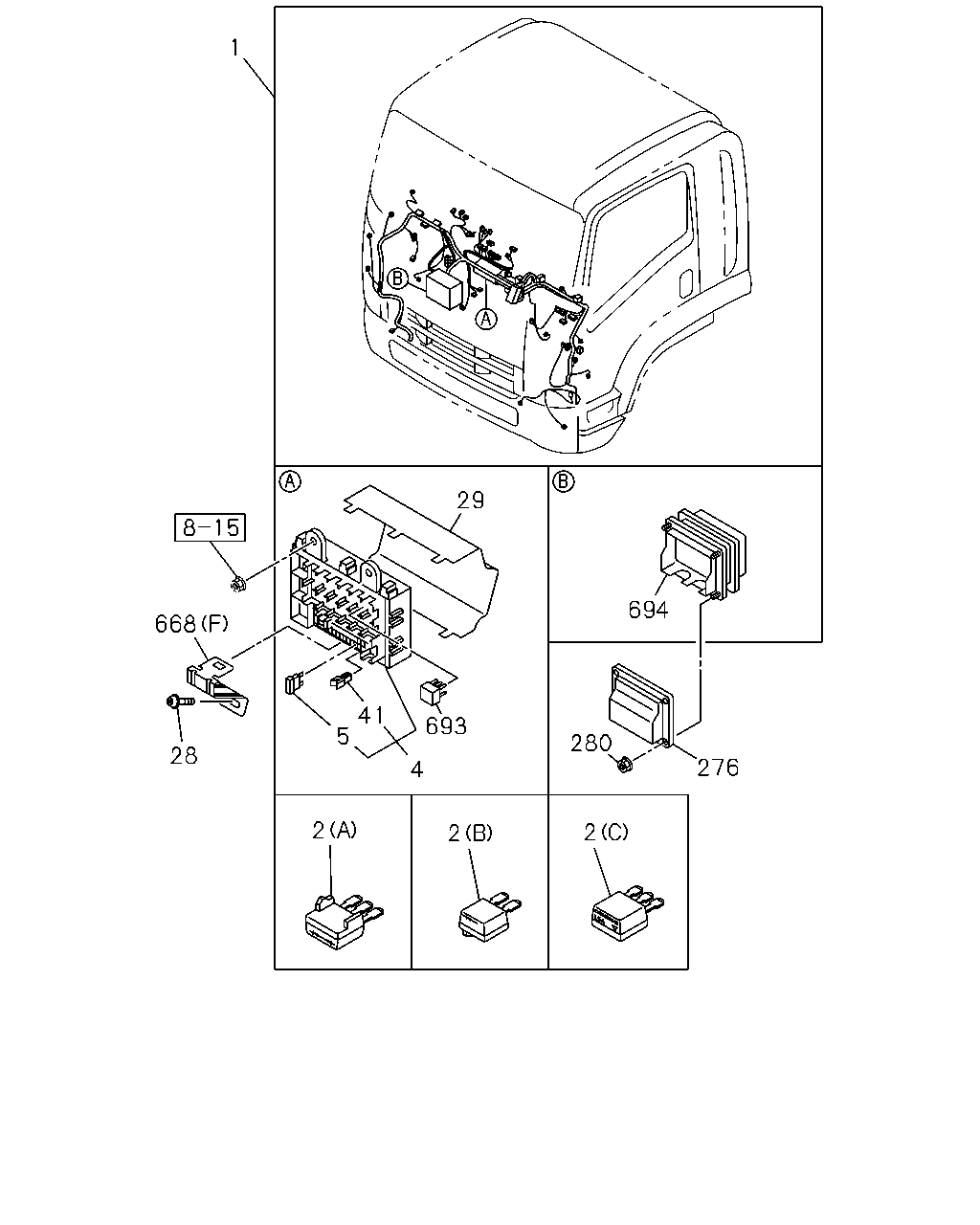

çizim 389385
1 29 693 41 5 4 28 668 2 2 2 280 276 694
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
ZF9S1110 DD M/T(Y5P) VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> IDN 		8-98268-556-0 01 1 1406- ●
1 HARNESS; CAB
ZF9S1110 DD M/T(Y5P) VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98246-464-1 01 1 1406- ●
1 HARNESS; CAB
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> IDN 		8-98268-555-0 01 1 1402- ●
1 HARNESS; CAB
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> IDN 		8-98268-558-0 01 1 1403- ●
1 HARNESS; CAB
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98250-444-0 01 1 1403- ●
1 HARNESS; CAB
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98246-463-0 01 1 1312-1401 ●
1 HARNESS; CAB
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98246-463-0 01 1 1402- ●
2 DIODE; CABLE HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A) BLACK 3P-1.5A IDN 		8-94416-438-1 01 1 1402- ●
2 DIODE; CABLE HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) BLACK 2P-1.5A IDN 		8-94422-639-1 01 1 1402- ●
2 DIODE; CABLE HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> (C) BLACK 3P-1.5A IDN 		8-94422-640-1 01 1 1402-1402 ●
2 DIODE; CABLE HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> (C) BLACK 3P-1.5A IDN 		8-94422-640-1 01 1 1403-1405 ●
2 DIODE; CABLE HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) BLACK 3P-1.5A IDN 		8-94422-640-1 01 1 1403-1405 ●
2 DIODE; CABLE HARNESS
MZW6P M/T(RSZ) VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> (C) BLACK 3P-1.5A IDN 		8-94422-640-1 01 1 1406- ●
2 DIODE; CABLE HARNESS
ZF9S1110 DD M/T(Y5P) VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) BLACK 3P-1.5A IDN 		8-94422-640-1 01 1 1406- ●
2 DIODE; CABLE HARNESS
FULLER ES11109 DD M/T(Y5N) VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) BLACK 3P-1.5A IDN 		8-94422-640-1 01 1 1406- ●
2 DIODE; CABLE HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) BLACK 3P-1.5A IDN 		8-94416-438-1 01 1 1312-1401 ●
2 DIODE; CABLE HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> (A) BLACK 3P-1.5A IDN 		8-94416-438-1 02 1 1402-1402 ●
2 DIODE; CABLE HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> (A) BLACK 3P-1.5A IDN 		8-94416-438-1 02 1 1403-1405 ●
2 DIODE; CABLE HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) BLACK 3P-1.5A IDN 		8-94416-438-1 02 1 1403-1405 ●
2 DIODE; CABLE HARNESS
MZW6P M/T(RSZ) VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> (A) BLACK 3P-1.5A IDN 		8-94416-438-1 02 1 1406- ●
2 DIODE; CABLE HARNESS
ZF9S1110 DD M/T(Y5P) VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) BLACK 3P-1.5A IDN 		8-94416-438-1 02 1 1406- ●
2 DIODE; CABLE HARNESS
FULLER ES11109 DD M/T(Y5N) VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) BLACK 3P-1.5A IDN 		8-94416-438-1 02 1 1406- ●
2 DIODE; CABLE HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) BLACK 2P-1.5A IDN 		8-94422-639-1 01 1 1312-1401 ●
2 DIODE; CABLE HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> (B) BLACK 2P-1.5A IDN 		8-94422-639-1 02 1 1402-1402 ●
2 DIODE; CABLE HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> (B) BLACK 2P-1.5A IDN 		8-94422-639-1 02 1 1403-1405 ●
2 DIODE; CABLE HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) BLACK 2P-1.5A IDN 		8-94422-639-1 02 1 1403-1405 ●
2 DIODE; CABLE HARNESS
MZW6P M/T(RSZ) VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> (B) BLACK 2P-1.5A IDN 		8-94422-639-1 02 1 1406- ●
2 DIODE; CABLE HARNESS
ZF9S1110 DD M/T(Y5P) VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) BLACK 2P-1.5A IDN 		8-94422-639-1 02 1 1406- ●
2 DIODE; CABLE HARNESS
FULLER ES11109 DD M/T(Y5N) VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) BLACK 2P-1.5A IDN 		8-94422-639-1 02 1 1406- ●
4 BOX ASM; FUSE,HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98065-666-0 01 1 1312-1402 ●
4 BOX ASM; FUSE,HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98065-666-0 01 1 1403- ● ●
5 FUSE; FACIA HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 10A RED IDN 		8-98054-257-0 AR 1 1312-1402 ●
5 FUSE; FACIA HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 10A RED IDN 		8-98054-257-0 AR 1 1403- ● ●
5 FUSE; FACIA HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 15A BLUE IDN 		8-98054-258-0 AR 1 1312-1402 ●
5 FUSE; FACIA HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 15A BLUE IDN 		8-98054-258-0 AR 1 1403- ● ●
5 FUSE; FACIA HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 20A YELLOW IDN 		8-98054-259-0 AR 1 1312-1402 ●
5 FUSE; FACIA HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 20A YELLOW IDN 		8-98054-259-0 AR 1 1403- ● ●
5 FUSE; FACIA HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 25A WHITE IDN 		8-98062-982-0 01 1 1312-1402 ●
5 FUSE; FACIA HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 25A WHITE IDN 		8-98062-982-0 01 1 1403- ● ●
28 SCREW; FUSE BOX
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1312-1402 ●
28 SCREW; FUSE BOX
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1403- ● ●
29 COVER; FUSE BOX
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98056-968-0 01 1 1312-1402 ●
29 COVER; FUSE BOX
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98056-968-0 01 1 1403- ● ●
41 PULLER; FUSE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98054-260-0 01 1 1312-1402 ●
41 PULLER; FUSE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98054-260-0 01 1 1403- ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1312-1402 ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1403- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE IDN 		0-91180-106-0 04 1 1312-1402 ●
280 NUT; BOX ASM FIX
M6 FLANGE IDN 		0-91180-106-0 04 1 1403- ● ●
668 BRACKET; HARNESS
(G) 		1-47476-658-0 01 1 1403- ●
668 BRACKET; HARNESS
(H) 		8-98127-093-0 01 1 1403- ●
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1312-1402 ●
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1403- ● ●
668 BRACKET; HARNESS
(C) 		8-97609-110-1 01 1 1312-1402 ●
668 BRACKET; HARNESS
(C) 		8-97609-110-1 01 1 1403- ● ●
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1312-1402 ●
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1403-1502 ● ●
668 BRACKET; HARNESS
(D) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(F) 		8-98095-653-2 01 1 1312-1402 ●
668 BRACKET; HARNESS
(F) 		8-98095-653-2 01 1 1403- ● ●
668 BRACKET; HARNESS
(B) 		8-98168-184-0 01 1 1312-1402 ●
668 BRACKET; HARNESS
(B) 		8-98168-184-0 01 1 1403- ● ●
668 BRACKET; HARNESS
(E) 		8-98212-082-1 01 1 1312-1402 ●
668 BRACKET; HARNESS
(E) 		8-98212-082-1 01 1 1403- ● ●
693 RELAY; FUSE BOX
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 1312-1402 ●
693 RELAY; FUSE BOX
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 1403- ● ●
694 BOX ASM; CONNECTOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98057-771-0 01 1 1312-1402 ●
694 BOX ASM; CONNECTOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98057-771-0 01 1 1403- ● ●
çizim 389388
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98065-666-0 01 1 1312-1402 ●
4 BOX ASM; FUSE,HARNESS
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98065-666-0 01 1 1403- ● ●
693 RELAY; FUSE BOX
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 1312-1402 ●
693 RELAY; FUSE BOX
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 1403- ● ●

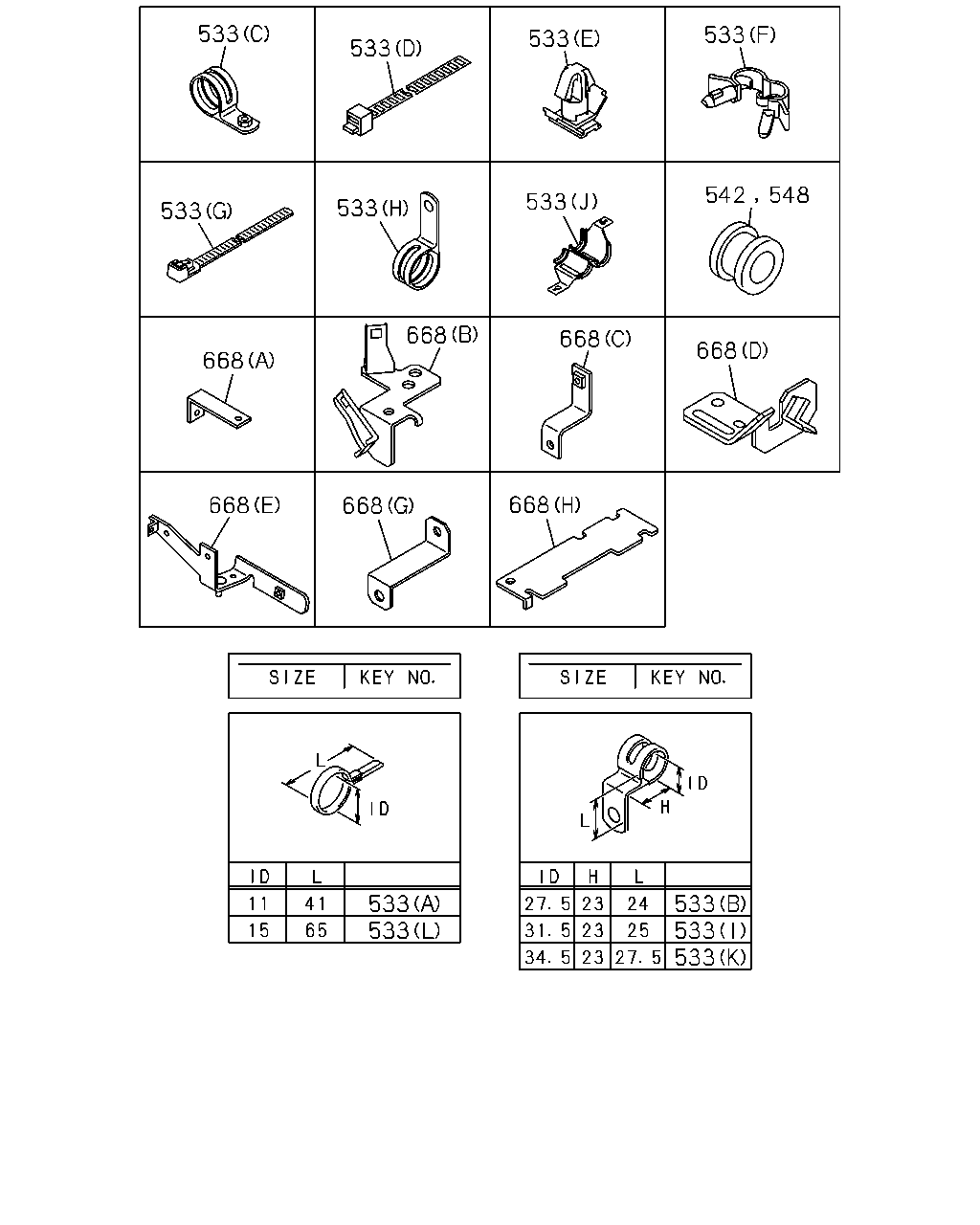

çizim 389412
533 533 533 533 542 548 668 668 668 668 668 668 668 533 533 533 533 533 533 533 533
BalonParca AdiParca NoAdetTipApplied Date A B
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1403- ●
533 CLIP
(L) ID=15 L=65 		1-09700-466-0 06 1 1403- ●
533 CLIP
(H) ID=32 L=50 		1-09701-055-1 01 1 1403- ●
533 CLIP
(D) L=350 		1-09707-183-0 02 1 1403- ●
533 CLIP
(J) W/SPONGE RUBBER 		1-09709-150-0 01 1 1403- ●
533 CLIP
(E) OD=9 H=13.5 		1-09709-180-0 01 1 1403- ●
533 CLIP
(I) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1403- ●
533 CLIP
(I) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1403- ●
533 CLIP
(F) ID=5-12 L=26 		1-09709-289-0 02 1 1312-1401 ●
533 CLIP
MZW6P M/T(RSZ) (F) ID=5-12 L=26 		1-09709-289-0 02 1 1402- ●
533 CLIP
(B) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 1312-1402 ●
533 CLIP
(B) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 1403- ● ●
533 CLIP
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1312- ●
533 CLIP
(C) ID=35 L=50 		1-09701-214-0 01 1 1312- ●
533 CLIP
(D) L=600 		1-09707-107-1 01 1 1312-1402 ●
533 CLIP
(D) L=600 		1-09707-107-1 01 1 1312-1402 ●
533 CLIP
(D) L=600 		1-09707-107-1 01 1 1403- ● ●
533 CLIP
(D) L=600 		1-09707-107-1 01 1 1403- ●
533 CLIP
(D) L=350 		1-09707-183-0 01 1 1312-1402 ●
533 CLIP
(D) L=350 		1-09707-183-0 01 1 1403- ● ●
533 CLIP
(E) OD=9 H=17.5 		1-09709-181-0 01 1 1312- ●
533 CLIP
(G) L=250 IDN 		5-09707-030-1 01 1 1312-1402 ●
533 CLIP
(G) L=250 IDN 		5-09707-030-1 01 1 1403-1405 ● ●
533 CLIP
(G) L=250 IDN 		5-09707-030-1 01 1 1403-1405 ●
533 CLIP
(G) L=250 IDN 		5-09707-030-1 01 1 1406- ● ●
533 CLIP
ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> (G) L=250 IDN 		5-09707-030-1 01 1 1406- ●
533 CLIP
(G) L=250 IDN 		5-09707-030-1 01 1 1406- ●
533 CLIP
(G) L=250 IDN 		5-09707-030-1 05 1 1312-1402 ●
533 CLIP
(G) L=250 IDN 		5-09707-030-1 05 1 1403- ● ●
533 CLIP
WHEEL BASE 4200MM(42W) (L) ID=15 L=65 		1-09700-466-0 14 1 1312- ●
533 CLIP
WHEEL BASE 5000MM(50W) (L) ID=15 L=65 		1-09700-466-0 18 1 1312- ●
533 CLIP
WHEEL BASE 6000MM(60W) (L) ID=15 L=65 		1-09700-466-0 23 1 1312- ●
542 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1312- ●
542 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1312-1402 ●
542 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1403- ● ●
542 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1403- ●
548 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1403- ●
548 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1312- ●
668 BRACKET; HARNESS
(G) 		1-47476-658-0 01 1 1403- ●
668 BRACKET; HARNESS
(H) 		8-98127-093-0 01 1 1403- ●
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1312-1402 ●
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1403- ● ●
668 BRACKET; HARNESS
(C) 		8-97609-110-1 01 1 1312-1402 ●
668 BRACKET; HARNESS
(C) 		8-97609-110-1 01 1 1403- ● ●
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1312-1402 ●
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1403-1502 ● ●
668 BRACKET; HARNESS
(D) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(F) 		8-98095-653-2 01 1 1312-1402 ●
668 BRACKET; HARNESS
(F) 		8-98095-653-2 01 1 1403- ● ●
668 BRACKET; HARNESS
(B) 		8-98168-184-0 01 1 1312-1402 ●
668 BRACKET; HARNESS
(B) 		8-98168-184-0 01 1 1403- ● ●
668 BRACKET; HARNESS
(E) 		8-98212-082-1 01 1 1312-1402 ●
668 BRACKET; HARNESS
(E) 		8-98212-082-1 01 1 1403- ● ●

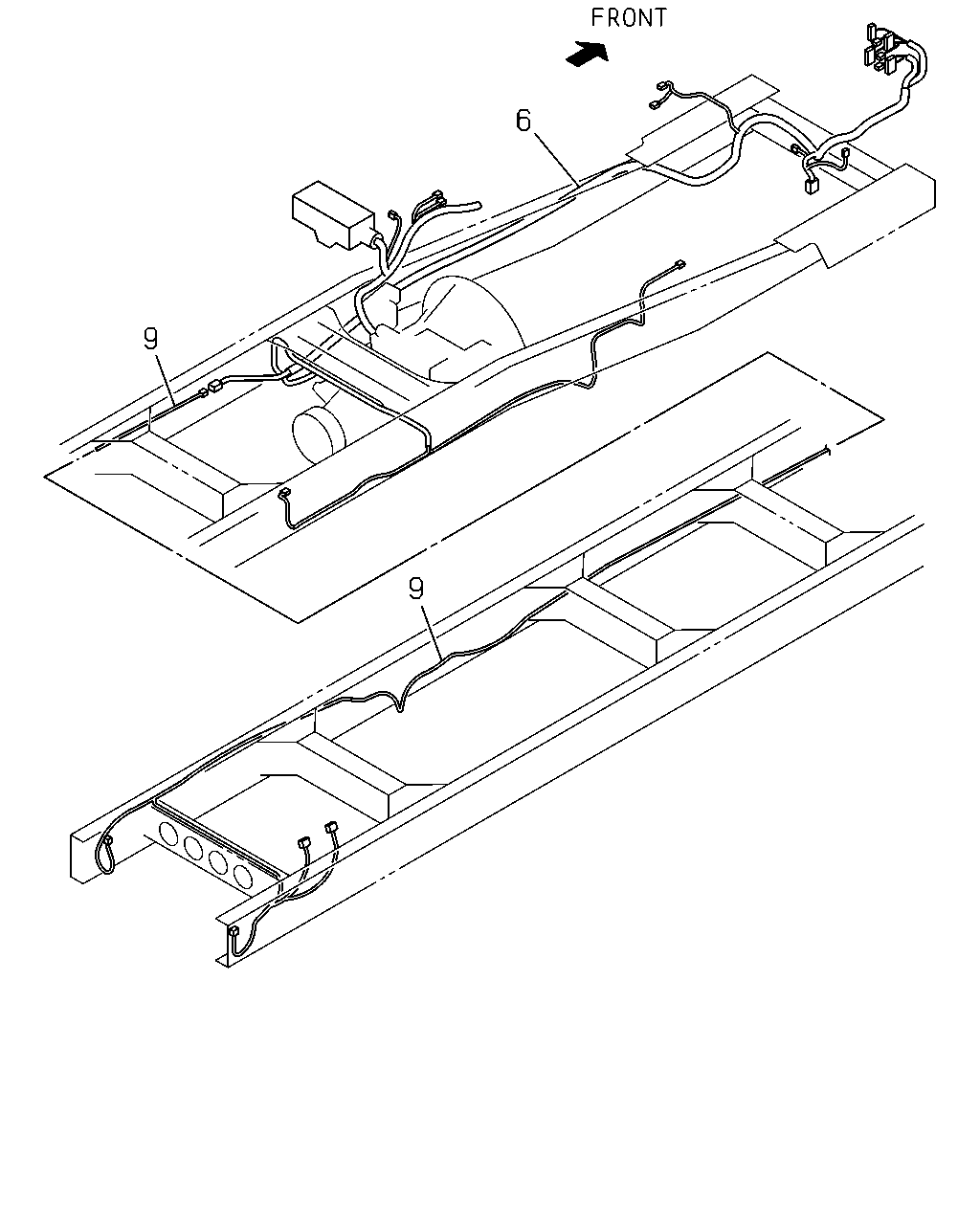

çizim 389458
6 9 9
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ZF9S1110 DD M/T(Y5P) IDN 		8-98268-800-0 01 1 1406- ●
6 HARNESS; FRAME
IDN 		8-98246-391-2 01 1 1403- ●
6 HARNESS; FRAME
MZW6P M/T(RSZ) IDN 		8-98246-386-1 01 1 1312- ●
9 HARNESS; FRAME,RR
IDN 		8-98250-278-1 01 1 1403- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) IDN 		8-98209-435-0 01 1 1312- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) IDN 		8-98209-436-0 01 1 1312- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) IDN 		8-98209-437-0 01 1 1312- ●
çizim 389488
18 12 204 18 116 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ZF9S1110 DD M/T(Y5P) IDN 		8-98268-800-0 01 1 1406- ●
6 HARNESS; FRAME
IDN 		8-98246-391-2 01 1 1403- ●
6 HARNESS; FRAME
MZW6P M/T(RSZ) IDN 		8-98246-386-1 01 1 1312- ●
12 HARNESS; ROOF
IDN 		8-98041-949-2 01 1 1312-1402 ●
12 HARNESS; ROOF
IDN 		8-98041-949-2 01 1 1403- ● ●
18 HARNESS; DOOR
PASSENGER IDN 		8-98076-305-3 01 1 1312-1402 ●
18 HARNESS; DOOR
PASSENGER IDN 		8-98076-305-3 01 1 1403- ● ●
18 HARNESS; DOOR
DRIVER IDN 		8-98076-304-3 01 1 1312-1402 ●
18 HARNESS; DOOR
DRIVER IDN 		8-98076-304-3 01 1 1403- ● ●
116 HARNESS; TRACTOR 8-98251-501-0 01 1 1403- ●
204 HARNESS; CABLE,FLOOR
IDN 		8-98250-442-0 01 1 1403- ●
204 HARNESS; CABLE,FLOOR
IDN 		8-98182-447-0 01 1 1312- ●
çizim 426629
639 534 267 639 267 639 534 639 267 267 290 293 525 640 290
BalonParca AdiParca NoAdetTipApplied Date A B
267 BOLT; BRKT
(D) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1403- ●
267 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1403- ●
267 BOLT; BRKT
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1312-1402 ●
267 BOLT; BRKT
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1403- ● ●
267 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1312-1402 ●
267 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1403- ● ●
267 BOLT; BRKT
(C) M10X25 FLANGE IDN 		0-28651-025-0 02 1 1312-1402 ●
267 BOLT; BRKT
(C) M10X25 FLANGE IDN 		0-28651-025-0 02 1 1403- ● ●
290 NUT; BRKT
(A) M8 FLANGE IDN 		0-91180-108-0 04 1 1403- ●
290 NUT; BRKT
(A) M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
290 NUT; BRKT
(A) M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ● ●
290 NUT; BRKT
(A) M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1402 ●
290 NUT; BRKT
(A) M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1402 ●
290 NUT; BRKT
(A) M8 FLANGE IDN 		0-91180-108-0 02 1 1403- ● ●
290 NUT; BRKT
(A) M8 FLANGE IDN 		0-91180-108-0 02 1 1403- ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1312-1402 ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1403- ● ●
293 NUT
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
293 NUT
M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ● ●
525 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
525 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
525 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ● ●
525 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ● ●
525 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1312-1402 ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1403- ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1312-1402 ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1403- ● ●
639 BOLT; CLIP
(D) M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1403- ●
639 BOLT; CLIP
(A) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-1402 ●
639 BOLT; CLIP
(A) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1403- ● ●
639 BOLT; CLIP
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1312-1402 ●
639 BOLT; CLIP
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1403- ● ●
639 BOLT; CLIP
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1312-1402 ●
639 BOLT; CLIP
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1403- ● ●
640 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
640 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
