◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#131588) — 144 parça

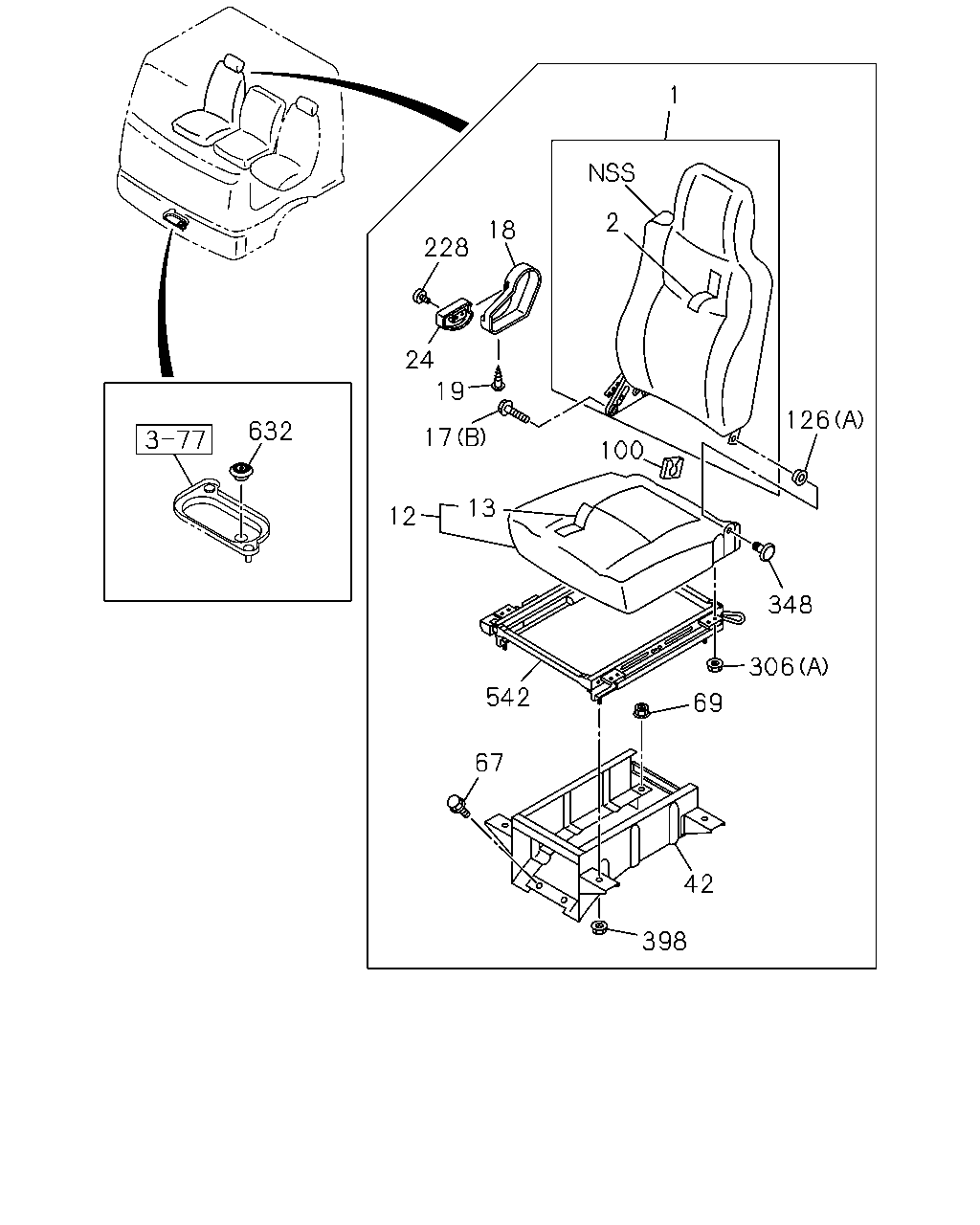

çizim 389333
1 2 18 228 24 17 13 12 19 100 126 348 306 69 42 398 67 542 632
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DARK GRAY IDN 		8-97409-955-5 01 1 1312-1402 ●
1 BACK ASM; SEAT
DARK GRAY IDN 		8-97409-955-5 01 1 1403-1512 ● ●
1 BACK ASM; SEAT
DARK GRAY IDN 		8-97466-618-0 01 1 1601- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97411-910-2 01 1 1312-1402 ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97411-910-2 01 1 1403- ● ●
12 CUSHION; SEAT,FRT
DARK GRAY 		8-97409-954-1 01 1 1312-1402 ●
12 CUSHION; SEAT,FRT
DARK GRAY 		8-97409-954-2 01 1 1403-1512 ● ●
12 CUSHION; SEAT,FRT
DARK GRAY IDN 		8-97466-606-0 01 1 1601- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97411-909-0 01 1 1312-1402 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97411-909-1 01 1 1403- ● ●
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1312-1402 ●
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1403- ● ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1312-1402 ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1403- ● ●
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1312-1402 ●
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1403- ● ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1312-1402 ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1403- ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1312-1402 ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1403- ● ●
42 STAND; DRIVER SEAT 1-75558-604-1 01 1 1312-1402 ●
42 STAND; DRIVER SEAT
IDN 		1-75558-604-2 01 1 1403- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1312-1402 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1403- ● ●
69 NUT; FRT SEAT
M10 FLANGE IDN 		0-91180-110-0 02 1 1312-1402 ●
69 NUT; FRT SEAT
M10 FLANGE IDN 		0-91180-110-0 02 1 1403- ● ●
100 COVER; HINGE 8-98203-070-0 01 1 1312-1402 ●
100 COVER; HINGE 8-98203-070-0 01 1 1403-1512 ● ●
100 COVER; HINGE
IDN 		8-98286-009-0 01 1 1601- ● ●
126 BUSHING; HINGE,RECLINING
(B) 		8-97854-900-0 01 1 1312-1402 ●
126 BUSHING; HINGE,RECLINING
(B) 		8-97854-900-0 01 1 1403- ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1312-1402 ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1403-1512 ● ●
126 BUSHING; HINGE,RECLINING
(A) IDN 		8-98286-007-0 01 1 1601- ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1312-1402 ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1403- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE IDN 		0-91180-110-0 02 1 1312-1402 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE IDN 		0-91180-110-0 02 1 1403- ● ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1312-1402 ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1403- ● ●
348 BOLT; HINGE,SEAT
IDN 		8-98286-008-0 01 1 1601- ● ●
398 NUT; STAND
M8 FLANGE 		1-75538-207-0 04 1 1312-1402 ●
398 NUT; STAND
M8 FLANGE 		1-75538-207-0 04 1 1403- ● ●
542 ADJUSTER ASM; SEAT SLIDE 8-98093-310-0 01 1 1312-1402 ●
542 ADJUSTER ASM; SEAT SLIDE 8-98093-310-0 01 1 1403-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
IDN 		8-98291-653-0 01 1 1503- ● ●
632 GROMMET
OD=24 		8-94119-796-0 01 1 1312-1402 ●
632 GROMMET
OD=24 		8-94119-796-0 01 1 1403- ● ●

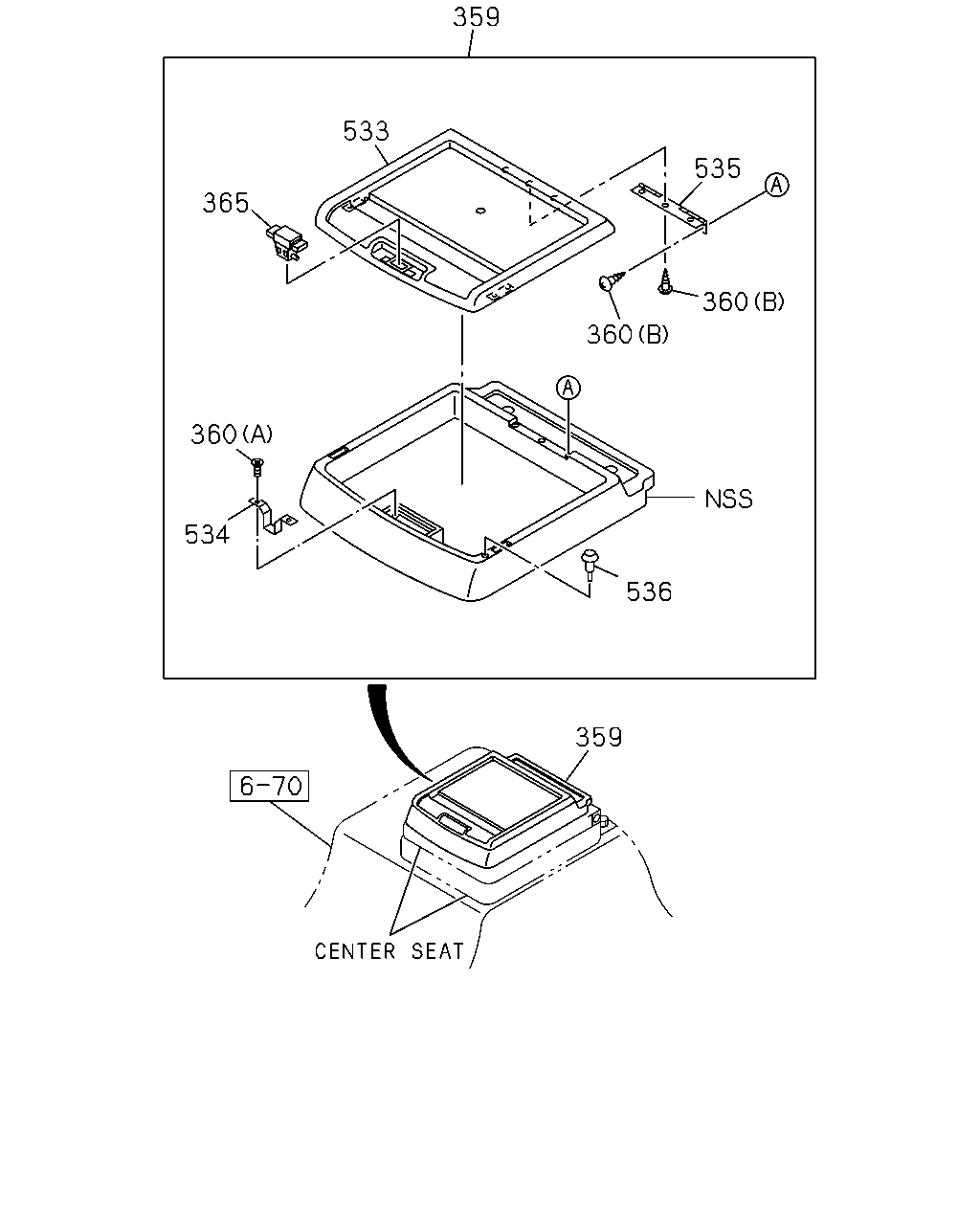

çizim 389383
359 533 535 360 360 536 359 534 360 365
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1312-1402 ●
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1403- ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1312-1402 ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1403- ● ●
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1312-1402 ●
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1403- ● ●
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1312-1402 ●
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1403- ● ●
365 LOCK ASM; SEAT 1-72538-312-0 01 1 1312-1402 ●
365 LOCK ASM; SEAT 1-72538-312-0 01 1 1403- ● ●
533 LID; PARCEL BOX
GRAY 		8-97417-263-0 01 1 1312-1402 ●
533 LID; PARCEL BOX
GRAY 		8-97417-263-0 01 1 1403- ● ●
534 STRIKER; PARCEL BOX 1-72538-190-0 01 1 1312-1402 ●
534 STRIKER; PARCEL BOX 1-72538-190-0 01 1 1403- ● ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 1312-1402 ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 1403- ● ●
536 RUBBER; CUSHION 1-72538-187-0 02 1 1312-1402 ●
536 RUBBER; CUSHION 1-72538-187-0 02 1 1403- ● ●
çizim 389399
175 506 360 176 188 16 188 126 359 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING 1-75418-062-1 01 1 1312-1402 ●
16 ADJUSTER ASM; RECLINING 1-75418-062-1 01 1 1403- ● ●
126 BUSHING; HINGE,RECLINING
(B) 		8-97854-900-0 01 1 1312-1402 ●
126 BUSHING; HINGE,RECLINING
(B) 		8-97854-900-0 01 1 1403- ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1312-1402 ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1403-1512 ● ●
126 BUSHING; HINGE,RECLINING
(A) IDN 		8-98286-007-0 01 1 1601- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
DARK GRAY 		8-97409-975-1 01 1 1312-1402 ●
175 BACK ASM; PASSENGER CENTER SEAT
DARK GRAY 		8-97409-975-1 01 1 1403- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DARK GRAY 		8-97409-976-1 01 1 1312-1402 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DARK GRAY 		8-97409-976-1 01 1 1403- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DARK GRAY 		8-97409-974-0 01 1 1312-1402 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DARK GRAY 		8-97409-974-1 01 1 1403- ● ●
182 CUSHION ASM; CENTER SEAT
DARK GRAY 		8-97409-973-2 01 1 1312-1402 ●
182 CUSHION ASM; CENTER SEAT
DARK GRAY 		8-97409-973-3 01 1 1403- ● ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 1312-1402 ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 1403- ● ●
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1312-1402 ●
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1403- ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1312-1402 ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1403- ● ●
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1312-1402 ●
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1403- ● ●
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1312-1402 ●
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1403- ● ●
403 NUT; CENTER SEAT
M8 FLANGE IDN 		0-91180-108-0 04 1 1312-1402 ●
403 NUT; CENTER SEAT
M8 FLANGE IDN 		0-91180-108-0 04 1 1403- ● ●
506 CAP; PARCEL BOX
GRAY 		8-97409-980-1 02 1 1312-1402 ●
506 CAP; PARCEL BOX
GRAY 		8-97409-980-1 02 1 1403- ● ●

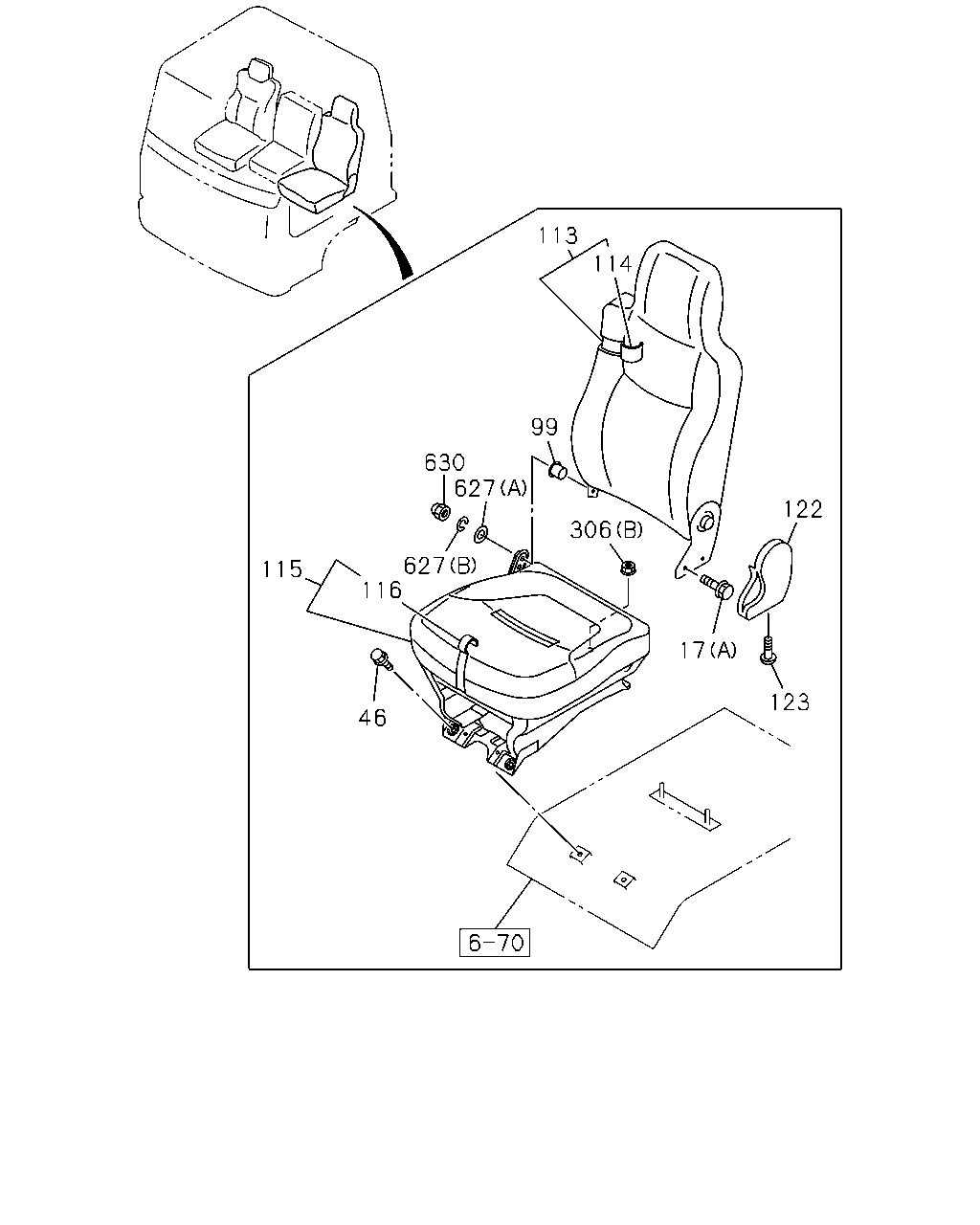

çizim 389444
113 114 99 630 306 627 122 17 123 627 116 115 46
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1312-1402 ●
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1403- ● ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1312-1402 ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1403- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1312-1402 ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1403- ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1312-1402 ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1403- ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97409-966-1 01 1 1312-1402 ●
113 BACK ASM; SEAT
DARK GRAY 		8-97409-966-1 01 1 1403- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97411-916-0 01 1 1312-1402 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97411-916-0 01 1 1403- ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97409-965-0 01 1 1312-1402 ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY IDN 		8-97409-965-1 01 1 1403- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97411-915-0 01 1 1312-1402 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97411-915-0 01 1 1403- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1312-1402 ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1403- ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1312-1402 ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1403- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE IDN 		0-91180-110-0 02 1 1312-1402 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE IDN 		0-91180-110-0 02 1 1403- ● ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1312-1402 ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1403- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1312-1402 ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1403- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1312-1402 ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1403- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1312-1402 ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1403- ● ●

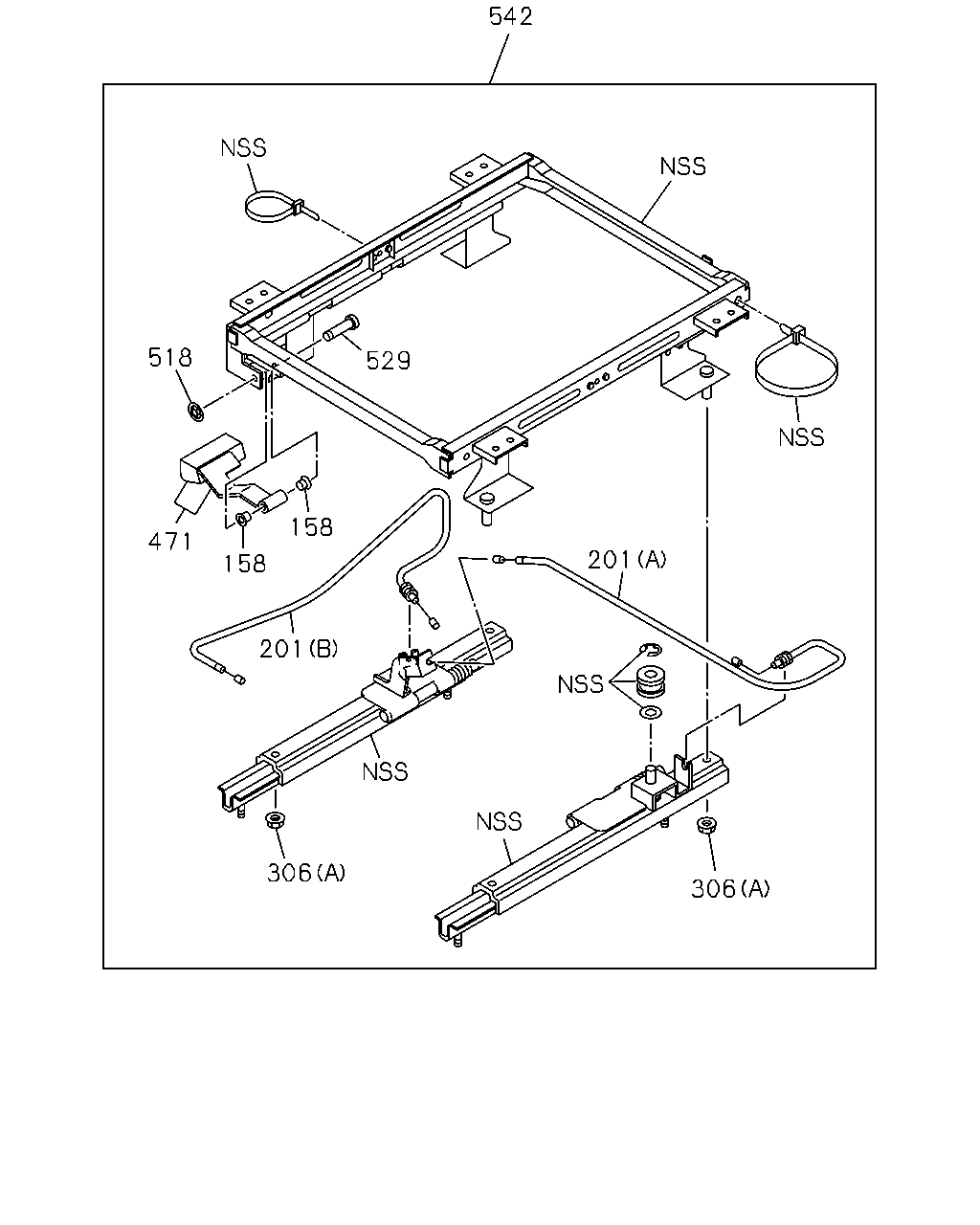

çizim 389483
542 201 306 306 201 158 158 471 518 529
BalonParca AdiParca NoAdetTipApplied Date A B
158 BUSHING; LINK ARM
IDN 		1-75518-209-0 02 1 1312-1402 ●
158 BUSHING; LINK ARM
IDN 		1-75518-209-0 02 1 1403- ● ●
201 CABLE; ADJ
(A) L=667 IDN 		1-75518-288-0 01 1 1312-1402 ●
201 CABLE; ADJ
(A) L=667 IDN 		1-75518-288-0 01 1 1403- ● ●
201 CABLE; ADJ
(B) L=605 IDN 		1-75518-289-1 01 1 1312-1402 ●
201 CABLE; ADJ
(B) L=605 IDN 		1-75518-289-1 01 1 1403- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE IDN 		0-91180-110-0 02 1 1312-1402 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE IDN 		0-91180-110-0 02 1 1403- ● ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1312-1402 ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1403- ● ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1312-1402 ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1403- ● ●
518 NUT; TILT ADJ
IDN 		1-75518-263-0 01 1 1312-1402 ●
518 NUT; TILT ADJ
IDN 		1-75518-263-0 01 1 1403- ● ●
529 PIN; LINK
IDN 		1-75518-262-0 01 1 1312-1402 ●
529 PIN; LINK
IDN 		1-75518-262-0 01 1 1403- ● ●
542 ADJUSTER ASM; SEAT SLIDE 8-98093-310-0 01 1 1312-1402 ●
542 ADJUSTER ASM; SEAT SLIDE 8-98093-310-0 01 1 1403-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
IDN 		8-98291-653-0 01 1 1503- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
