7-43 — SUN VISOR AND ASSIST GRIP (#131586) — 107 parça

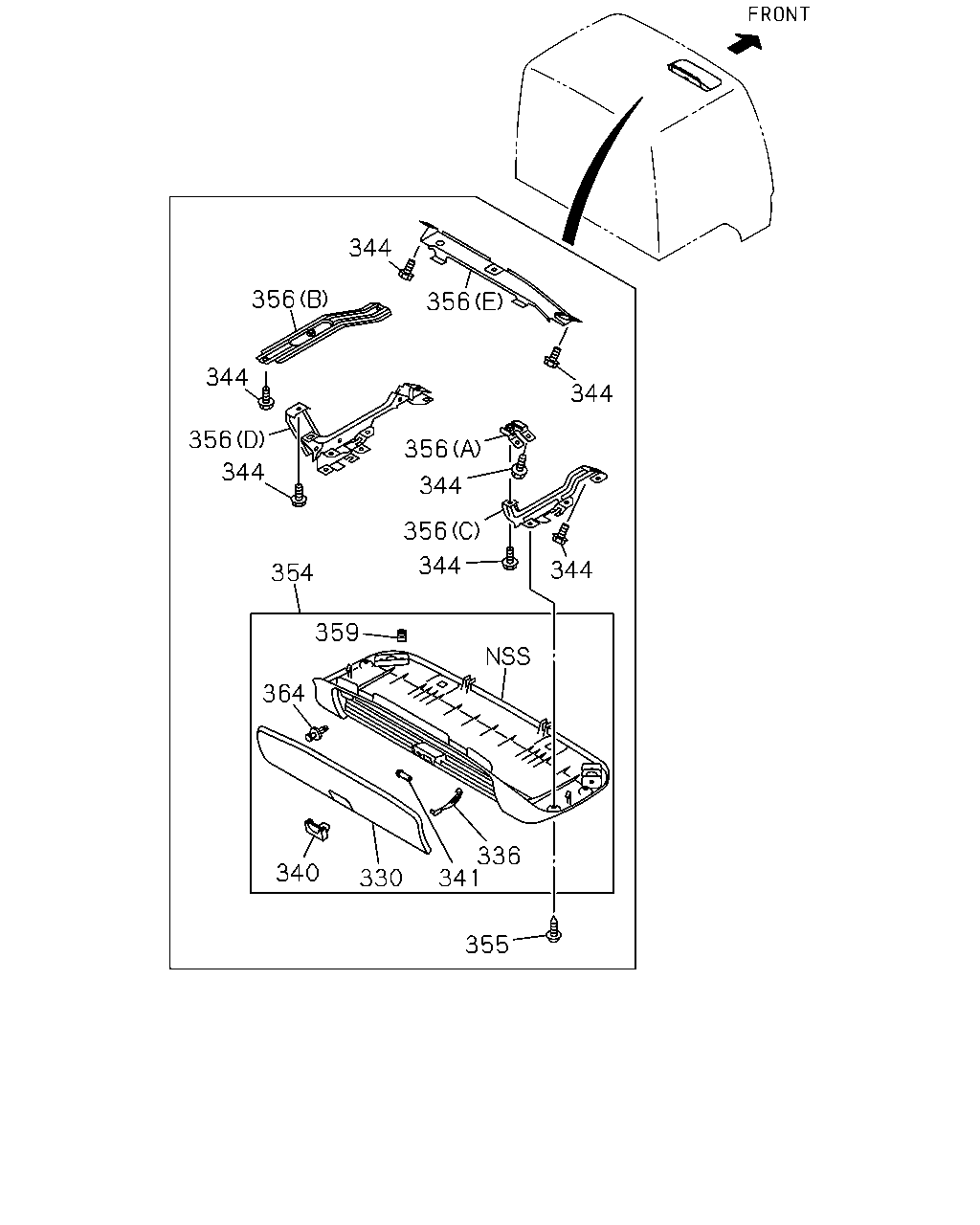

çizim 389314
344 356 344 356 344 354 359 364 340 330 341 336 344 356 344 356 356 344 344 355
BalonParca AdiParca NoAdetTipApplied Date A B
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 01 1 1312-1402 ●
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 01 1 1403- ● ●
336 STAY; LID 1-72448-379-3 02 1 1312-1402 ●
336 STAY; LID 1-72448-379-3 02 1 1403- ● ●
340 LOCK; HEADER SHELF 1-72448-376-0 01 1 1312-1402 ●
340 LOCK; HEADER SHELF 1-72448-376-0 01 1 1403- ● ●
341 HINGE; LID,HEADER SHELF 8-98025-428-2 02 1 1312-1402 ●
341 HINGE; LID,HEADER SHELF 8-98025-428-2 02 1 1403- ● ●
344 BOLT; BRKT,FRT
M6X12 FLANGE 		8-97108-669-0 08 1 1404- ● ●
344 BOLT; BRKT,FRT
M6X12 FLANGE 		8-97108-669-0 10 1 1312-1402 ●
344 BOLT; BRKT,FRT
M6X12 FLANGE 		8-97108-669-0 10 1 1403-1403 ● ●
344 BOLT; BRKT,FRT
M6X12 FLANGE 		8-97108-669-0 02 1 1404- ● ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97407-386-5 01 1 1312-1401 ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97428-821-0 01 1 1402-1402 ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97428-821-0 01 1 1403- ● ●
355 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR IDN 		0-72380-516-0 04 1 1312-1402 ●
355 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR IDN 		0-72380-516-0 04 1 1403- ● ●
356 BRACKET; ROOF OUTER
(A) 		8-97386-874-1 01 1 1312-1402 ●
356 BRACKET; ROOF OUTER
(A) 		8-97386-874-1 01 1 1403- ● ●
356 BRACKET; ROOF OUTER
(B) 		8-98010-059-0 01 1 1312-1402 ●
356 BRACKET; ROOF OUTER
(B) 		8-98010-059-0 01 1 1403- ● ●
356 BRACKET; ROOF OUTER
(C) 		8-98014-088-3 01 1 1312-1402 ●
356 BRACKET; ROOF OUTER
(C) 		8-98014-088-3 01 1 1403- ● ●
356 BRACKET; ROOF OUTER
(D) 		8-98023-257-2 01 1 1312-1402 ●
356 BRACKET; ROOF OUTER
(D) 		8-98023-257-2 01 1 1403- ● ●
356 BRACKET; ROOF OUTER
(E) 		8-98042-015-3 01 1 1312-1402 ●
356 BRACKET; ROOF OUTER
(E) 		8-98042-015-3 01 1 1403- ● ●
359 HOLDER; HEADER TRAY 8-98041-754-0 04 1 1312-1402 ●
359 HOLDER; HEADER TRAY 8-98041-754-0 04 1 1403- ● ●
364 STOPPER; LID
IDN 		8-98010-867-1 03 1 1312-1402 ●
364 STOPPER; LID
IDN 		8-98010-867-1 03 1 1403- ● ●

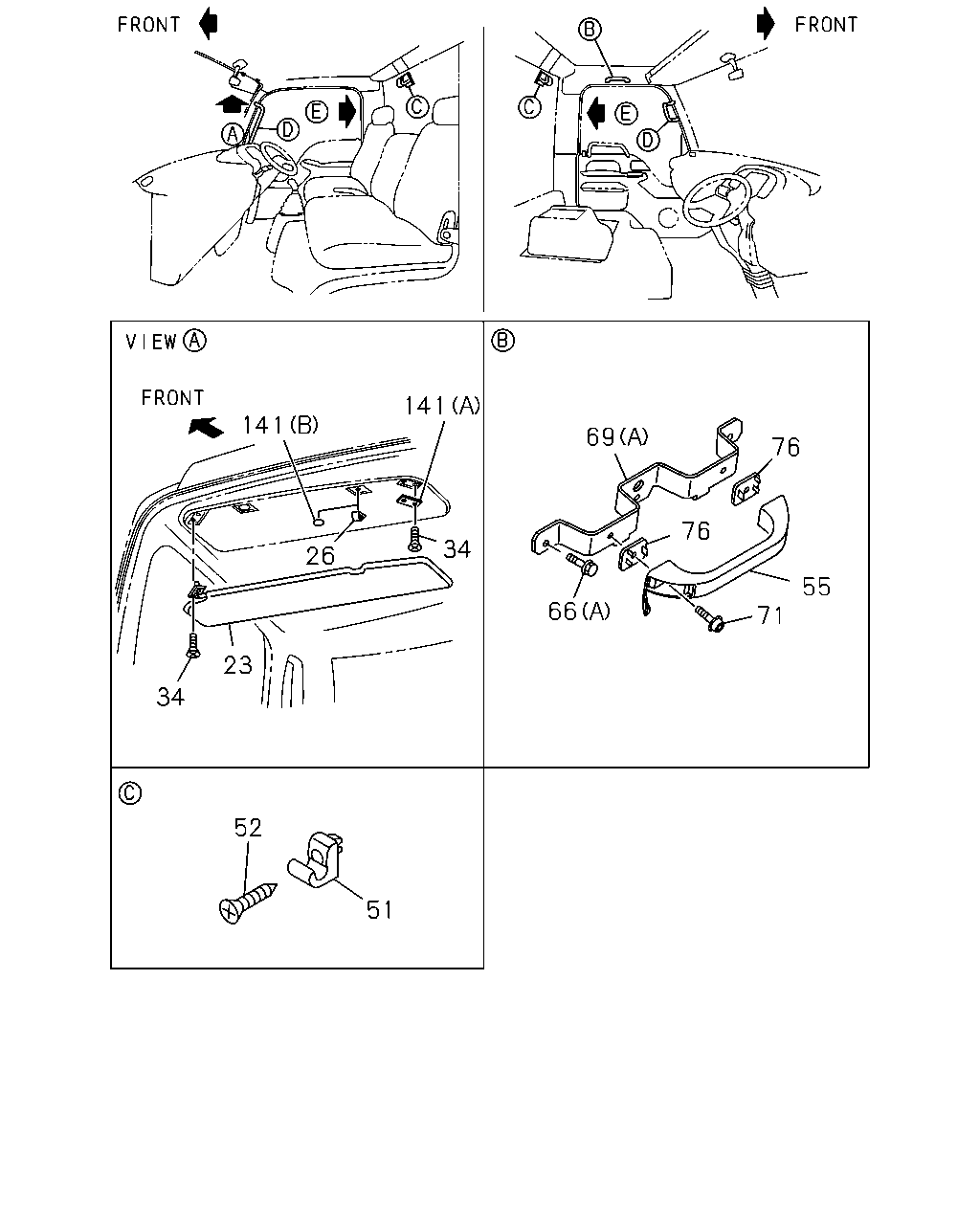

çizim 389395
141 26 34 141 23 34 52 51 66 69 76 76 55 71
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
DARK GRAY IDN 		8-97407-373-2 01 1 1312-1402 ●
23 SUN VISOR
DARK GRAY IDN 		8-97407-373-2 01 1 1403- ● ●
26 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 1312-1402 ●
26 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 1403- ● ●
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 04 1 1312-1402 ●
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 04 1 1403- ● ●
51 HOOK; COAT HANGER
DARK GRAY 		8-97409-845-0 02 1 1312-1402 ●
51 HOOK; COAT HANGER
DARK GRAY 		8-97409-845-0 02 1 1403- ● ●
52 SCREW; HOOK
M4X20 TAPPING OVAL-HEAD IDN 		0-70540-420-0 02 1 1312-1402 ●
52 SCREW; HOOK
M4X20 TAPPING OVAL-HEAD IDN 		0-70540-420-0 02 1 1403- ● ●
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 1312-1402 ●
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 1403- ● ●
66 BOLT; ASSIST GRIP BRKT
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1312-1402 ●
66 BOLT; ASSIST GRIP BRKT
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1403- ● ●
66 BOLT; ASSIST GRIP BRKT
(A) M6X12 FLANGE 		8-97108-669-0 03 1 1312-1402 ●
66 BOLT; ASSIST GRIP BRKT
(A) M6X12 FLANGE 		8-97108-669-0 03 1 1403- ● ●
69 BRACKET; ASSIST GRIP
(A) 		8-98014-094-0 01 1 1312-1402 ●
69 BRACKET; ASSIST GRIP
(A) 		8-98014-094-0 01 1 1403- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-972-2 01 1 1312-1402 ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-972-2 01 1 1403- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-971-2 01 1 1312-1402 ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-971-2 01 1 1403- ● ●
71 SCREW
M6X28 		8-98004-344-0 02 1 1312-1402 ●
71 SCREW
M6X28 		8-98004-344-0 02 1 1403- ● ●
76 SPACER; ASSIST GRIP
DARK GRAY 		8-97405-286-0 02 1 1312-1402 ●
76 SPACER; ASSIST GRIP
DARK GRAY 		8-97405-286-0 02 1 1403- ● ●
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1312-1402 ●
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1403- ● ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1312-1401 ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1402-1402 ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1403- ● ●

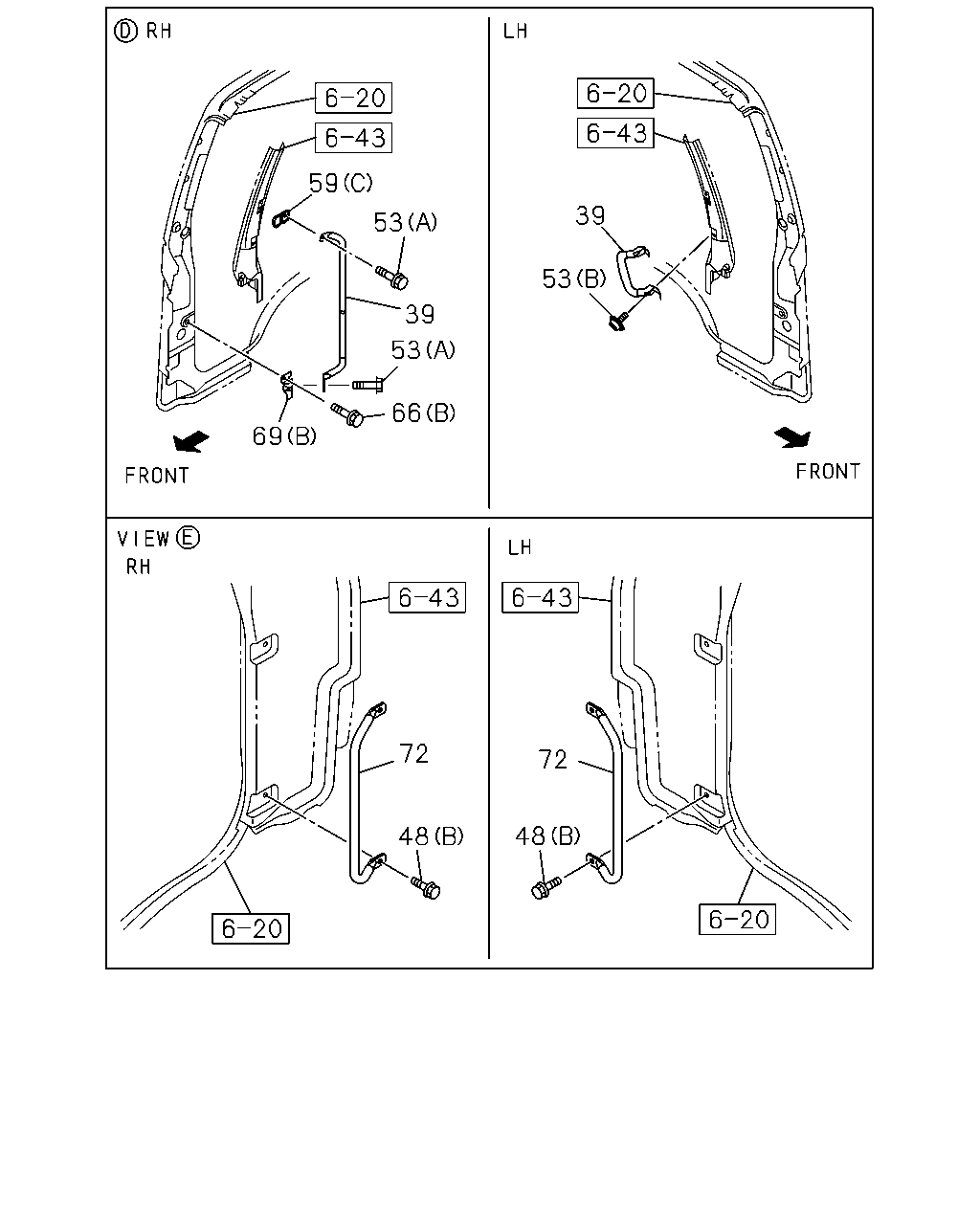

çizim 389453
59 53 39 53 39 53 66 69 72 48 72 48
BalonParca AdiParca NoAdetTipApplied Date A B
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 01 1 1312-1402 ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 01 1 1403- ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY IDN 		8-97407-942-2 01 1 1312-1402 ●
39 HANDLE; ASSIST,A-POST
DARK GRAY IDN 		8-97407-942-2 01 1 1403- ● ●
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 1312-1402 ●
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 1403- ● ●
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 1312-1402 ●
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 1403- ● ●
53 SCREW; ASSIST HANDLE
(B) M6X28 		8-98004-344-0 02 1 1312-1402 ●
53 SCREW; ASSIST HANDLE
(B) M6X28 		8-98004-344-0 02 1 1403- ● ●
53 SCREW; ASSIST HANDLE
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-1402 ●
53 SCREW; ASSIST HANDLE
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1403- ● ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1312-1402 ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1403- ● ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1312-1402 ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1403- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 01 1 1312-1402 ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 01 1 1403- ● ●
66 BOLT; ASSIST GRIP BRKT
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1312-1402 ●
66 BOLT; ASSIST GRIP BRKT
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1403- ● ●
66 BOLT; ASSIST GRIP BRKT
(A) M6X12 FLANGE 		8-97108-669-0 03 1 1312-1402 ●
66 BOLT; ASSIST GRIP BRKT
(A) M6X12 FLANGE 		8-97108-669-0 03 1 1403- ● ●
69 BRACKET; ASSIST GRIP
(A) 		8-98014-094-0 01 1 1312-1402 ●
69 BRACKET; ASSIST GRIP
(A) 		8-98014-094-0 01 1 1403- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-972-2 01 1 1312-1402 ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-972-2 01 1 1403- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-971-2 01 1 1312-1402 ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-971-2 01 1 1403- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK
IDN 		8-97386-939-0 02 1 1312-1402 ●
72 GRIP; ASSIST,CAB ENTRY,BACK
IDN 		8-97386-939-0 02 1 1403-1510 ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK
IDN 		8-98315-144-0 02 1 1511- ● ●

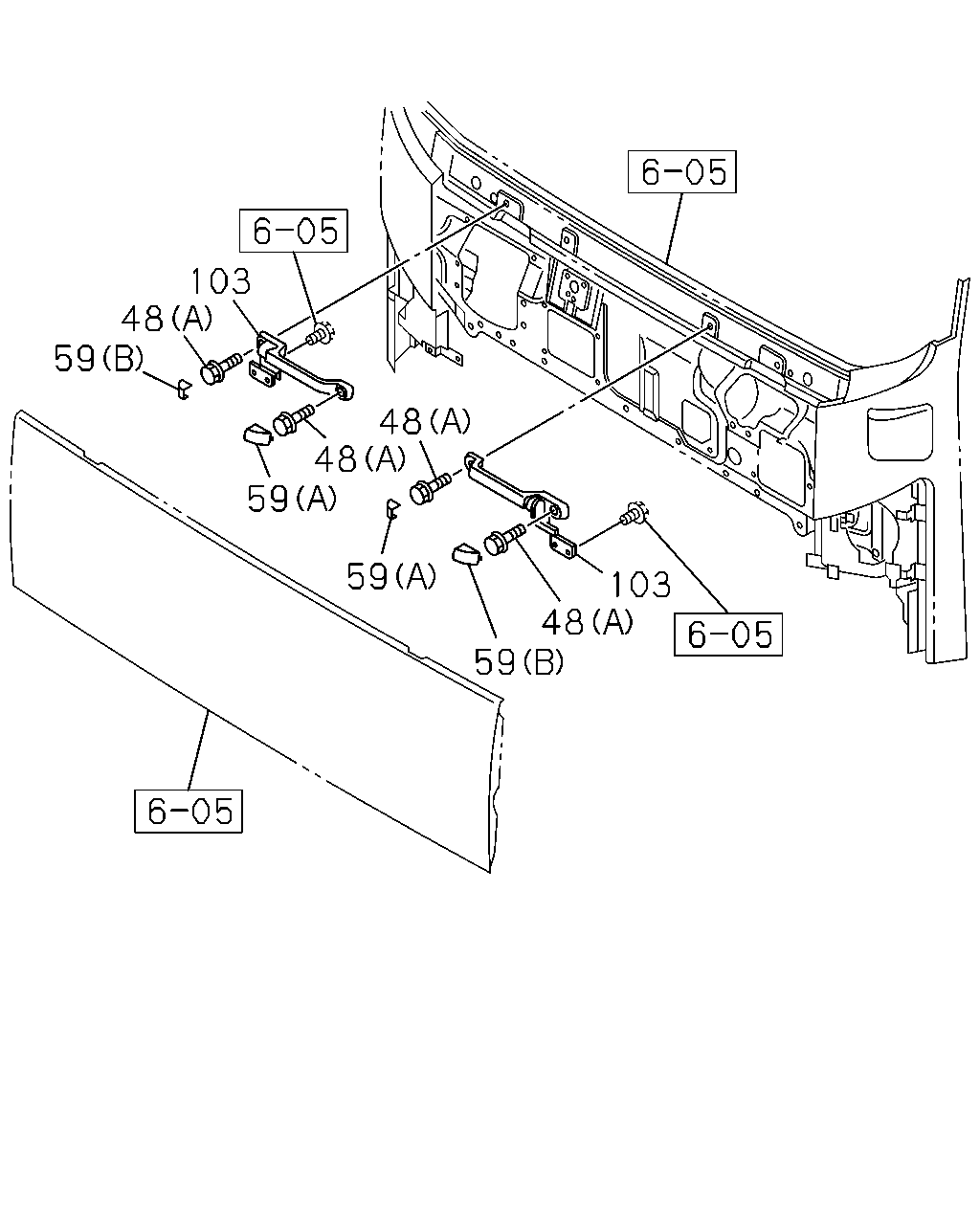

çizim 389480
103 48 59 48 48 59 59 59 48 103
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 1312-1402 ●
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 1403- ● ●
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 1312-1402 ●
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 1403- ● ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1312-1402 ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1403- ● ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1312-1402 ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1403- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 01 1 1312-1402 ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 01 1 1403- ● ●
103 GRIP; ASSIST,FRT PNL 8-98036-565-1 01 1 1312-1402 ●
103 GRIP; ASSIST,FRT PNL 8-98036-565-1 01 1 1403- ● ●
103 GRIP; ASSIST,FRT PNL 8-98036-566-1 01 1 1312-1402 ●
103 GRIP; ASSIST,FRT PNL 8-98036-566-1 01 1 1403- ● ●
