◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#131583) — 20 parça

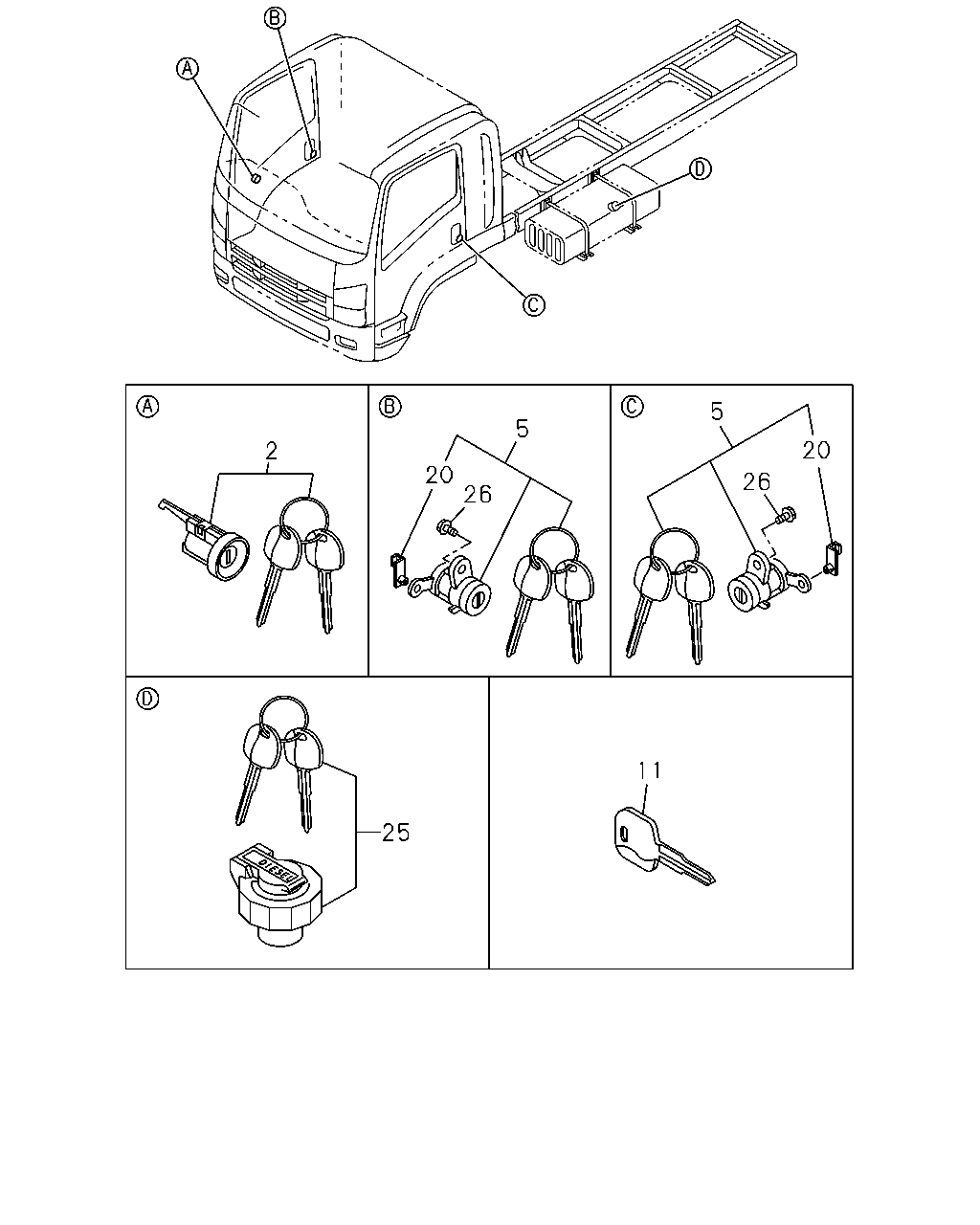

çizim 388921
2 20 26 5 5 26 20 25 11
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1312-1402 ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1403- ● ●
5 CYLINDER ASM; DOOR LOCK 8-98055-149-0 01 1 1312-1402 ●
5 CYLINDER ASM; DOOR LOCK 8-98055-149-0 01 1 1403- ● ●
5 CYLINDER ASM; DOOR LOCK 8-98055-150-0 01 1 1312-1402 ●
5 CYLINDER ASM; DOOR LOCK 8-98055-150-0 01 1 1403- ● ●
11 KEY; BLANK 8-98055-170-0 AR 1 1312-1402 ●
11 KEY; BLANK 8-98055-170-0 AR 1 1403- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1312-1402 ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1403- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1312-1402 ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1403- ● ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> 		8-98146-010-0 01 1 1312-1402 ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> 		8-98146-010-0 01 1 1403- ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE IDN 		8-98031-839-0 02 1 1312-1402 ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE IDN 		8-98031-839-0 02 1 1403- ● ●
çizim 389080
1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A) IDN 		8-97948-145-0 01 1 1312-1402 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A) IDN 		8-97948-145-0 01 1 1403- ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B) 		8-98201-161-0 01 1 1312-1402 ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B) 		8-98201-161-0 01 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
