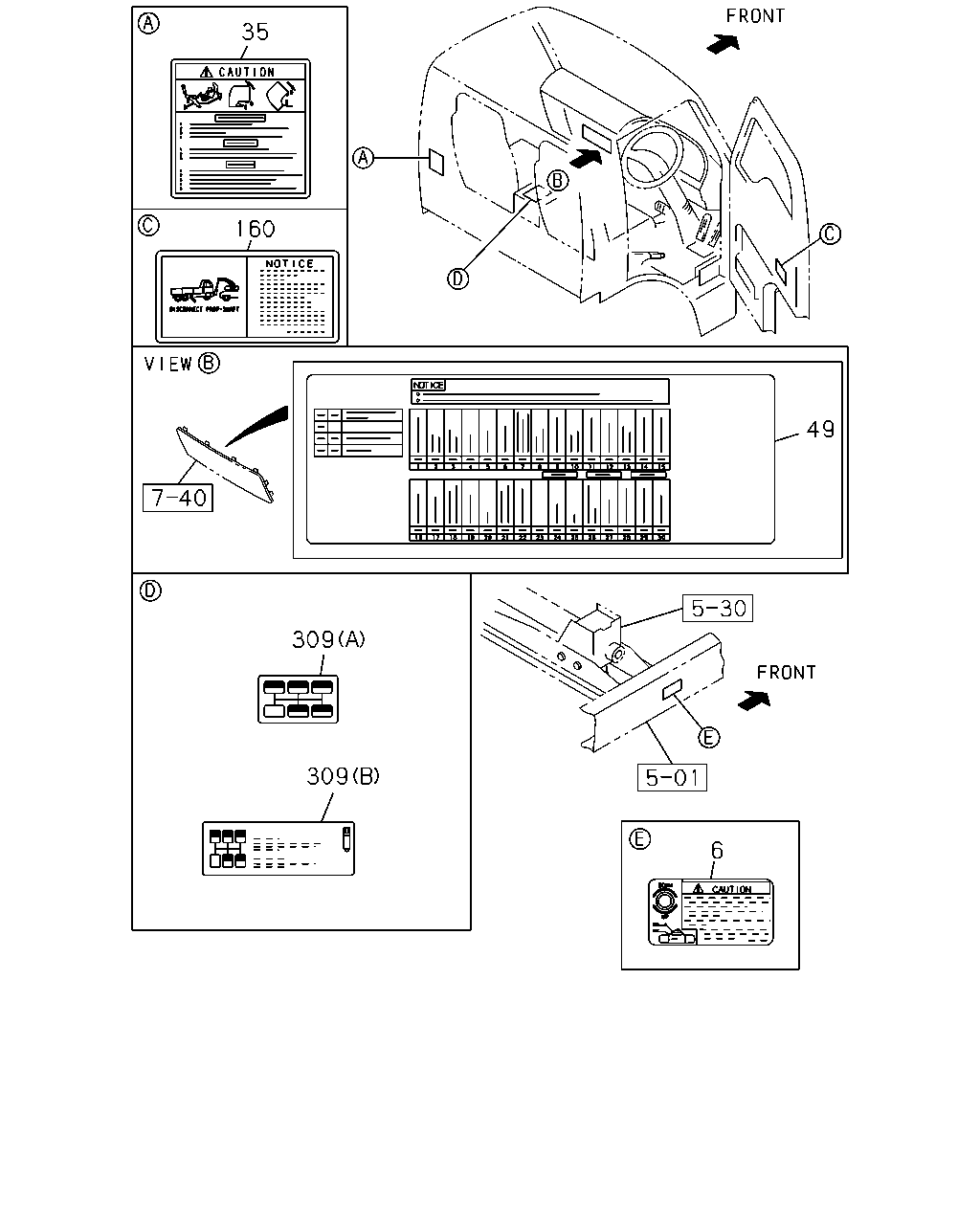

7-10 — CAUTION PLATE AND LABEL (#131581) — 13 parça

35 49 309 309 6 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR(P10) IDN	8-98082-437-0	01	1	1312-1402	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR(P10) IDN	8-98082-437-0	01	1	1403-	●
6	PLATE; CAUTION,SPARE TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1(SY8) IDN	8-98082-437-0	01	1	1403-		●
35	PLATE; CAUTION,CAB IDN	8-98065-363-0	01	1	1312-1402	●
35	PLATE; CAUTION,CAB IDN	8-98065-363-0	01	1	1403-	●	●
49	PLATE; CAUTION,FUSE BOX IDN	8-98122-353-0	01	1	1312-1402	●
49	PLATE; CAUTION,FUSE BOX IDN	8-98122-353-0	01	1	1403-	●	●
160	PLATE; CAUTION,TOWING IDN	1-85888-737-1	01	1	1403-1405		●
160	PLATE; CAUTION,TOWING ZF9S1110 DD M/T(Y5P) IDN	1-85888-737-1	01	1	1406-	●
160	PLATE; CAUTION,TOWING IDN	1-85888-737-1	01	1	1406-		●
309	LABEL; M/T SHIFT (B)	8-98098-606-0	01	1	1403-1404		●
309	LABEL; M/T SHIFT (B)	8-98098-606-0	01	1	1403-1404		●
309	LABEL; M/T SHIFT (A)	1-85881-598-0	01	1	1403-		●
