Isuzu WW
▶
TRUCKS
▶
FVR
▶
11566 - FVR/GVR(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

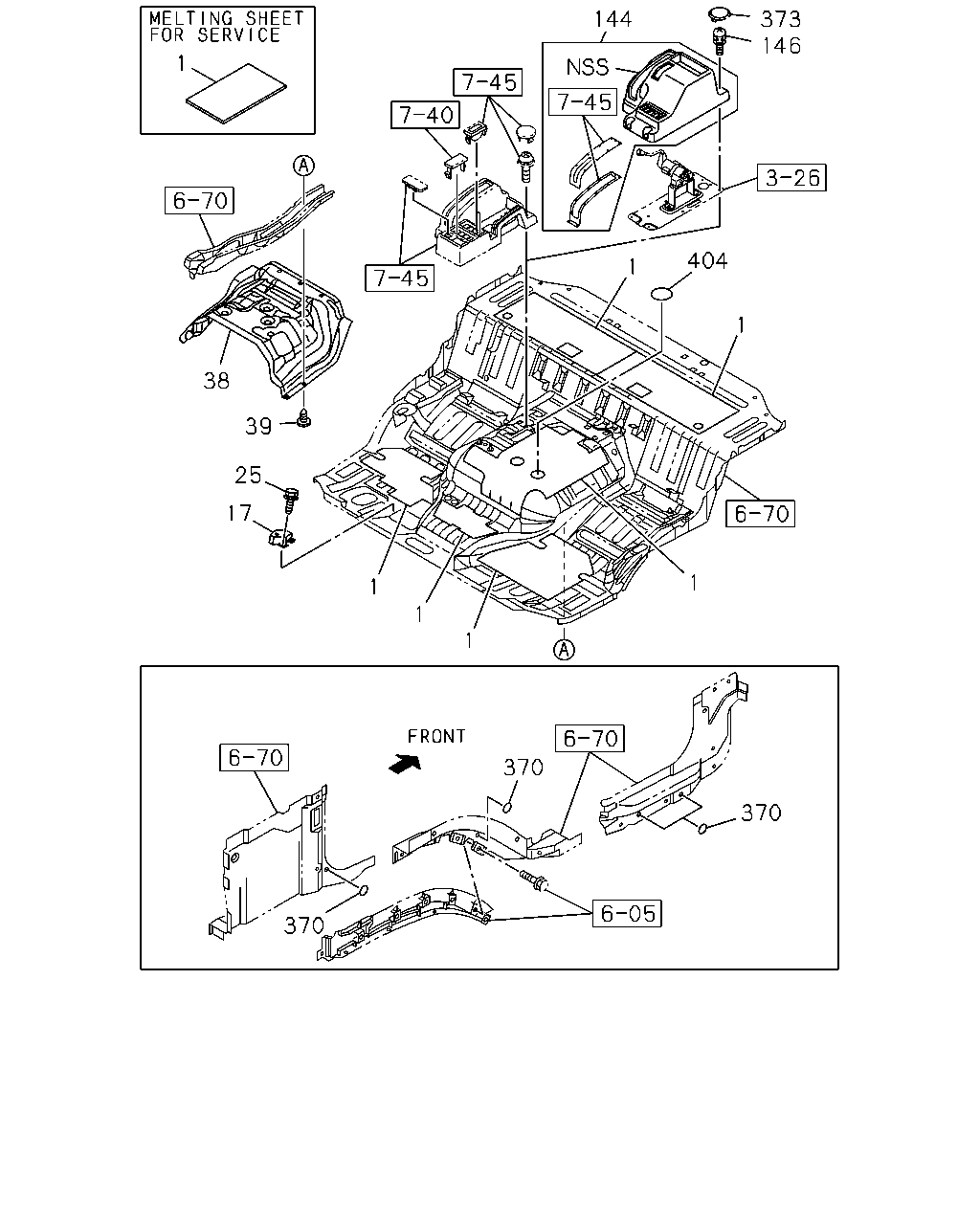

6-76 — FLOOR EQUIPMENT AND SEALING
(#131574) — 19 parça
Tümü
A - FGR5MV
B - GGR5MV
1
38
39
25
17
1
1
1
1
1
404
144
373
146
370
370
370
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
1312-1402
●
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
1403-
●
●
17
REST; FOOT,DRIVER
8-98076-322-1
01
1
1312-1402
●
17
REST; FOOT,DRIVER
8-98076-322-1
01
1
1403-
●
●
25
SCREW; FOOT REST
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
1312-1402
●
25
SCREW; FOOT REST
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
1403-
●
●
38
INSULATOR; ENG COVER
8-98248-305-0
01
1
1312-1402
●
38
INSULATOR; ENG COVER
8-98248-305-0
01
1
1403-
●
●
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4
8-97808-623-0
17
1
1312-1402
●
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4
8-97808-623-0
17
1
1403-
●
●
144
COVER; HAND BRK VLV
8-97427-857-1
01
1
1403-
●
146
BOLT; COVER BRKT
M6X16 IDN
0-38050-616-0
04
1
1403-
●
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1312-1402
●
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1403-
●
●
373
COVER; HOLE
GRAY
8-97407-951-0
02
1
1403-
●
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
02
1
1312-1402
●
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
02
1
1403-
●
●
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
12
1
1312-1402
●
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
12
1
1403-
●
●
