6-60 — ROOF PANEL (#131570) — 16 parça

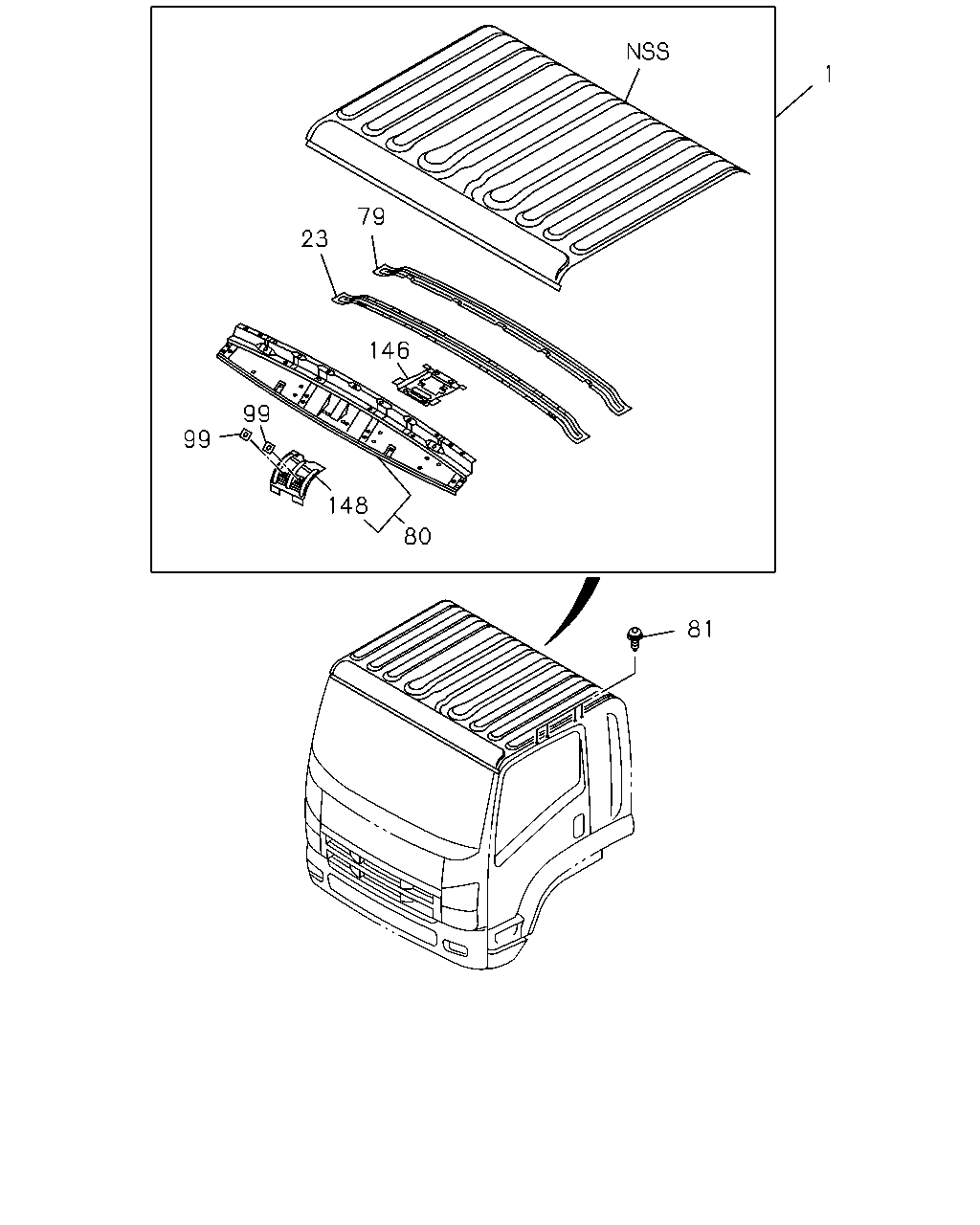

çizim 389129
23 79 146 99 99 148 80 1 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF 8-98246-477-0 01 1 1312-1402 ●
1 PANEL; ROOF 8-98246-477-0 01 1 1403- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 1312-1402 ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 1403- ● ●
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 1312-1402 ●
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 1403- ● ●
80 PANEL; HEADER,ROOF 8-98196-921-0 01 1 1312-1402 ●
80 PANEL; HEADER,ROOF 8-98196-921-0 01 1 1403- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR IDN 		8-98141-874-0 08 1 1312-1402 ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR IDN 		8-98141-874-0 08 1 1403- ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1312-1402 ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1403- ● ●
146 REINFORCEMENT; ROOM LAMP
IDN 		8-98075-827-0 01 1 1312-1402 ●
146 REINFORCEMENT; ROOM LAMP
IDN 		8-98075-827-0 01 1 1403- ● ●
148 REINFORCEMENT; MIRROR 8-97411-015-1 01 1 1312-1402 ●
148 REINFORCEMENT; MIRROR 8-97411-015-1 01 1 1403- ● ●
