◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#131568) — 22 parça

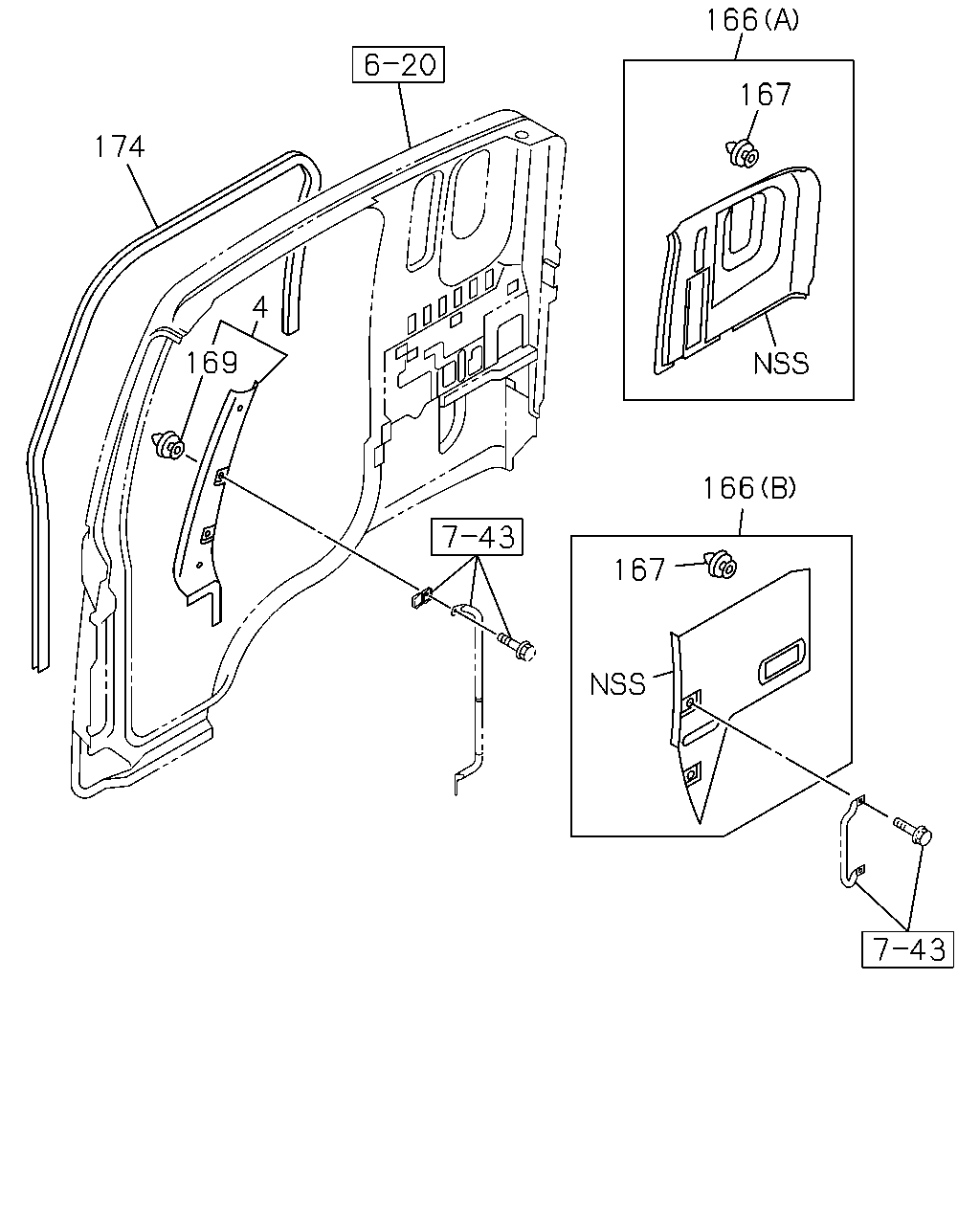

çizim 389392
174 4 169 166 167 166 167
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY IDN 		8-97405-255-2 01 1 1312-1402 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY IDN 		8-97405-255-2 01 1 1403- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1312-1402 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1403- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1312-1402 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1403- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97425-039-0 01 1 1312-1402 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97425-039-0 01 1 1403- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1312-1402 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1403- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97425-038-0 01 1 1312-1402 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97425-038-0 01 1 1403- ● ●
167 CLIP; TRIM,RR PILLAR
IDN 		8-98059-610-0 16 1 1312-1402 ●
167 CLIP; TRIM,RR PILLAR
IDN 		8-98059-610-0 16 1 1403- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1312-1402 ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1403- ● ●
174 FINISHER; BODY SIDE
IDN 		8-98155-184-0 01 1 1312-1402 ●
174 FINISHER; BODY SIDE
IDN 		8-98155-184-0 01 1 1403-1509 ● ●
174 FINISHER; BODY SIDE
IDN 		8-98249-514-0 01 1 1510- ● ●
174 FINISHER; BODY SIDE
IDN 		8-98155-183-0 01 1 1312-1402 ●
174 FINISHER; BODY SIDE
IDN 		8-98155-183-0 01 1 1403-1509 ● ●
174 FINISHER; BODY SIDE
IDN 		8-98249-513-0 01 1 1510- ● ●
