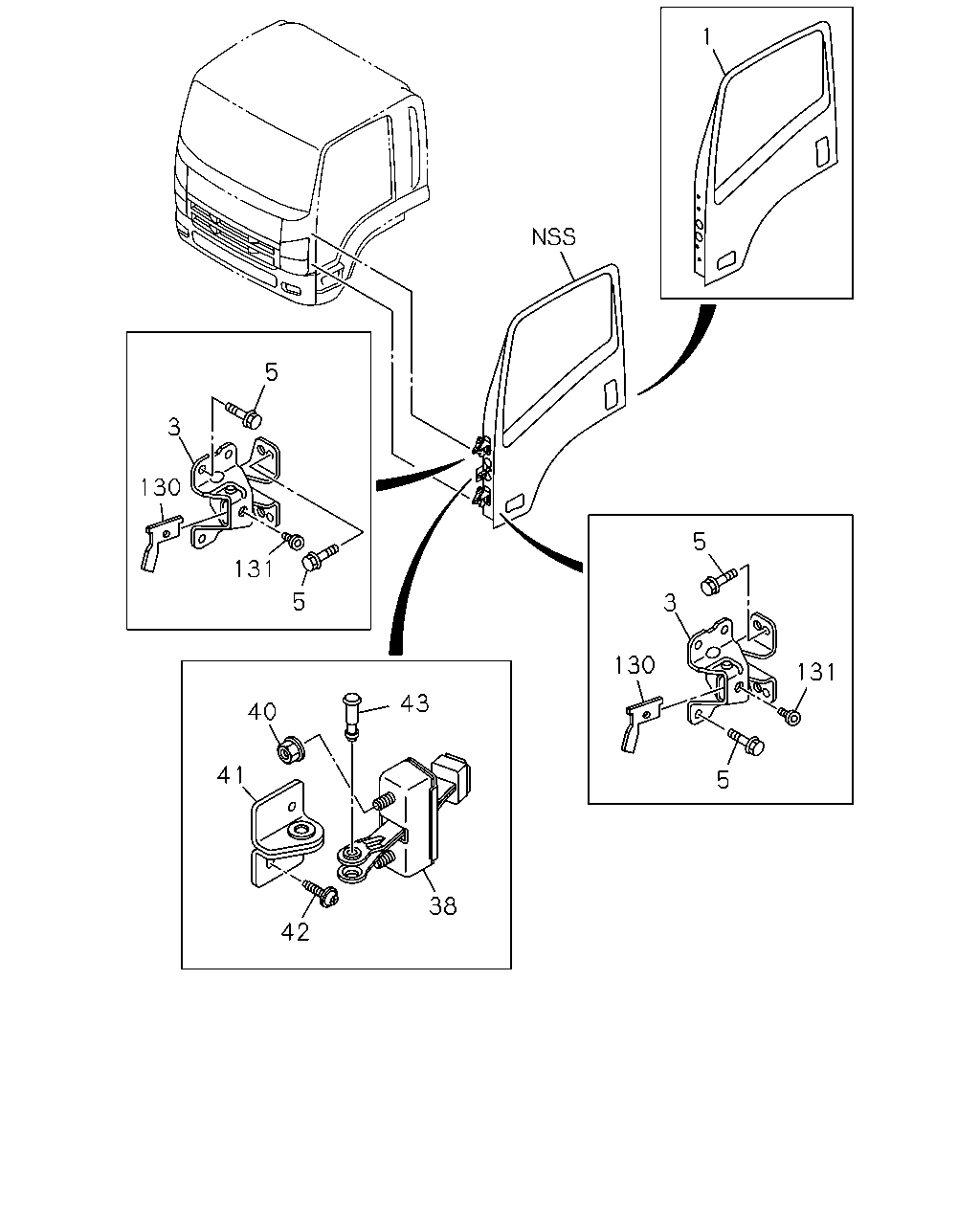

6-30 — FRONT DOOR AND HINGE
(#131564) — 27 parça
Tümü
A - FGR5MV
B - GGR5MV
1
130
3
5
131
5
38
43
40
41
42
5
131
5
3
130
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DOOR ASM; FRT,WO/TRIM
8-98171-232-0
01
1
1312-1402
●
1
DOOR ASM; FRT,WO/TRIM
8-98171-232-0
01
1
1403-1411
●
●
1
DOOR ASM; FRT,WO/TRIM
8-98260-600-0
01
1
1412-
●
●
1
DOOR ASM; FRT,WO/TRIM
8-98171-224-0
01
1
1312-1402
●
1
DOOR ASM; FRT,WO/TRIM
8-98171-224-0
01
1
1403-1411
●
●
1
DOOR ASM; FRT,WO/TRIM
8-98260-599-0
01
1
1412-
●
●
3
HINGE; DOOR FRT
IDN
8-98191-302-0
04
1
1312-1402
●
3
HINGE; DOOR FRT
IDN
8-98191-302-0
04
1
1403-
●
●
5
BOLT; HINGE
M8X20 FLANGE
8-98049-756-0
20
1
1312-1402
●
5
BOLT; HINGE
M8X20 FLANGE
8-98049-756-0
20
1
1403-
●
●
38
CHECKER ASM; DOOR
IDN
8-98208-189-1
02
1
1312-1402
●
38
CHECKER ASM; DOOR
IDN
8-98208-189-1
02
1
1403-1508
●
●
38
CHECKER ASM; DOOR
IDN
8-98296-601-0
02
1
1509-
●
●
40
NUT; CHECKER
M8 W/DISHED WASHER
8-97329-625-0
04
1
1312-1402
●
40
NUT; CHECKER
M8 W/DISHED WASHER
8-97329-625-0
04
1
1403-1508
●
●
40
NUT; CHECKER
M8 W/DISHED WASHER
8-98302-918-0
04
1
1509-1509
●
●
40
NUT; CHECKER
M8 W/DISHED WASHER
8-97329-625-0
04
1
1510-
●
●
41
BRACKET; CHECKER
IDN
8-98029-290-3
02
1
1312-1402
●
41
BRACKET; CHECKER
IDN
8-98029-290-3
02
1
1403-
●
●
42
BOLT; BRKT
M6X20 W/PL WASHER IDN
8-98032-159-2
04
1
1312-1402
●
42
BOLT; BRKT
M6X20 W/PL WASHER IDN
8-98032-159-2
04
1
1403-
●
●
43
PIN
IDN
8-98037-152-2
02
1
1312-1402
●
43
PIN
IDN
8-98037-152-2
02
1
1403-
●
●
130
STOPPER; HINGE
IDN
8-98038-299-1
04
1
1312-1402
●
130
STOPPER; HINGE
IDN
8-98038-299-1
04
1
1403-
●
●
131
BOLT; DOOR STOPPER
M10X11 IDN
8-98039-593-1
04
1
1312-1402
●
131
BOLT; DOOR STOPPER
M10X11 IDN
8-98039-593-1
04
1
1403-
●
●
