Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#131554) — 323 parça

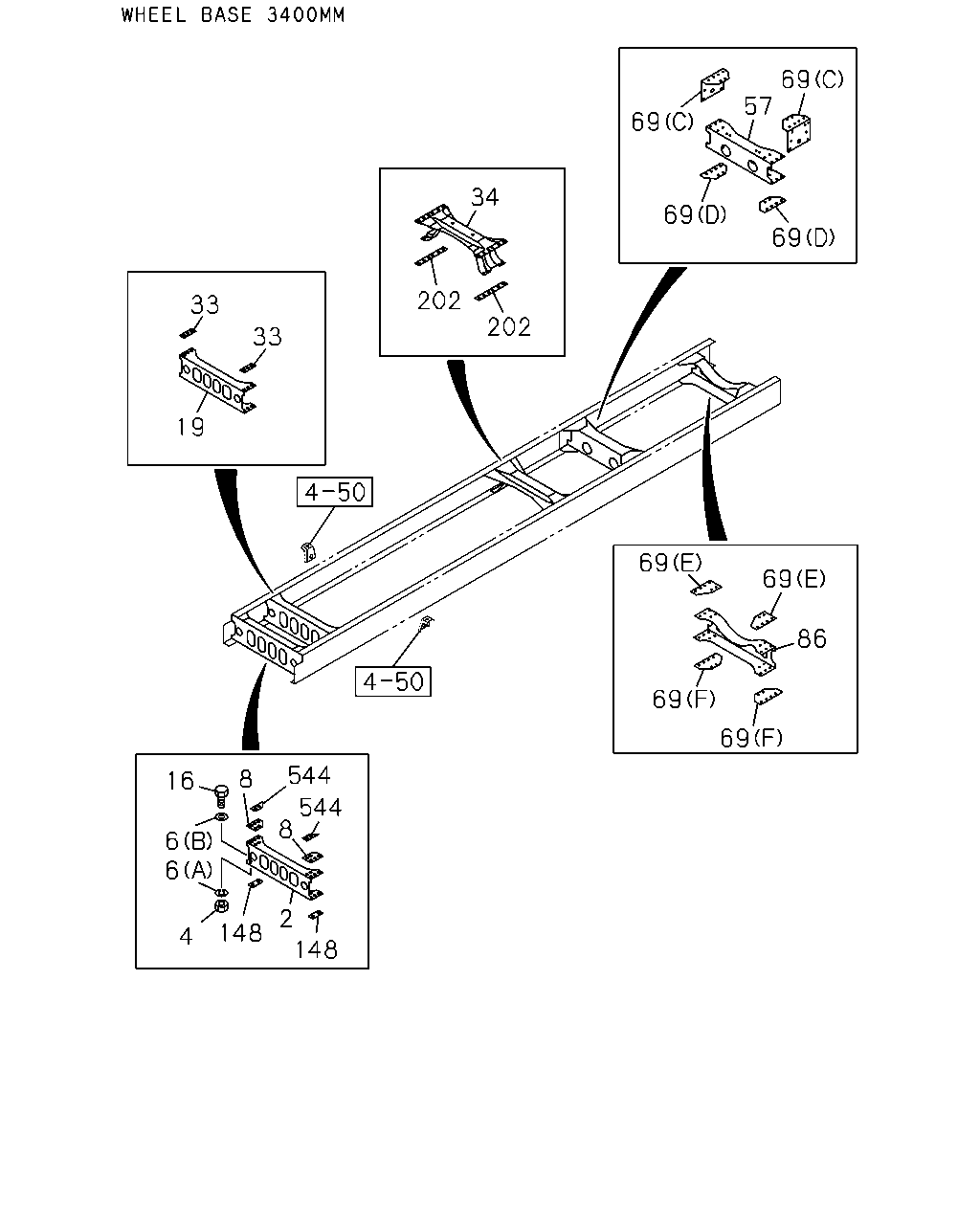

33 33 19 202 202 34 69 69 57 69 69 16 544 8 544 8 4 6 6 2 148 148 69 69 69 86 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST IDN	8-97610-852-6	01	1	1403-1405	●
2	MEMBER; CROSS,1ST P90 PROP SHAFT<C5T> IDN	8-97610-852-7	01	1	1406-		●	●
2	MEMBER; CROSS,1ST IDN	8-97610-852-7	01	1	1406-	●
2	MEMBER; CROSS,1ST IDN	8-97695-001-0	01	1	1312-1405		●	●	●
2	MEMBER; CROSS,1ST IDN	8-97695-001-0	01	1	1406-				●
2	MEMBER; CROSS,1ST P46 PROP SHAFT<C4Z> IDN	8-97695-001-0	01	1	1406-		●	●
4	NUT; 1ST C/MBR TO S/MBR M14	0-91110-514-0	02	1	1312-1402		●	●	●
4	NUT; 1ST C/MBR TO S/MBR M14	0-91110-514-0	02	1	1403-	●	●	●	●
6	WASHER; LK,1ST C/MBR (A) ID=14.2	0-91510-814-0	02	1	1312-1402		●	●	●
6	WASHER; LK,1ST C/MBR (A) ID=14.2	0-91510-814-0	02	1	1403-	●	●	●	●
6	WASHER; LK,1ST C/MBR (B) ID=15	8-98010-627-1	02	1	1312-1402		●	●	●
6	WASHER; LK,1ST C/MBR (B) ID=15	8-98010-627-1	02	1	1403-	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1312-1402		●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1403-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20851-440-0	02	1	1312-1402		●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20851-440-0	02	1	1403-	●	●	●	●
19	MEMBER; CROSS,2ND IDN	8-97610-853-4	01	1	1403-1405	●
19	MEMBER; CROSS,2ND P90 PROP SHAFT<C5T> IDN	8-97610-853-5	01	1	1406-		●	●
19	MEMBER; CROSS,2ND IDN	8-97610-853-5	01	1	1406-	●
19	MEMBER; CROSS,2ND IDN	8-97695-002-0	01	1	1312-1405		●	●	●
19	MEMBER; CROSS,2ND IDN	8-97695-002-0	01	1	1406-				●
19	MEMBER; CROSS,2ND P46 PROP SHAFT<C4Z> IDN	8-97695-002-0	01	1	1406-		●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1403-1405	●
33	SPACER; 2ND C/MBR,UPR P90 PROP SHAFT<C5T>	8-97611-040-0	02	1	1406-		●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1406-	●
33	SPACER; 2ND C/MBR,UPR IDN	8-97948-140-0	02	1	1312-1405		●	●	●
33	SPACER; 2ND C/MBR,UPR IDN	8-97948-140-0	02	1	1406-				●
33	SPACER; 2ND C/MBR,UPR P46 PROP SHAFT<C4Z> IDN	8-97948-140-0	02	1	1406-		●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1403-1405	●
34	MEMBER; CROSS,3RD P90 PROP SHAFT<C5T>	8-97610-854-2	01	1	1406-		●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1406-	●
34	MEMBER; CROSS,3RD IDN	8-97695-208-0	01	1	1312-1405		●	●	●
34	MEMBER; CROSS,3RD IDN	8-97695-208-0	01	1	1406-				●
34	MEMBER; CROSS,3RD P46 PROP SHAFT<C4Z> IDN	8-97695-208-0	01	1	1406-		●	●
57	MEMBER; CROSS,RR SUSP FRT P90 PROP SHAFT<C5T> IDN	8-97619-888-3	01	1	1406-		●	●
57	MEMBER; CROSS,RR SUSP FRT IDN	8-97647-265-0	01	1	1403-	●
57	MEMBER; CROSS,RR SUSP FRT IDN	8-97695-022-0	01	1	1312-1405		●	●	●
57	MEMBER; CROSS,RR SUSP FRT IDN	8-97695-022-0	01	1	1406-				●
57	MEMBER; CROSS,RR SUSP FRT P46 PROP SHAFT<C4Z> IDN	8-97695-022-0	01	1	1406-		●	●
69	GUSSET; RR SUSP,UPR (E)	8-97611-280-0	02	1	1403-	●
69	GUSSET; RR SUSP,UPR (F)	8-97611-314-0	02	1	1403-	●
69	GUSSET; RR SUSP,UPR (C)	8-97618-451-0	01	1	1403-	●
69	GUSSET; RR SUSP,UPR (C)	8-97618-452-0	01	1	1403-	●
69	GUSSET; RR SUSP,UPR (D)	8-97618-453-0	02	1	1403-	●
69	GUSSET; RR SUSP,UPR (A)	8-97619-889-0	04	1	1312-		●	●	●
69	GUSSET; RR SUSP,UPR (B)	8-97619-890-0	04	1	1312-		●	●	●
86	MEMBER; CROSS,RR SUSP RR P90 PROP SHAFT<C5T> IDN	8-97619-888-3	01	1	1406-		●	●
86	MEMBER; CROSS,RR SUSP RR	8-97611-312-1	01	1	1403-	●
86	MEMBER; CROSS,RR SUSP RR IDN	8-97695-022-0	01	1	1312-1405		●	●	●
86	MEMBER; CROSS,RR SUSP RR IDN	8-97695-022-0	01	1	1406-				●
86	MEMBER; CROSS,RR SUSP RR P46 PROP SHAFT<C4Z> IDN	8-97695-022-0	01	1	1406-		●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	1312-1402		●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	1403-	●	●	●	●
202	SPACER; 3RD C/MBR	8-97610-873-0	02	1	1403-	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	1312-		●	●	●
544	PLATE; CAB FRT MTG P90 PROP SHAFT<C5T>	8-97611-030-0	02	1	1406-		●
544	PLATE; CAB FRT MTG IDN	8-97695-133-0	02	1	1312-1405		●		●
544	PLATE; CAB FRT MTG IDN	8-97695-133-0	02	1	1406-				●
544	PLATE; CAB FRT MTG P46 PROP SHAFT<C4Z> IDN	8-97695-133-0	02	1	1406-		●
544	PLATE; CAB FRT MTG IDN	8-97695-134-0	02	1	1312-1405			●
544	PLATE; CAB FRT MTG P46 PROP SHAFT<C4Z> IDN	8-97695-134-0	02	1	1406-			●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1403-1405	●
544	PLATE; CAB FRT MTG P90 PROP SHAFT<C5T>	8-97615-598-0	02	1	1406-			●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1406-	●

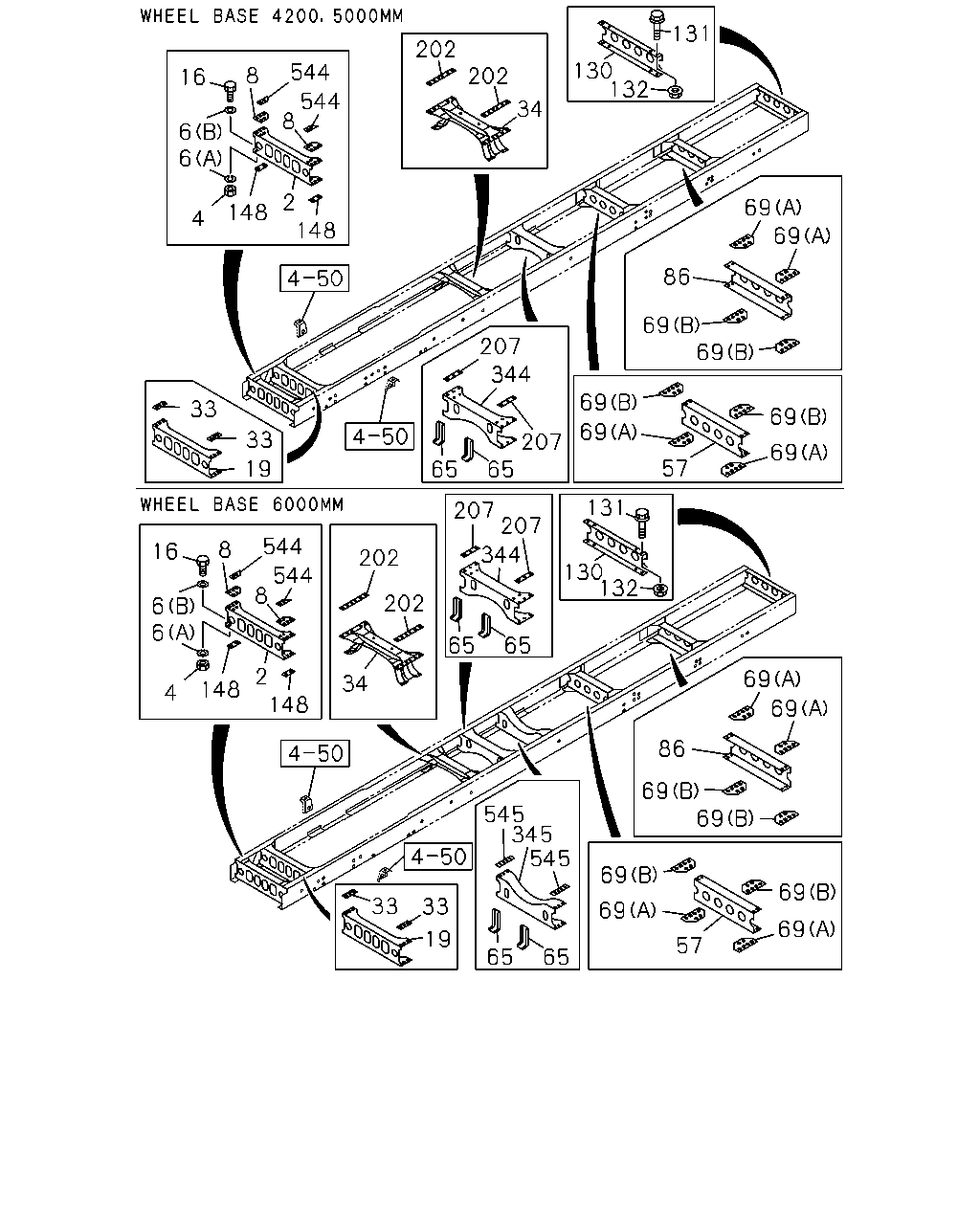

16 8 544 544 8 2 148 4 6 6 148 202 202 34 130 132 131 33 33 19 207 344 207 65 65 69 69 69 69 86 69 69 69 69 57 16 8 544 544 6 6 4 148 148 2 8 202 202 34 207 344 65 65 131 130 132 69 69 86 69 33 33 19 545 345 545 65 65 69 69 69 69 207 57 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST IDN	8-97610-852-6	01	1	1403-1405	●
2	MEMBER; CROSS,1ST P90 PROP SHAFT<C5T> IDN	8-97610-852-7	01	1	1406-		●	●
2	MEMBER; CROSS,1ST IDN	8-97610-852-7	01	1	1406-	●
2	MEMBER; CROSS,1ST IDN	8-97695-001-0	01	1	1312-1405		●	●	●
2	MEMBER; CROSS,1ST IDN	8-97695-001-0	01	1	1406-				●
2	MEMBER; CROSS,1ST P46 PROP SHAFT<C4Z> IDN	8-97695-001-0	01	1	1406-		●	●
4	NUT; 1ST C/MBR TO S/MBR M14	0-91110-514-0	02	1	1312-1402		●	●	●
4	NUT; 1ST C/MBR TO S/MBR M14	0-91110-514-0	02	1	1403-	●	●	●	●
6	WASHER; LK,1ST C/MBR (A) ID=14.2	0-91510-814-0	02	1	1312-1402		●	●	●
6	WASHER; LK,1ST C/MBR (A) ID=14.2	0-91510-814-0	02	1	1403-	●	●	●	●
6	WASHER; LK,1ST C/MBR (B) ID=15	8-98010-627-1	02	1	1312-1402		●	●	●
6	WASHER; LK,1ST C/MBR (B) ID=15	8-98010-627-1	02	1	1403-	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1312-1402		●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1403-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20851-440-0	02	1	1312-1402		●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20851-440-0	02	1	1403-	●	●	●	●
19	MEMBER; CROSS,2ND IDN	8-97610-853-4	01	1	1403-1405	●
19	MEMBER; CROSS,2ND P90 PROP SHAFT<C5T> IDN	8-97610-853-5	01	1	1406-		●	●
19	MEMBER; CROSS,2ND IDN	8-97610-853-5	01	1	1406-	●
19	MEMBER; CROSS,2ND IDN	8-97695-002-0	01	1	1312-1405		●	●	●
19	MEMBER; CROSS,2ND IDN	8-97695-002-0	01	1	1406-				●
19	MEMBER; CROSS,2ND P46 PROP SHAFT<C4Z> IDN	8-97695-002-0	01	1	1406-		●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1403-1405	●
33	SPACER; 2ND C/MBR,UPR P90 PROP SHAFT<C5T>	8-97611-040-0	02	1	1406-		●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1406-	●
33	SPACER; 2ND C/MBR,UPR IDN	8-97948-140-0	02	1	1312-1405		●	●	●
33	SPACER; 2ND C/MBR,UPR IDN	8-97948-140-0	02	1	1406-				●
33	SPACER; 2ND C/MBR,UPR P46 PROP SHAFT<C4Z> IDN	8-97948-140-0	02	1	1406-		●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1403-1405	●
34	MEMBER; CROSS,3RD P90 PROP SHAFT<C5T>	8-97610-854-2	01	1	1406-		●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1406-	●
34	MEMBER; CROSS,3RD IDN	8-97695-208-0	01	1	1312-1405		●	●	●
34	MEMBER; CROSS,3RD IDN	8-97695-208-0	01	1	1406-				●
34	MEMBER; CROSS,3RD P46 PROP SHAFT<C4Z> IDN	8-97695-208-0	01	1	1406-		●	●
57	MEMBER; CROSS,RR SUSP FRT P90 PROP SHAFT<C5T> IDN	8-97619-888-3	01	1	1406-		●	●
57	MEMBER; CROSS,RR SUSP FRT IDN	8-97647-265-0	01	1	1403-	●
57	MEMBER; CROSS,RR SUSP FRT IDN	8-97695-022-0	01	1	1312-1405		●	●	●
57	MEMBER; CROSS,RR SUSP FRT IDN	8-97695-022-0	01	1	1406-				●
57	MEMBER; CROSS,RR SUSP FRT P46 PROP SHAFT<C4Z> IDN	8-97695-022-0	01	1	1406-		●	●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T>	8-97614-128-0	02	1	1406-		●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T>	8-97614-132-0	04	1	1406-			●
69	GUSSET; RR SUSP,UPR (E)	8-97611-280-0	02	1	1403-	●
69	GUSSET; RR SUSP,UPR (F)	8-97611-314-0	02	1	1403-	●
69	GUSSET; RR SUSP,UPR (C)	8-97618-451-0	01	1	1403-	●
69	GUSSET; RR SUSP,UPR (C)	8-97618-452-0	01	1	1403-	●
69	GUSSET; RR SUSP,UPR (D)	8-97618-453-0	02	1	1403-	●
69	GUSSET; RR SUSP,UPR (A)	8-97619-889-0	04	1	1312-		●	●	●
69	GUSSET; RR SUSP,UPR (B)	8-97619-890-0	04	1	1312-		●	●	●
86	MEMBER; CROSS,RR SUSP RR P90 PROP SHAFT<C5T> IDN	8-97619-888-3	01	1	1406-		●	●
86	MEMBER; CROSS,RR SUSP RR	8-97611-312-1	01	1	1403-	●
86	MEMBER; CROSS,RR SUSP RR IDN	8-97695-022-0	01	1	1312-1405		●	●	●
86	MEMBER; CROSS,RR SUSP RR IDN	8-97695-022-0	01	1	1406-				●
86	MEMBER; CROSS,RR SUSP RR P46 PROP SHAFT<C4Z> IDN	8-97695-022-0	01	1	1406-		●	●
130	MEMBER; CROSS,END P90 PROP SHAFT<C5T> IDN	8-97610-869-1	01	1	1406-		●	●
130	MEMBER; CROSS,END IDN	8-97695-020-0	01	1	1312-1405		●	●	●
130	MEMBER; CROSS,END IDN	8-97695-020-0	01	1	1406-				●
130	MEMBER; CROSS,END P46 PROP SHAFT<C4Z> IDN	8-97695-020-0	01	1	1406-		●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1312-		●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1312-		●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	1312-1402		●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	1403-	●	●	●	●
202	SPACER; 3RD C/MBR	8-97610-873-0	02	1	1403-	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	1312-		●	●	●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	1312-			●	●
207	SPACER; 4TH C/MBR 0.24KG	8-97611-245-0	02	1	1312-		●
344	MEMBER; CROSS,4TH P90 PROP SHAFT<C5T> IDN	8-97611-238-1	01	1	1406-		●	●
344	MEMBER; CROSS,4TH IDN	8-97695-004-0	01	1	1312-1405		●	●	●
344	MEMBER; CROSS,4TH IDN	8-97695-004-0	01	1	1406-				●
344	MEMBER; CROSS,4TH P46 PROP SHAFT<C4Z> IDN	8-97695-004-0	01	1	1406-		●	●
345	MEMBER; CROSS,5TH P90 PROP SHAFT<C5T> IDN	8-97611-238-1	01	1	1406-			●
345	MEMBER; CROSS,5TH IDN	8-97695-004-0	01	1	1312-1405			●
345	MEMBER; CROSS,5TH P46 PROP SHAFT<C4Z> IDN	8-97695-004-0	01	1	1406-			●
544	PLATE; CAB FRT MTG P90 PROP SHAFT<C5T>	8-97611-030-0	02	1	1406-		●
544	PLATE; CAB FRT MTG IDN	8-97695-133-0	02	1	1312-1405		●		●
544	PLATE; CAB FRT MTG IDN	8-97695-133-0	02	1	1406-				●
544	PLATE; CAB FRT MTG P46 PROP SHAFT<C4Z> IDN	8-97695-133-0	02	1	1406-		●
544	PLATE; CAB FRT MTG IDN	8-97695-134-0	02	1	1312-1405			●
544	PLATE; CAB FRT MTG P46 PROP SHAFT<C4Z> IDN	8-97695-134-0	02	1	1406-			●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1403-1405	●
544	PLATE; CAB FRT MTG P90 PROP SHAFT<C5T>	8-97615-598-0	02	1	1406-			●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1406-	●
545	SPACER; 5TH C/MBR 0.24KG	8-97611-245-0	02	1	1312-			●

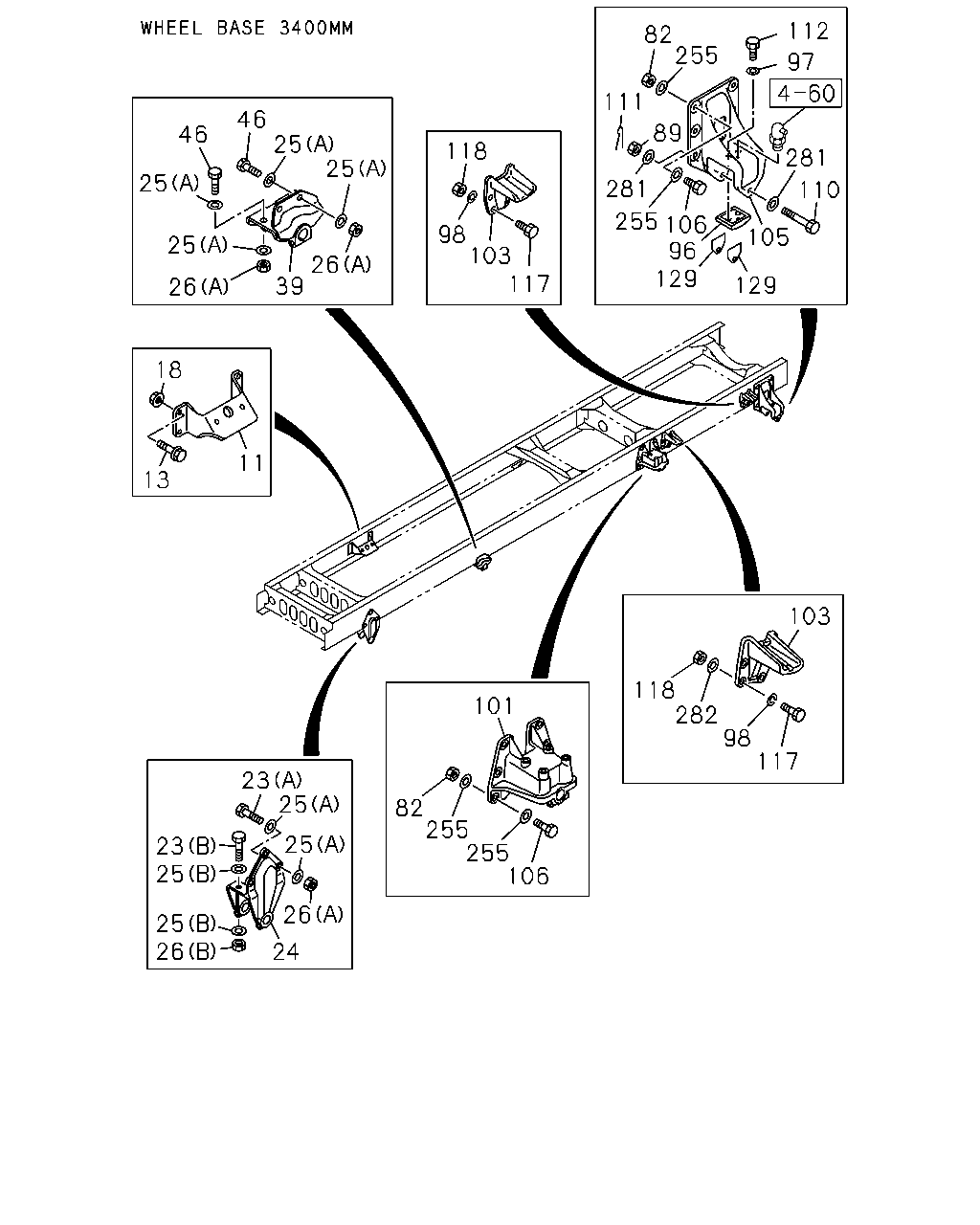

46 46 25 25 25 25 26 39 26 118 98 103 117 18 11 13 82 111 89 281 255 106 96 129 129 105 110 281 97 112 255 23 25 25 26 23 25 25 26 24 82 255 255 106 101 118 282 98 117 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1403-1405	●
11	BRACKET; ENG MTG P90 PROP SHAFT<C5T>	8-97619-550-0	02	1	1406-			●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1406-	●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1312-		●		●
11	BRACKET; ENG MTG IDN	8-97695-131-0	02	1	1312-1405			●
11	BRACKET; ENG MTG P46 PROP SHAFT<C4Z> IDN	8-97695-131-0	02	1	1406-			●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28661-240-0	08	1	1403-	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1312-		●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1312-1402		●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1403-	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1312-1402		●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1403-	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1312-1402		●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1403-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1403-1405	●
24	BRACKET; FRT SPR,FRT P90 PROP SHAFT<C5T>	8-98018-840-0	01	1	1406-		●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1406-	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1403-1405	●
24	BRACKET; FRT SPR,FRT P90 PROP SHAFT<C5T>	8-98018-841-0	01	1	1406-		●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1406-	●
24	BRACKET; FRT SPR,FRT IDN	8-97695-046-0	01	1	1312-1405		●	●	●
24	BRACKET; FRT SPR,FRT IDN	8-97695-046-0	01	1	1406-				●
24	BRACKET; FRT SPR,FRT P46 PROP SHAFT<C4Z> IDN	8-97695-046-0	01	1	1406-		●	●
24	BRACKET; FRT SPR,FRT IDN	8-97695-047-0	01	1	1312-1405		●	●	●
24	BRACKET; FRT SPR,FRT IDN	8-97695-047-0	01	1	1406-				●
24	BRACKET; FRT SPR,FRT P46 PROP SHAFT<C4Z> IDN	8-97695-047-0	01	1	1406-		●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	44	1	1403-	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1312-1402		●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1403-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1312-		●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1312-1402		●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1403-	●	●	●	●
26	NUT; BRKT,SPR (B) M16 IDN	0-91110-516-0	04	1	1312-1402		●	●	●
26	NUT; BRKT,SPR (B) M16 IDN	0-91110-516-0	04	1	1403-	●	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1403-1405	●
39	BRACKET; FRT SPR,RR P90 PROP SHAFT<C5T>	8-98043-648-0	01	1	1406-		●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1406-	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1403-1405	●
39	BRACKET; FRT SPR,RR P90 PROP SHAFT<C5T>	8-98043-649-0	01	1	1406-		●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1406-	●
39	BRACKET; FRT SPR,RR IDN	8-97924-625-0	01	1	1312-1405		●	●	●
39	BRACKET; FRT SPR,RR IDN	8-97924-625-0	01	1	1406-				●
39	BRACKET; FRT SPR,RR P46 PROP SHAFT<C4Z> IDN	8-97924-625-0	01	1	1406-		●	●
39	BRACKET; FRT SPR,RR IDN	8-97924-626-0	01	1	1312-1405		●	●	●
39	BRACKET; FRT SPR,RR IDN	8-97924-626-0	01	1	1406-				●
39	BRACKET; FRT SPR,RR P46 PROP SHAFT<C4Z> IDN	8-97924-626-0	01	1	1406-		●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1312-1402		●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1403-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	1312-1402		●	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	1403-	●	●	●	●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	1312-1402		●	●	●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	1403-	●	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	1312-1402		●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	1403-	●	●	●	●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	1312-1402		●	●	●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	1403-	●	●	●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	1312-		●	●	●
101	BRACKET; RR SPR,FRT P90 PROP SHAFT<C5T>	1-53353-078-1	02	1	1406-		●	●
101	BRACKET; RR SPR,FRT	1-53353-081-2	02	1	1403-	●
101	BRACKET; RR SPR,FRT IDN	8-97695-053-0	02	1	1312-1405		●	●	●
101	BRACKET; RR SPR,FRT IDN	8-97695-053-0	02	1	1406-				●
101	BRACKET; RR SPR,FRT P46 PROP SHAFT<C4Z> IDN	8-97695-053-0	02	1	1406-		●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	1312-1402		●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	1403-	●	●	●	●
105	BRACKET; RR SPR,RR P90 PROP SHAFT<C5T>	1-53354-064-1	02	1	1406-		●	●
105	BRACKET; RR SPR,RR	1-53354-073-1	02	1	1403-	●
105	BRACKET; RR SPR,RR IDN	8-97695-054-0	02	1	1312-1405		●	●	●
105	BRACKET; RR SPR,RR IDN	8-97695-054-0	02	1	1406-				●
105	BRACKET; RR SPR,RR P46 PROP SHAFT<C4Z> IDN	8-97695-054-0	02	1	1406-		●	●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	1312-1402		●	●	●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	1403-	●	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	1312-1402		●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	1403-	●	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	1312-1402		●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	1403-	●	●	●	●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	1312-1402		●	●	●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	1403-	●	●	●	●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	1312-1402		●	●	●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	1403-	●	●	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	1312-1402		●	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	1403-	●	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	1312-1402		●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	1403-	●	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	1312-1402		●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	1403-	●	●	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	48	1	1403-	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30 T=2.6	0-91610-614-0	04	1	1312-1402		●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30 T=2.6	0-91610-614-0	04	1	1403-	●	●	●	●
282	WASHER; PL,STOPPER ID=15	8-98010-627-1	16	1	1403-	●

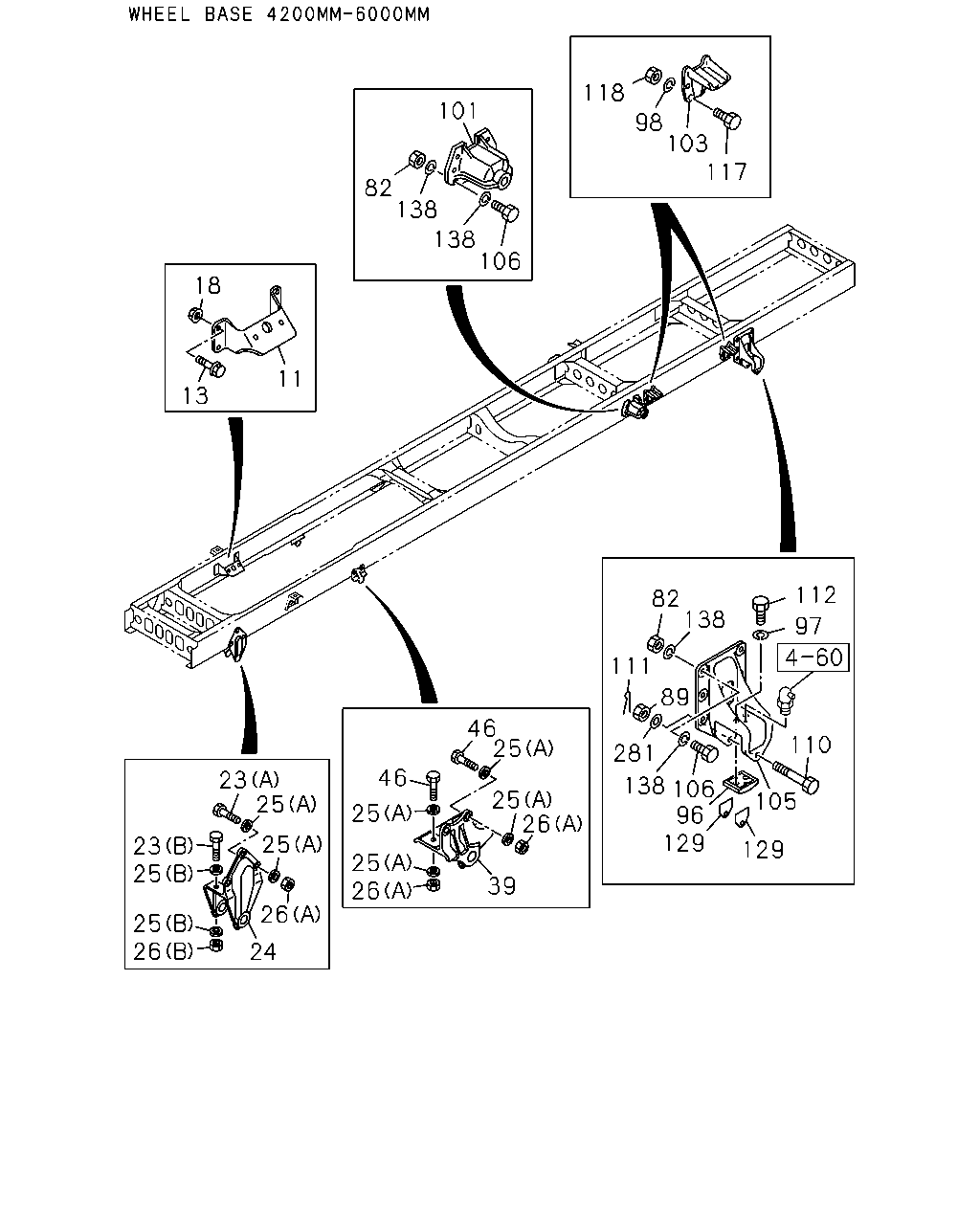

101 82 138 138 106 118 98 103 117 18 13 11 23 25 23 25 25 26 25 26 24 46 25 25 26 46 25 25 26 39 82 138 112 111 281 89 138 106 96 129 129 105 110 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1403-1405	●
11	BRACKET; ENG MTG P90 PROP SHAFT<C5T>	8-97619-550-0	02	1	1406-			●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1406-	●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1312-		●		●
11	BRACKET; ENG MTG IDN	8-97695-131-0	02	1	1312-1405			●
11	BRACKET; ENG MTG P46 PROP SHAFT<C4Z> IDN	8-97695-131-0	02	1	1406-			●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28661-240-0	08	1	1403-	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1312-		●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1312-1402		●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1403-	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1312-1402		●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1403-	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1312-1402		●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1403-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1403-1405	●
24	BRACKET; FRT SPR,FRT P90 PROP SHAFT<C5T>	8-98018-840-0	01	1	1406-		●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1406-	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1403-1405	●
24	BRACKET; FRT SPR,FRT P90 PROP SHAFT<C5T>	8-98018-841-0	01	1	1406-		●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1406-	●
24	BRACKET; FRT SPR,FRT IDN	8-97695-046-0	01	1	1312-1405		●	●	●
24	BRACKET; FRT SPR,FRT IDN	8-97695-046-0	01	1	1406-				●
24	BRACKET; FRT SPR,FRT P46 PROP SHAFT<C4Z> IDN	8-97695-046-0	01	1	1406-		●	●
24	BRACKET; FRT SPR,FRT IDN	8-97695-047-0	01	1	1312-1405		●	●	●
24	BRACKET; FRT SPR,FRT IDN	8-97695-047-0	01	1	1406-				●
24	BRACKET; FRT SPR,FRT P46 PROP SHAFT<C4Z> IDN	8-97695-047-0	01	1	1406-		●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	44	1	1403-	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1312-1402		●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1403-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1312-		●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1312-1402		●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1403-	●	●	●	●
26	NUT; BRKT,SPR (B) M16 IDN	0-91110-516-0	04	1	1312-1402		●	●	●
26	NUT; BRKT,SPR (B) M16 IDN	0-91110-516-0	04	1	1403-	●	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1403-1405	●
39	BRACKET; FRT SPR,RR P90 PROP SHAFT<C5T>	8-98043-648-0	01	1	1406-		●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1406-	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1403-1405	●
39	BRACKET; FRT SPR,RR P90 PROP SHAFT<C5T>	8-98043-649-0	01	1	1406-		●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1406-	●
39	BRACKET; FRT SPR,RR IDN	8-97924-625-0	01	1	1312-1405		●	●	●
39	BRACKET; FRT SPR,RR IDN	8-97924-625-0	01	1	1406-				●
39	BRACKET; FRT SPR,RR P46 PROP SHAFT<C4Z> IDN	8-97924-625-0	01	1	1406-		●	●
39	BRACKET; FRT SPR,RR IDN	8-97924-626-0	01	1	1312-1405		●	●	●
39	BRACKET; FRT SPR,RR IDN	8-97924-626-0	01	1	1406-				●
39	BRACKET; FRT SPR,RR P46 PROP SHAFT<C4Z> IDN	8-97924-626-0	01	1	1406-		●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1312-1402		●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1403-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	1312-1402		●	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	1403-	●	●	●	●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	1312-1402		●	●	●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	1403-	●	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	1312-1402		●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	1403-	●	●	●	●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	1312-1402		●	●	●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	1403-	●	●	●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	1312-		●	●	●
101	BRACKET; RR SPR,FRT P90 PROP SHAFT<C5T>	1-53353-078-1	02	1	1406-		●	●
101	BRACKET; RR SPR,FRT	1-53353-081-2	02	1	1403-	●
101	BRACKET; RR SPR,FRT IDN	8-97695-053-0	02	1	1312-1405		●	●	●
101	BRACKET; RR SPR,FRT IDN	8-97695-053-0	02	1	1406-				●
101	BRACKET; RR SPR,FRT P46 PROP SHAFT<C4Z> IDN	8-97695-053-0	02	1	1406-		●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	1312-1402		●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	1403-	●	●	●	●
105	BRACKET; RR SPR,RR P90 PROP SHAFT<C5T>	1-53354-064-1	02	1	1406-		●	●
105	BRACKET; RR SPR,RR	1-53354-073-1	02	1	1403-	●
105	BRACKET; RR SPR,RR IDN	8-97695-054-0	02	1	1312-1405		●	●	●
105	BRACKET; RR SPR,RR IDN	8-97695-054-0	02	1	1406-				●
105	BRACKET; RR SPR,RR P46 PROP SHAFT<C4Z> IDN	8-97695-054-0	02	1	1406-		●	●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	1312-1402		●	●	●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	1403-	●	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	1312-1402		●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	1403-	●	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	1312-1402		●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	1403-	●	●	●	●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	1312-1402		●	●	●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	1403-	●	●	●	●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	1312-1402		●	●	●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	1403-	●	●	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	1312-1402		●	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	1403-	●	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	1312-1402		●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	1403-	●	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	1312-1402		●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	1403-	●	●	●	●
138	WASHER; LK,BRKT ID=14.2	0-91510-814-0	24	1	1312-		●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30 T=2.6	0-91610-614-0	04	1	1312-1402		●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30 T=2.6	0-91610-614-0	04	1	1403-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
